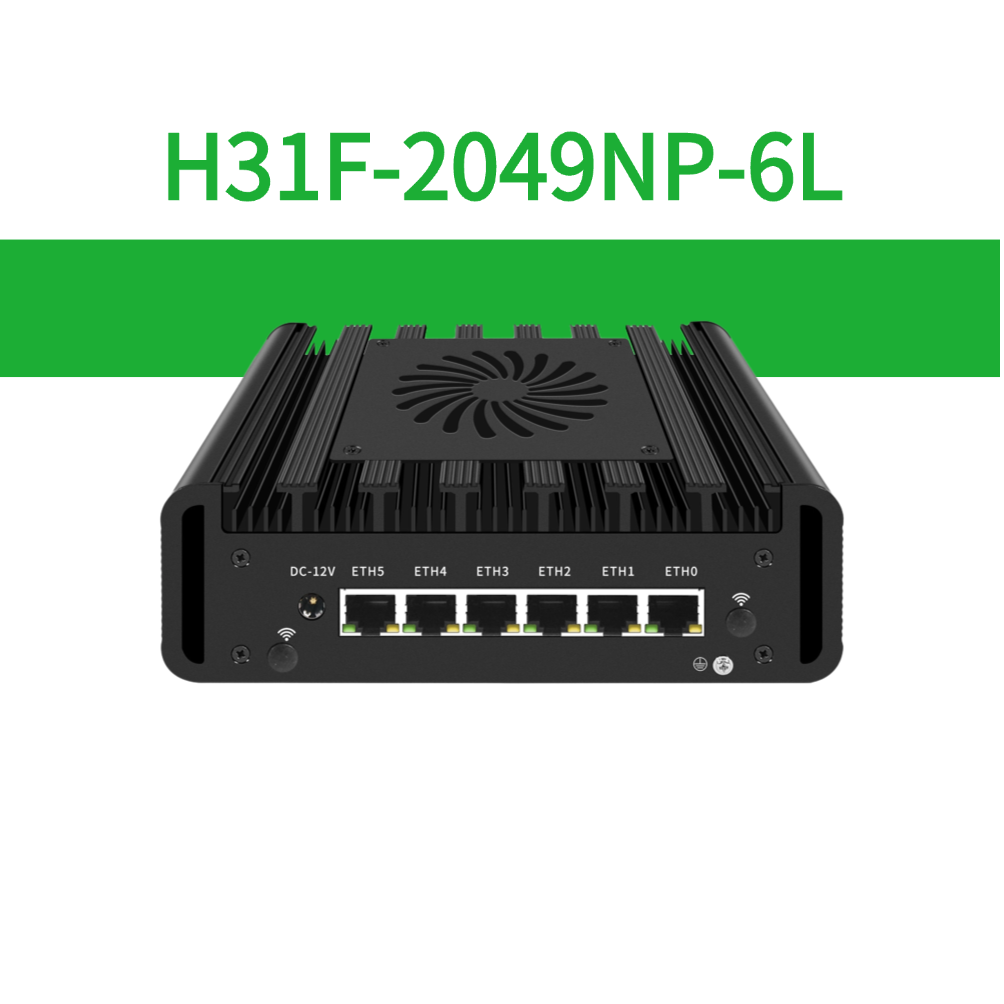

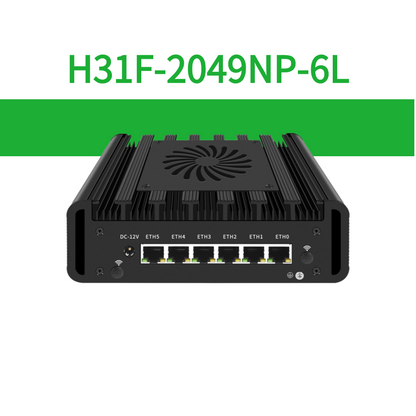

H31F-2049NP-6L Intel Core Ultra Firewall Appliance with 6×2.5GbE LAN
H31F-2049NP-6L Intel Core Ultra Firewall Appliance with 6×2.5GbE LAN
Não foi possível carregar a disponibilidade de retirada.

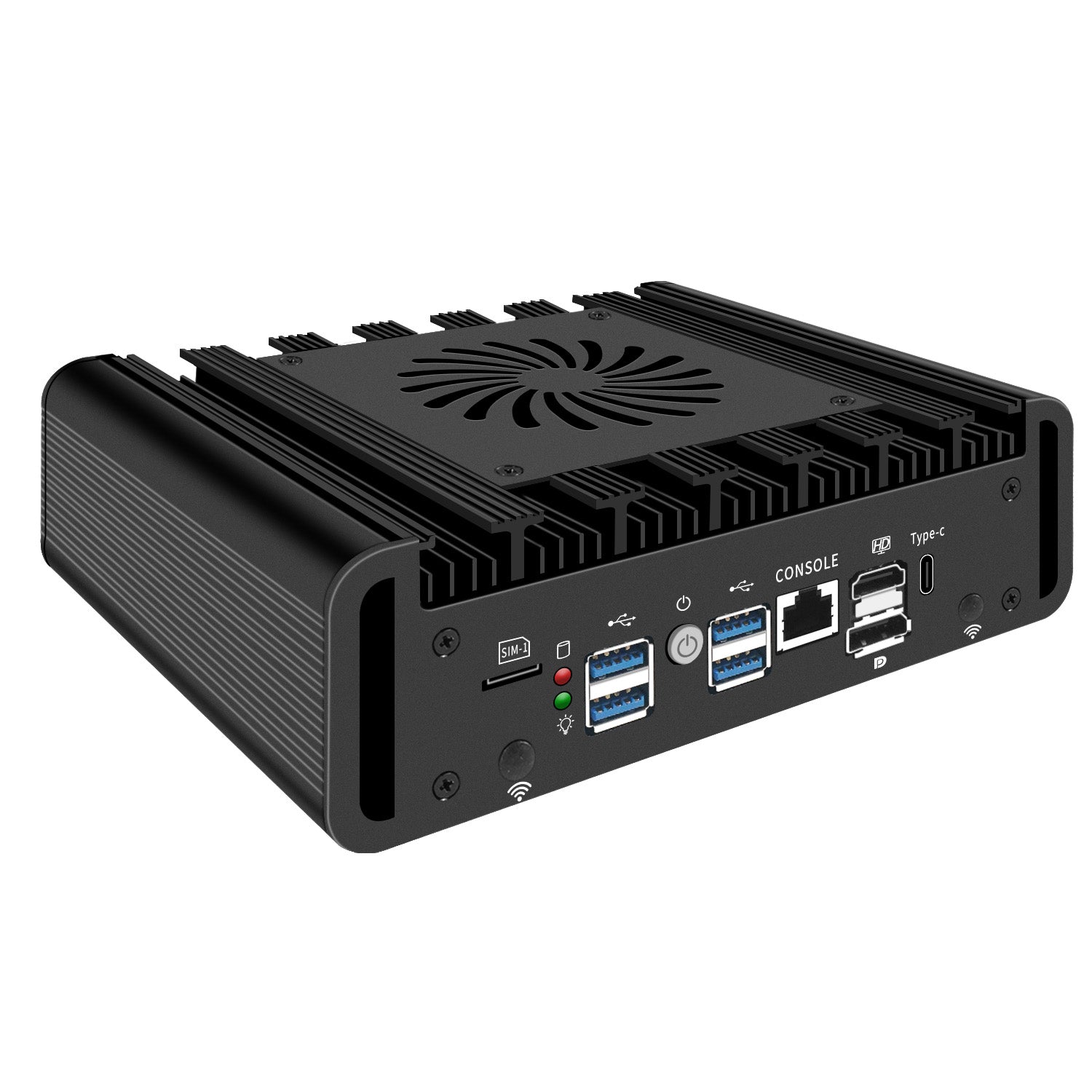

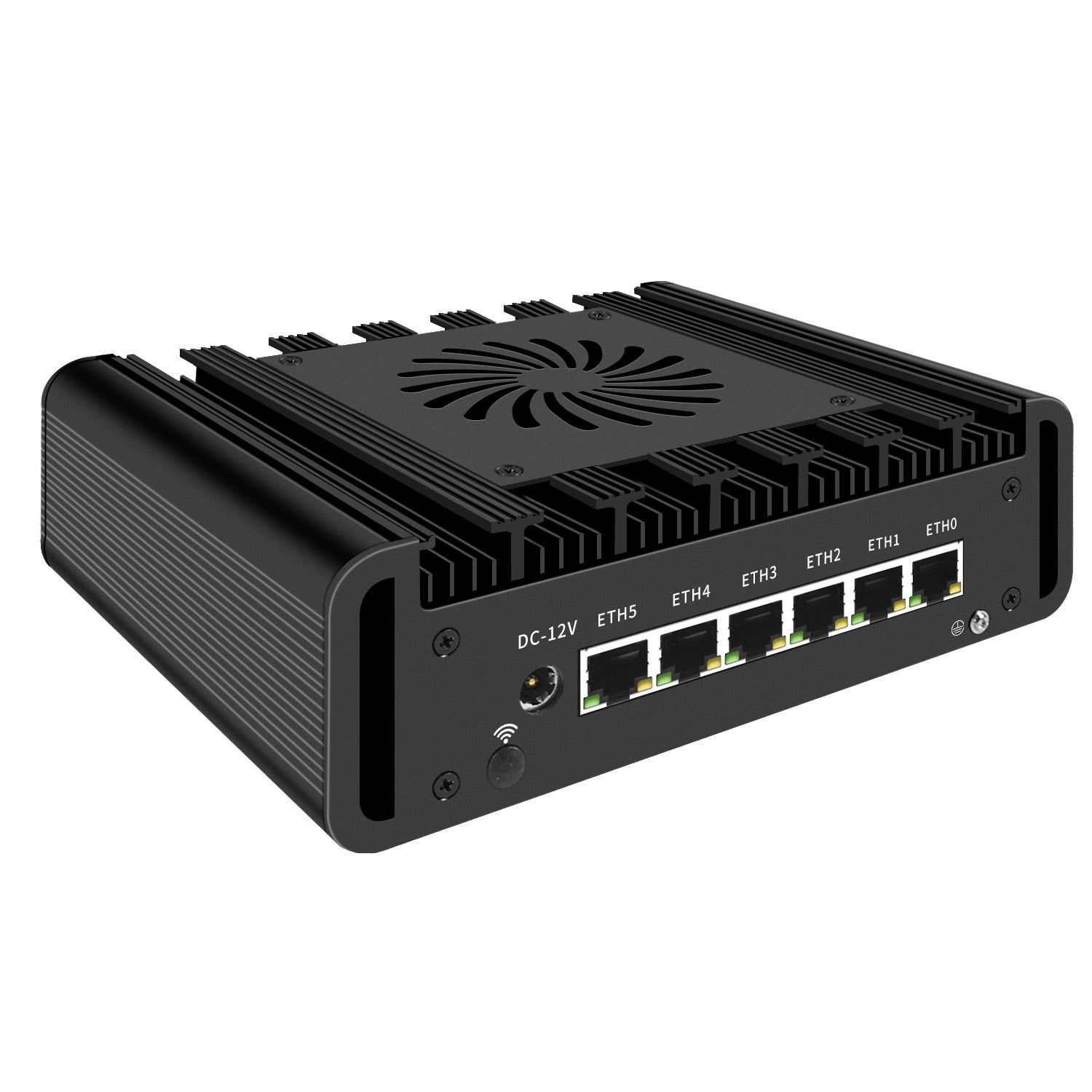

The H31F-2049NP-6L is a compact high-performance network appliance powered by Intel Core Ultra processors Series 1. Designed for firewall, SD-WAN, edge computing, cybersecurity, portable server, and industrial network applications, it integrates 6×Intel 2.5GbE RJ45 LAN ports, high-speed DDR5 memory, PCIe 4.0 NVMe storage, and flexible wireless expansion in a compact metal chassis. With an active cooling design and smart chassis fan, it is well suited for continuous workloads, sustained network traffic, and long-term network deployments.
Key Features
- Intel Core Ultra processors Series 1 platform for high-performance embedded network computing

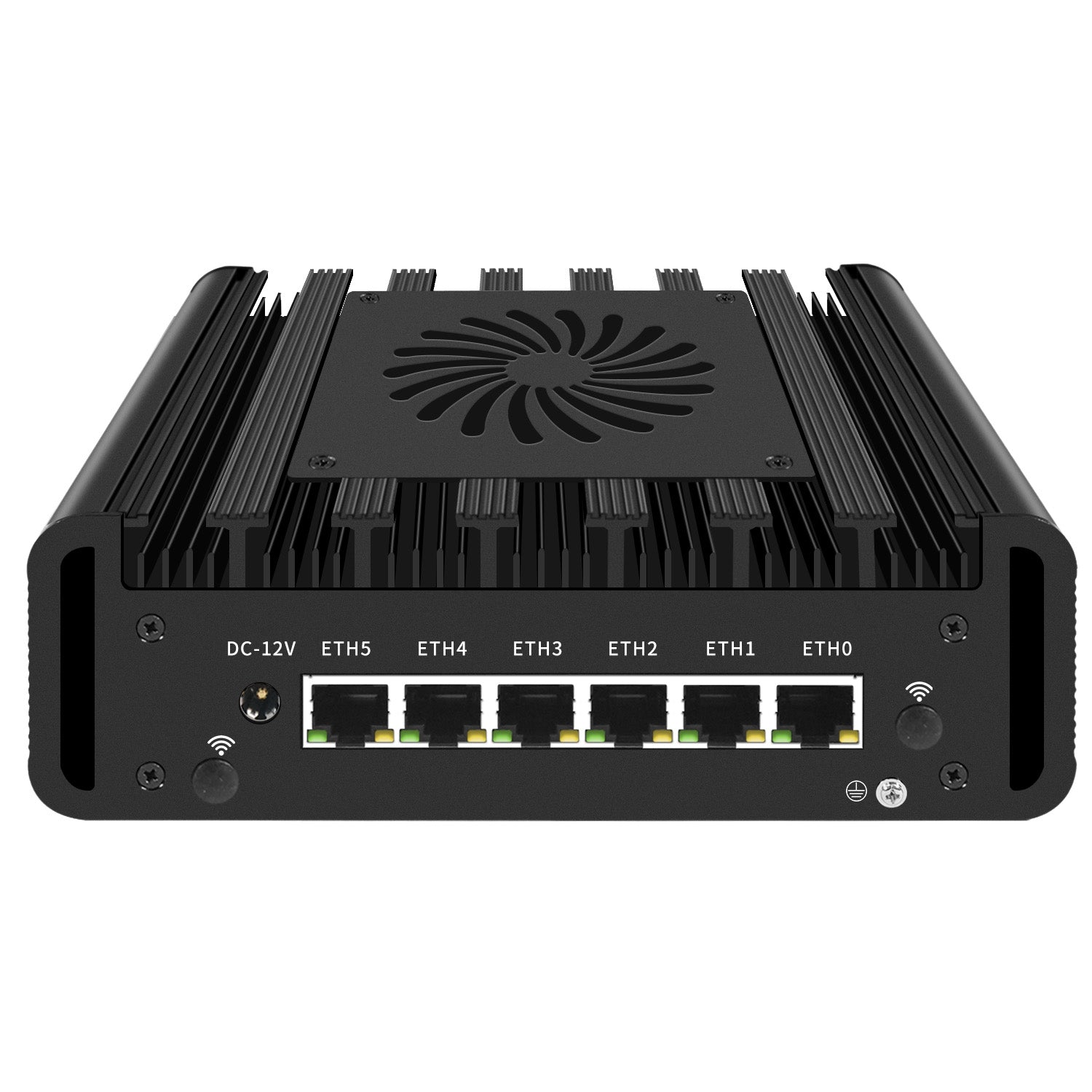

- 6×RJ45 2.5GbE LAN ports powered by Intel I226V controllers
- DDR5 SO-DIMM memory support, up to 2×64GB, 4800 MT/s
- High-speed PCIe 4.0 NVMe storage: 1×M.2 Key-M 2280, PCIe 4.0 x4
- Additional storage support: 1×SATA 3.0 6Gb/s
- Wireless expansion: 1×M.2 Key-E 2230 and 1×mPCIe slot
- SIM card slot for cellular communication module applications
- Display output: 1×HD and 1×DP

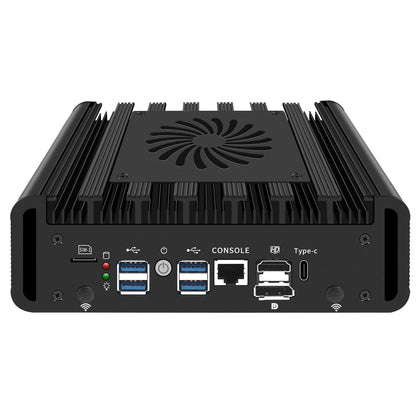

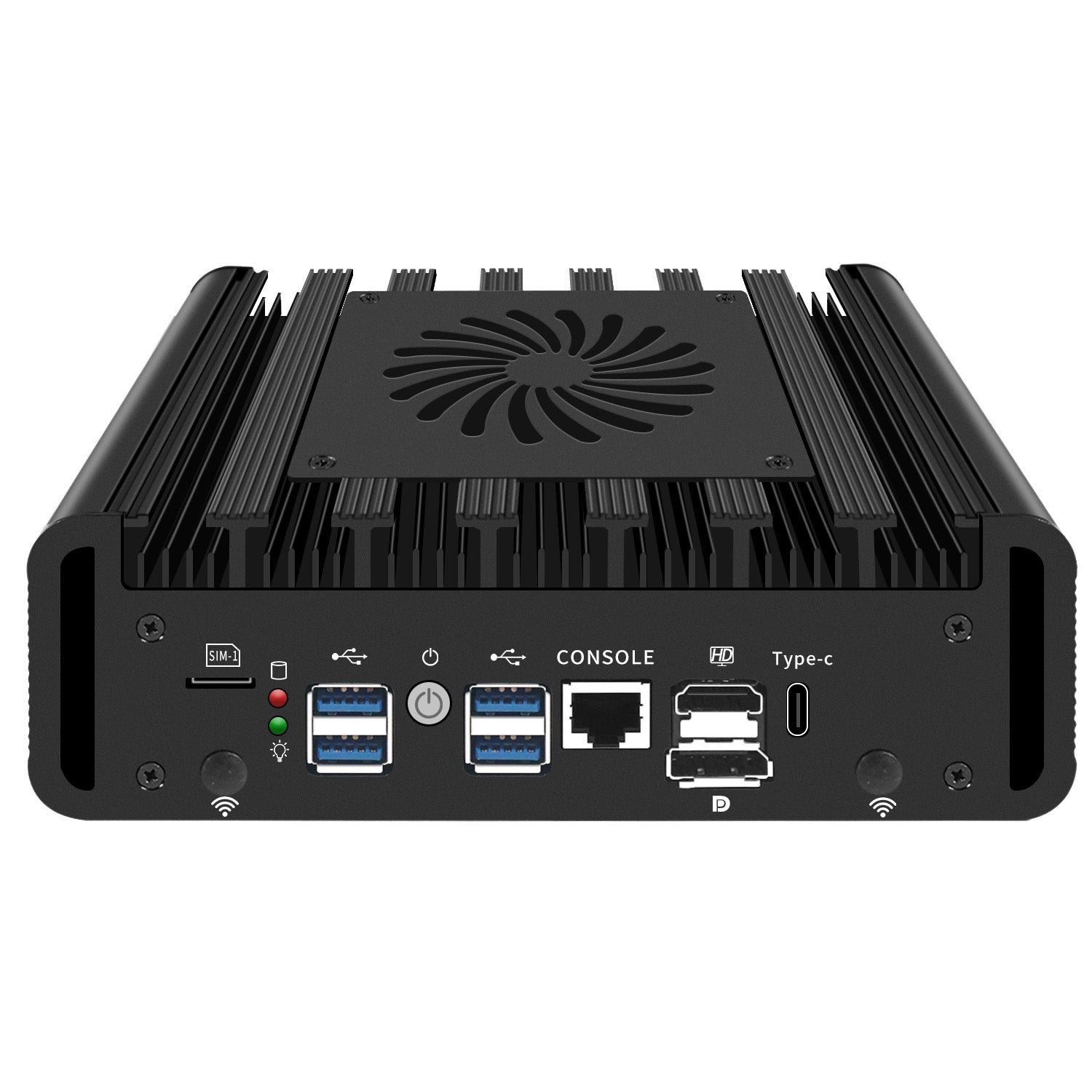

- USB connectivity: 4×USB-A 3.0 and 1×USB-C
- Console interface: 1×RJ45 COM for network appliance deployment and maintenance
- Active cooling design with 1×smart chassis fan for stable thermal performance
- DC 12V power input for compact industrial and embedded deployments
Application Scenarios
- Firewall and UTM appliances
- SD-WAN gateways
- Cybersecurity systems
- Edge AI computing
- Industrial IoT gateways
- Portable server applications
- Enterprise network routing and segmentation
- Industrial network communication equipment
Specifications
| Model | H31F-2049NP-6L |
| Processor Platform | Intel® Core™ Ultra processors Series 1 |
| Socket | FCBGA2049 |
| Memory | DDR5 SO-DIMM, up to 2×64GB, 4800 MT/s |
| Storage | 1×M.2 Key-M 2280 PCIe 4.0 x4, 1×SATA 3.0 6Gb/s |
| Network | 6×RJ45 2.5GbE LAN |
| Network Controller | 6×Intel I226V |
| Wireless Expansion | 1×M.2 Key-E 2230, 1×mPCIe |
| SIM | 1×SIM card slot |
| USB | 4×USB-A 3.0, 1×USB-C |
| Display | 1×HD, 1×DP |
| Console | 1×RJ45 COM |
| Antenna Hole | Reserved |
| Cooling Method | Active cooling, 1×smart chassis fan |
| Chassis Size | 177×125×54 mm |
| Weight | Equipment weight: 1.25 kg; package weight: 1.95 kg including accessories |
| Power Input | DC 12V |
| Operating Temperature | 0~50°C |
| Humidity | 5%~90% relative humidity, non-condensing |
Download
Note: Product appearance and specifications may vary slightly by production batch. Please refer to the actual product received or contact us before ordering if you need to confirm a specific configuration.
