H31F-1264-SFP Compact Edge Network Appliance with 3×2.5GbE and 2×10Gb SFP+
H31F-1264-SFP Compact Edge Network Appliance with 3×2.5GbE and 2×10Gb SFP+
Não foi possível carregar a disponibilidade de retirada.
The H31F-1264-SFP is a high-performance compact edge networking platform powered by an Intel Processor N-series CPU. Built in a precision-engineered metal chassis, it combines 3×2.5GbE RJ45 ports and 2×10Gb SFP+ fiber ports to deliver flexible copper and optical connectivity for modern network deployments. With DDR5 memory support, M.2 storage, wireless and cellular expansion options, and an active cooling design, it is ideal for network communication, cybersecurity, industrial networking, fiber gateway, soft router, and edge gateway applications.
Application Scenarios
- Network communication systems
- Cybersecurity appliances
- Industrial networks
- Edge gateways
- Fiber gateway systems
- Soft router platforms
- High-speed network edge nodes
- Wired and wireless hybrid network deployments
Specifications
| Model | H31F-1264-SFP |
| Processor Platform | Intel Processor N-series |
| Socket | FCBGA1264 |
| Memory | DDR5 SO-DIMM, up to 16GB, 4800 MT/s |
| Storage | 1×M.2 Key-B+M 2280, PCIe x1/SATA 3.0 |

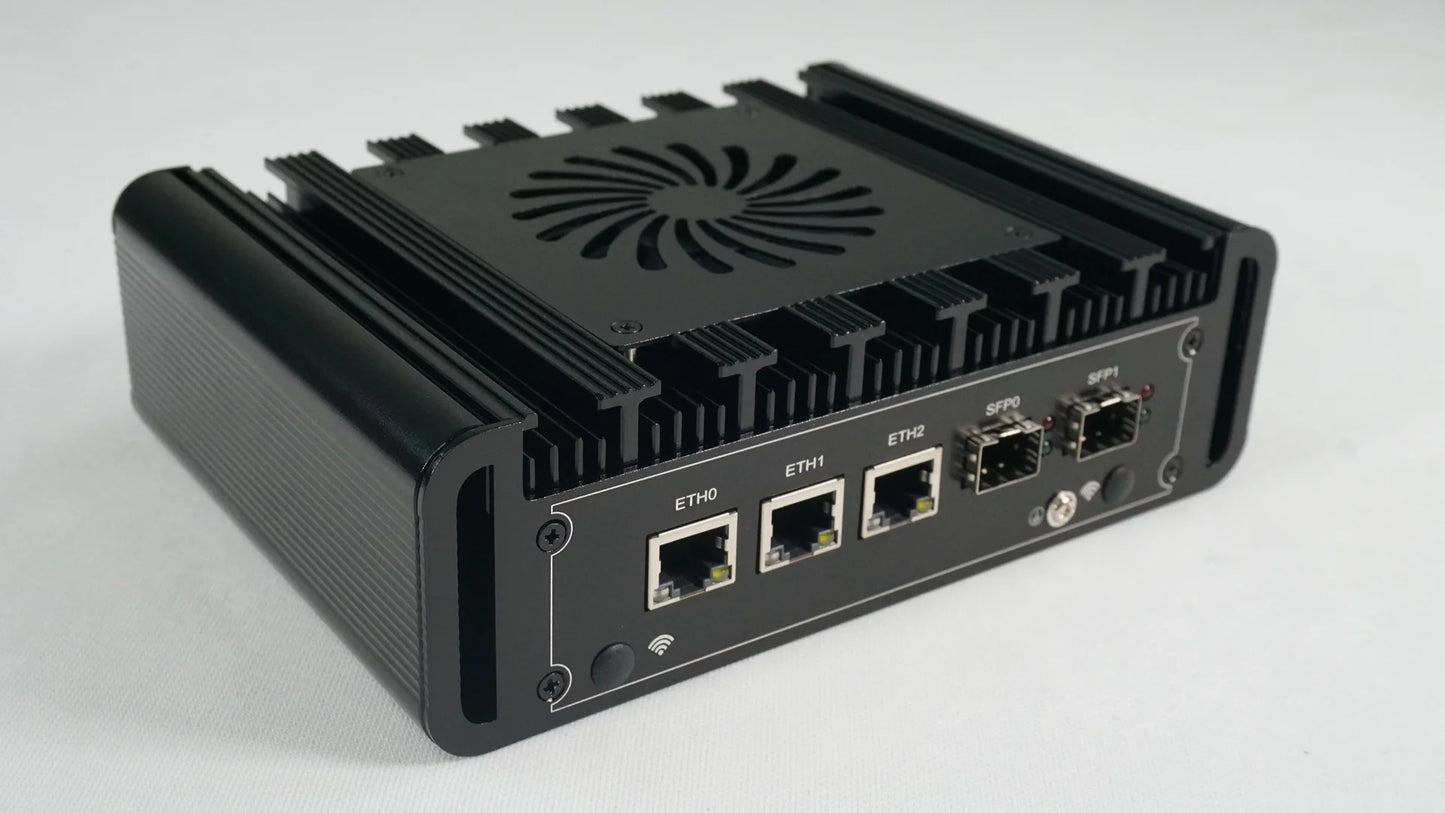

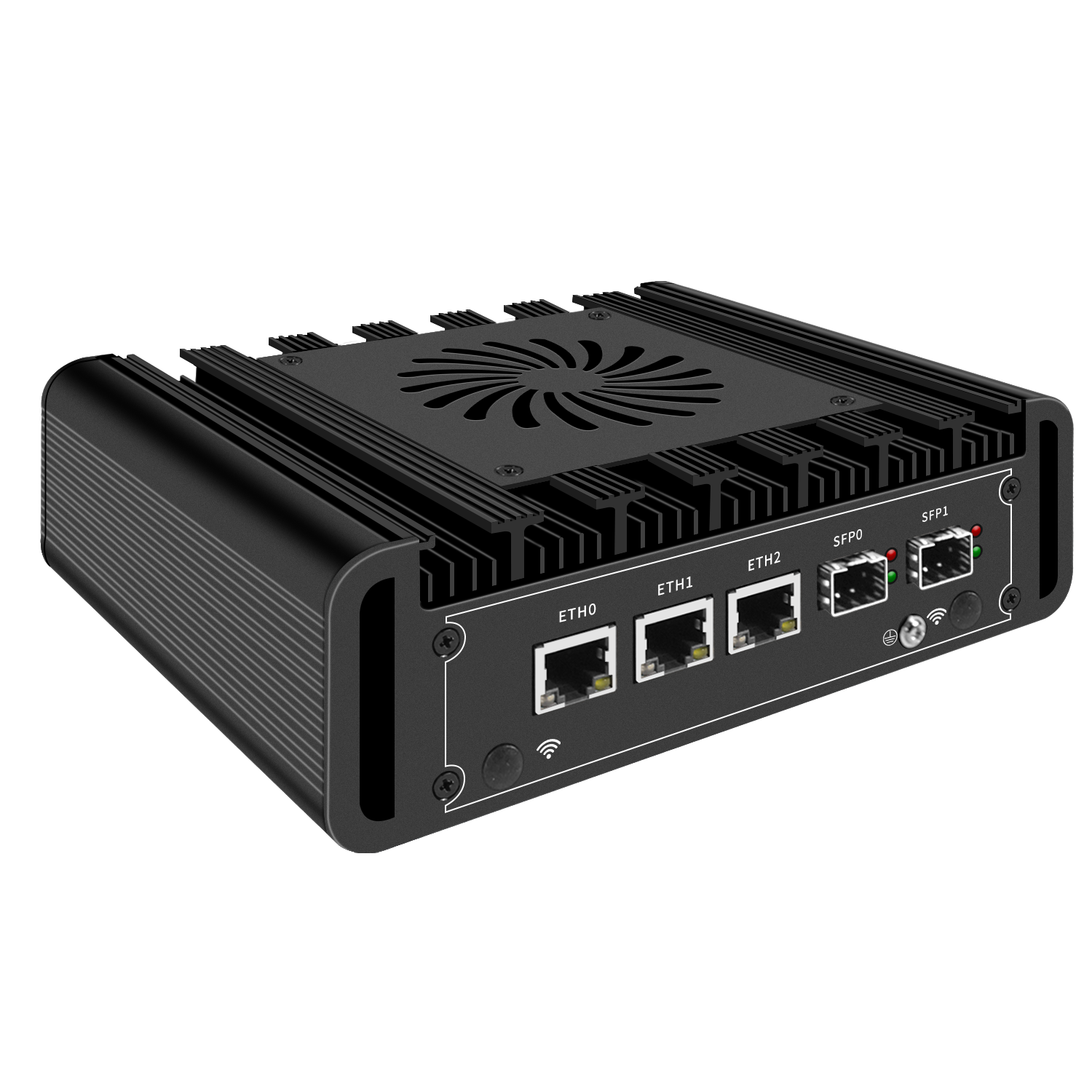

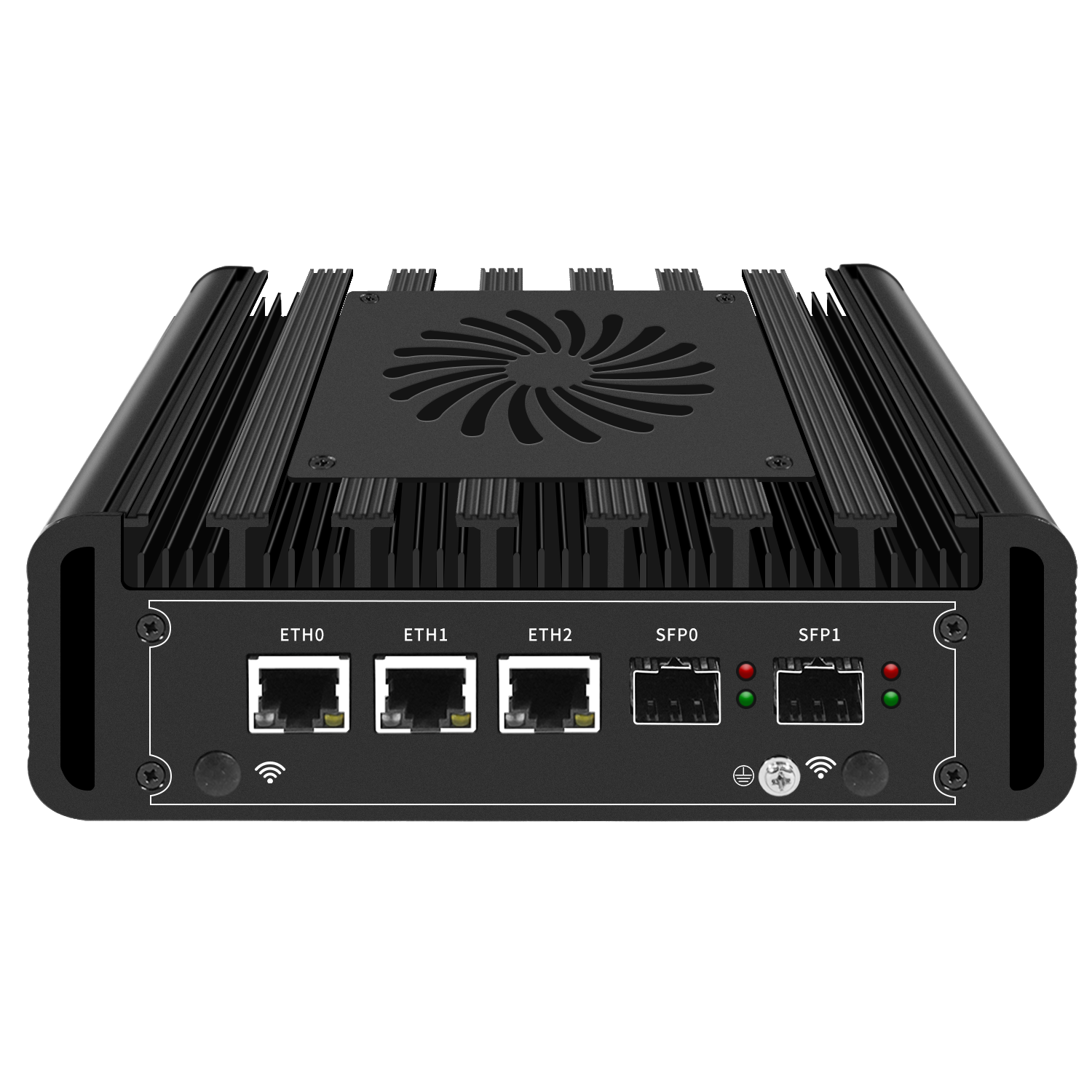

| Ethernet | 3×RJ45 2.5GbE LAN, 2×10Gb SFP+ |
| Network Controller | 3×Intel I226V, 2×Intel 82599 |
| Expansion | 1×M.2 Key-B 3052, 1×M.2 Key-E 2230 |
| SIM | 1×SIM card slot |

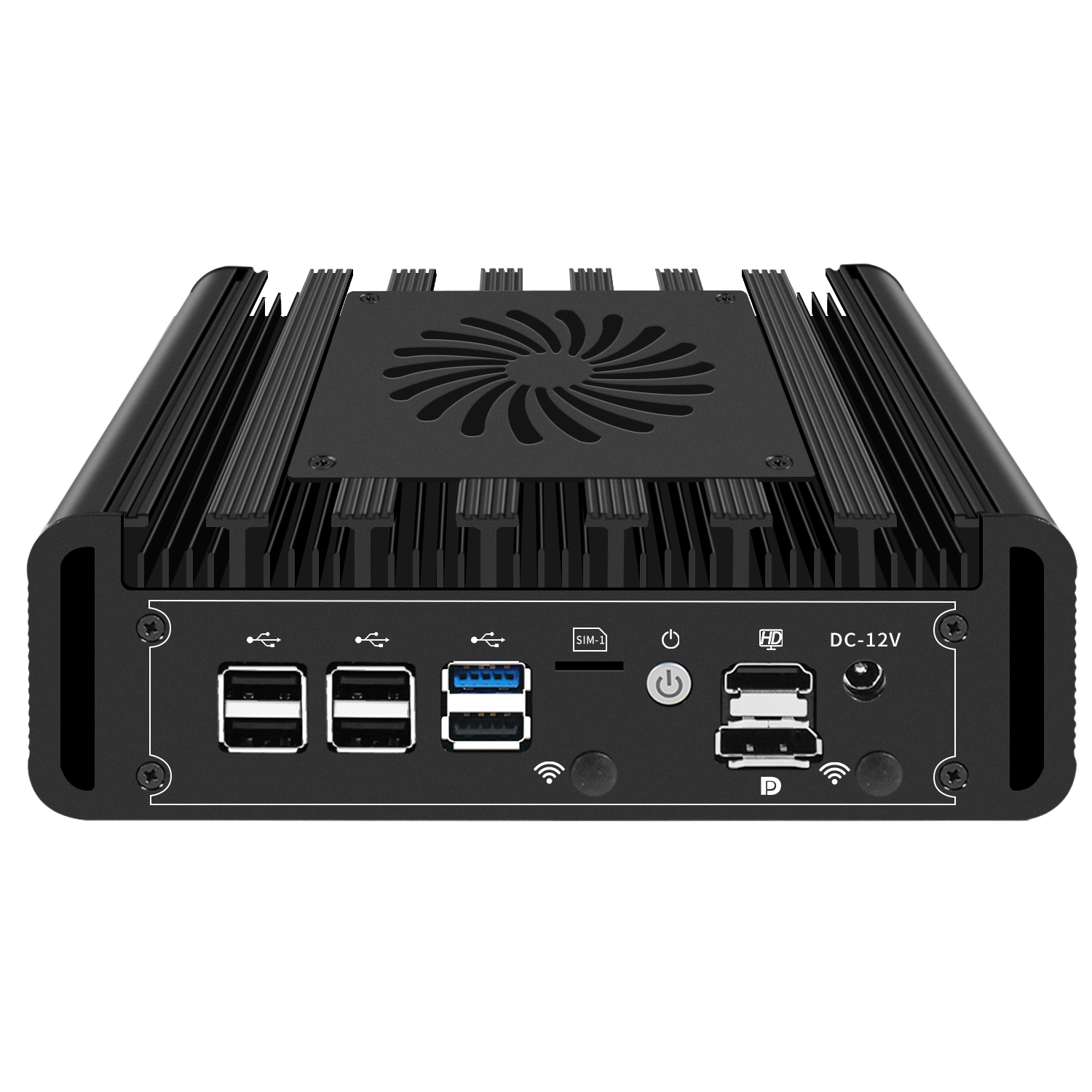

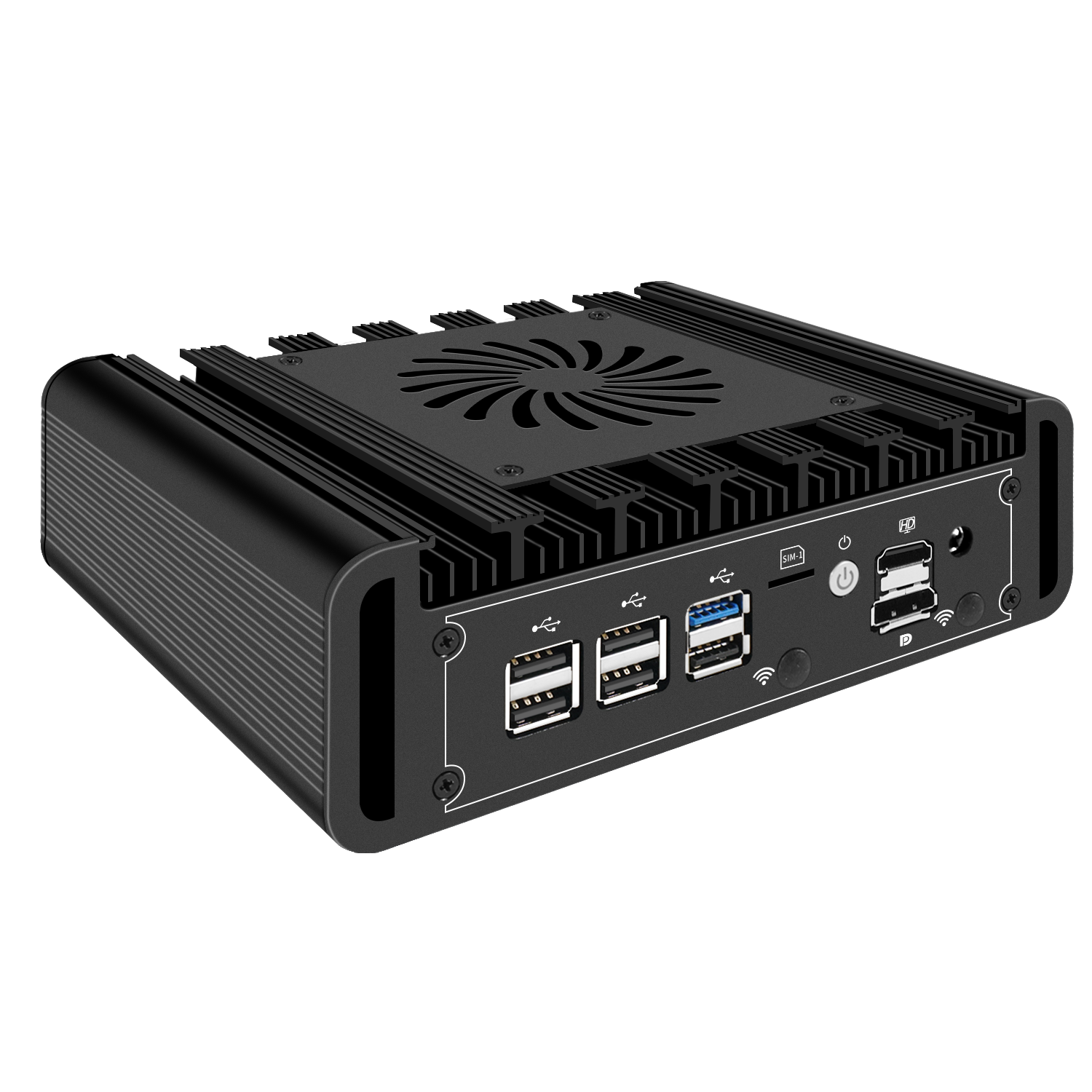

| USB | 5×USB-A 2.0, 1×USB-A 3.0 |
| Display | 1×DP, 1×HD |
| Onboard I/O | 1×J_COM, 1×J_GPIO, 1×CPU_FAN, 1×SFP_FAN reserved |
| Antenna Hole | 2×reserved |
| Cooling Method | Active cooling, 1×smart chassis fan |
| Chassis Size | 178×126×56 mm |
| Weight | Equipment weight: 1.25 kg; package weight: 1.95 kg including accessories |
| Power Input | DC 12V 7A or higher |
| Operating Temperature | 0~50°C |
| Humidity | 5%~90% relative humidity, non-condensing |
Download
Note: Product appearance and specifications may vary slightly by production batch. For module compatibility, fiber transceiver selection, wireless expansion, or system configuration confirmation, please contact us before ordering.
