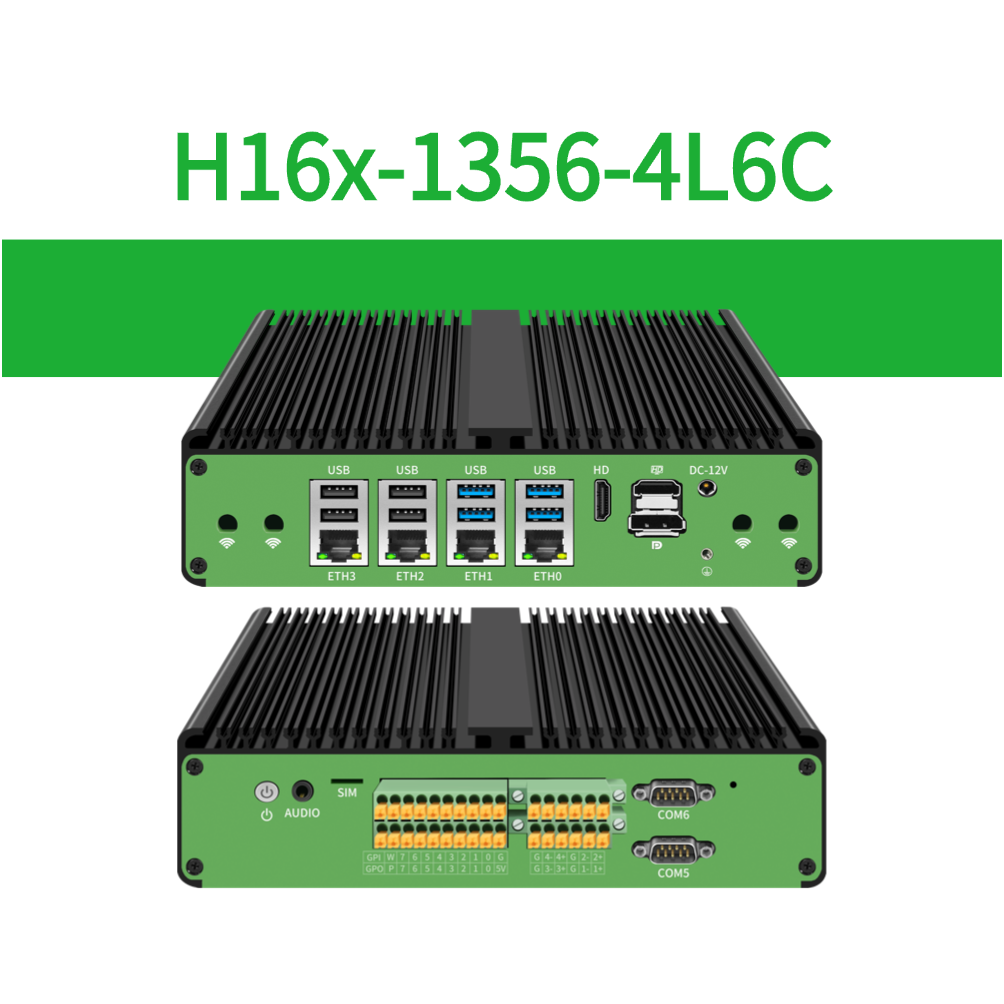

H16x-1356-4L6C Fanless Industrial PC with 4×GbE LAN, 6×COM and 16-Channel GPIO
H16x-1356-4L6C Fanless Industrial PC with 4×GbE LAN, 6×COM and 16-Channel GPIO
Não foi possível carregar a disponibilidade de retirada.

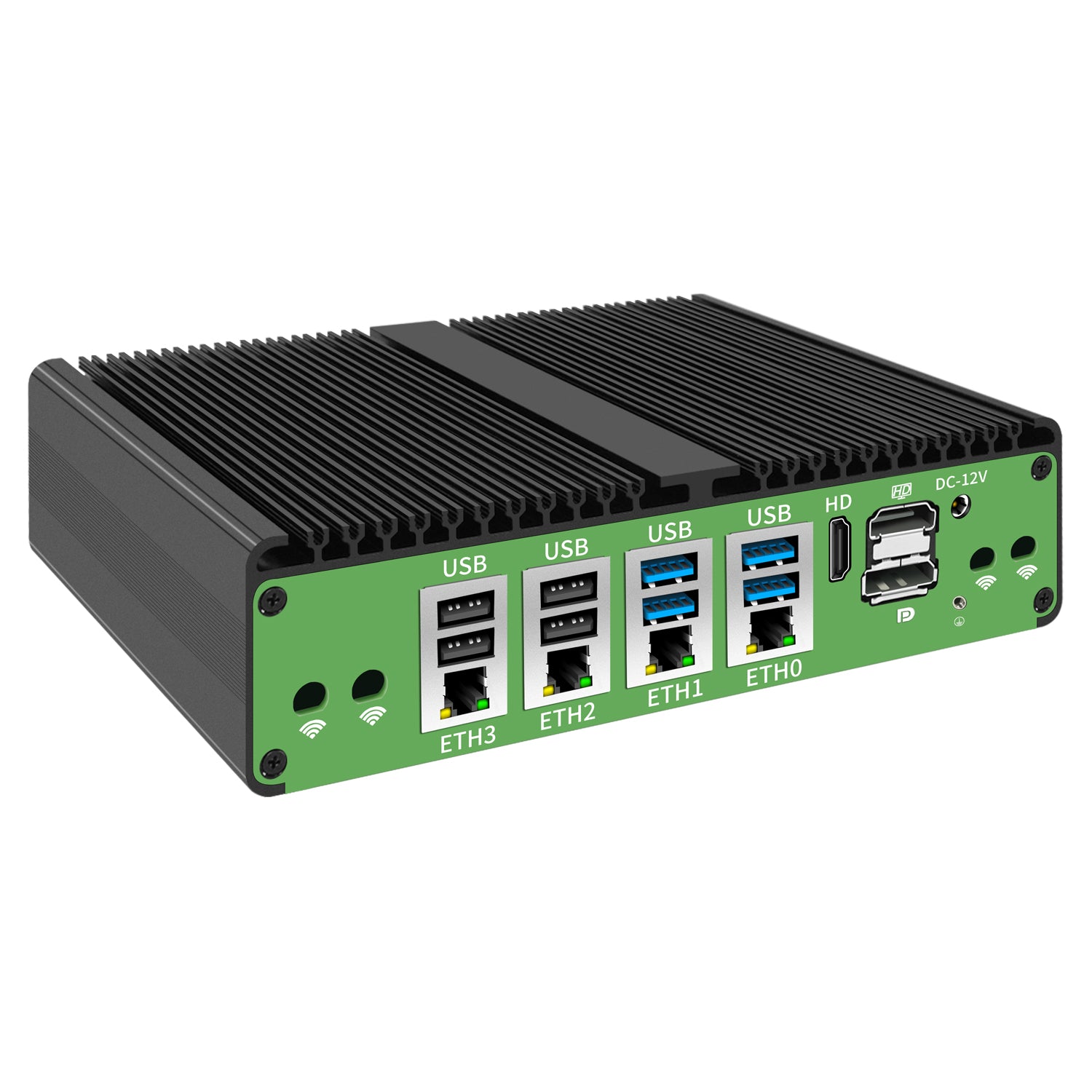

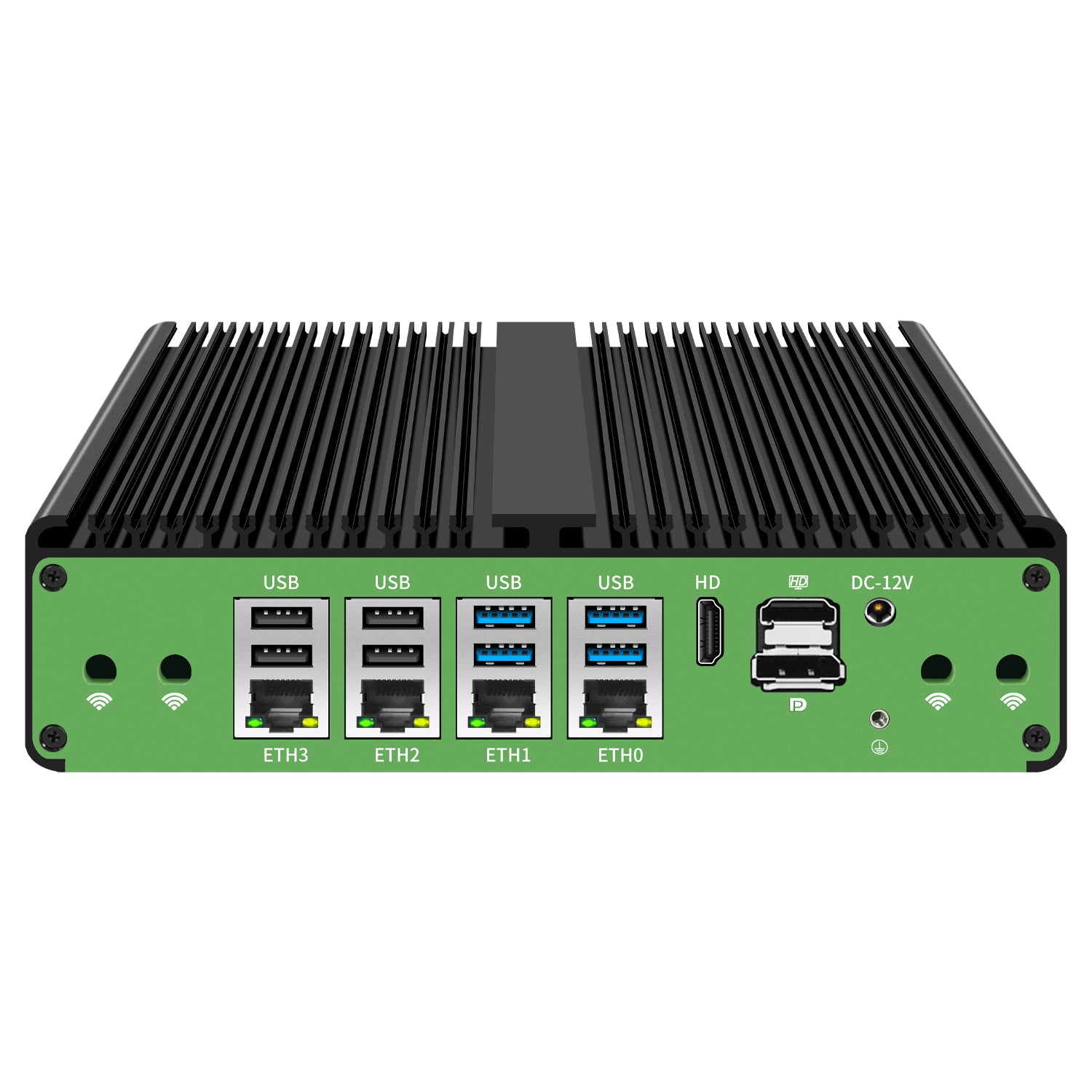

The H16x-1356-4L6C is a compact fanless industrial embedded computer based on 6th/7th/8th Generation Intel processors. Designed for industrial automation, IIoT gateways, machine vision, data acquisition, equipment management, and edge computing, it integrates reliable computing performance, 4×Intel Gigabit Ethernet ports, multiple USB interfaces, rich serial communication, 16-channel GPIO, flexible M.2 expansion, and triple display output in a compact industrial chassis.
With passive cooling, DC 12V power input, multiple COM options, Phoenix terminal interfaces, and wide operating environment support, the H16x-1356-4L6C is suitable for long-term deployment in control cabinets, intelligent terminals, machine control systems, edge gateways, and customized embedded applications.
Key Features
- 6th/7th/8th Generation Intel processor platform with FCBGA1356 package
- Fanless passive cooling design for quiet and stable industrial operation with proper airflow
- 4×RJ45 Gigabit Ethernet ports powered by Intel i210 controllers
- DDR4 SO-DIMM memory support, up to 2×16GB, 2133 MHz
- Flexible storage: 1×SATA 3.0 6Gb/s and 1×M.2 Key B+M SSD supporting SATA/PCIe

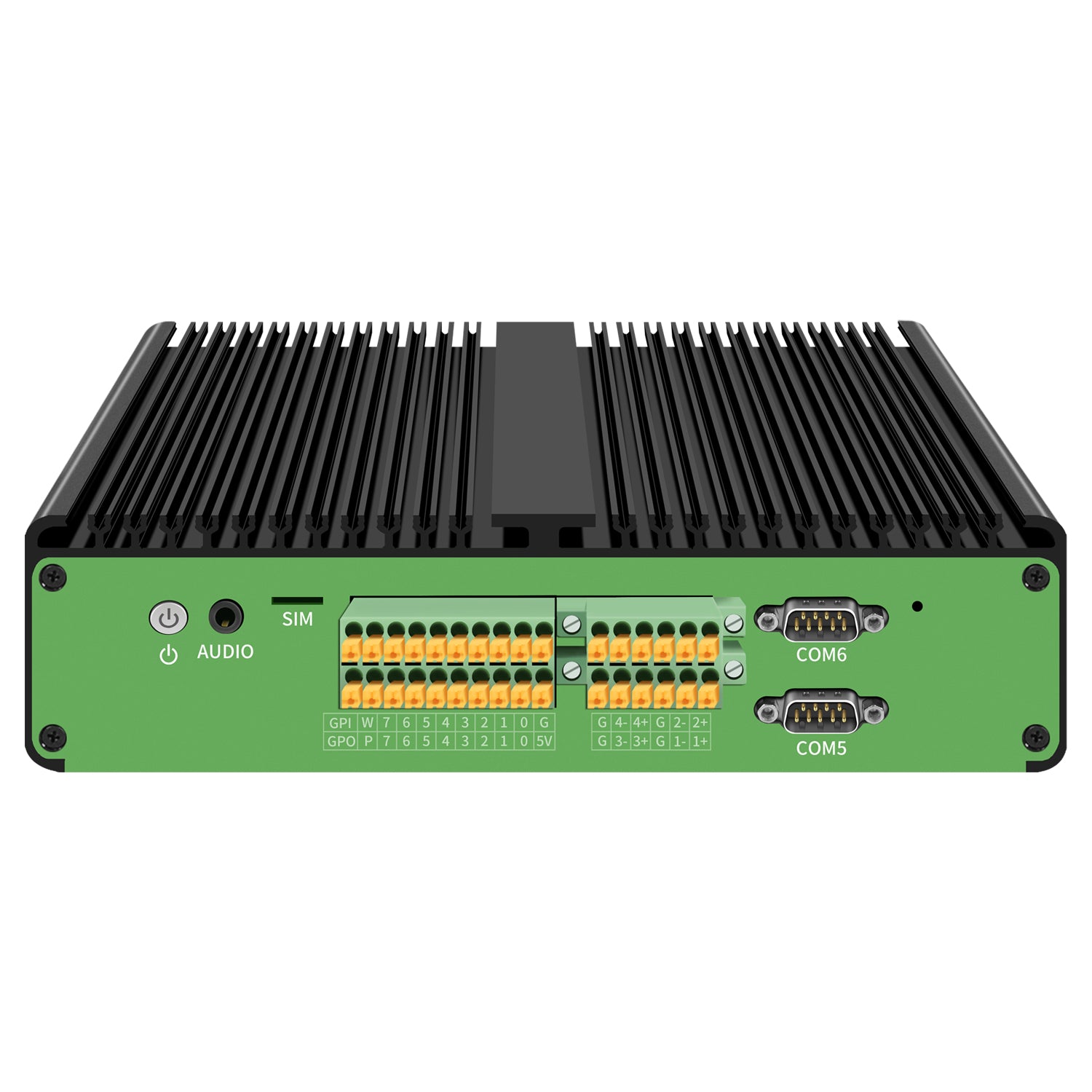

- Multiple serial interfaces: 1×Phoenix Terminal for COM 1–4 and 2×DB9 RS-232 ports
- COM expansion support: up to 6×COM ports with RS232, RS485, or RS422 configuration options
- 16-channel GPIO via Phoenix Terminal for signal acquisition, device triggering, and automation control
- M.2 expansion: 1×M.2 Key-E 2230 and 1×M.2 Key-B 3052
- SIM card slot for cellular communication module applications
- Triple display output: 1×DP and 2×HD
- Rich USB connectivity: 4×USB-A 3.0 and 4×USB-A 2.0
- Audio interface: 1×3.5mm audio jack

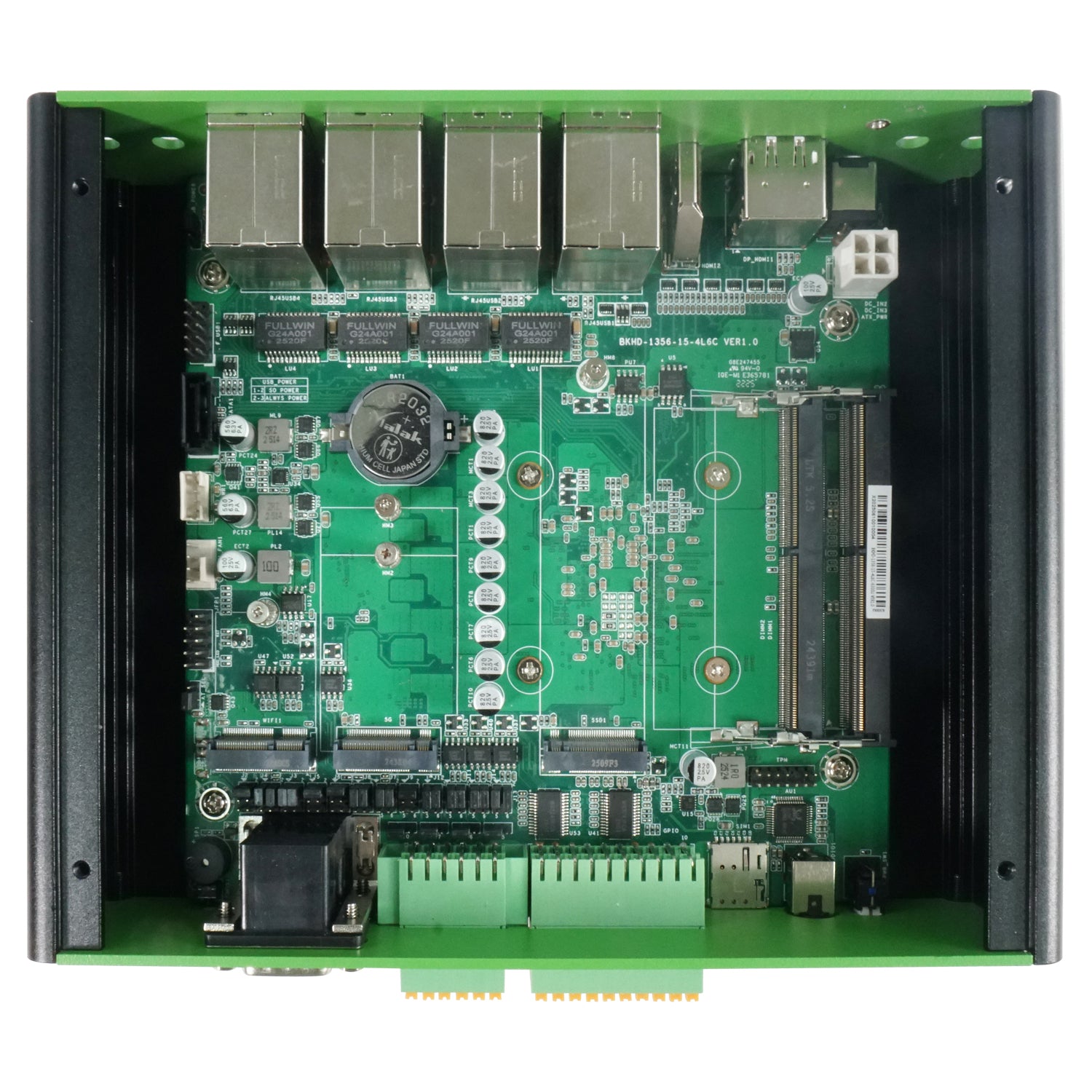

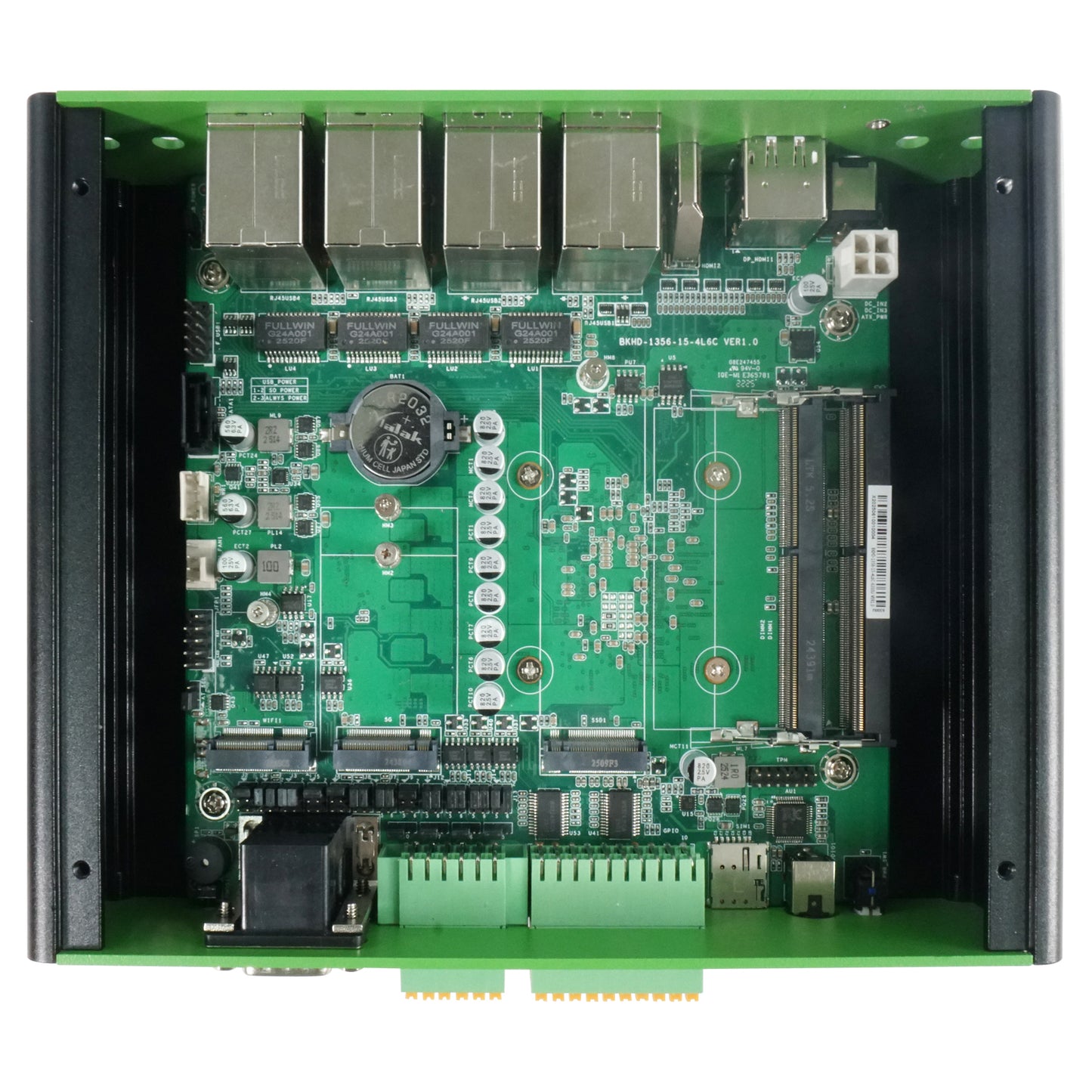

- Industrial onboard I/O: SATA power, F_PANEL, F_USB, J_TPM, CPU fan header, and ATX 4-pin power connector
- DC 12V power input, recommended 12V 7A or higher
Application Scenarios
- Industrial automation
- IIoT gateway systems
- Machine vision
- Edge computing
- Data acquisition systems
- Equipment management systems
- Intelligent terminals
- Control cabinet deployment
- Embedded industrial control systems
Specifications
| Model | H16x-1356-4L6C |
| Processor Platform | 6th/7th/8th Generation Intel processors |
| Socket | FCBGA1356 |
| Memory | DDR4 SO-DIMM 260Pin 1.2V, up to 2×16GB, 2133 MHz |
| Storage | 1×SATA 3.0 6Gb/s, 1×M.2 Key B+M SATA/PCIe SSD |
| Network | 4×RJ45 1GbE LAN |
| Network Controller | 4×Intel i210 |
| Expansion | 1×M.2 Key-E 2230 PCIe, 1×M.2 Key-B 3052 USB 3.0 |
| USB | 4×USB-A 3.0, 4×USB-A 2.0 |
| Display | 1×DP, 2×HD |
| COM | 1×Phoenix Terminal for COM 1–4, 2×DB9 RS-232 |
| GPIO | 1×Phoenix Terminal, 16-channel GPIO |
| SIM | 1×SIM card slot |
| Audio | 1×3.5mm audio jack |
| Onboard I/O | 1×SATA data connector, 1×SATA power socket, 1×fan power socket, 1×F_PANEL, 1×F_USB, 1×J_TPM, 1×ATX 4-pin connector |
| Antenna Hole | 4×reserved |
| Cooling Method | Passive cooling, fanless design; airflow required |

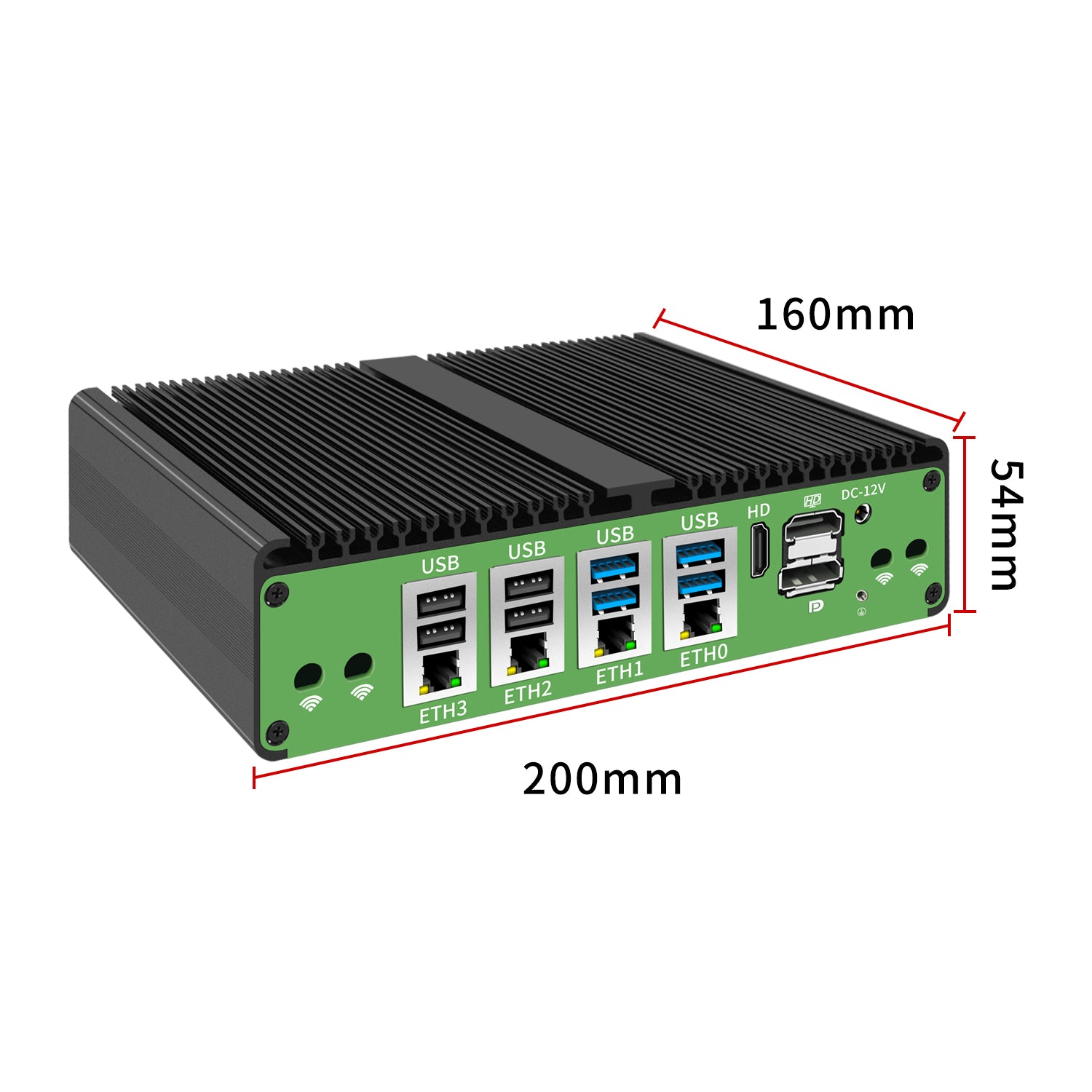

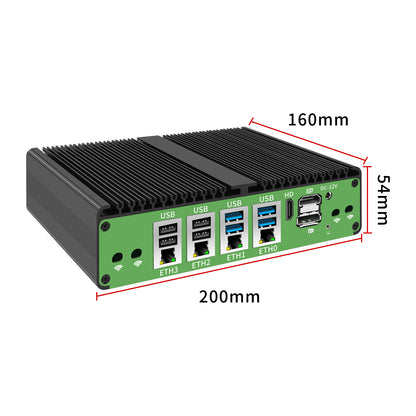

| Chassis Size | 200×160×54 mm |
| Weight | Equipment weight: 1.35 kg; package weight: 2.10 kg including accessories |
| Power Input | DC 12V 7A or higher |
| Operating Temperature | 0~50°C |
| Humidity | 5%~90% relative humidity, non-condensing |
Download
Note: Product appearance and specifications may vary slightly by production batch. For processor configuration, COM mode settings, GPIO integration, M.2 module compatibility, or system deployment requirements, please contact us before ordering.
