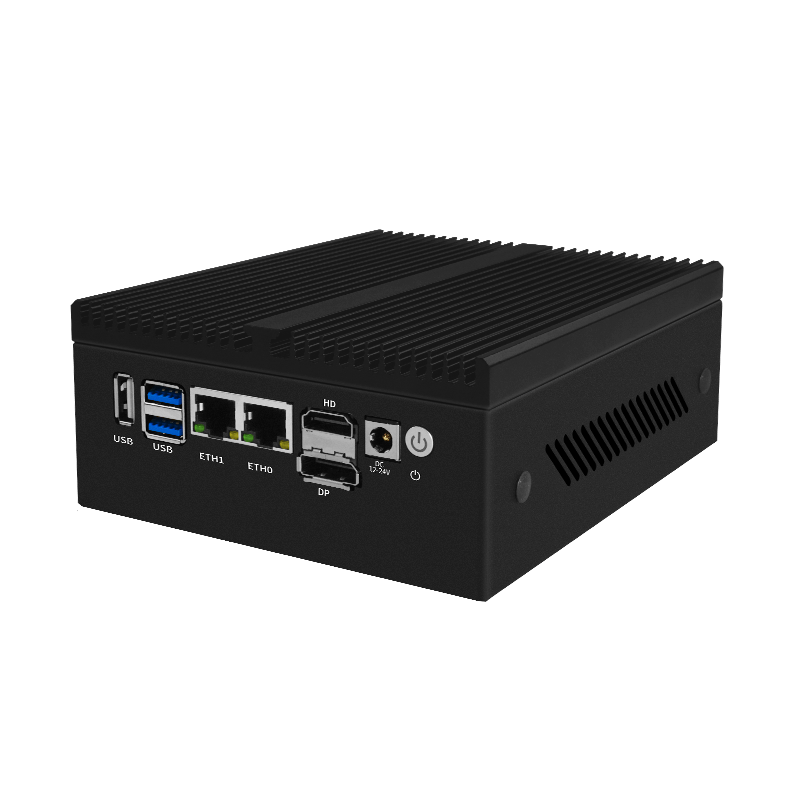

H10-1264-2L Compact Fanless Edge Gateway With Optional SFP
H10-1264-2L Compact Fanless Edge Gateway With Optional SFP
Não foi possível carregar a disponibilidade de retirada.
The H10-1264-2L is an ultra-compact fanless edge networking device powered by the Intel Processor N-series / Alder Lake-N platform. Designed for edge computing, industrial automation, embedded terminals, network communication, and lightweight network security applications, it combines low-power Intel processing, dual 2.5GbE networking, DDR5 memory support, and flexible expansion in a compact passive-cooling chassis.
With 2×2.5GbE RJ45 ports, DDR5 SO-DIMM memory, M.2 SSD support, M.2 Key-E wireless expansion, a non-standard PCI-E x6-IO expansion interface, optional SFP fiber expansion, and wide interface flexibility, the H10-1264-2L is ideal for IoT gateways, edge nodes, industrial control systems, embedded network terminals, and compact fanless firewall or router deployments.
Key Features
- Intel Processor N-series / Alder Lake-N platform for efficient low-power edge and embedded computing

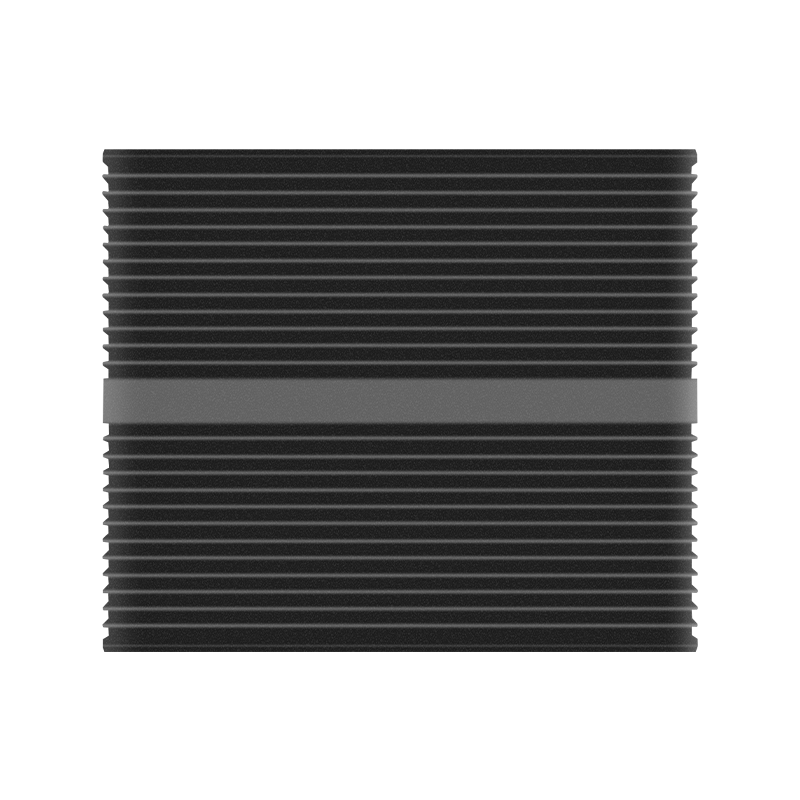

- Ultra-compact fanless chassis with passive cooling for quiet and reliable operation; proper airflow is recommended
- 2×2.5GbE RJ45 ports powered by Intel I226V controllers for high-speed network communication
- DDR5 SO-DIMM memory support, up to 16GB, 4800 MT/s for responsive embedded workloads
- M.2 Key-B+M 2280 storage supporting PCIe x1 and SATA 3.0 for flexible SSD deployment

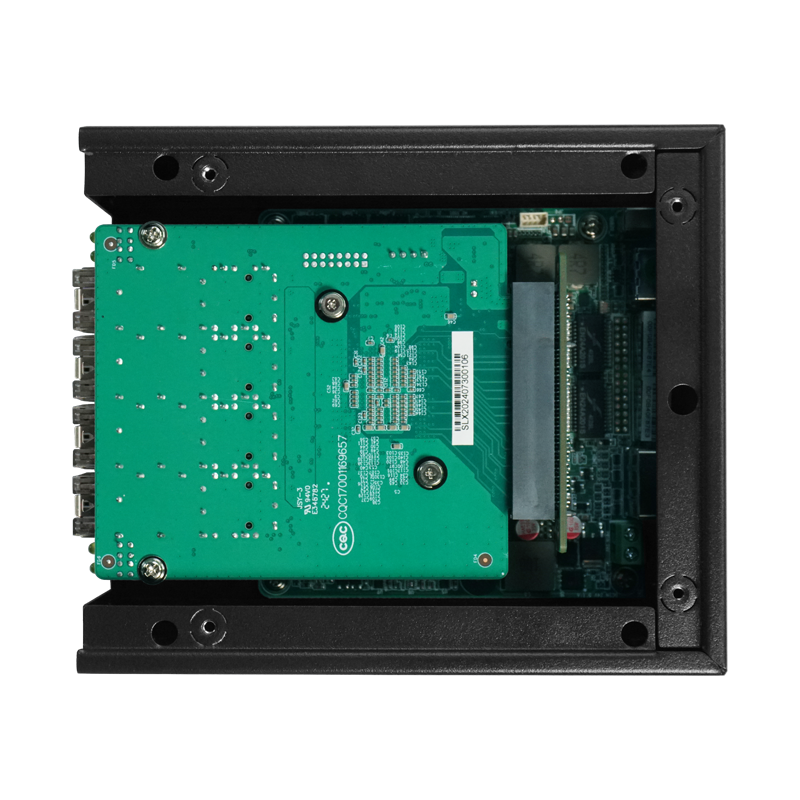

- Optional fiber expansion: none, 2×SFP, or 4×SFP depending on configuration
- PCI-E x6-IO expansion interface with non-standard definition for customized industrial expansion
- M.2 Key-E 2230 CNVi slot for wireless connectivity options
- Dual display output: 1×DP and 1×HD for local setup, monitoring, and embedded display applications
- USB connectivity: 2×USB-A 3.2 and 1×USB-A 2.0
- Industrial onboard interfaces: F_USB 2.0, J_COM, J_GPIO, CPU_FAN, and reserved SFP_FAN
- Compact system size: 128×156×60 mm for space-constrained edge deployments
- DC 19V power input, recommended 19V 2.1A or higher
Application Scenarios
- Edge computing
- Industrial automation
- Embedded terminal systems
- Network communication
- IoT gateway
- Compact firewall appliance
- Lightweight router platform
- Industrial control system
- Network security gateway
- Fiber network expansion applications
Specifications
| Model | H10-1264-2L |
| Processor Platform | Intel Processor N-series / Alder Lake-N |
| Socket | FCBGA1264 |
| Graphics | Intel UHD Graphics |
| Memory | DDR5 SO-DIMM, up to 16GB, 4800 MT/s |
| Storage | 1×M.2 Key-B+M 2280, PCIe x1 / SATA 3.0 |
| Network | 2×2.5GbE RJ45 |
| Network Controller | 2×Intel I226V |

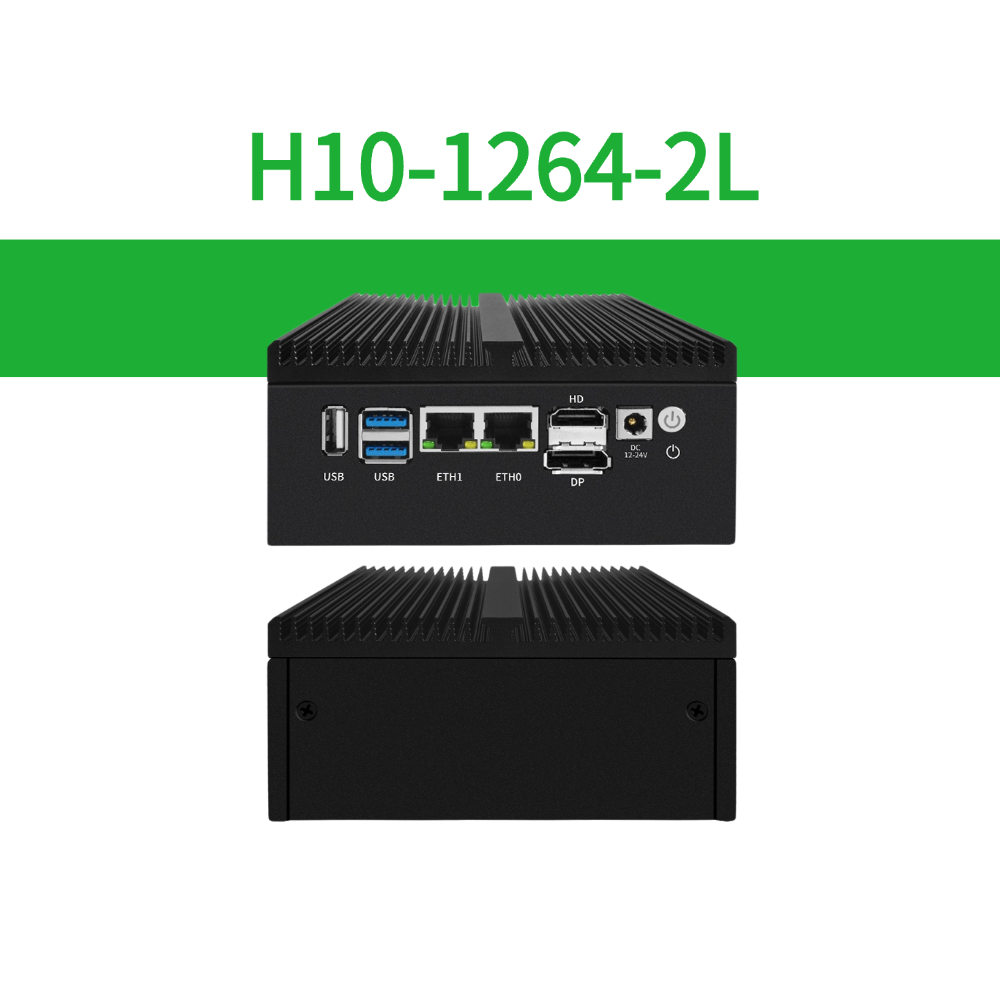

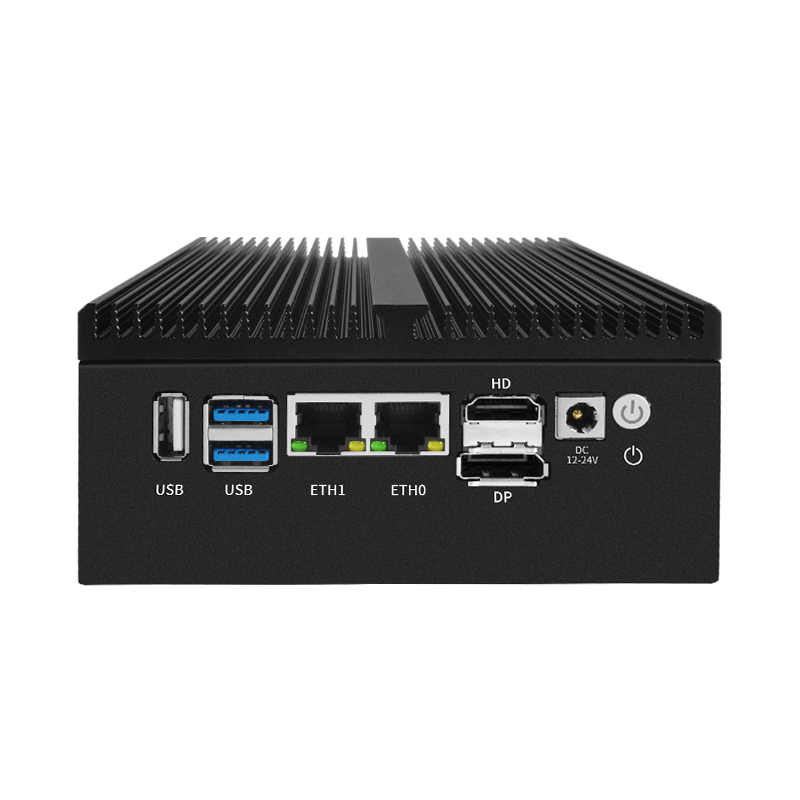

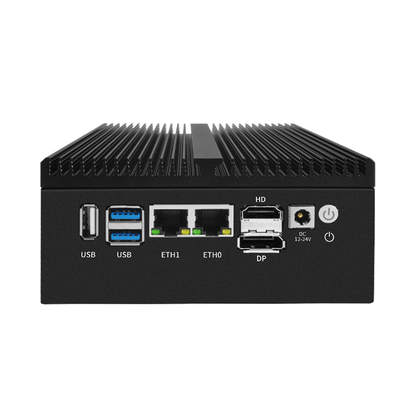

| Front Panel | 1×Power On or Restart button, 1×DC input, 1×HD, 1×DP, 2×RJ45, 2×USB-A 3.2, 1×USB-A 2.0 |

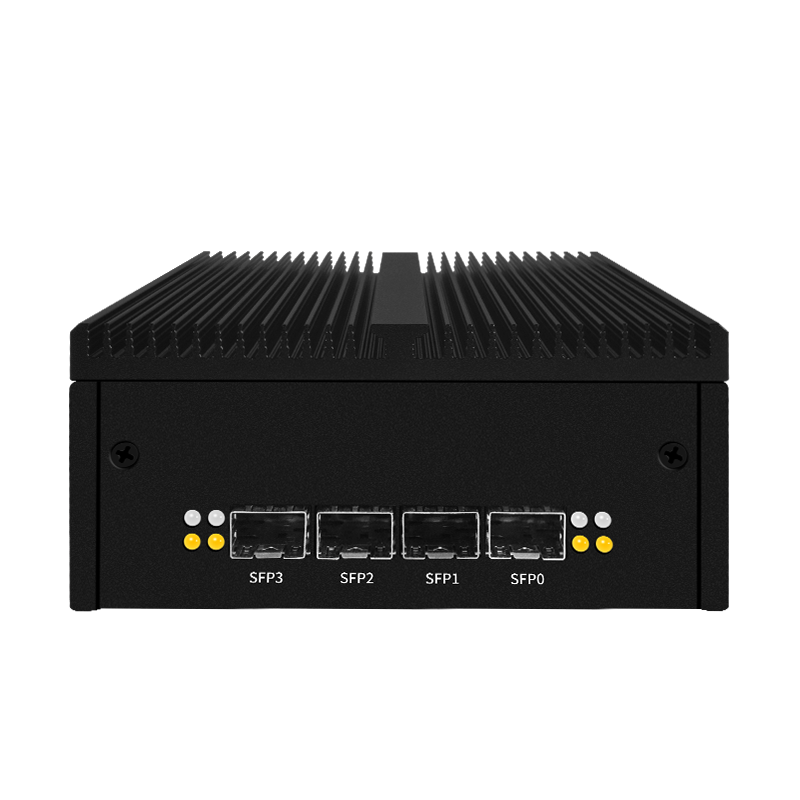

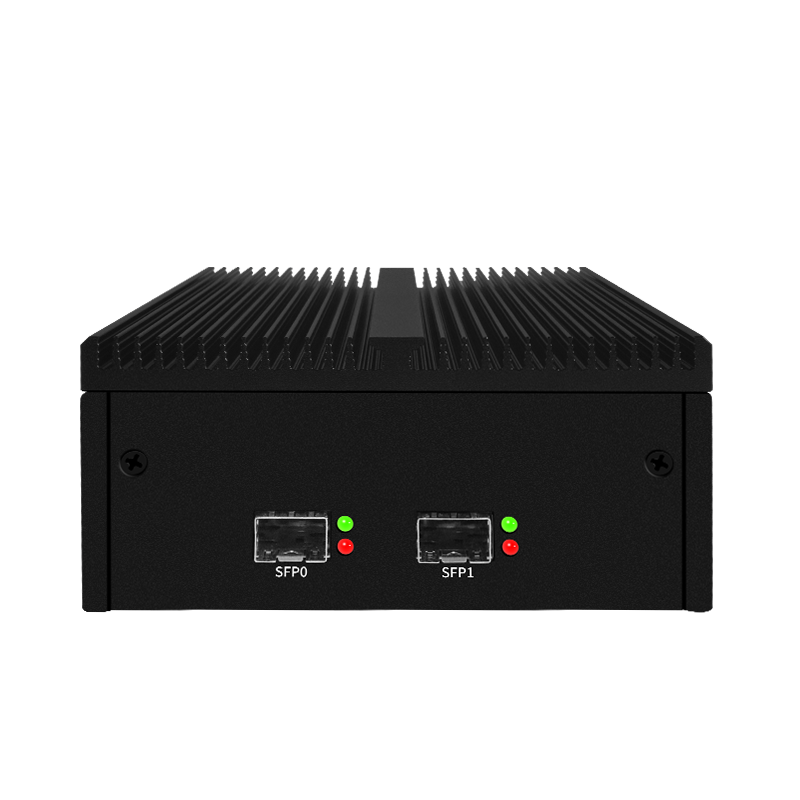

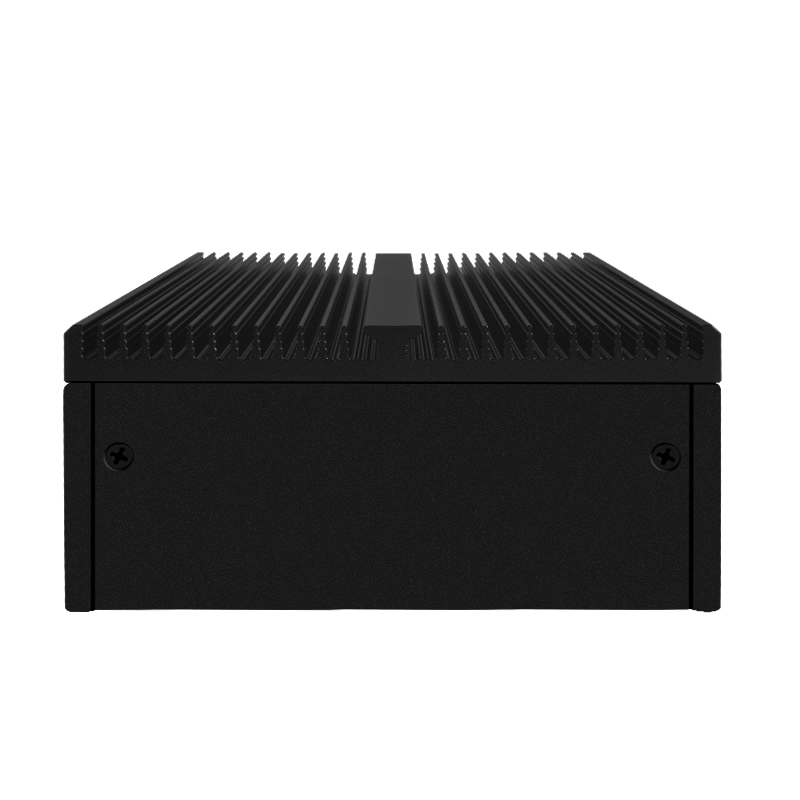

| Back Panel Expansion | None / 2×SFP / 4×SFP optional |
| Display | 1×DP, 1×HD |
| Expansion Interface | 1×PCI-E x6-IO, non-standard definition |
| Wireless Expansion | 1×M.2 Key-E 2230 CNVi |
| Onboard I/O | 2×F_USB 2.0, 1×J_COM, 1×J_GPIO, 1×CPU_FAN, 1×SFP_FAN reserved |

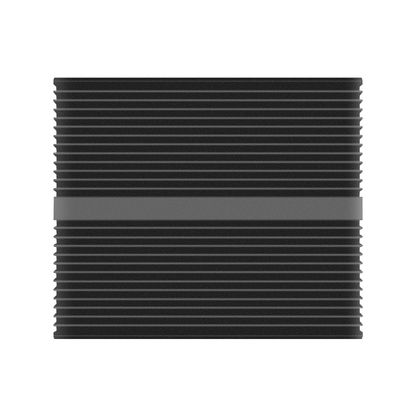

| Cooling Method | Passive cooling, fanless design; airflow required |

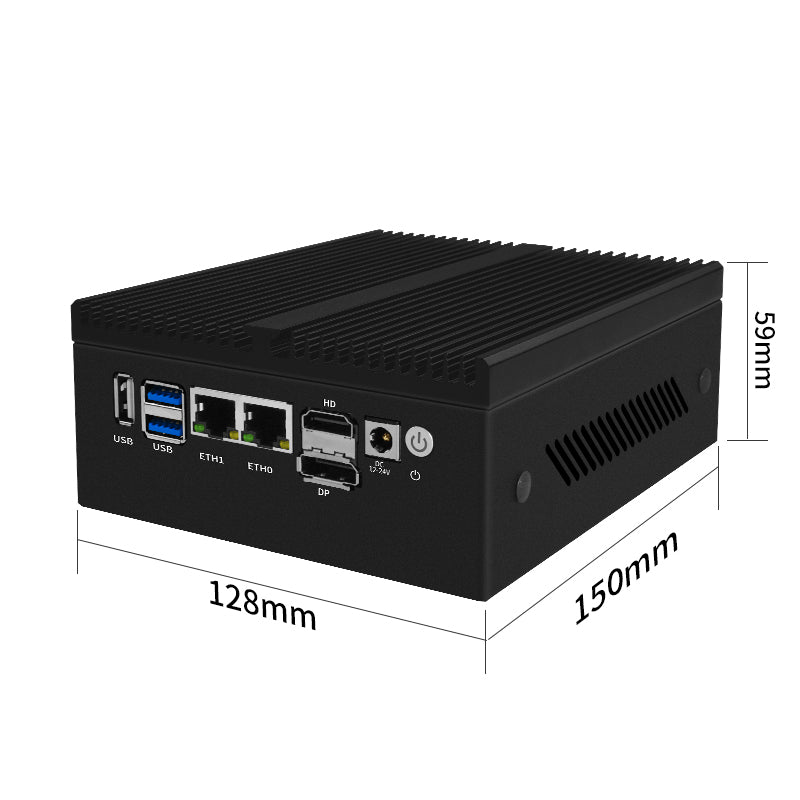

| Chassis Size | 128×156×60 mm |
| Weight | Equipment weight: 1.05 kg; package weight: 1.60 kg including accessories |
| Power Mode | DC 19V 2.1A or higher |
| Operating Temperature | 0~50°C |
| Humidity | 5%~95% relative humidity, non-condensing |
Video
Download
Note: Product appearance and specifications may vary slightly by production batch. Optional SFP configuration, processor configuration, memory capacity, M.2 SSD compatibility, PCI-E x6-IO expansion, wireless module support, and system integration requirements may vary by order. Please contact us before ordering for configuration confirmation.
