G31S-1449NP-6L

Product Overview

The G31S-1449NP-6L is a compact, fanless-ready 2.5GbE network appliance built on 11th Gen Intel Tiger Lake processors (FCBGA1449), designed for edge networking, security, and virtualization deployments. It integrates 6× 2.5GbE RJ45 ports powered by Intel I226V controllers, providing high-throughput connectivity and flexible WAN/LAN segmentation in a small footprint. With support for up to 64GB DDR4 memory and multiple storage options (M.2, SATA, mSATA), the G31S-1449NP-6L is a strong platform for pfSense/OPNsense, SD-WAN, and multi-service edge appliances.

Key Features

• Processor Platform: 11th Gen Intel Tiger Lake processors, FCBGA1449
• Memory: DDR4 SO-DIMM, up to 64GB, up to 3200 MT/s
• High-Speed Networking: 6× 2.5GbE RJ45 (6× Intel® I226V) for multi-WAN, VLAN segmentation, and high-throughput routing
• Storage Options:
  • 1× M.2 Key-M 2280
  • 1× SATA 6Gb/s
  • 1× mSATA

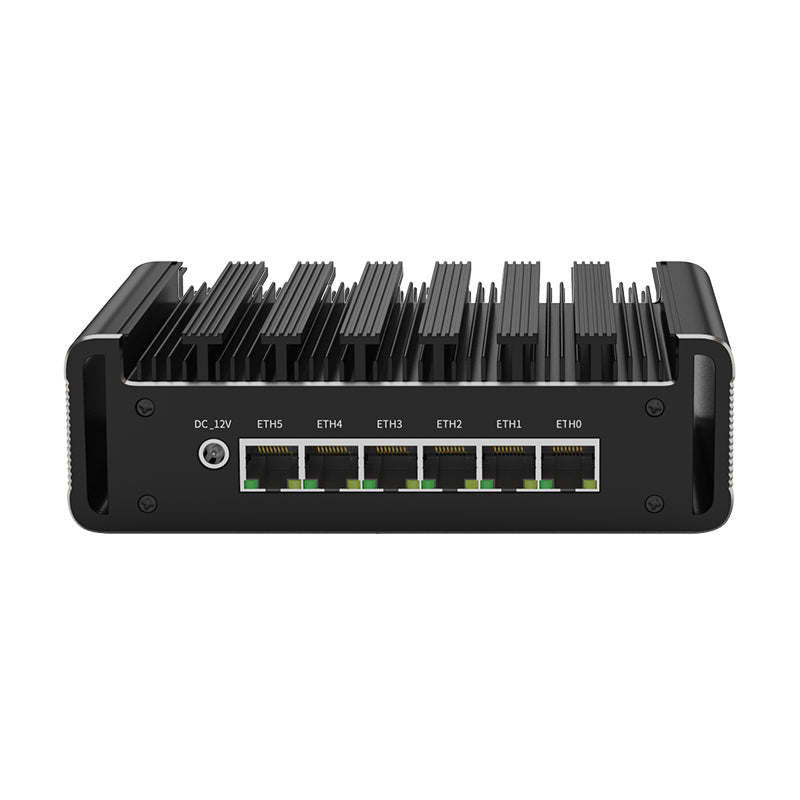

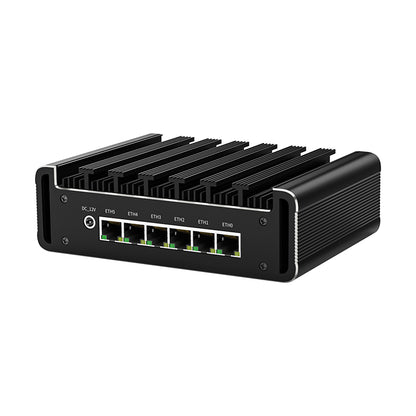

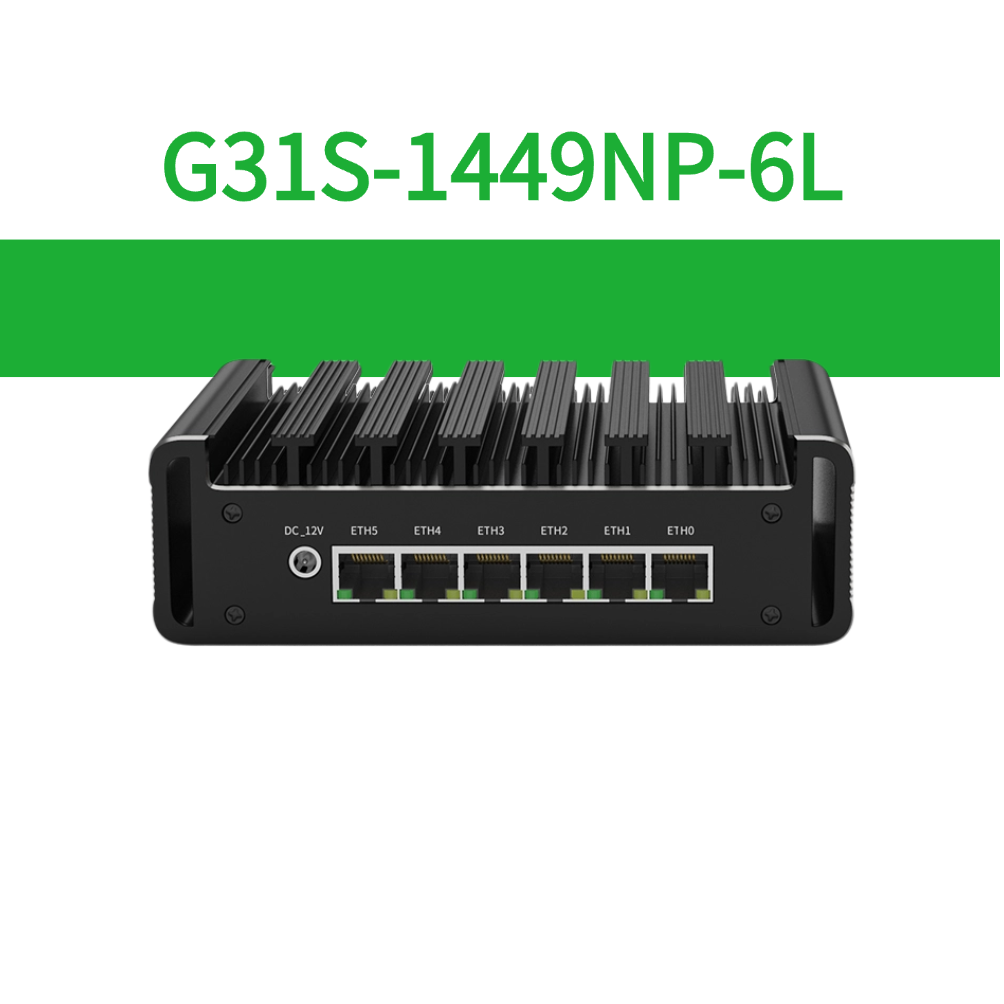

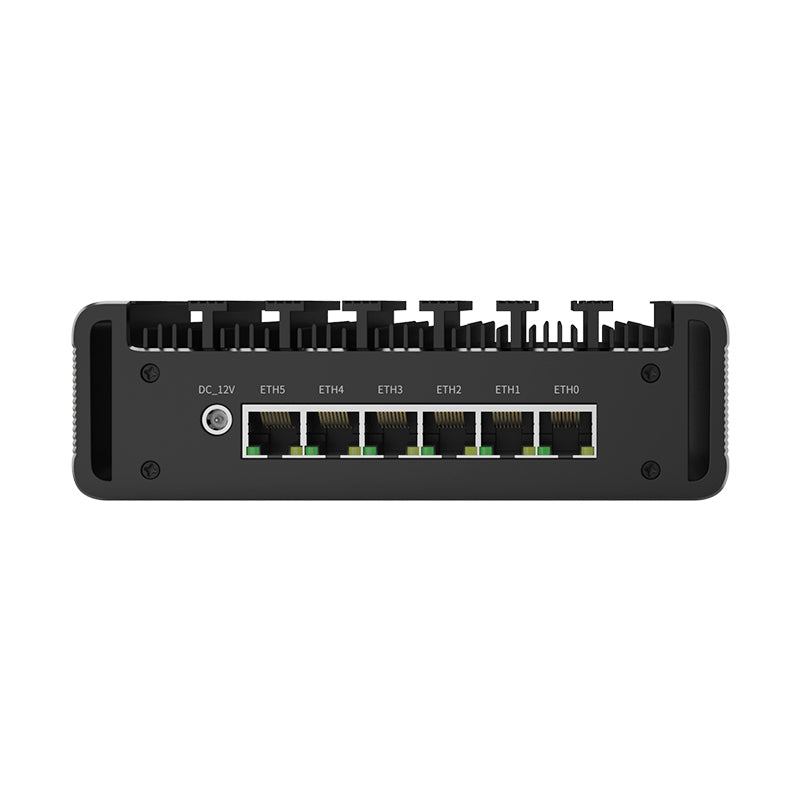

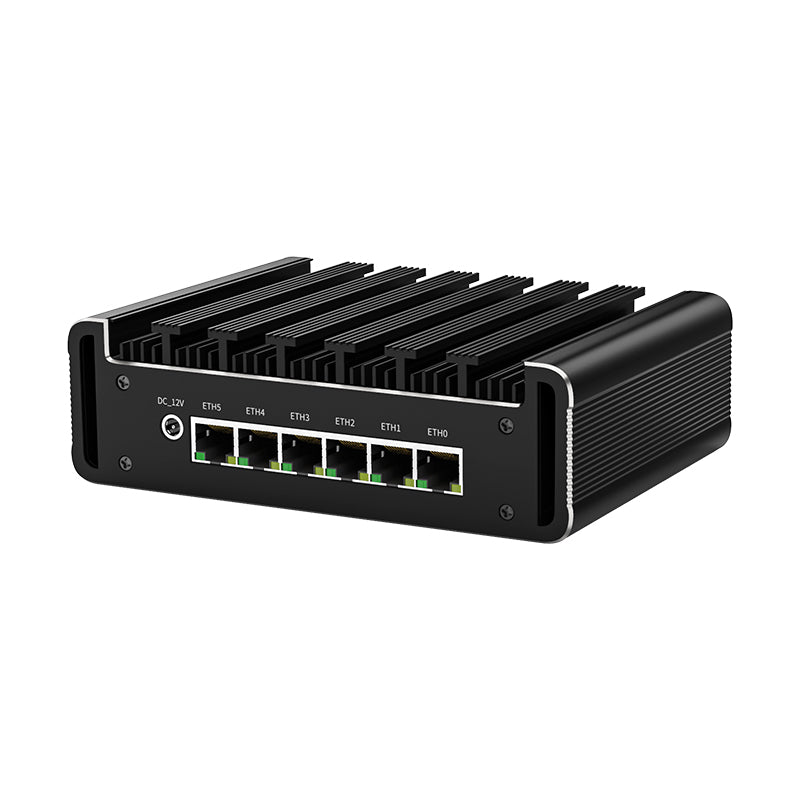

• Front Panel I/O:
  • 6× RJ45 Ethernet
  • DC-in power jack

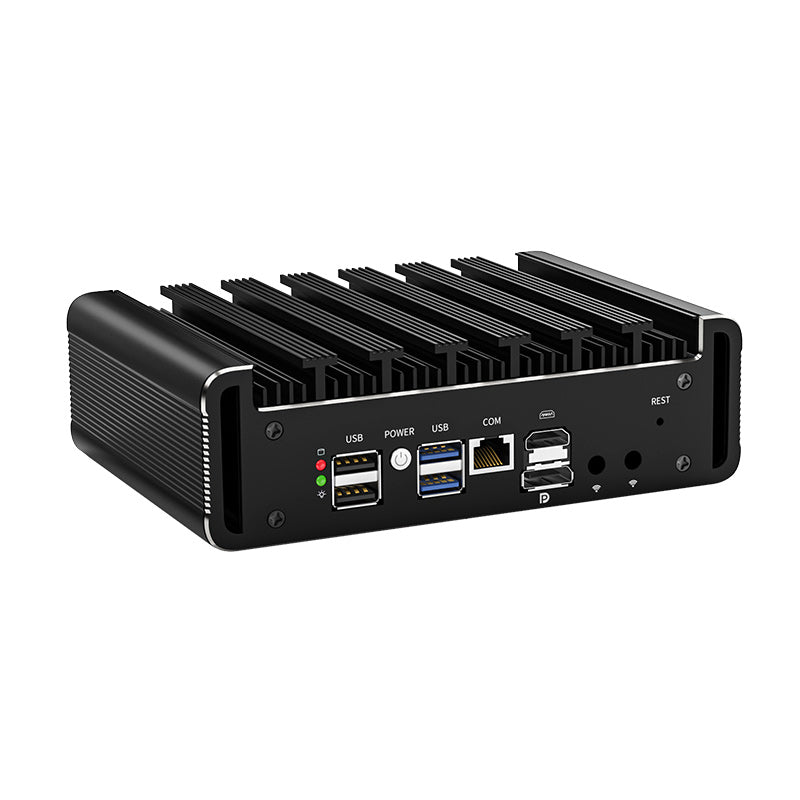

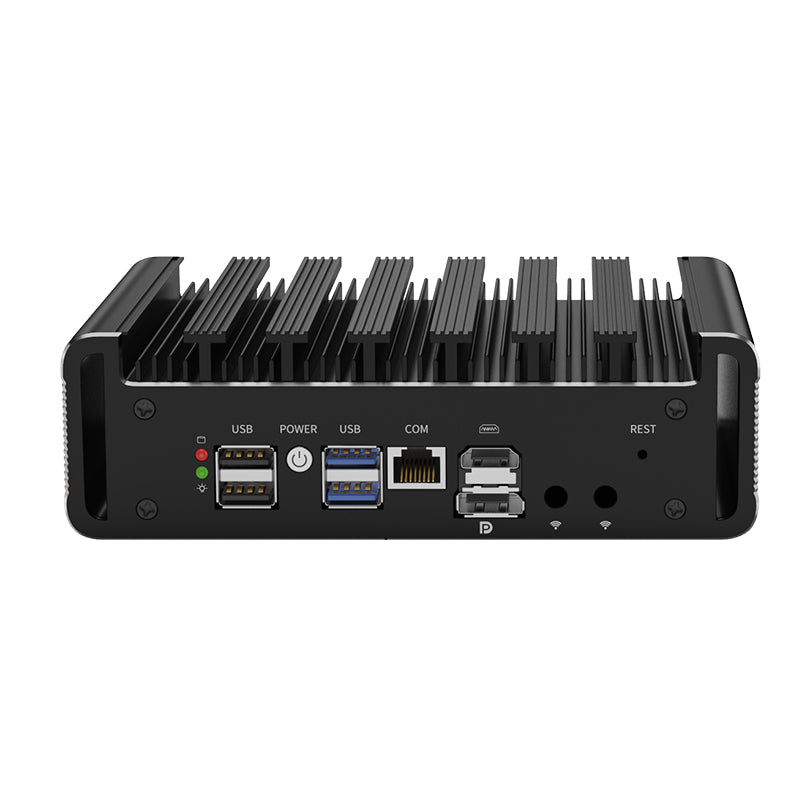

• Rear Panel I/O:
  • Start/Restart button
  • 2× USB-A 3.0 + 2× USB-A 2.0
  • RJ45 console port
  • Display outputs: 1× DP + 1× HD
  • 2× reserved antenna holes
• Expansion: 1× mPCIe slot for wireless or functional modules

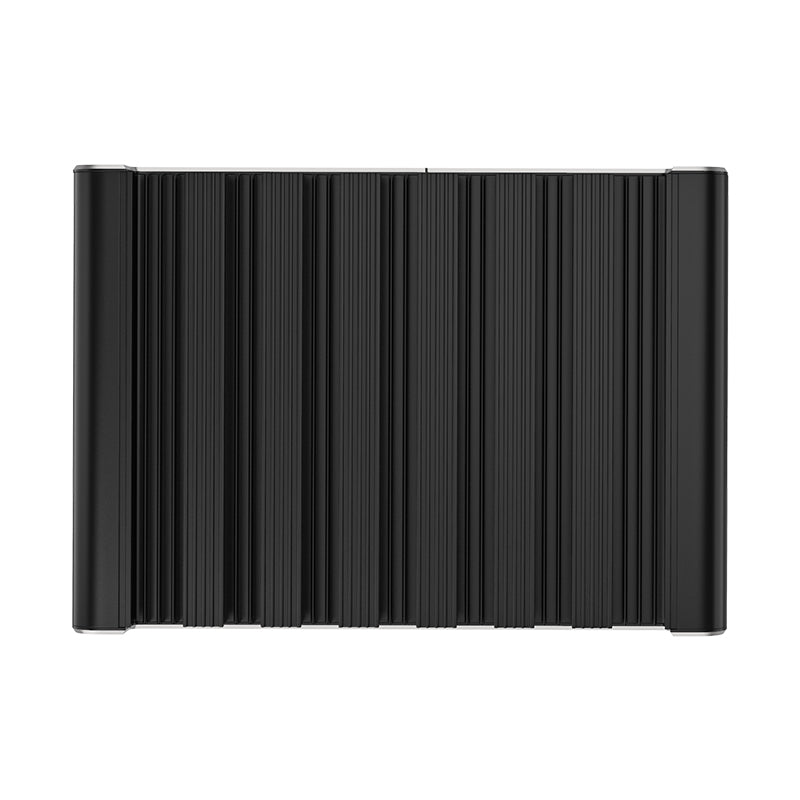

• Cooling: Passive cooling (fanless design, requires airflow)
• Power Input: DC 12V 7A (Pentium) / 12V 10A (Core) or higher
• Chassis Size: 178 × 126 × 56 mm
• Weight: 1.15 kg (net), 1.85 kg (with accessories)
• Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

• 2.5GbE Firewall Appliance: Ideal for pfSense/OPNsense with multi-WAN and VLAN routing.
• SD-WAN / Branch Office Edge: High port density in a compact chassis for secure edge deployments.
• Virtualization & Network Services: Up to 64GB memory enables multi-service appliances and lightweight virtualization.
• High-Speed Home Lab Router: Suitable for enthusiasts needing 2.5GbE routing and segmentation.
• Industrial Edge Gateway: Reliable platform for edge networking within 0–50°C operating environments (airflow required).
