G31F-1449NP-6L

Product Overview

The G31F-1449NP-6L is a compact, high-performance 2.5GbE network appliance built on 11th Gen Intel Tiger Lake processors (FCBGA1449), designed for edge security, high-throughput routing, and multi-service networking. It integrates 6× 2.5GbE RJ45 ports driven by Intel I226V controllers, enabling flexible WAN/LAN segmentation and fast LAN aggregation. Compared with fanless designs, the smart active cooling chassis fan helps maintain stable performance under sustained load, making it an ideal platform for pfSense/OPNsense, SD-WAN, and SMB/enterprise edge deployments.

Key Features

• Processor Platform: 11th Gen Intel Tiger Lake processors, FCBGA1449
• Memory: DDR4 SO-DIMM, up to 64GB, up to 3200 MT/s
• High-Speed Networking: 6× 2.5GbE RJ45 (6× Intel® I226V) for multi-WAN, VLAN segmentation, and high-throughput routing
• Storage Options:
  • 1× M.2 Key-M 2280
  • 1× SATA 6Gb/s
  • 1× mSATA

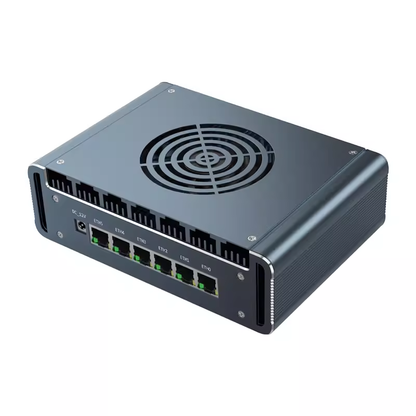

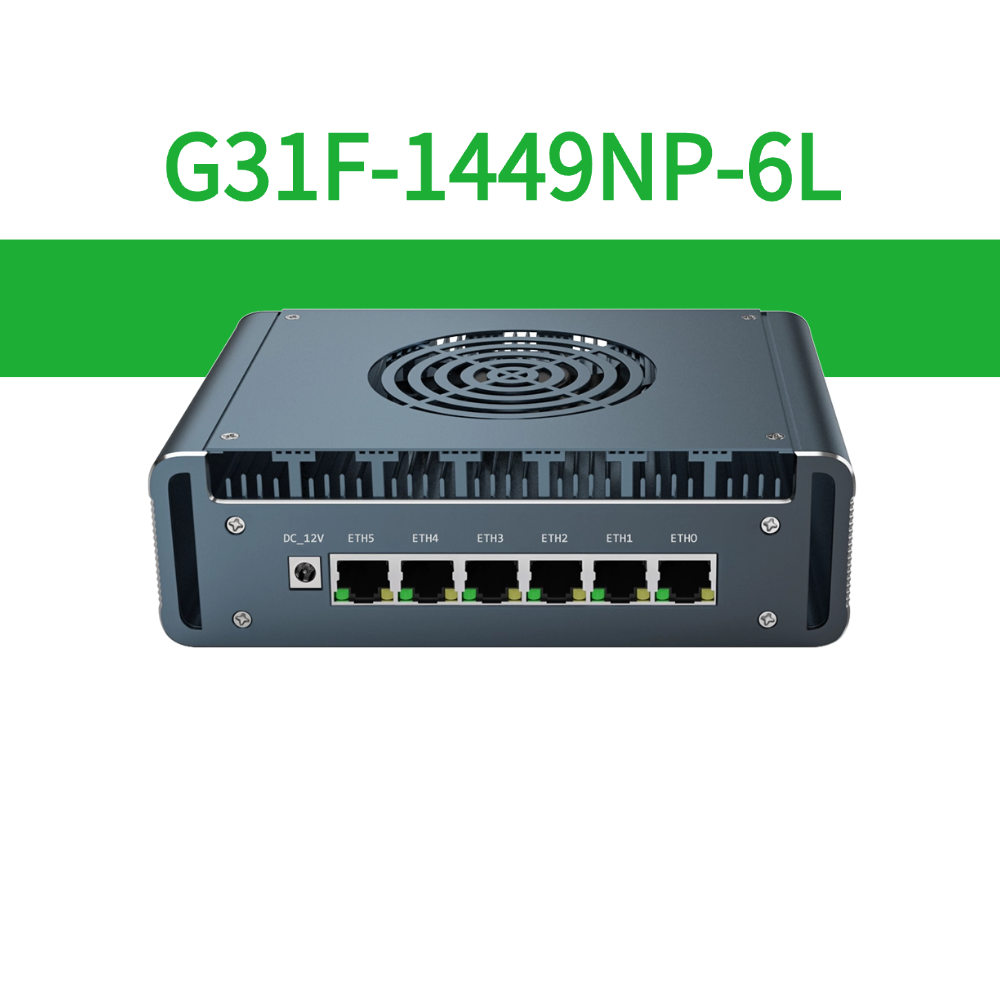

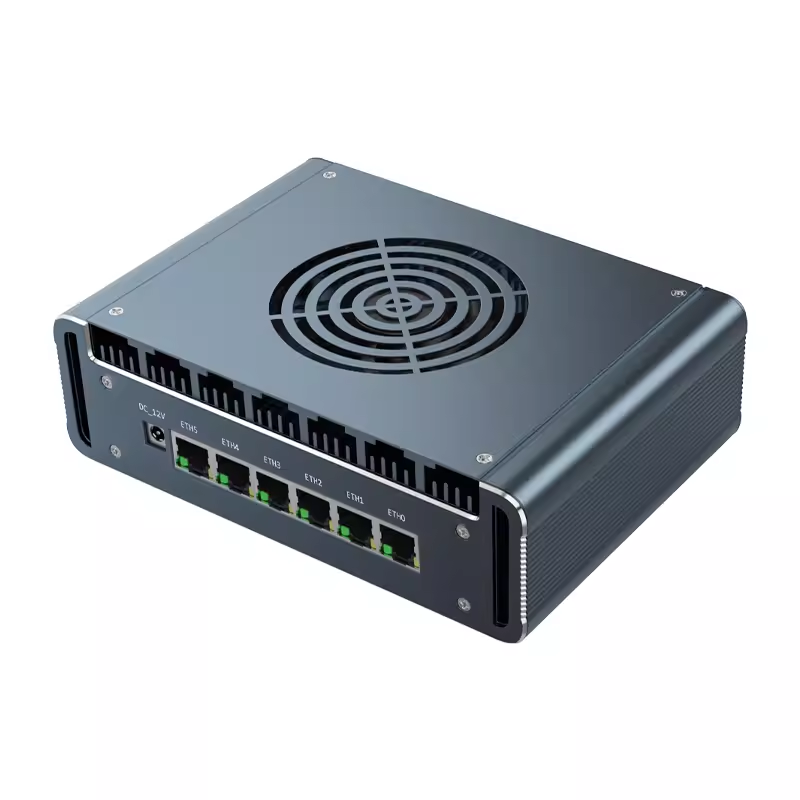

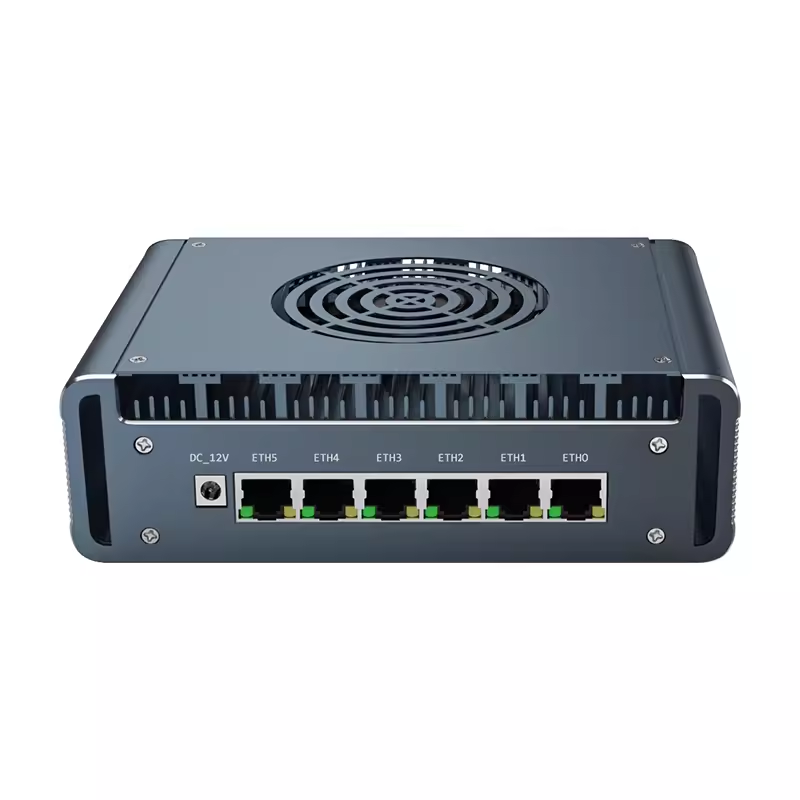

• Front Panel I/O:
  • 6× RJ45 Ethernet
  • DC-in power jack

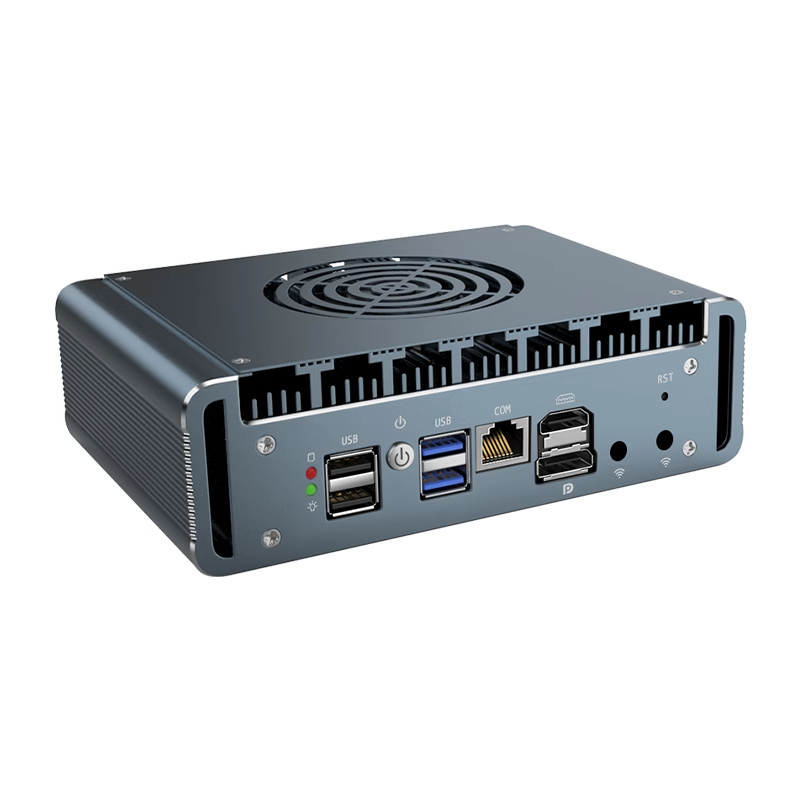

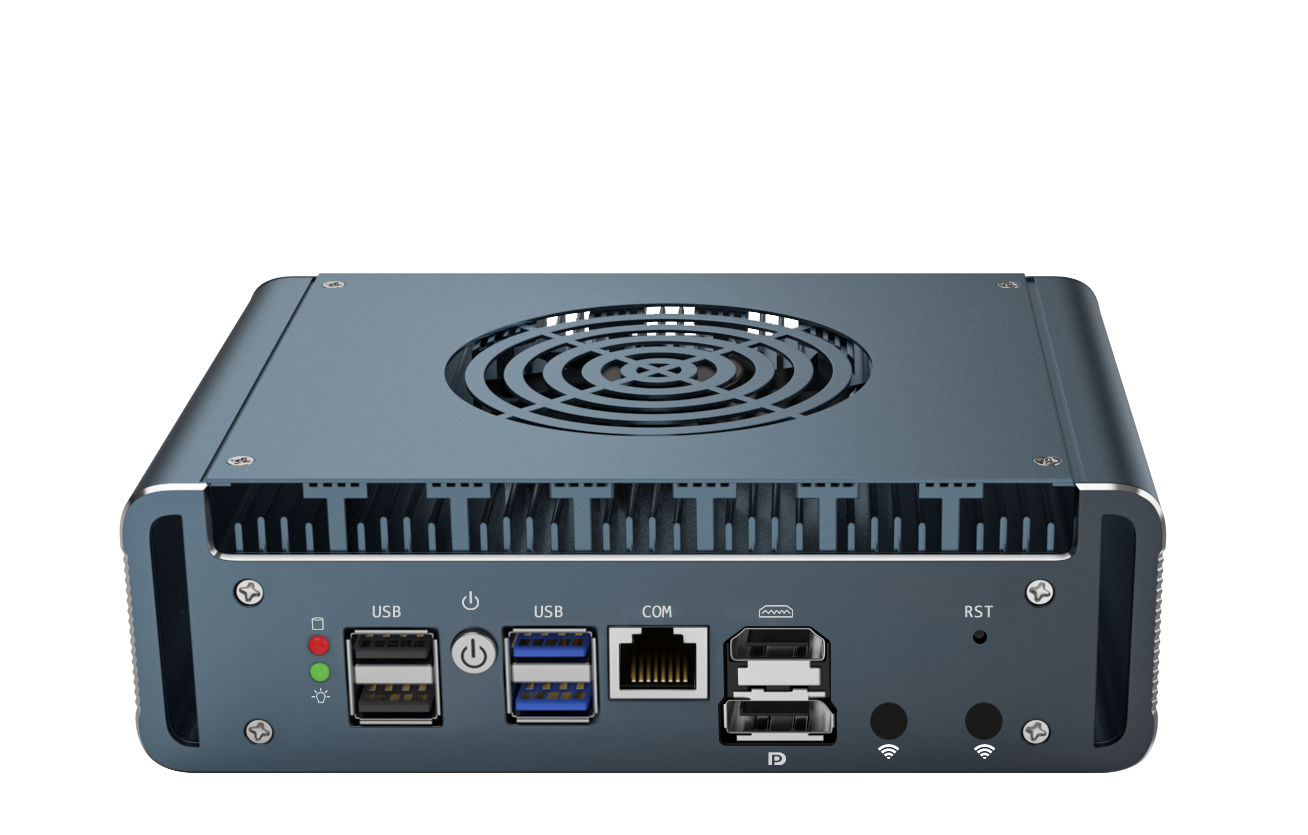

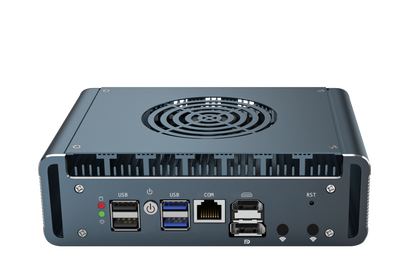

• Rear Panel I/O:
  • Start/Restart button
  • 2× USB-A 3.0 + 2× USB-A 2.0
  • RJ45 console port
  • Display outputs: 1× DP + 1× HD
  • 2× reserved antenna holes
• Expansion: 1× mPCIe slot for wireless or functional modules
• Cooling: Active cooling with 1× smart chassis fan for improved stability under continuous load
• Power Input: DC 12V 7A (Pentium) / 12V 10A (Core) or higher
• Chassis Size: 178 × 126 × 56 mm
• Weight: 1.15 kg (net), 1.85 kg (with accessories)
• Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

• 2.5GbE Firewall Appliance: Ideal for pfSense/OPNsense with multi-WAN routing and VLAN segmentation.
• High-Throughput Edge Router: Designed for fast LAN aggregation and policy-based traffic management.
• SD-WAN / Branch Office Edge: Compact appliance with reliable cooling for continuous enterprise operation.
• Virtualization & Network Services: Up to 64GB memory supports multi-service appliances and lightweight virtualization.
• Industrial / Commercial Edge Networking: Active cooling helps maintain stable performance within 0–50°C environments.
