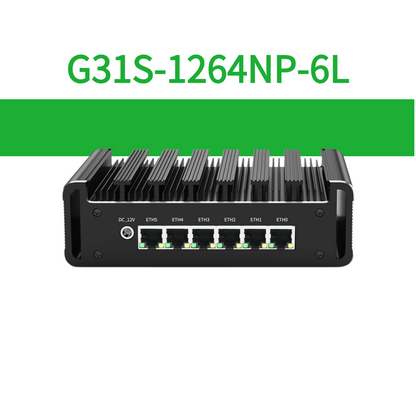

G31S-1264NP-6L Fanless 6×2.5GbE Network Appliance with Intel N-Series
G31S-1264NP-6L Fanless 6×2.5GbE Network Appliance with Intel N-Series
Não foi possível carregar a disponibilidade de retirada.
The G31S-1264NP-6L is a compact network appliance powered by an Intel Processor N-series. Its fanless passive cooling design delivers a balance of low power consumption, stable operation, and compact size. Equipped with 6×2.5GbE RJ45 Ethernet ports, high-speed DDR5 memory, dual M.2 storage, SATA storage, mPCIe expansion, and a SIM card slot, it is ideally suited for network applications, industrial IoT gateways, virtualized nodes, lightweight servers, network security appliances, and edge computing deployments.
Key Features
- Intel Processor N-series platform for low-power embedded network computing
- Fanless passive cooling design for quiet and stable operation

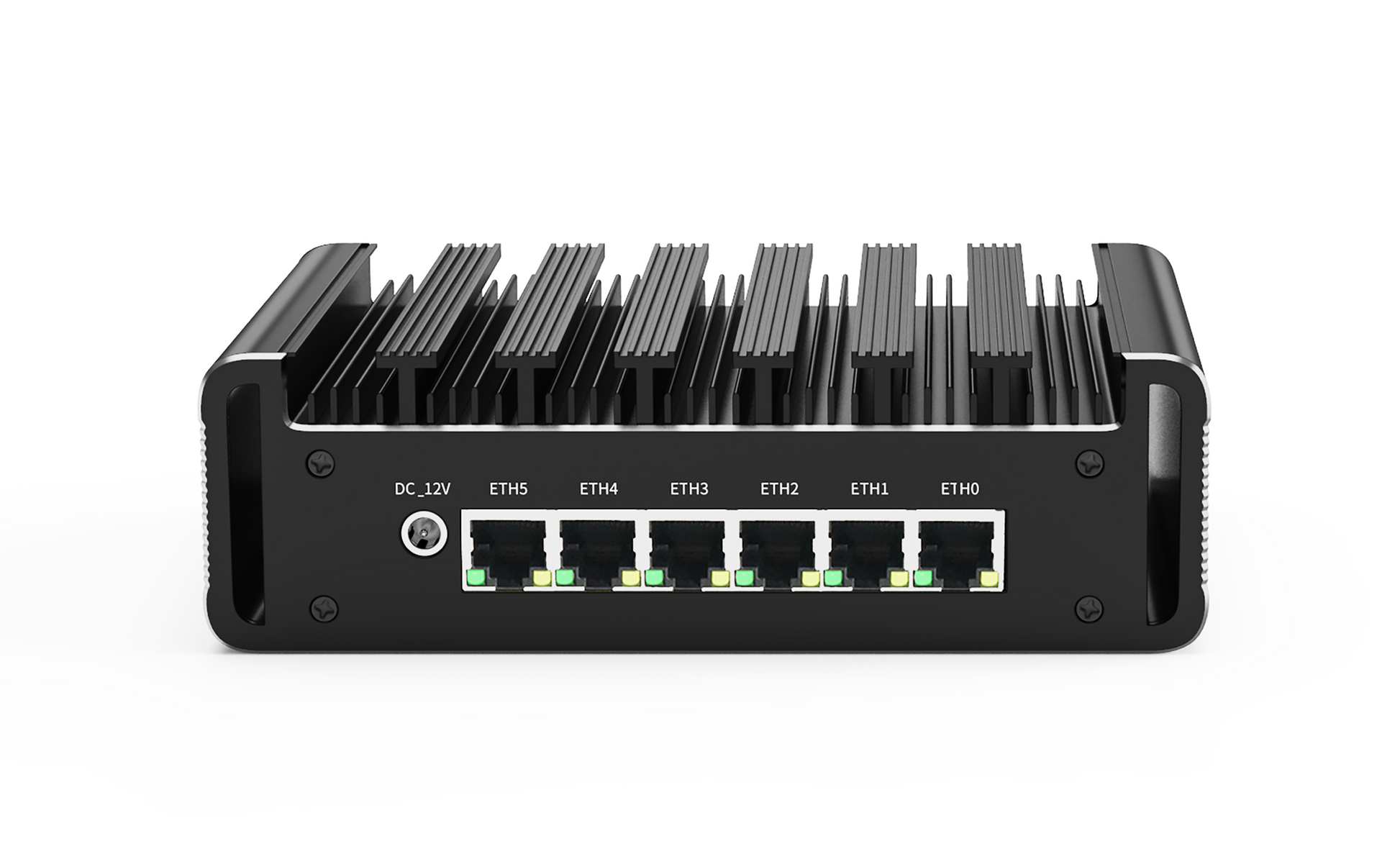

- 6×RJ45 2.5GbE LAN ports powered by Intel I226V controllers
- DDR5 SO-DIMM memory support, up to 16GB, 4800 MT/s
- Dual M.2 storage: 2×M.2 Key-M 2280, PCIe x1
- Additional storage support: 1×SATA 3.0 6Gb/s
- mPCIe expansion slot with USB 2.0 signal for wireless or communication modules
- SIM card slot for cellular communication module applications

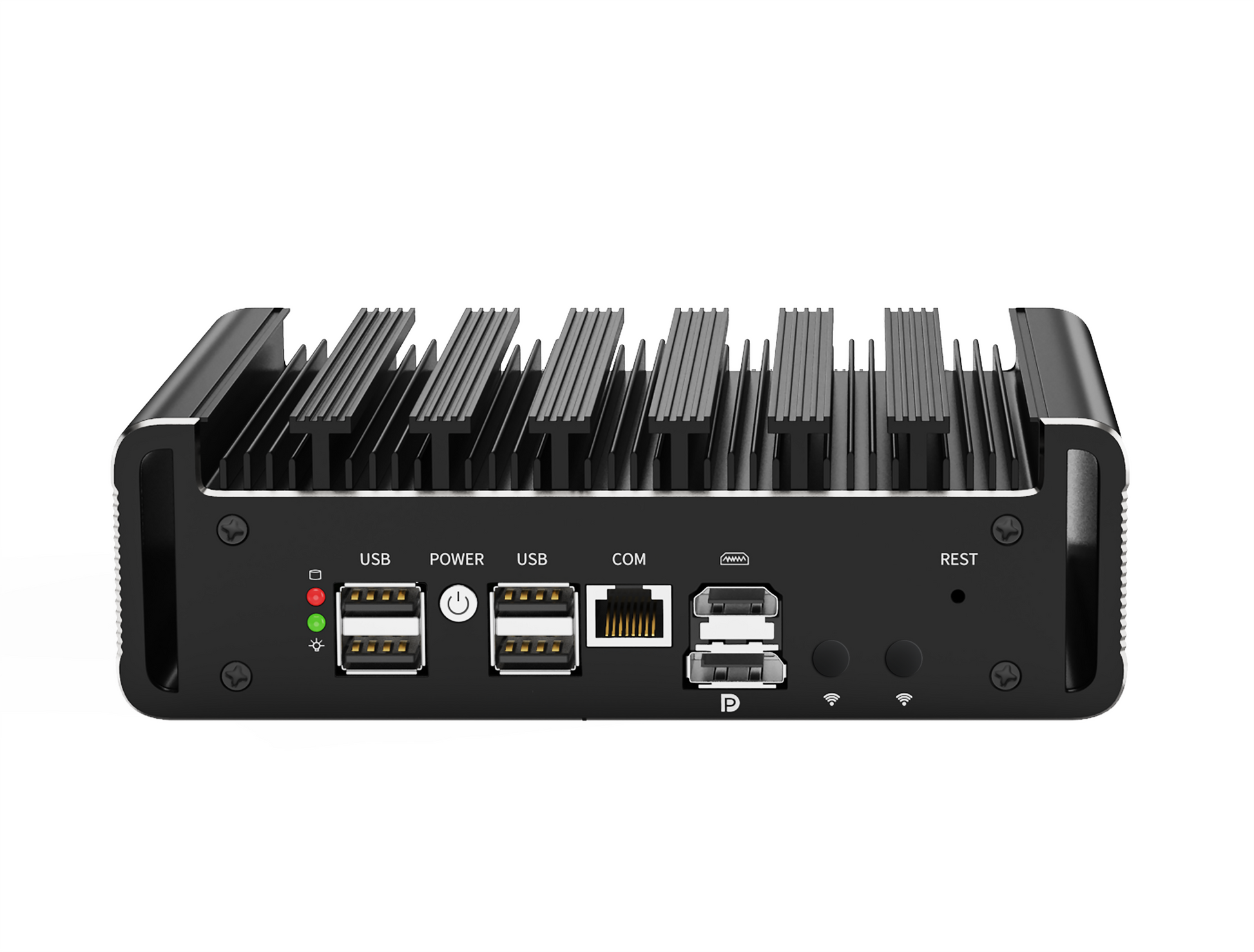

- Display output: 1×DP and 1×HD
- Industrial console interface: 1×RJ45 COM RS232
- USB connectivity: 4×USB-A 2.0

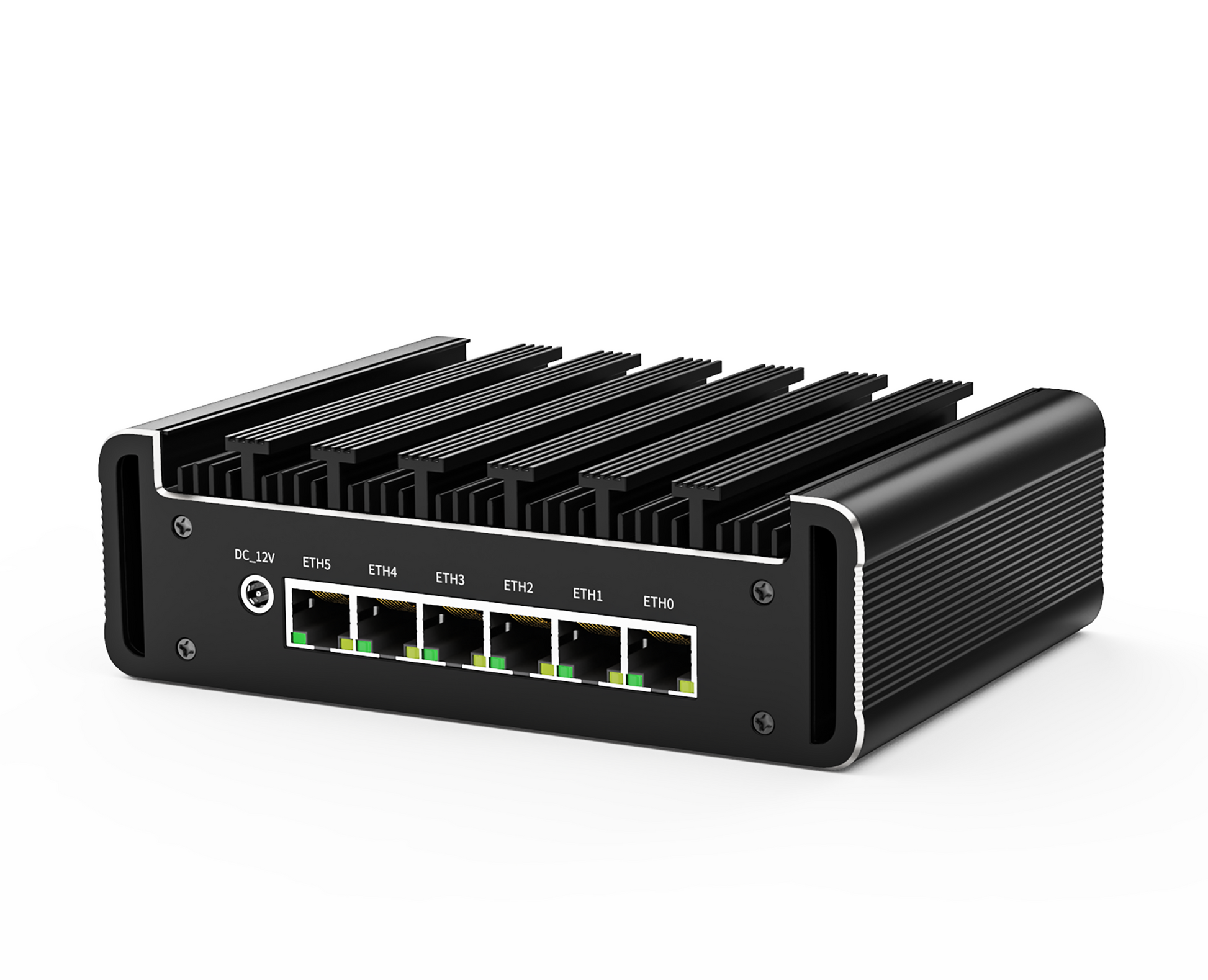

- Compact metal chassis: 178×126×55 mm for space-constrained deployments
- DC 12V power input, recommended 12V 4A or higher
Application Scenarios
- Network applications
- Firewall and software router systems
- Industrial IoT gateways
- Virtualized nodes
- Lightweight servers
- Embedded terminals
- Network security appliances
- Edge computing deployments
- Space-constrained industrial and commercial installations
Specifications
| Model | G31S-1264NP-6L |
| Processor Platform | Intel® Processor N-series |
| Socket | FCBGA1264 |
| Memory | DDR5 SO-DIMM, up to 16GB, 4800 MT/s |
| Storage | 2×M.2 Key-M 2280 PCIe x1, 1×SATA 3.0 6Gb/s |
| Network | 6×RJ45 2.5GbE LAN |
| Network Controller | 6×Intel I226V |
| Expansion | 1×mPCIe with USB 2.0 signal |
| SIM | 1×SIM card slot |
| USB | 4×USB-A 2.0 |
| Display | 1×DP, 1×HD |
| Console | 1×RJ45 COM RS232 |
| Antenna Hole | 2×reserved |
| Cooling Method | Passive cooling, fanless design; airflow required |
| Chassis Size | 178×126×55 mm |
| Weight | Equipment weight: 1.15 kg; package weight: 1.85 kg including accessories |
| Power Input | DC 12V 4A or higher |
| Operating Temperature | 0~50°C |
| Humidity | 5%~90% relative humidity, non-condensing |
Download
Note: Product appearance and specifications may vary slightly by production batch. Please refer to the actual product received or contact us before ordering if you need to confirm a specific configuration.
