Fanless Network Appliance Integrated Intel Celeron 4 Ports 2.5GbE for Firewall Router Home Gateway BKHD-G30-1090NP-4L

Product Overview

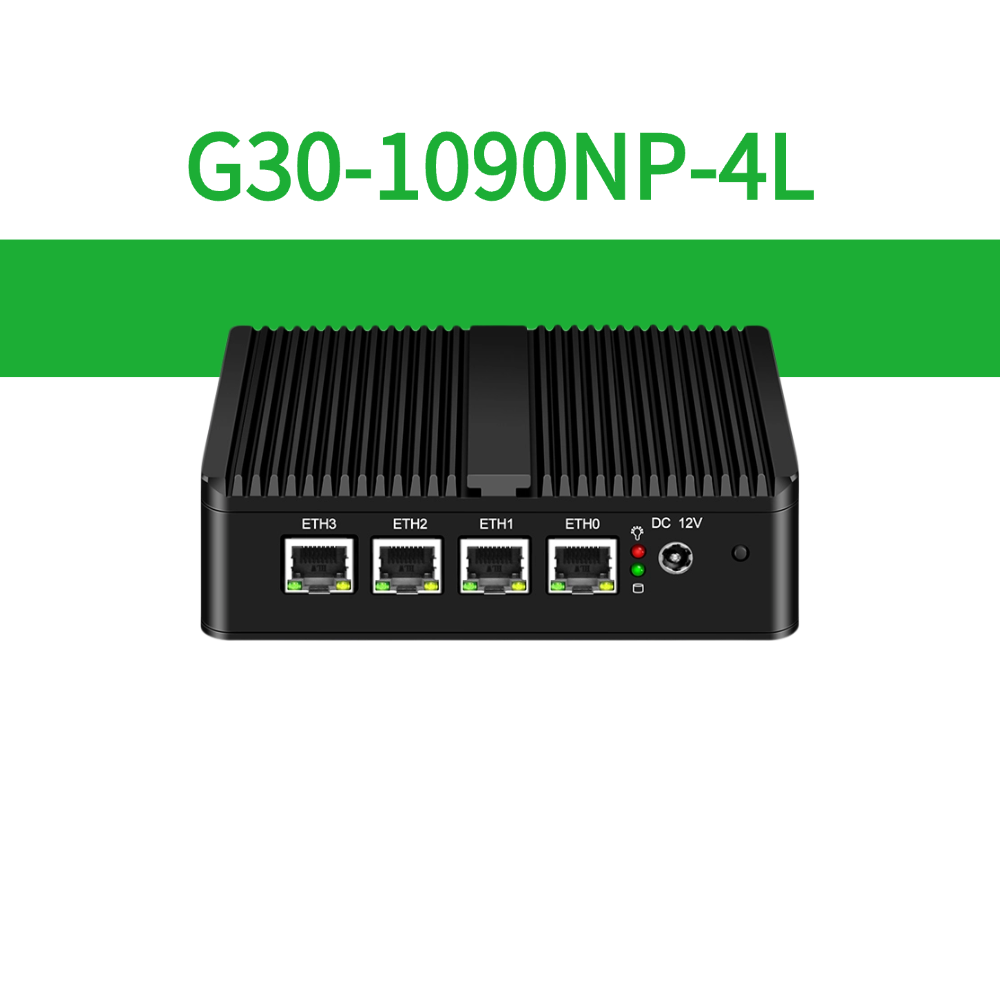

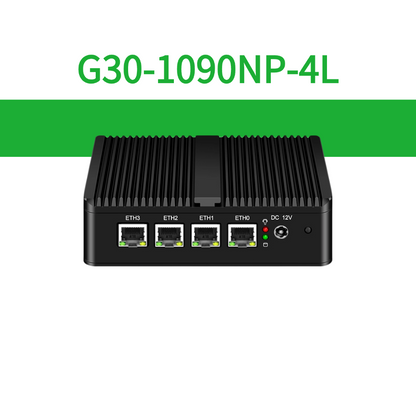

The G30-1090NP-4L is a compact and energy-efficient fanless embedded network appliance powered by Intel® Gemini Lake / Gemini Lake-R processors (FCBGA1090). It is designed for reliable performance in firewall, router, and lightweight edge computing applications. With 4× Gigabit LAN ports, dual display outputs, and multiple storage options, it offers a balanced combination of performance, stability, and flexibility in a compact metal chassis ideal for industrial and commercial network environments.

Key Features

• Processor: Intel® Gemini Lake / Gemini Lake-R series (FCBGA1090)
• Memory: 2× DDR4 SO-DIMM slots, up to 8GB, 2400 MHz
• Storage: 1× SATA 2.0 (3Gb/s), 1× mSATA slot
• Networking: 4× RJ45 Gigabit LAN ports
• Display: 1× VGA and 1× HDMI for dual-display output
• USB: 2× USB 3.0 ports (rear panel)
• Expansion: 1× mPCIe slot for Wi-Fi, 4G/5G, or additional modules
• Power Supply: DC 12V 4A or higher via 5.5/2.5 mm jack
• Cooling: Fanless passive cooling design (requires adequate airflow)
• Chassis Size: 136 × 126 × 40 mm
• Weight: 0.65 kg (net) / 1.25 kg (packaged with accessories)
• Operating Environment: Temperature 0–50°C, Humidity 5–90% RH (non-condensing)

Application Scenarios

• Firewall and Network Gateway: Ideal for pfSense, OPNsense, or small business firewall applications.
• Edge Computing Device: Suitable for local IoT data processing and lightweight virtualization nodes.
• SMB Router: Provides stable multi-port connectivity for small to medium business networks.
• Industrial Automation: Supports continuous operation with fanless thermal design.
• Home or SOHO Server: Perfect for personal or office NAS, router, or VPN deployment.
