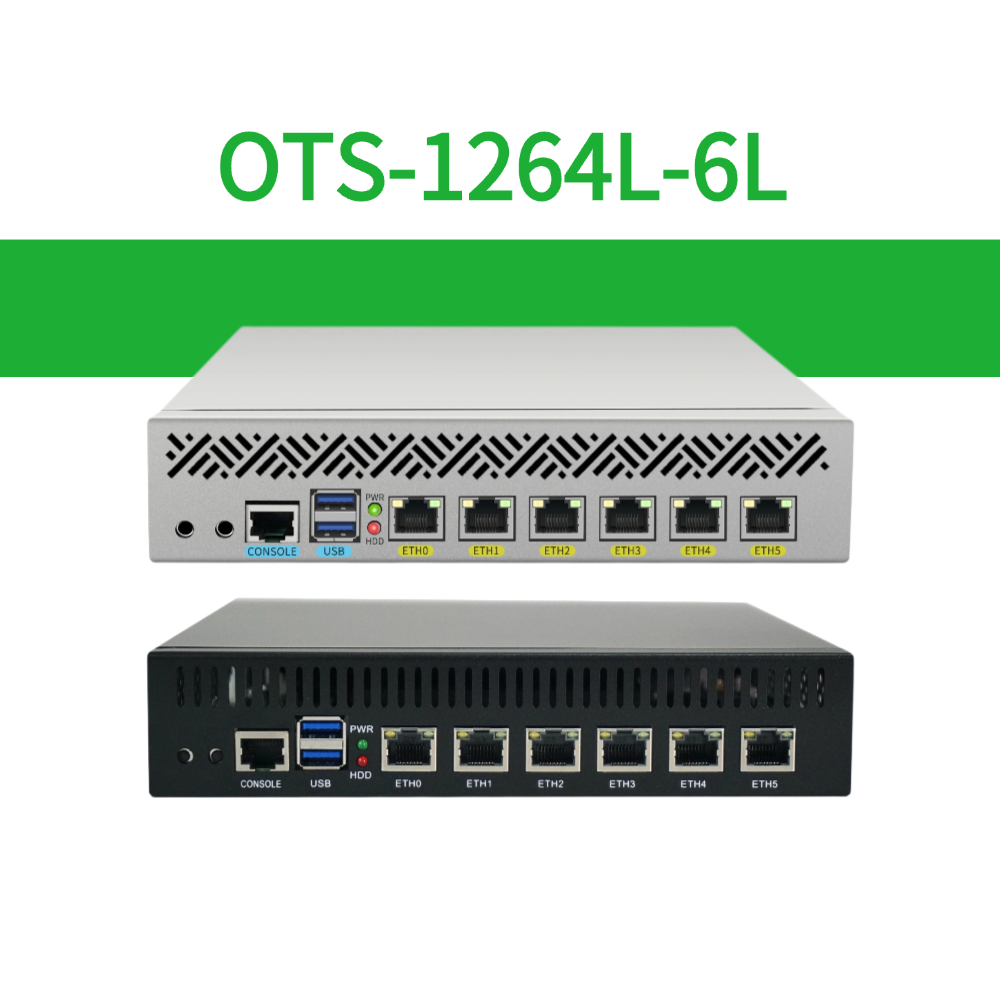

Edge Network Device with Intel N Series Processors 6x LAN 2.5GbE Suitable for Firewalls Soft Routers Home Servers OTS-1264L-6L
Edge Network Device with Intel N Series Processors 6x LAN 2.5GbE Suitable for Firewalls Soft Routers Home Servers OTS-1264L-6L
Preço normal
$185.00 USD
Preço normal
Preço promocional
$185.00 USD
Quantidade
Não foi possível carregar a disponibilidade de retirada.
Compact Network Appliance with Intel N150 Processor
The OTS-1264L-6L delivers enterprise-grade networking performance in a compact form factor, featuring 6× 2.5GbE ports and flexible storage options - ideal for network edge deployments and industrial applications.
📡
High-Density Networking
6× Intel-powered 2.5GbE ports + RJ45 COM port for network infrastructure
💾
Flexible Storage Options
SATA 6Gb/s + mSATA/CF Card slot + M.2 expansion capabilities
❄️
Active Cooling System
CPU fan ensures stable operation in industrial environments
Technical Specifications
Processor
Intel N150 (4 Cores, 4 Threads)
Memory
DDR5 SO-DIMM · Up to 16GB · 4800 MT/s
Storage
1× SATA 6Gb/s
1× mSATA or CF Card slot
1× mSATA or CF Card slot
Front Panel
6× RJ45 LAN · 2× USB-A 3.0
1× RJ45 COM port
1× RJ45 COM port
Back Panel
1× VGA · 1× HD (Reserve)
2× Antenna groups (Reserve)
1× DC Power Jack (5.5/2.5mm)
2× Antenna groups (Reserve)
1× DC Power Jack (5.5/2.5mm)
Expansion
1× M.2 Key-E (USB 2.0)
1× M.2 Key-B (USB 2.0)
or PCIe x4 slot (PCIe x1 Signal)
1× M.2 Key-B (USB 2.0)
or PCIe x4 slot (PCIe x1 Signal)
Physical
210×200×45mm · 1.25KG (Equipment)
1.65KG (Packaged)
1.65KG (Packaged)
Power & Environment
DC 12V 4A or higher
Operating Temp: 0~50℃
Humidity: 5%~90% (RH, non-condensing)
Operating Temp: 0~50℃
Humidity: 5%~90% (RH, non-condensing)
