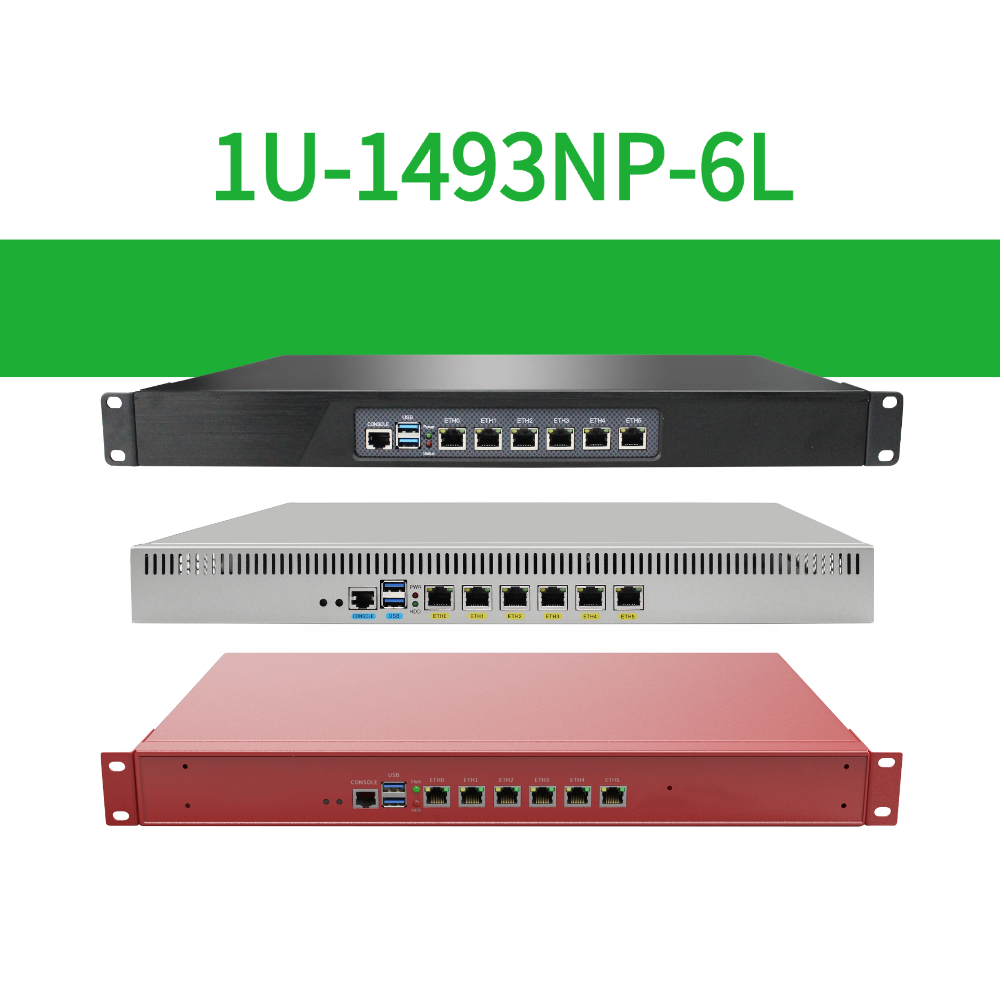

1U-1493NP-6L

Product Overview

The 1U-1493NP-6L is a high-density 1U rackmount network appliance powered by the Intel Celeron Processor J Series (FCBGA1493). Designed for reliable 24/7 operation in standard 19-inch racks, it integrates 6x 2.5Gigabit RJ45 Ethernet ports for flexible network segmentation and multi-zone deployments. With support for up to 32GB DDR4 memory, SATA and mSATA storage options, and expandable wireless/cellular connectivity via M.2 Key-B and mPCIe, the 1U-1493NP-6L is an ideal platform for firewall, routing, SD-WAN, and industrial edge gateway applications.

Key Features

• Processor Platform: Intel Celeron Processor J Series, FCBGA1493
• Memory: DDR4 SO-DIMM, up to 2×16GB (32GB total), 3200 MHz
• Networking:
  • 6× RJ45 2.5Gigabit Ethernet ports
  • Optimized for multi-LAN firewall, routing, and gateway deployments
• Storage Options:
  • 1× SATA 6Gb/s interface
  • 1× mSATA slot for OS or logging storage
• Expansion Interfaces:
  • 1× M.2 Key-B 3052 for 4G/5G modules or communication expansion
  • 1× mPCIe for Wi-Fi, Bluetooth, or functional expansion modules
• I/O Interfaces:
  • Front: 6× RJ45 LAN, 2× USB-A 3.0, 1× RJ45 console port
  • Rear: VGA / HDMI (reserved), AC power socket, antenna holes (reserved)
• Cooling: Active cooling with 1× CPU fan + 2× chassis fans
• Power: AC input 85V–264V (47–63 Hz), DC output 12V / 6A
• Chassis Size: 440 × 255 × 45 mm (1U)
• Weight: 3.80 kg (net), 4.50 kg (with accessories)
• Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

• Firewall & Security Gateway: Ideal for pfSense, OPNsense, and other security platforms requiring multiple LAN ports.
• SD-WAN & Routing Appliance: Supports flexible WAN/LAN segmentation for branch networks and multi-zone routing.
• Industrial Edge Gateway: Suitable for edge data processing, secure connectivity, and protocol conversion.
• Network Service Platforms: A compact 1U solution for SMEs, telecom sites, and IT closets.
• Wireless / Cellular Connectivity: Add Wi-Fi or 4G/5G modules via M.2 Key-B and mPCIe for remote deployments.
