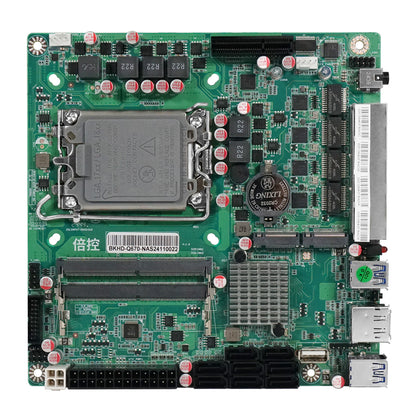

Mini-ITX Motherboard Quad Port 2.5GbE 8x SATA Dual M.2 Supports RAID vPRO for Server NAS Firewall Compatible TrueNAS OpenMediaVault ESXi Q670-NAS-MB

Product Overview

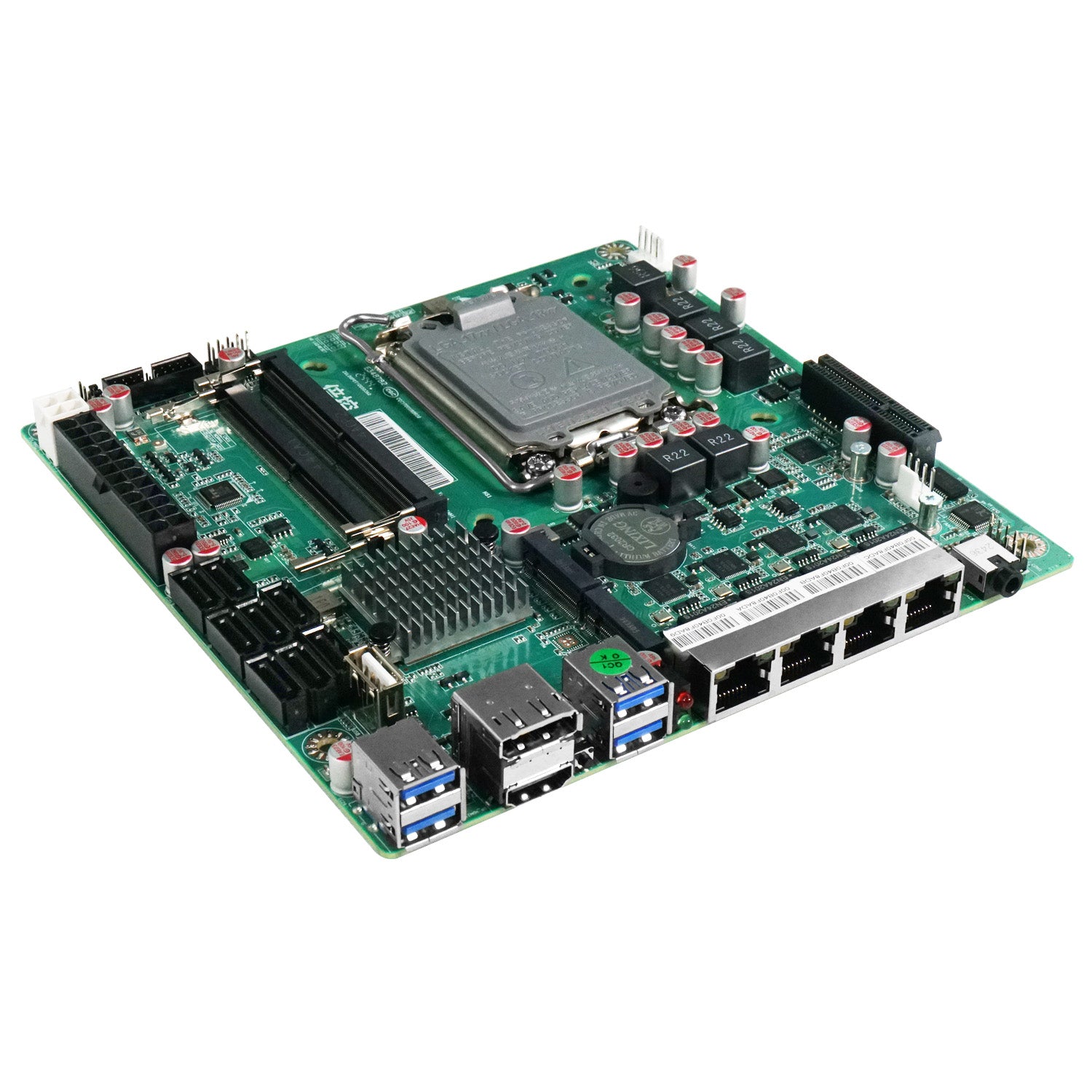

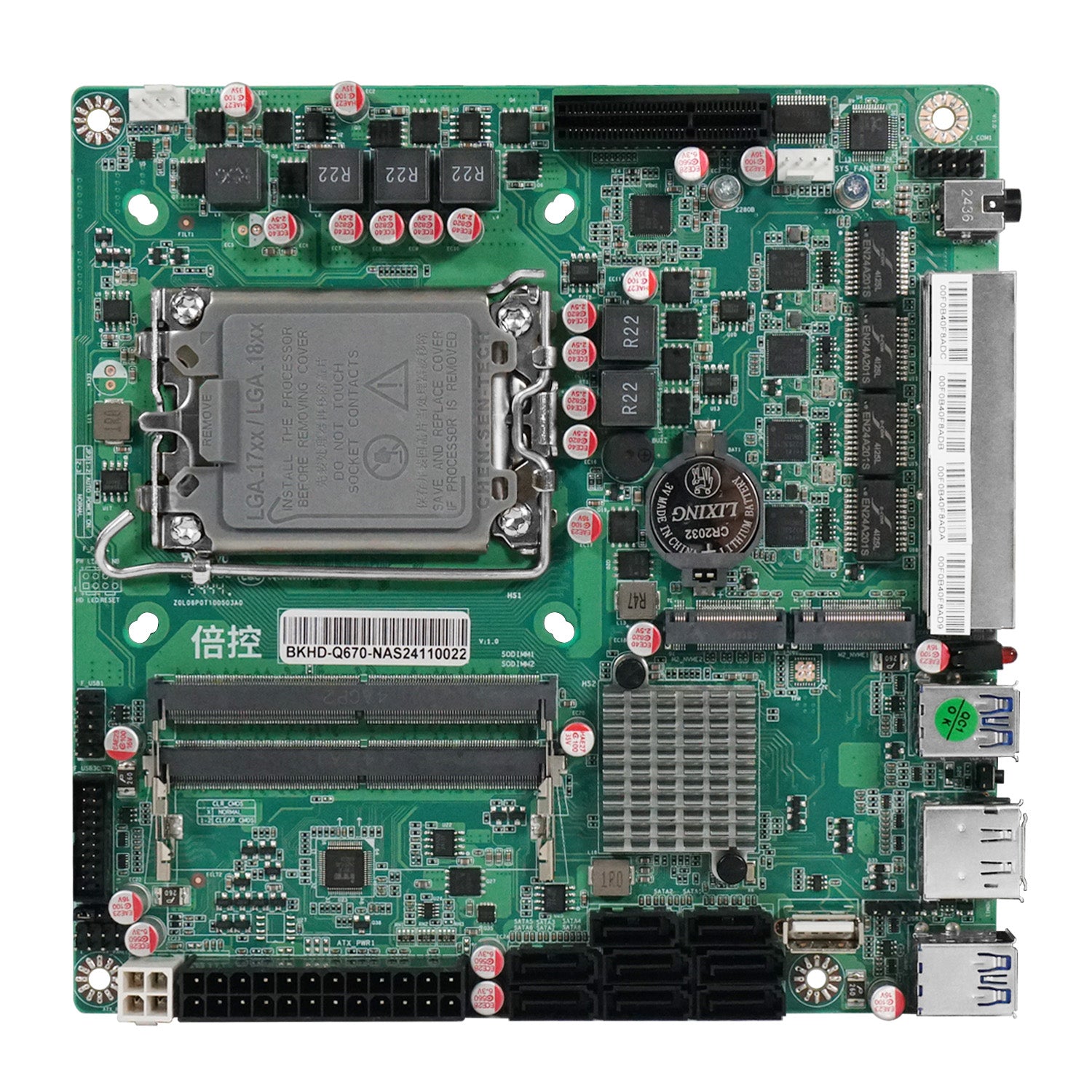

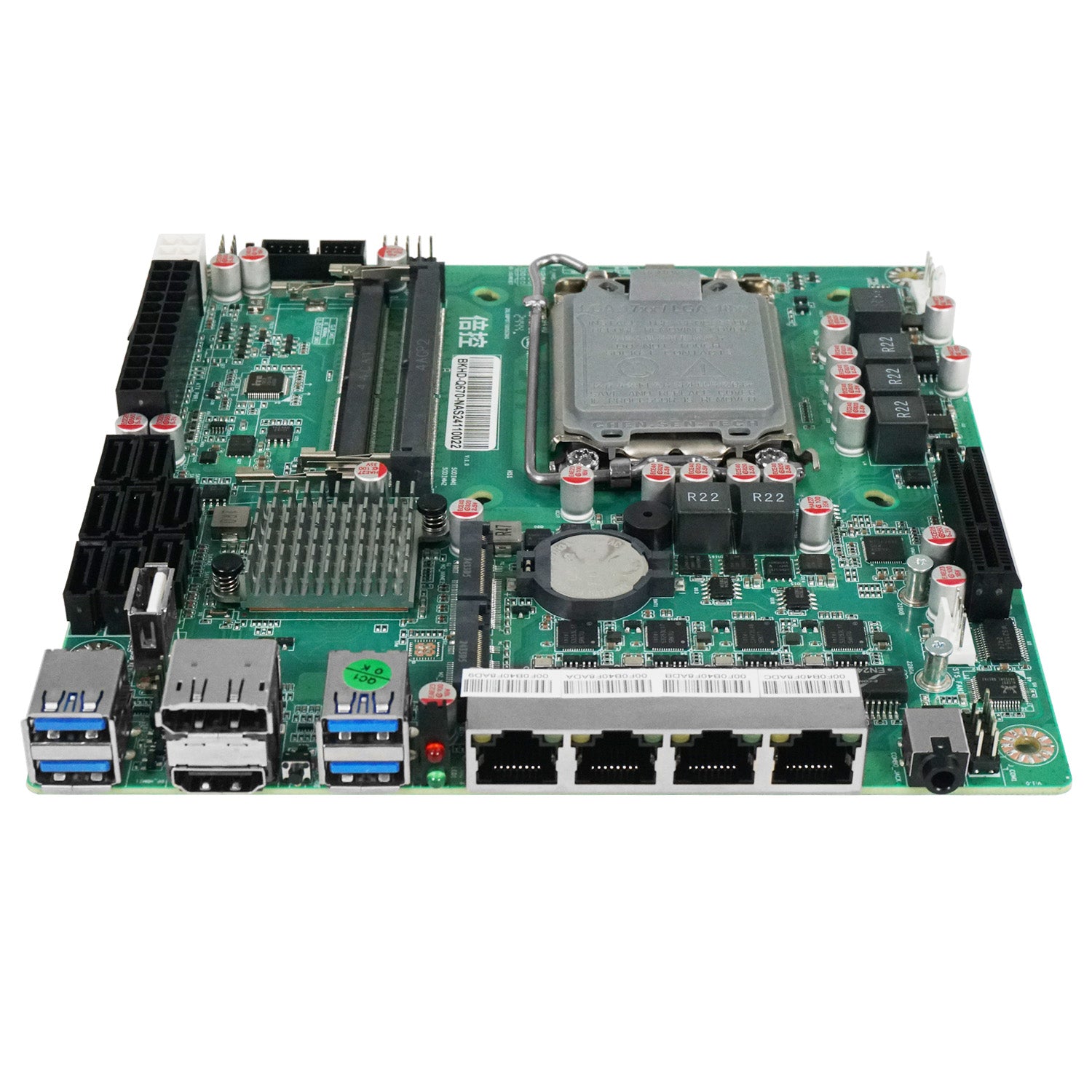

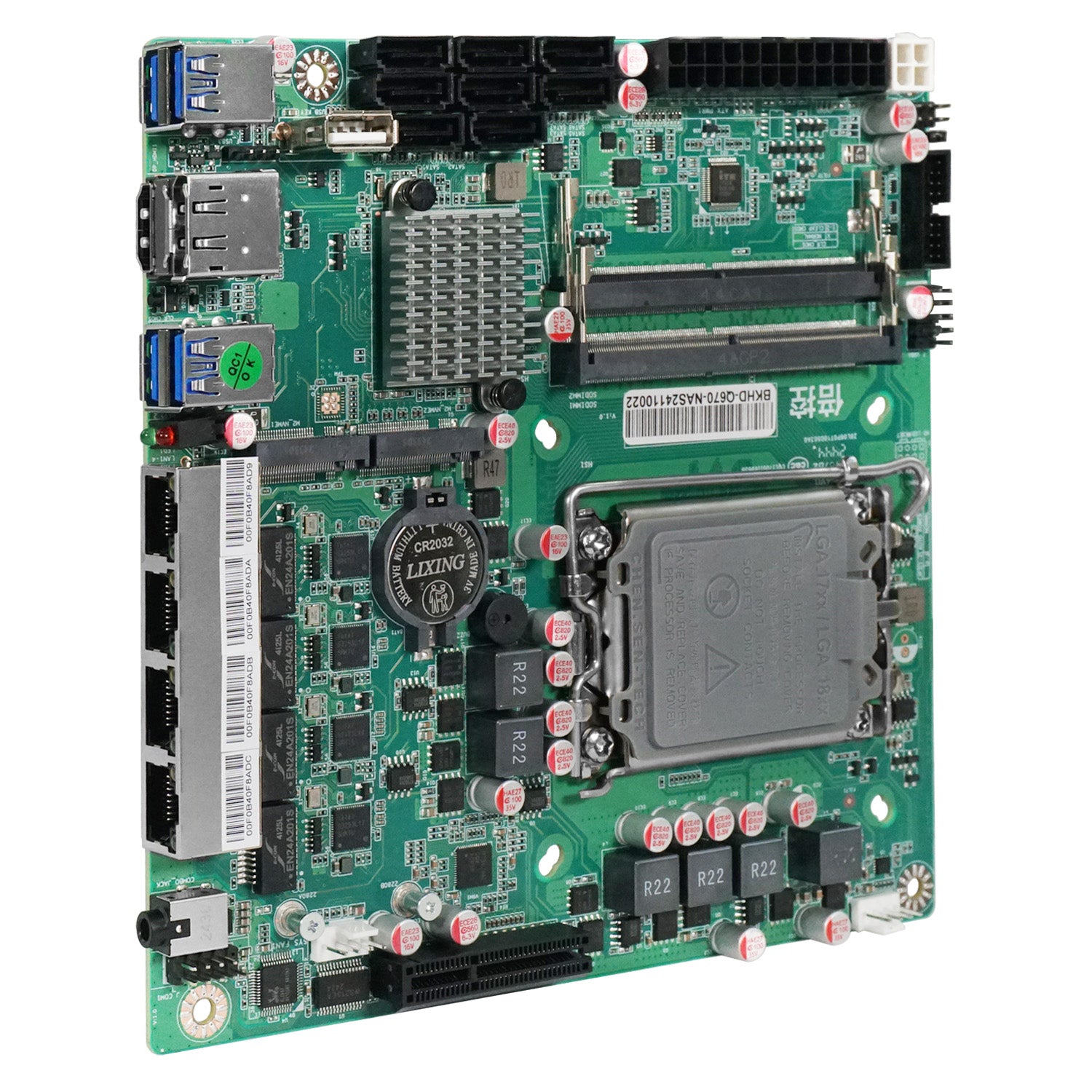

The Q670-NAS-MB is a high-performance Mini-ITX NAS motherboard based on the Intel® Q670 chipset, supporting 12th, 13th, and 14th Gen Intel® Core™ / Pentium® / Celeron® processors (FCLGA1700 socket). With dual DDR5 SO-DIMM slots supporting up to 96GB (2×48GB) at 4800 MT/s, 8× SATA 6Gb/s, dual M.2 NVMe (PCIe Gen4/Gen3), and 4× 2.5GbE LAN, it delivers exceptional storage capacity, fast networking, and powerful compute performance in a compact Mini-ITX form factor.

Key Features

• Processor: Supports 12th/13th/14th Gen Intel® Core™, Pentium®, and Celeron® processors (FCLGA1700)
• Chipset: Intel® Q670 platform with stable enterprise-level performance
• Memory: 2× DDR5 SO-DIMM, up to 96GB (2×48GB), 4800 MT/s
• Storage: 8× SATA 3.0, 2× M.2 Key-M 2280 (1× PCIe Gen4 x4, 1× PCIe Gen3 x4)
• Networking: 4× 2.5GbE ports (3× Intel I226V + 1× Intel I226LM)
• Expansion: 1× PCIe Gen4 x4 slot for additional network or storage cards
• Display: 1× DP and 1× HDMI (processor-dependent integrated graphics)

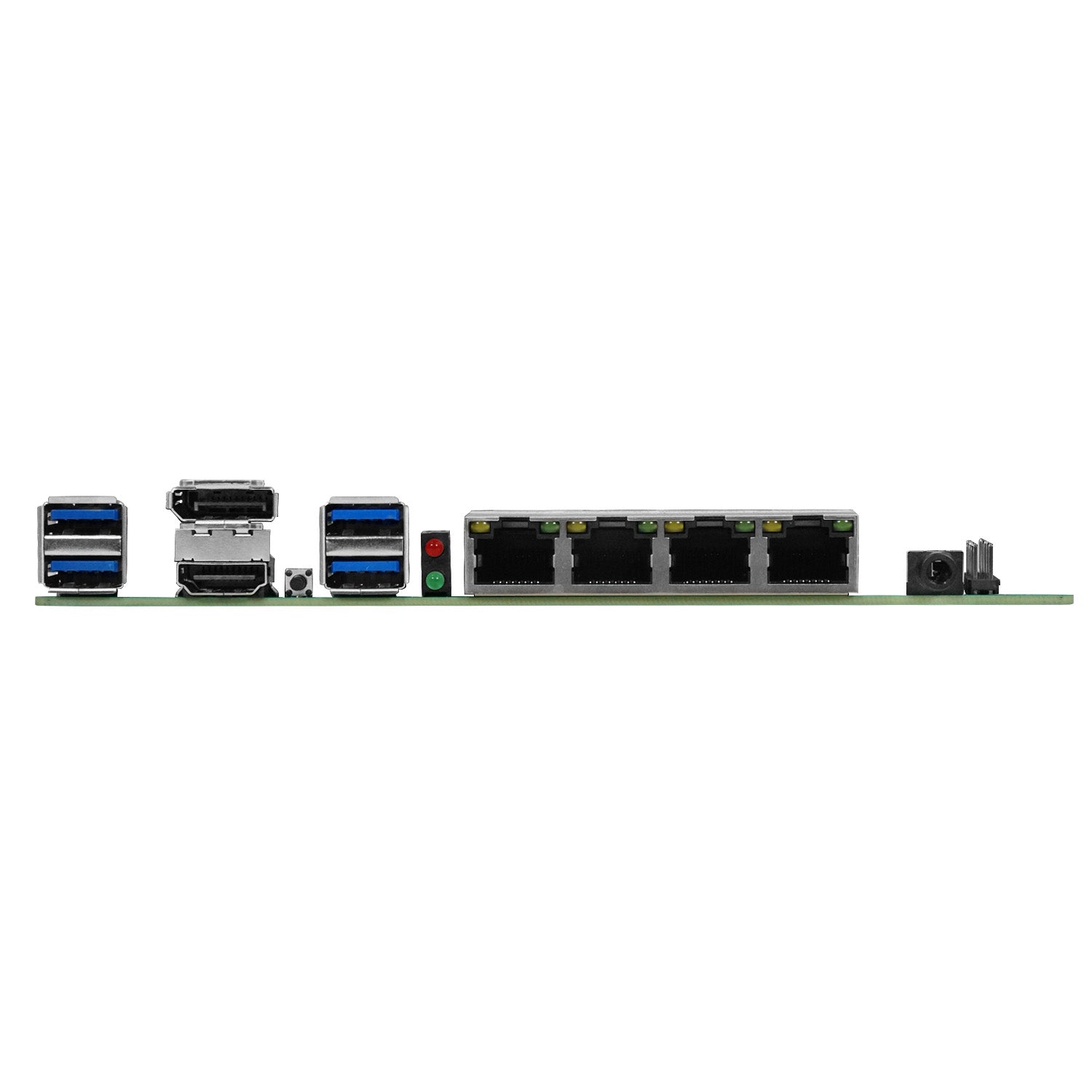

• USB: 4× USB 3.2 (rear I/O) + internal USB 2.0/3.0 headers
• Audio: Combo 3.5mm jack for Line-out or Mic-in
• Cooling: 1× CPU_FAN + 1× SYS_FAN headers for reliable 24/7 operation
• Power: ATX 24-pin + 4-pin connectors for stable system power
• Form Factor: 170×170 mm Mini-ITX, compact yet highly expandable

Application Scenarios

• Network Attached Storage (NAS): Supports up to 8 SATA drives for large-capacity data backup or multimedia servers
• Home & Enterprise Server: Ideal for private cloud, data sharing, or IP surveillance storage systems
• Virtualization: Excellent CPU and memory scalability for lightweight virtualization or container deployments
• Edge Computing: Suitable for compact, low-power compute nodes with high-speed networking
• AIoT & Industrial Applications: Stable operation across 0–60°C environments, supporting 24/7 uptime

Resources

Data Sheet
Product Manual
