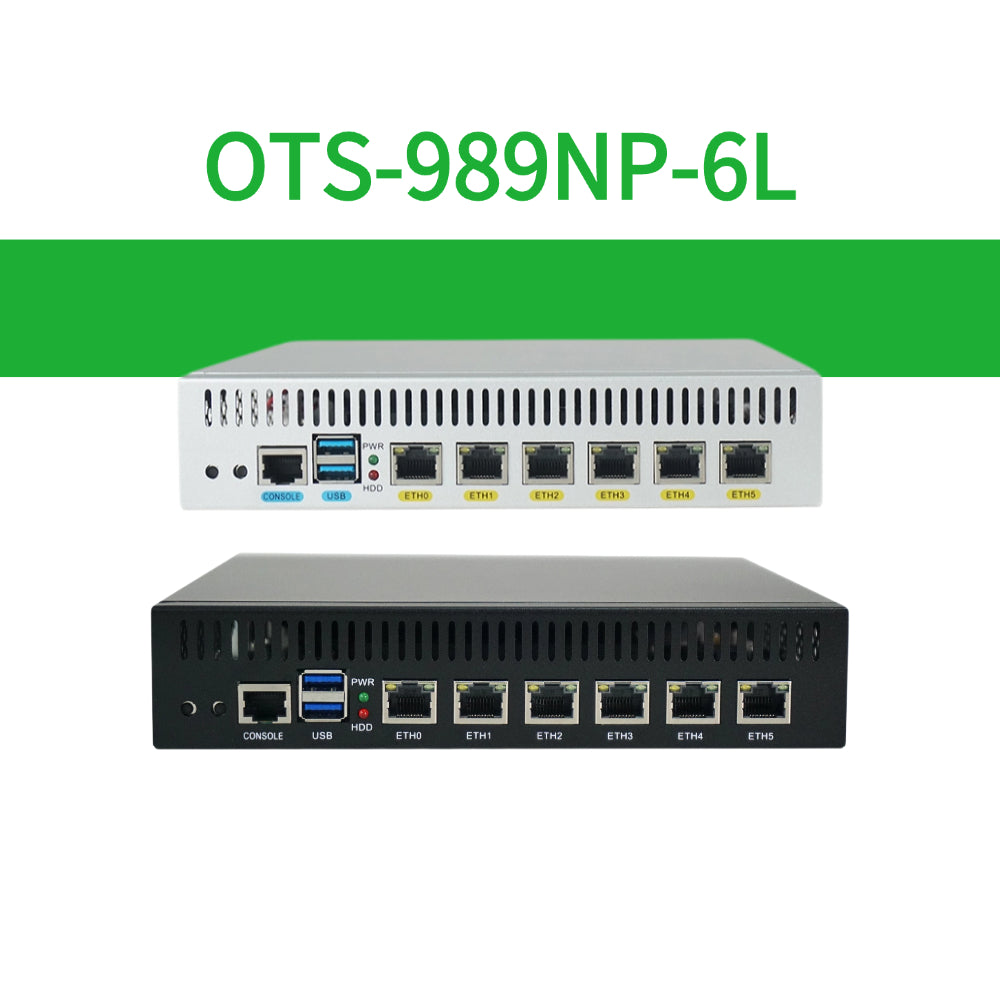

OTS-989NP-6L

Product Overview

The OTS-989NP-6L is a compact industrial network appliance built on legacy Intel Core processor platforms (FCPGA988), designed for reliable and continuous operation in enterprise and industrial environments. With six RJ45 Ethernet ports, flexible expansion options, and a robust metal enclosure, it is well suited for firewall, routing, and network security applications where stability and multi-port connectivity are essential.

Key Features

• Processor Platform: Legacy Intel Core processors, FCPGA988 socket
• Memory: DDR3 / DDR3L SO-DIMM, up to 8GB, up to 1600 MT/s
• Networking: 6× RJ45 Ethernet ports for routing, firewalling, and network segmentation
• Storage: 1× mSATA SSD slot for compact and reliable storage

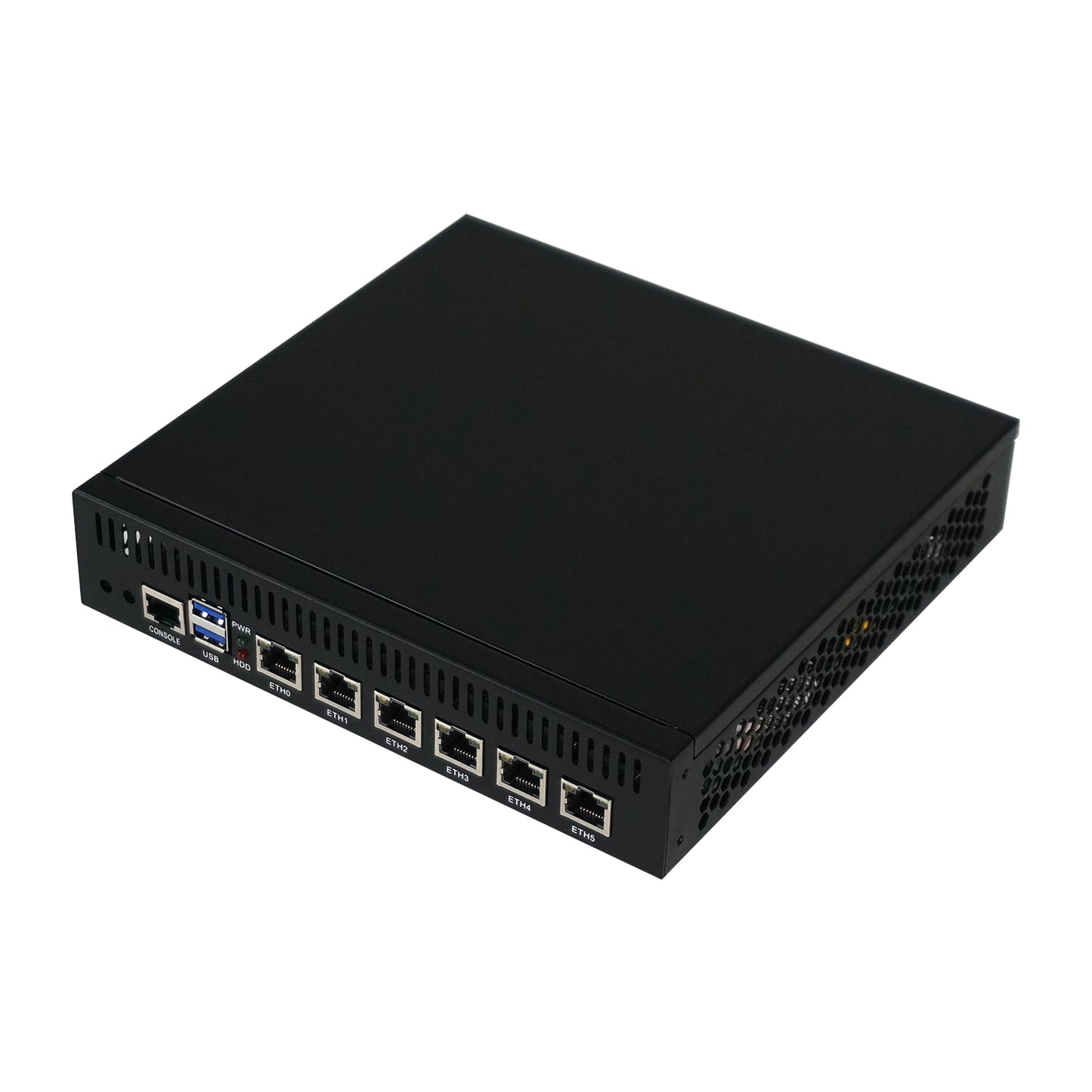

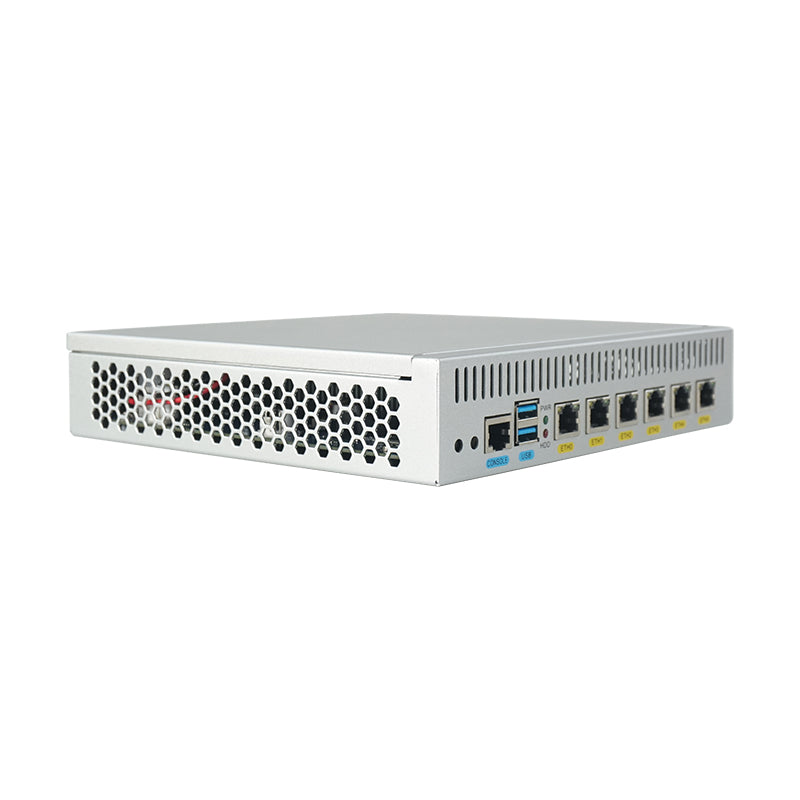

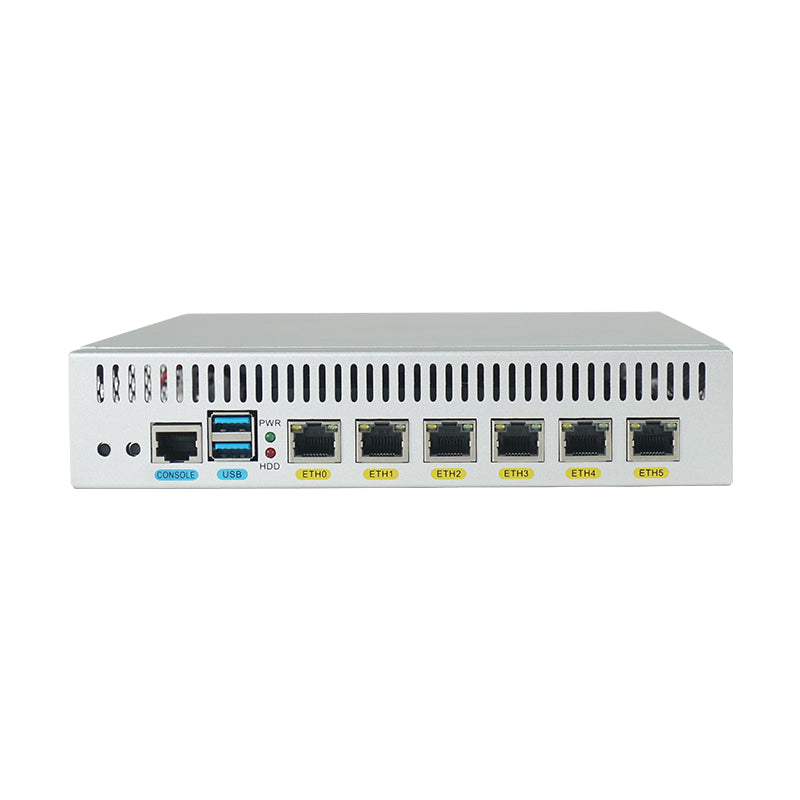

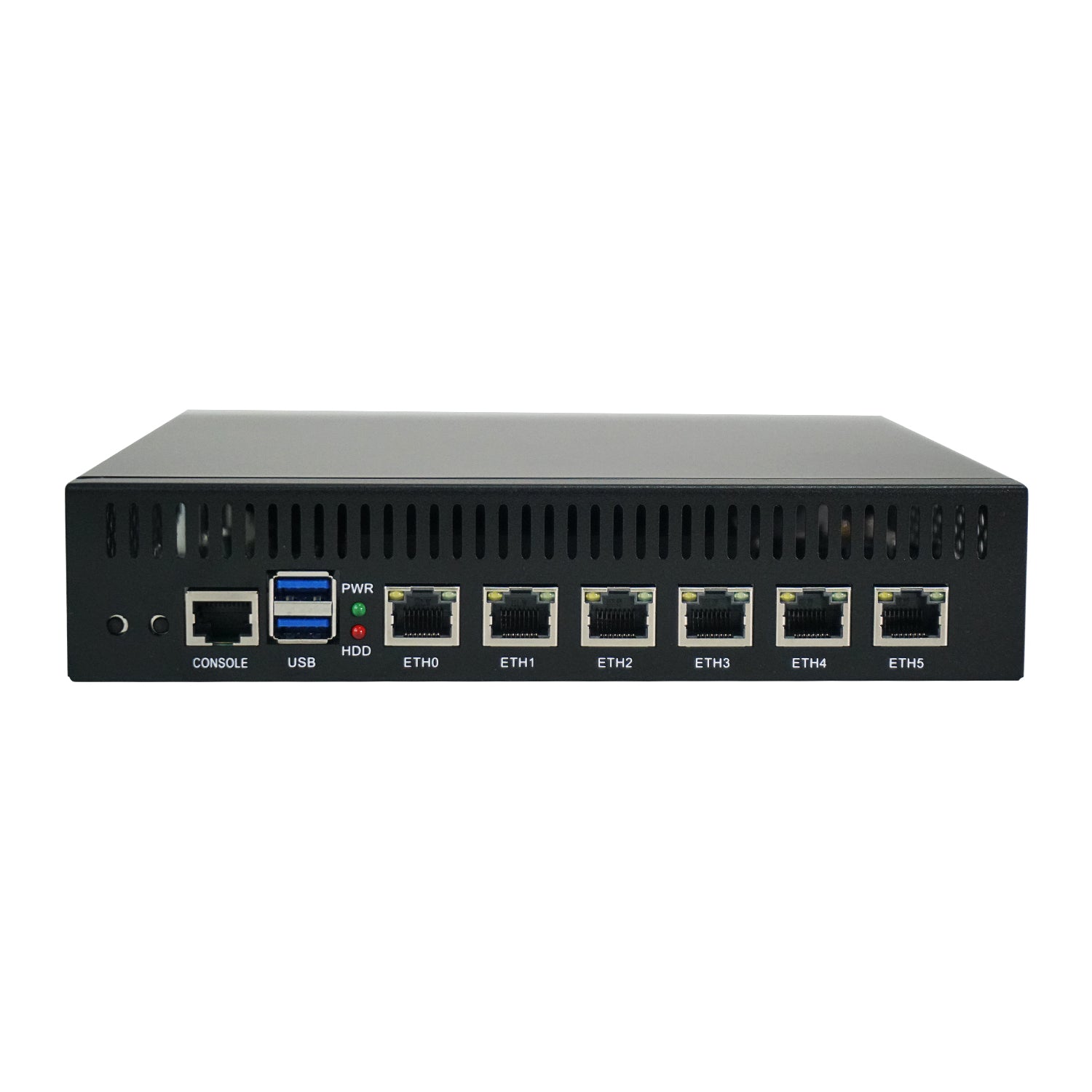

• Front Panel I/O:
  • 6× RJ45 LAN ports
  • 2× USB-A 3.0
  • 1× RJ45 console port

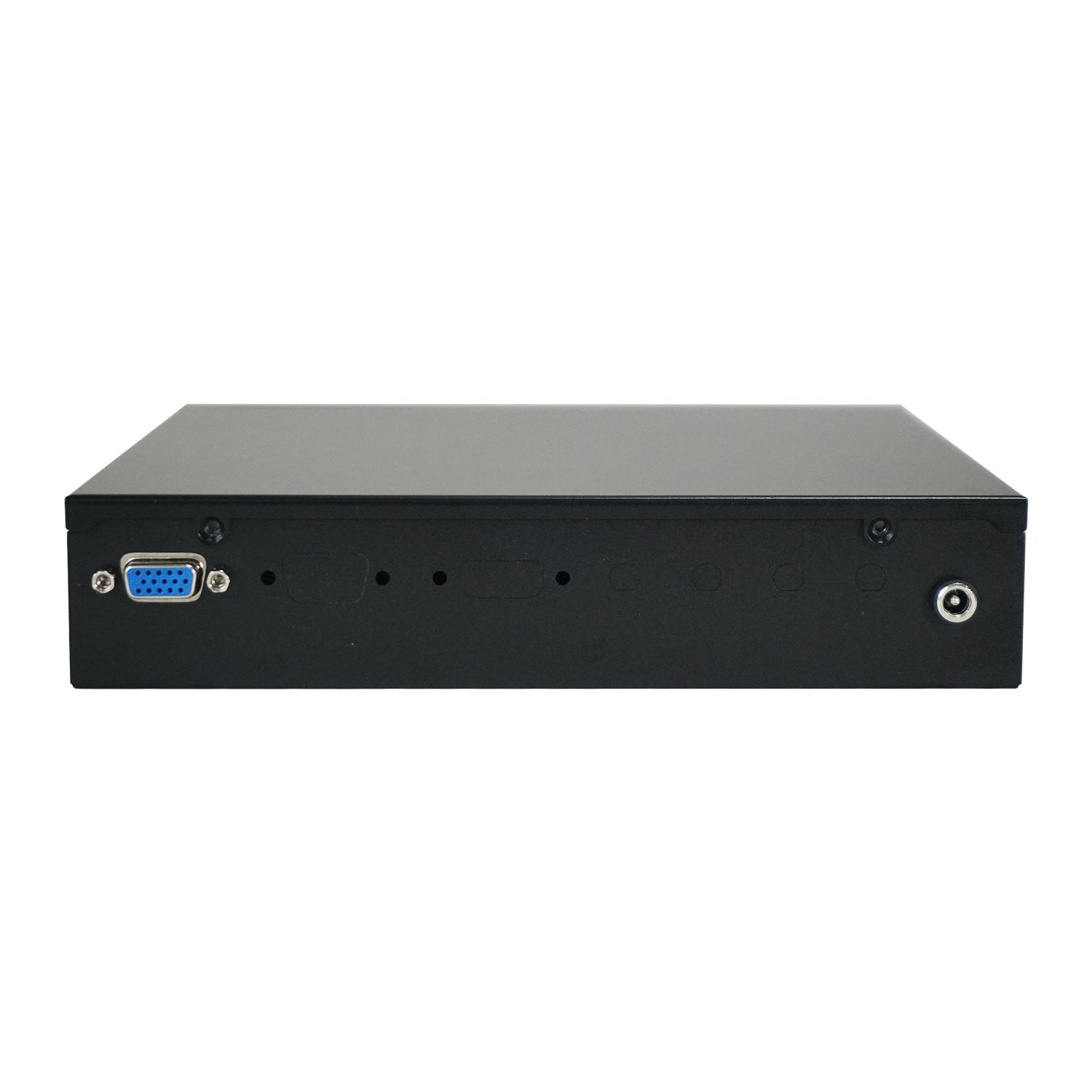

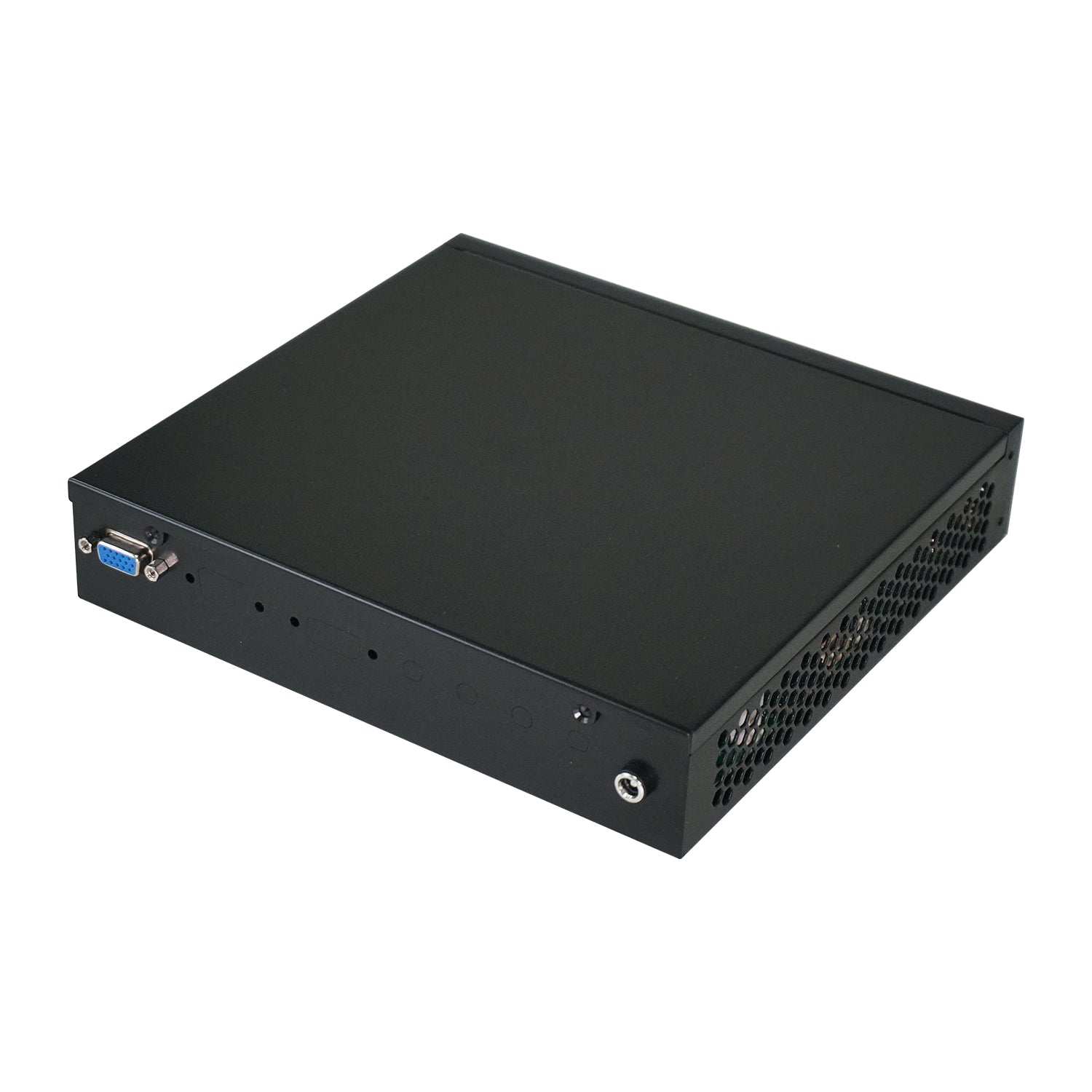

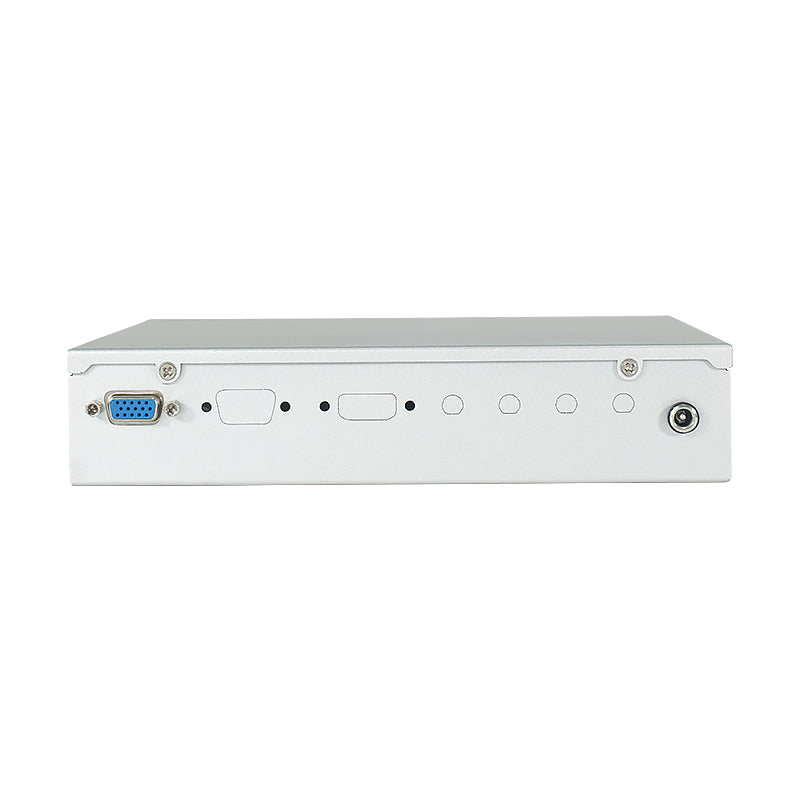

• Rear Panel I/O:
  • 1× VGA display output (HD reserved)
  • 2× antenna holes (reserved)
  • DC power input jack (5.5 / 2.5 mm)
• Expansion: 1× mPCIe slot for wireless or functional expansion modules

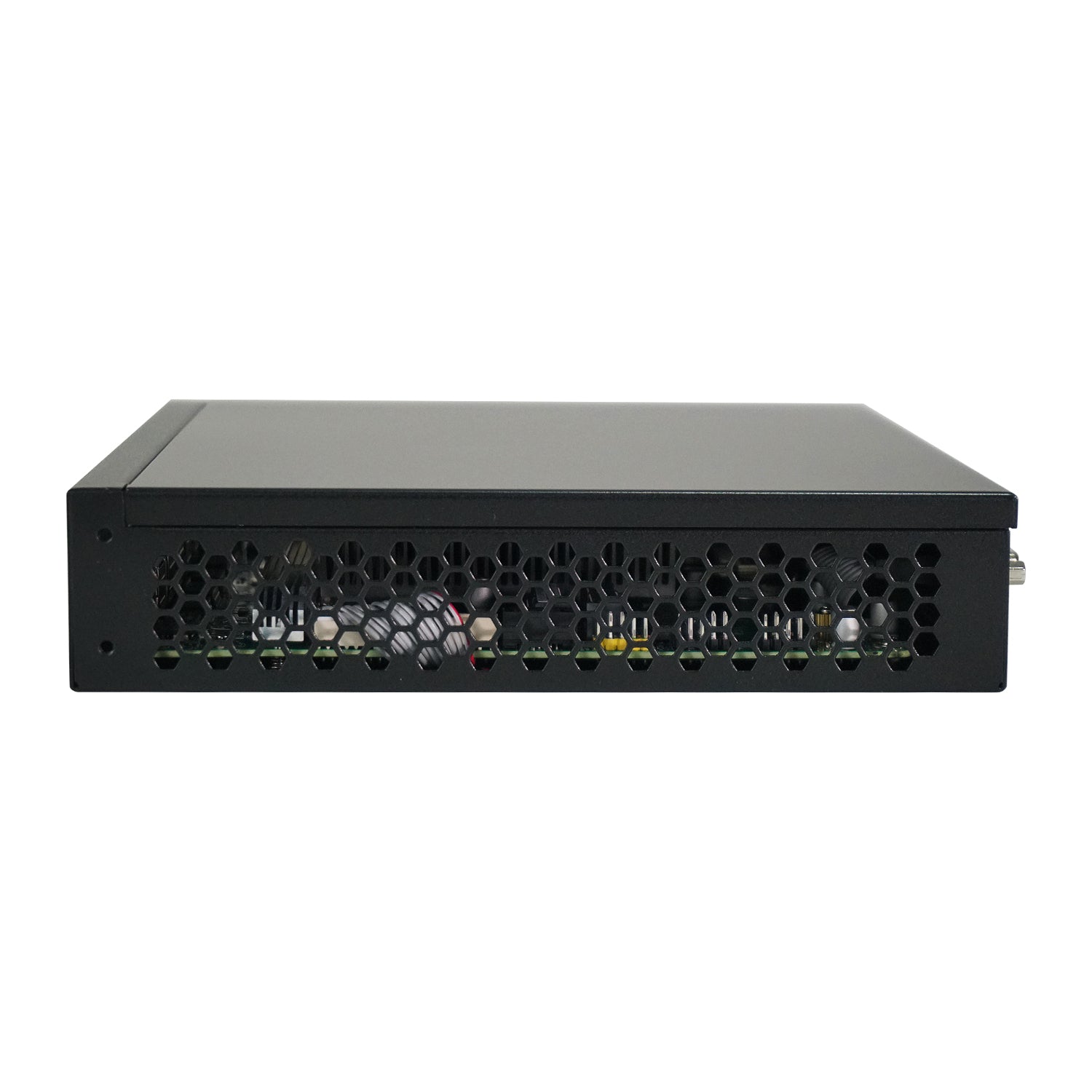

• Cooling: Active cooling design with dedicated CPU fan
• Power Input: DC 12V, 4A or higher
• Chassis Size: 210 × 200 × 45 mm
• Weight: 1.25 kg (net), 1.65 kg (with accessories)
• Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

• Firewall & Security Gateway: Suitable for pfSense, OPNsense, and Linux-based firewall systems.
• Multi-LAN Router: Ideal for network segmentation, VLAN routing, and traffic control.
• Industrial Network Gateway: Reliable connectivity for industrial Ethernet and control systems.
• Edge Network Appliance: Compact platform for branch offices and distributed network deployments.
• Legacy Platform Replacement: Cost-effective solution for upgrading existing Intel Core-based network devices.
