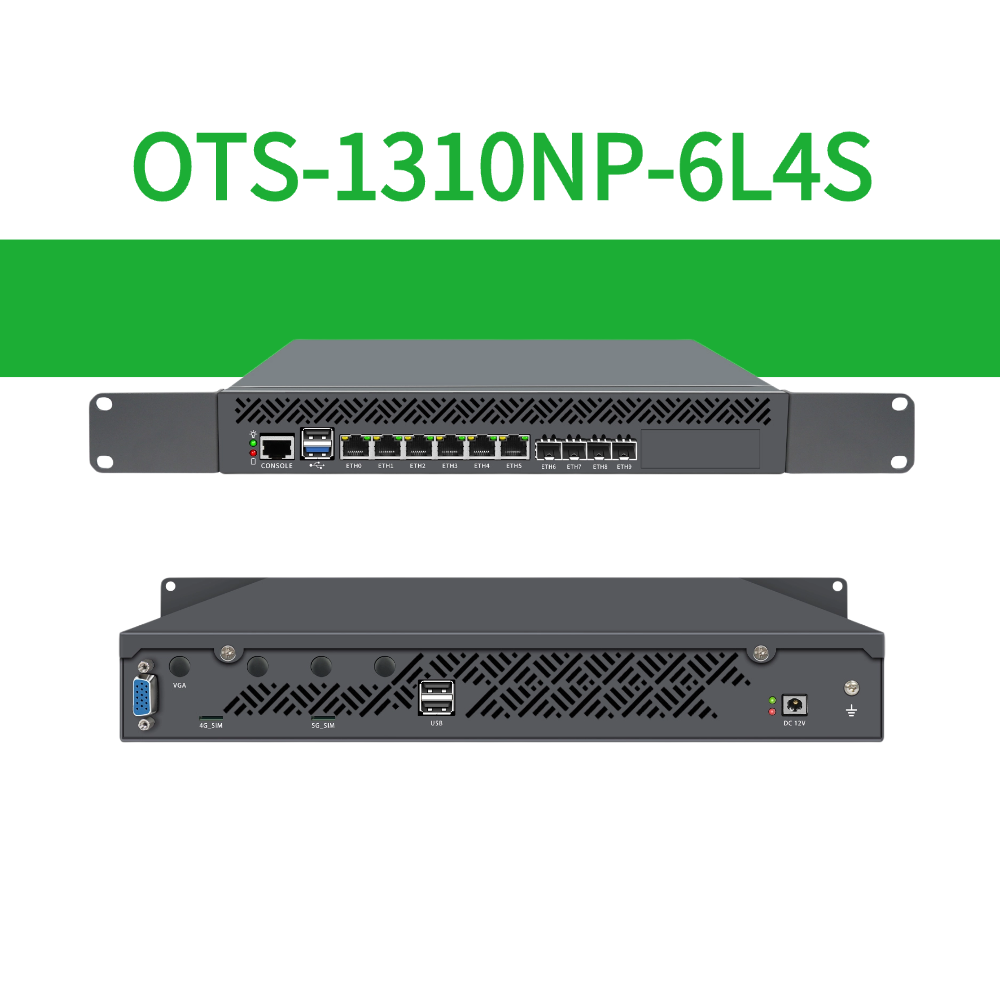

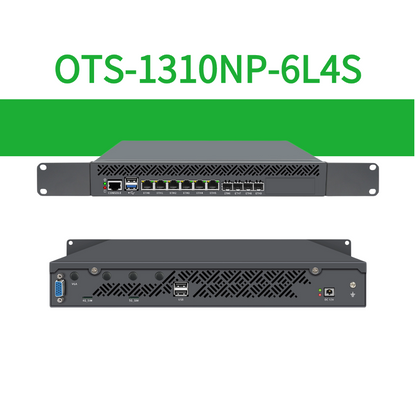

OTS-1310NP-6L4S Intel Atom Network Appliance with 6×LAN and 4×10G SFP+
OTS-1310NP-6L4S Intel Atom Network Appliance with 6×LAN and 4×10G SFP+
Couldn't load pickup availability
OTS-1310NP-6L4S High-Performance Network Security Appliance
The OTS-1310NP-6L4S is a high-performance network security platform based on the Intel Atom Processor C Series. Designed for high-throughput data transmission, secure network deployment, virtual network isolation, and multi-link communication management, it integrates 6×RJ45 LAN ports and 4×10Gb SFP+ ports in a compact chassis. With DDR4 memory support, PCIe expansion, M.2 storage, mPCIe, M.2 Key-B expansion, dual SIM card slots, and active cooling, it provides a flexible and reliable hardware foundation for enterprise network security, edge IoT gateway, small virtualization platform, and network server applications.
Key Features
- Intel® Atom® Processor C Series platform for low-power network and security computing

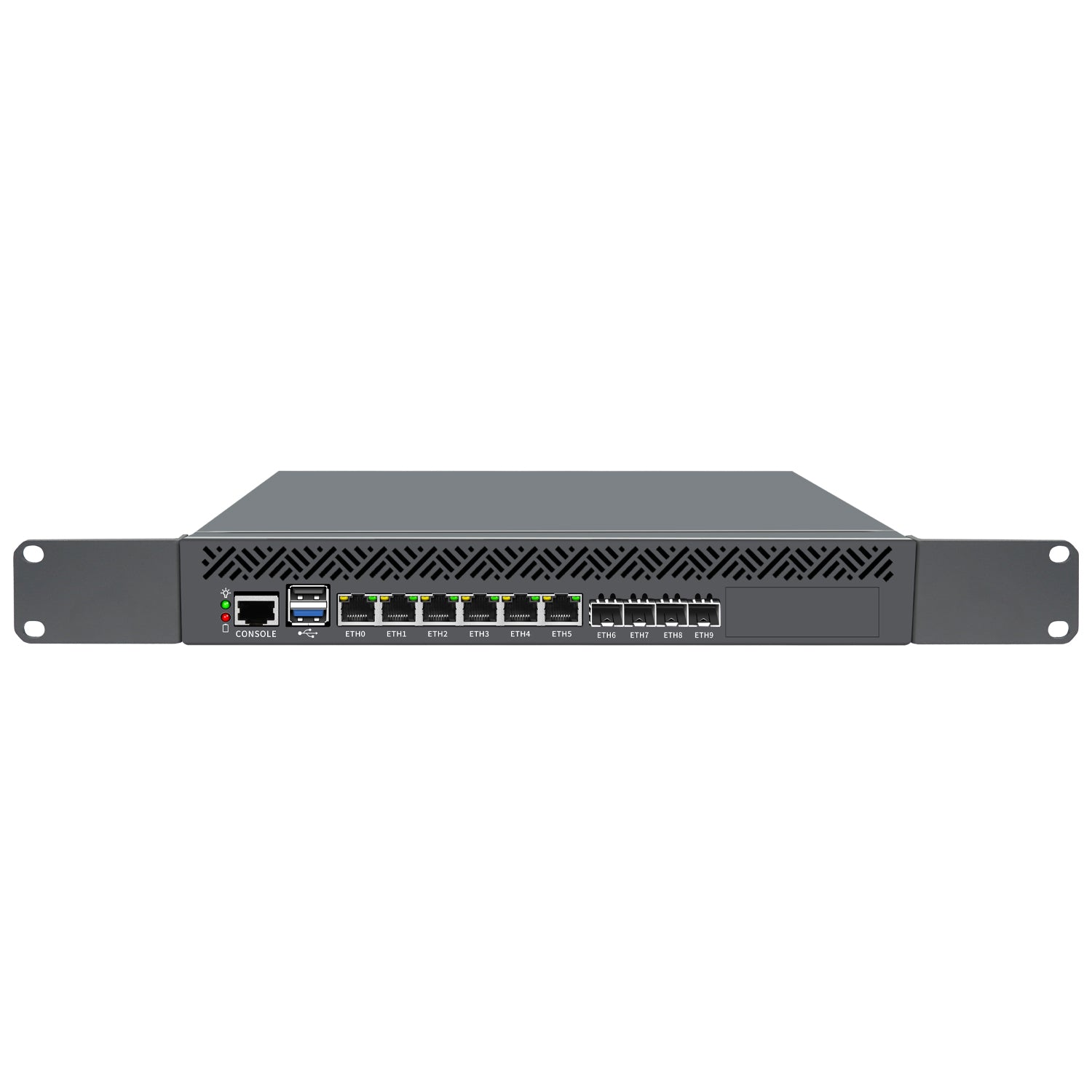

- Hybrid network interface design with 6×RJ45 LAN ports and 4×10Gb SFP+ optical ports
- DDR4 SODIMM memory support, up to 2×32GB, 2400 MT/s
- Flexible storage: 2×SATA 6Gb/s and 1×M.2 Key-M 2280 SSD
- PCIe expansion: 1×PCIe x8 slot with PCIe Gen3 x4 rate
- Wireless and cellular expansion: 1×M.2 Key-B 3052 and 1×mPCIe slot
- Dual SIM card slots for cellular network deployment
- Console interface: 1×RJ45 COM for network appliance setup and maintenance
- Display output: 1×VGA
- USB connectivity: 1×USB-A 3.0 and multiple USB-A 2.0 ports
- Active cooling design with 1×CPU fan for stable operation
- DC power input: 12V 7A output adapter configuration
Application Scenarios
- Cybersecurity appliances
- Firewall and UTM systems
- SD-WAN gateways
- Edge IoT gateways
- Small virtualization platforms
- Network servers
- Enterprise network routing and segmentation
- High-throughput network transmission and multi-link management
- Embedded network security solutions
Specifications
| Model | OTS-1310NP-6L4S |
| Processor Platform | Intel Atom Processor C Series |
| Socket | FCBGA1310 |
| Memory | DDR4 SODIMM, up to 2×32GB, 2400 MT/s |
| Storage | 2×SATA 6Gb/s, 1×M.2 Key-M 2280 SSD |
| Network | 6×RJ45 LAN, 4×10Gb SFP+ |
| Network Controller | Intel I350, Intel I211, Intel X553 platform configuration |
| Expansion | 1×PCIe x8, 1×M.2 Key-B 3052, 1×mPCIe |
| SIM | 2×SIM card slots |
| USB | 1×USB-A 3.0, multiple USB-A 2.0 ports |
| Console | 1×RJ45 COM |
| Display | 1×VGA |
| Antenna Hole | 4×reserved |
| Cooling Method | Active cooling, 1×CPU fan |

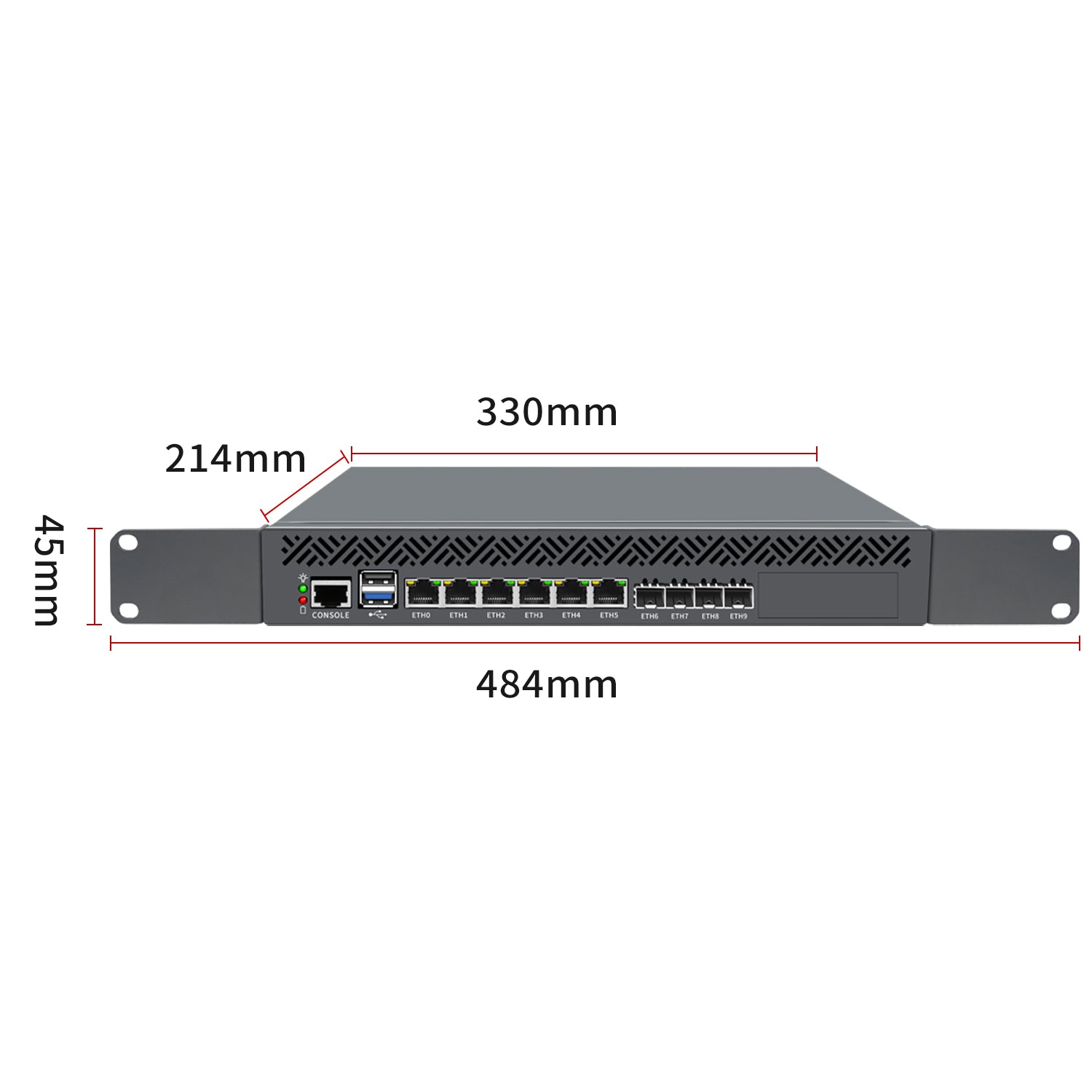

| Chassis Size | 330×215×45 mm |
| Weight | Equipment weight: 3.65 kg; package weight: 4.50 kg including accessories |
| Power Input | 100V~240V AC 50/60Hz adapter input, 12V 7A output |
| Operating Temperature | 0~50°C |
| Humidity | 5%~90% relative humidity, non-condensing |
Download
Note: Product appearance and specifications may vary slightly by production batch. Please refer to the actual product received or contact us before ordering if you need to confirm a specific configuration.
