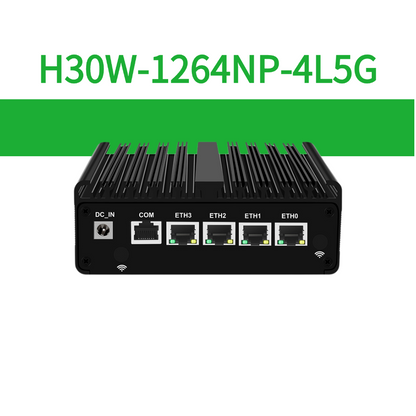

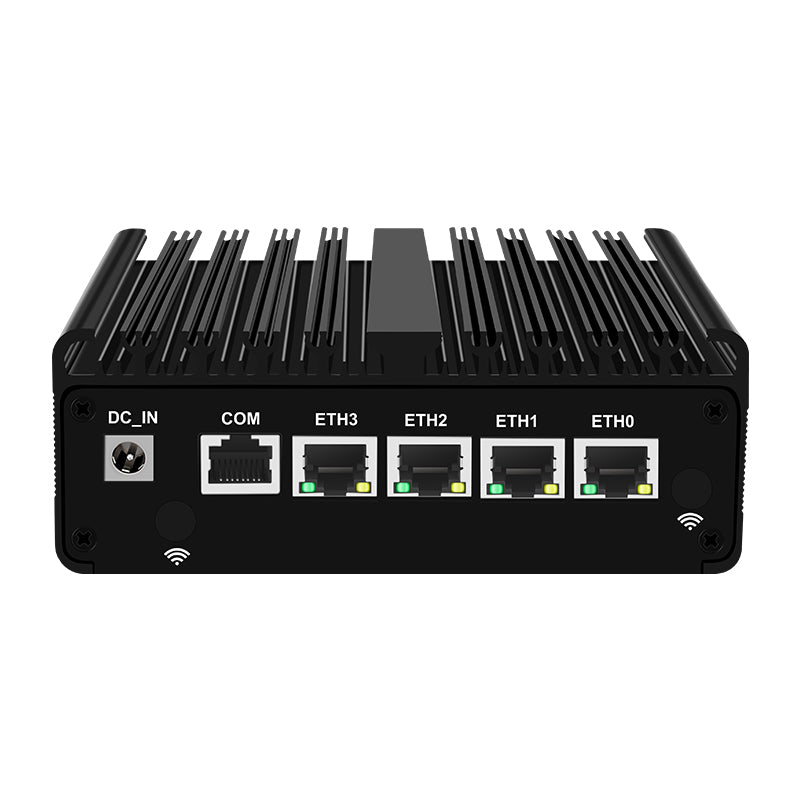

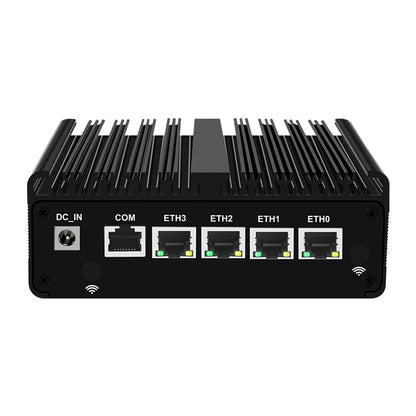

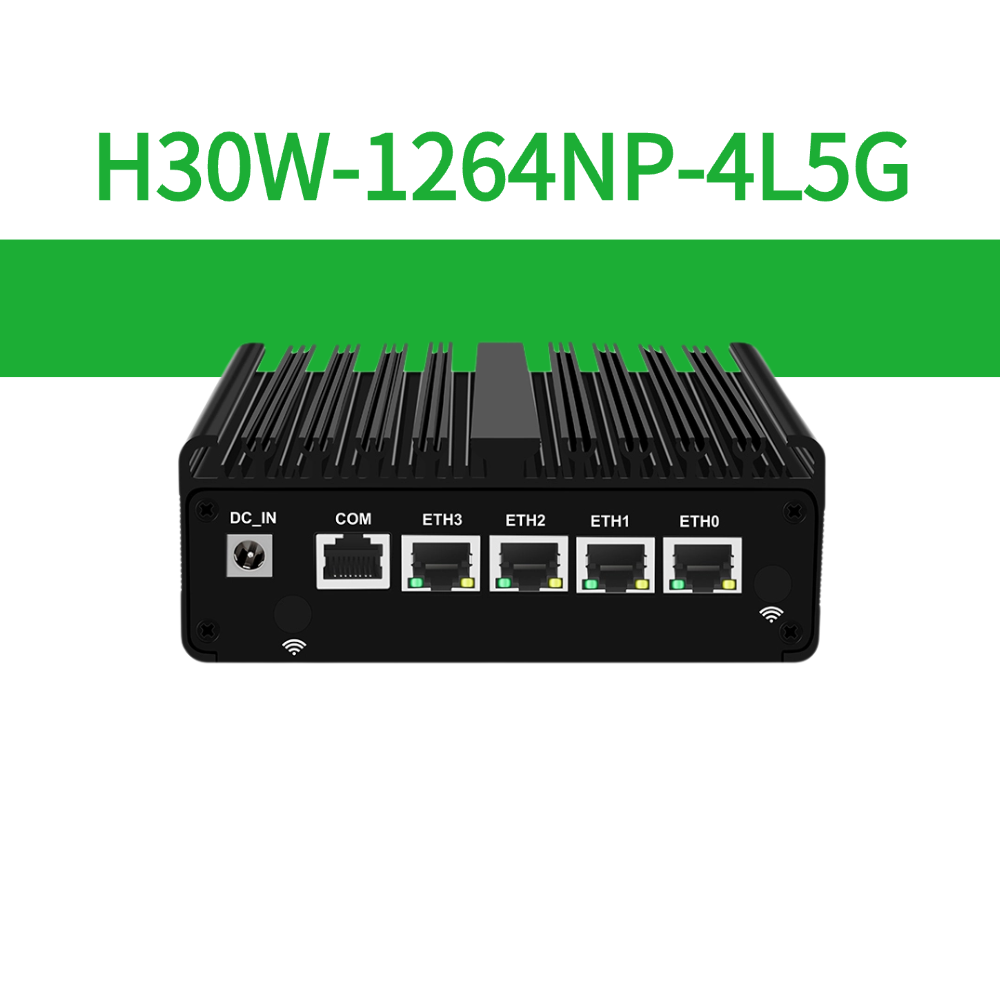

H30W-1264NP-4L5G 4G/5G Industrial Edge Computer

The H30W-1264NP-4L5G is a compact fanless industrial edge computer designed for remote unattended applications. Powered by an Intel N-Series processor, it combines 4×2.5GbE LAN ports, dual wireless module expansion, dual SIM card support, and flexible storage options to deliver reliable wired and wireless connectivity for industrial communication, IoT gateway, cybersecurity, smart energy, traffic inspection, and field equipment deployments.

Key Features

  • Intel® Processor N-Series platform with FCBGA1264 package
  • 4×RJ45 2.5GbE Ethernet ports for high-speed industrial networking
  • Dual wireless expansion: 1×mPCIe slot and 1×M.2 Key-B 3052 slot
  • Dual SIM card slots for 4G/5G cellular connectivity applications
  • DDR5 SO-DIMM memory support, up to 16GB, 4800 MT/s
  • Dual storage design: 1×M.2 Key-M 2280 SSD and 1×SATA 6Gb/s
  • Display output: 1×DP and 1×HD
  • Rich I/O: USB 2.0, USB 3.2, RJ45 COM, front panel interface, SATA power and data connector
  • Fanless passive cooling design, suitable for industrial environments with proper airflow
  • DC 12V power input, recommended 12V 4A or higher

Industrial Applications

  • Industrial communication hub
  • Smart edge node
  • Cybersecurity appliance
  • IoT gateway
  • Smart energy and remote monitoring
  • Traffic inspection and field equipment control

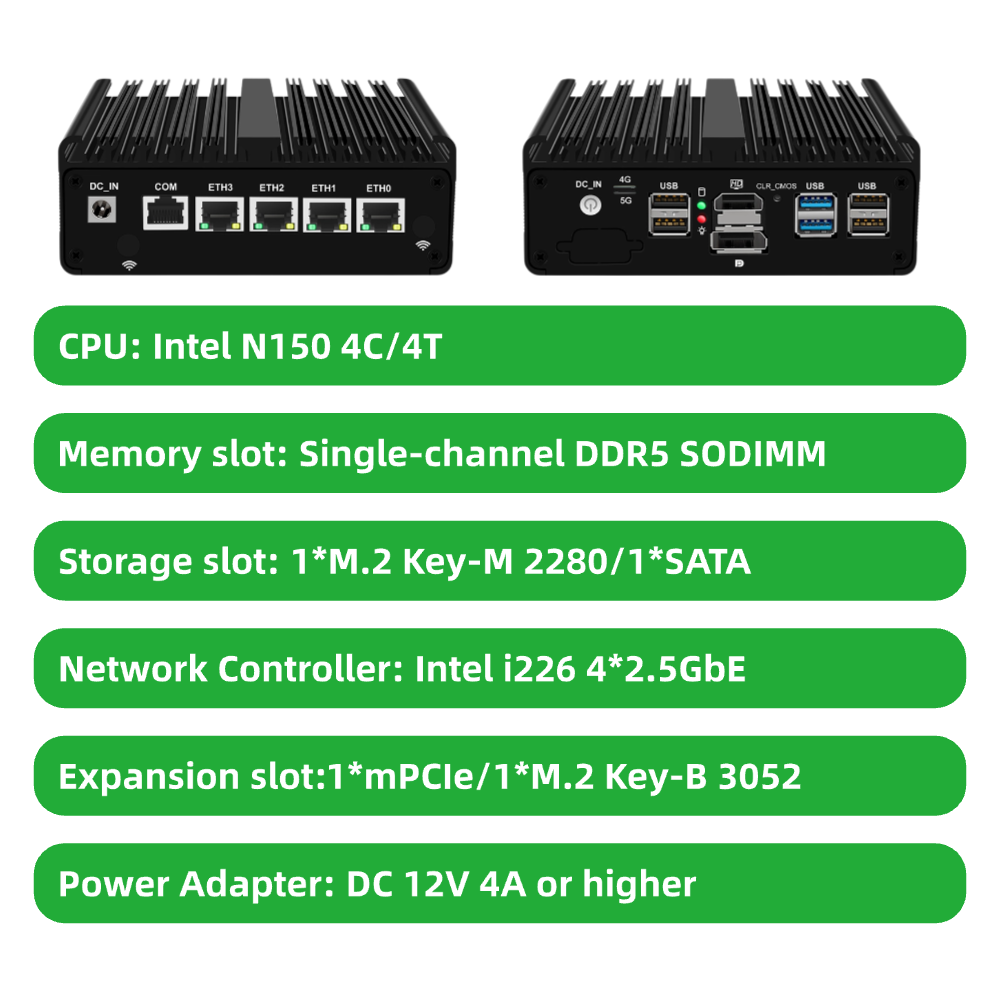

Specifications

Model H30W-1264NP-4L5G
Processor Platform Intel® Processor N-Series
Memory DDR5 SO-DIMM, up to 16GB, 4800 MT/s
Storage 1×SATA 6Gb/s, 1×M.2 Key-M 2280
Ethernet 4×RJ45 2.5GbE LAN
Wireless Expansion 1×mPCIe, 1×M.2 Key-B 3052
SIM 2×SIM card slots
USB 4×USB-A 2.0, 2×USB-A 3.2
Display 1×DP, 1×HD
Console 1×RJ45 COM
Cooling Passive cooling, fanless design; airflow required
Chassis Size 138×126×48 mm
Weight Equipment weight: 0.75 kg; package weight: 1.25 kg including accessories
Power Input DC 12V 4A or higher
Operating Temperature 0~50°C
Humidity 5%~90% relative humidity, non-condensing

Download

Note: Product appearance and specifications may vary slightly by production batch. Please refer to the actual product received or contact us for confirmation before ordering.
