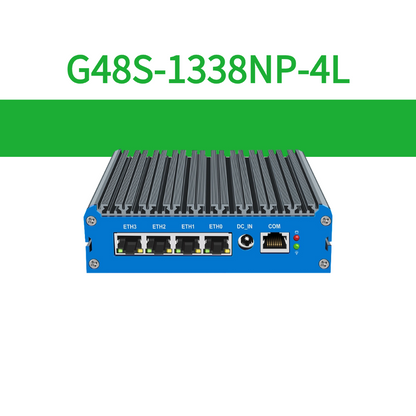

Fanless Network Device Integration Celeron Pentium 4x2.5G Ethernet Compatible pfSense OPNsense for Firewall Router G48S-1338NP-4L

Product Overview

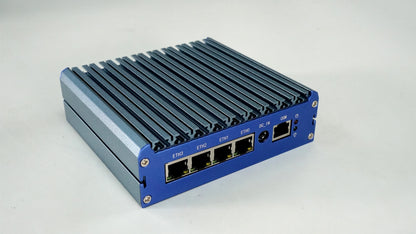

The G48S-1338NP-4L is a compact, fanless network appliance powered by the Intel® Celeron N-series processor. With DDR4 memory up to 16GB, versatile SATA + M.2 storage, and 4× RJ45 LAN ports, it provides stable performance for firewall, VPN, and IoT gateway applications. Its silent, fanless design makes it especially suitable for office, lab, or home network environments where noise control is essential.

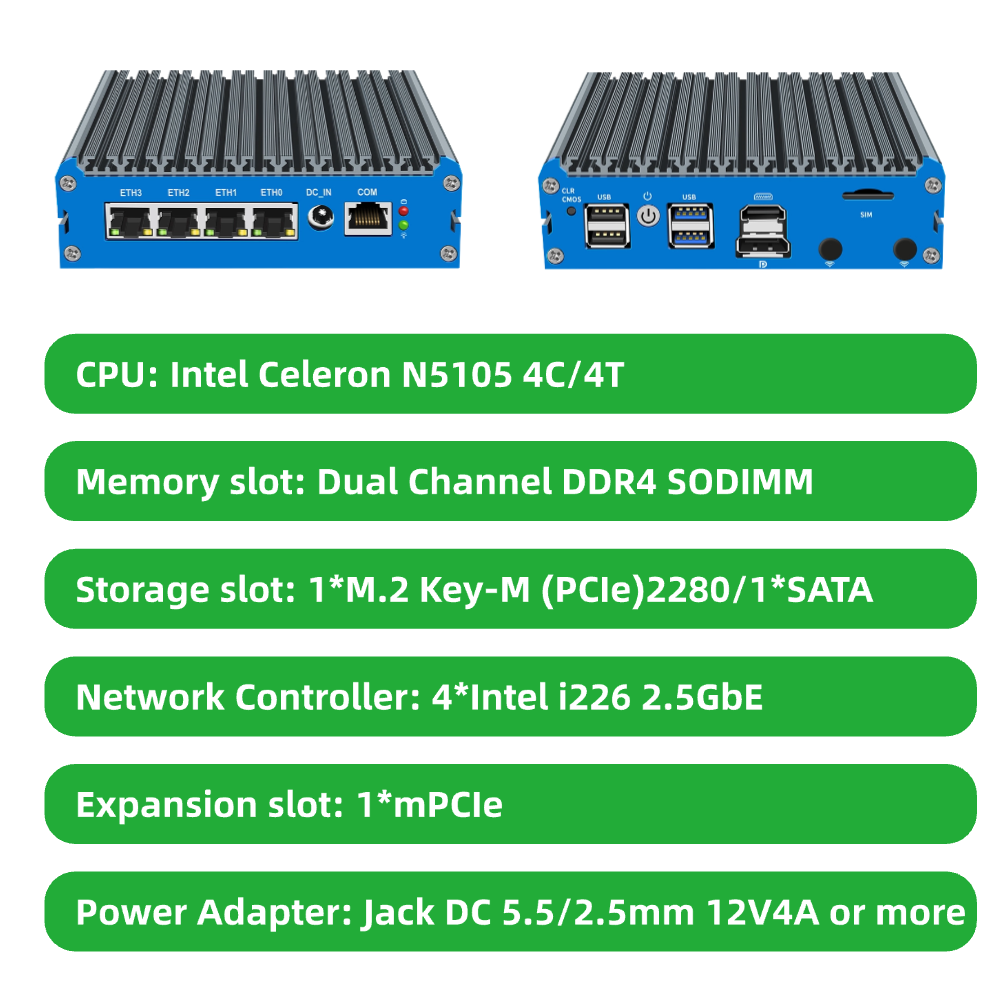

Key Features

• Processor: Intel® Celeron N-series, FCBGA1338
• Memory: DDR4 SO-DIMM up to 16GB, 2933 MHz
• Storage: 1× SATA 3.0 (6Gb/s), 1× M.2 Key-M 2280 (PCIe Gen3 x2)
• Networking: 4× 2.5GbE RJ45 ports
• USB: 2× USB-A 3.0, 2× USB-A 2.0
• Console: 1× RJ45 COM
• Display: 1× DP, 1× HDMI
• Other I/O: 1× SIM card slot, 2× antenna holes (reserved)
• Expansion: 1× mPCIe slot
• Cooling: Passive cooling, fanless design (requires airflow)
• Chassis: 134 × 125 × 40 mm; Weight: 0.65 kg (net), 1.25 kg (with accessories)
• Power: DC 12V / 4A or higher
• Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

• Firewall & VPN Gateway: pfSense/OPNsense deployments for SMBs
• IoT Gateway: Industrial data acquisition and IoT edge processing
• Edge Computing: Local data processing with low power consumption
• Silent Environments: Offices, labs, and home networks requiring fanless operation
• Compact Network Appliance: Perfect for space-constrained deployments

Resources

Data Sheet
Product Manual
