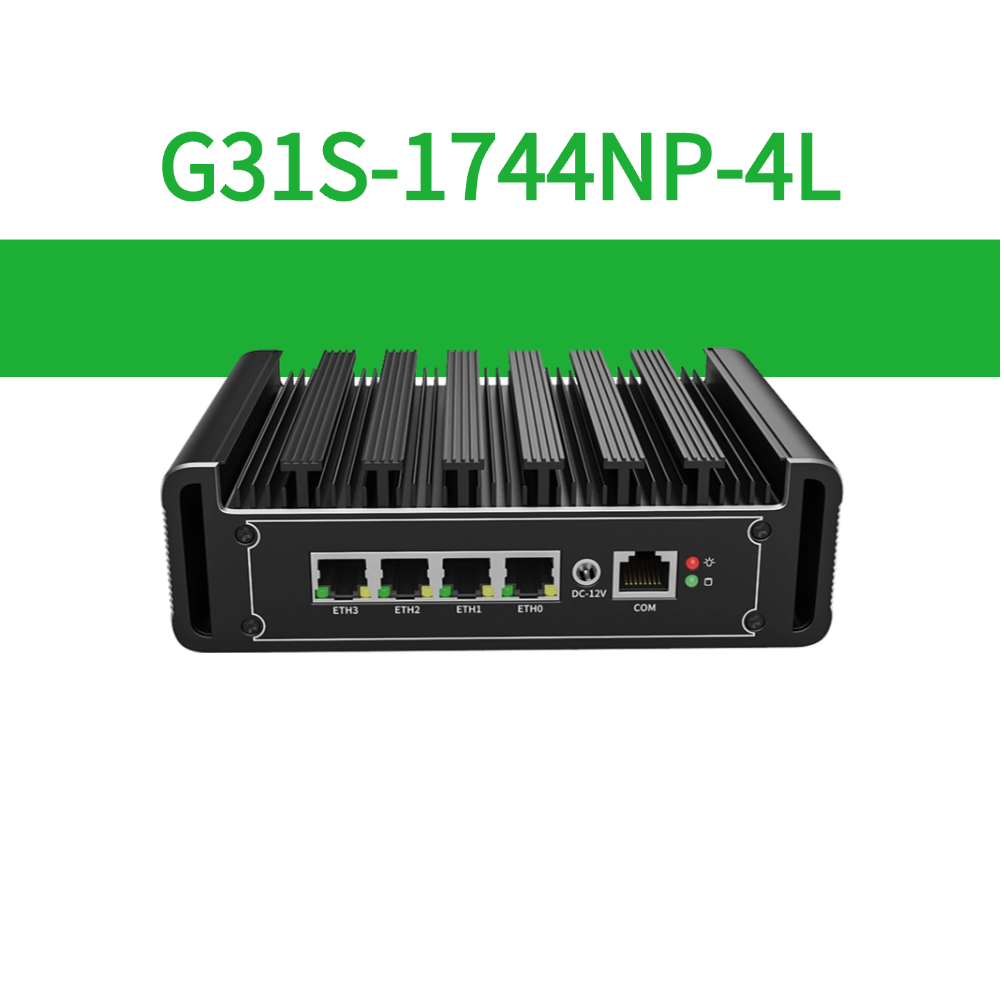

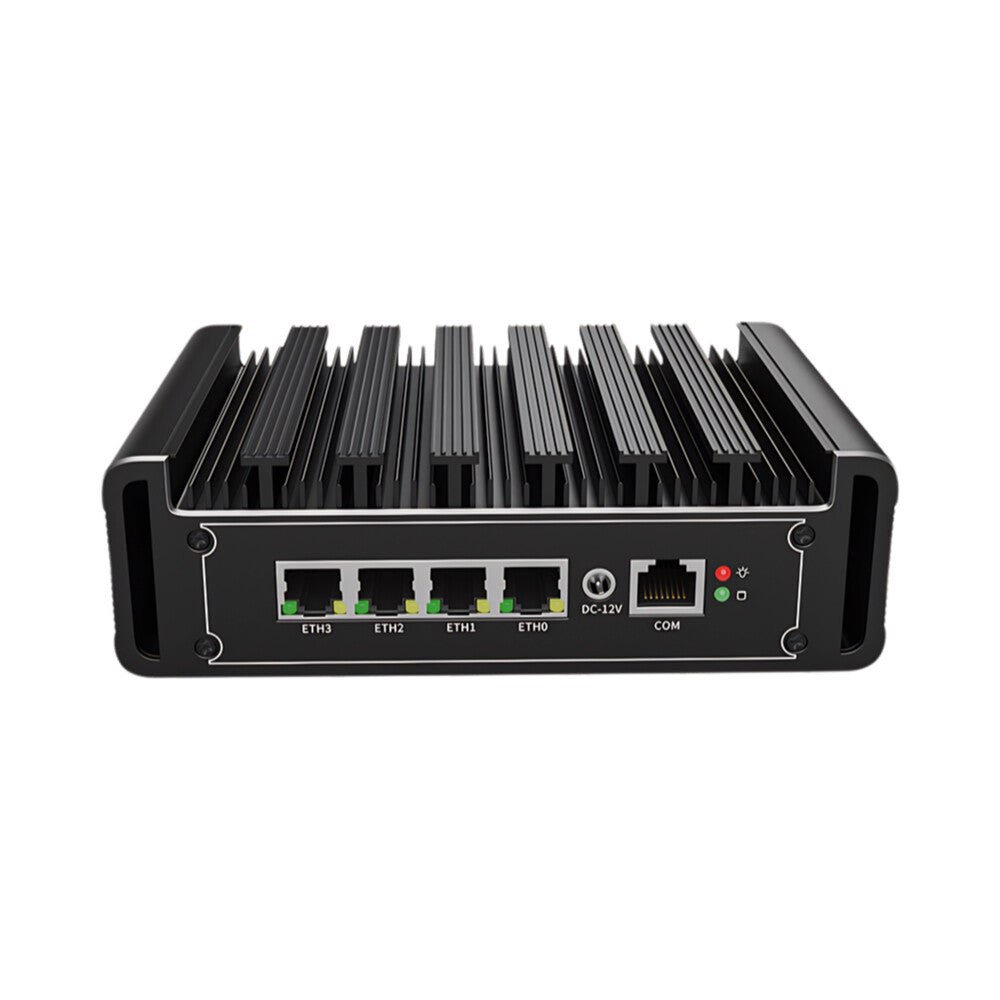

G31S-1744NP-4L

Product Overview

The G31S-1744NP-4L is a fanless, compact network appliance powered by the Intel® Pentium 8505 processor. Designed for quiet operation with passive cooling, it combines energy efficiency with reliable performance. Supporting up to 64GB DDR4 memory, flexible SATA + M.2 storage, and multiple LAN ports, this appliance is ideal for firewall, VPN, and IoT edge applications.

Key Features

• Processor: Intel® Pentium 8505 onboard
• Memory: Dual DDR4 SO-DIMM, up to 64GB (3200 MT/s)
• Storage: 1× SATA 3.0 (6Gb/s), 1× M.2 Key-M 2280
• Networking: 4× RJ45 2.5GbE LAN ports
• USB: 4× USB-A 3.0
• Console: 1× RJ45 COM
• Display: 1× HDMI, 1× DP
• Other I/O: 1× SIM card slot, 2× antenna holes (reserved)
• Expansion: 1× mPCIe slot
• Cooling: Passive cooling, fanless design (requires airflow)

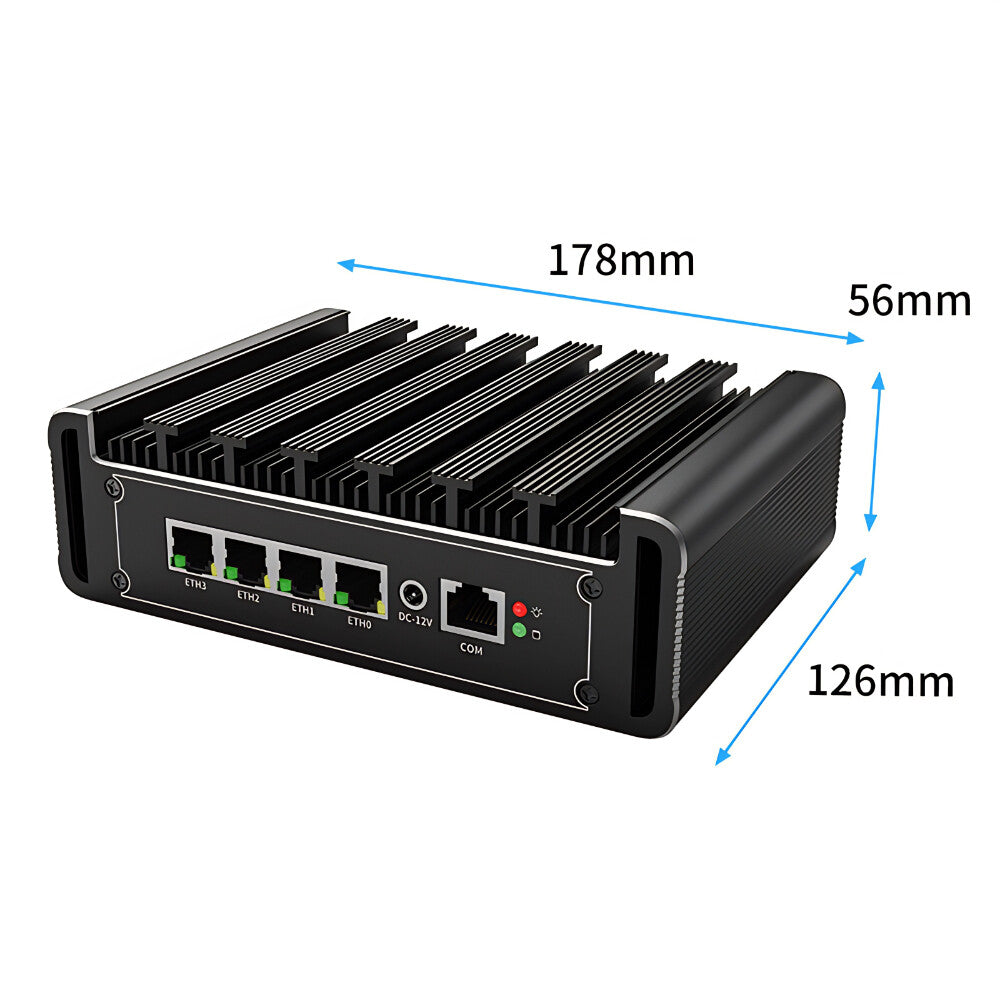

• Chassis: 178 × 126 × 55 mm; Weight: 1.15 kg (net), 1.75 kg (with accessories)
• Power: DC 12V / 6A or higher
• Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

• Firewall & Security Gateway: pfSense/OPNsense deployments
• VPN / SD-WAN: Secure networking for remote access and branch offices
• IoT Gateway: Industrial data collection and IoT edge processing
• NAS & Edge Server: Lightweight storage and computing applications
• Silent Environments: Ideal for offices, labs, or home labs requiring fanless design
