G31S-1493NP-4L Fanless Industrial PC with 4×2.5GbE LAN and DDR4 Memory
G31S-1493NP-4L Fanless Industrial PC with 4×2.5GbE LAN and DDR4 Memory
Couldn't load pickup availability

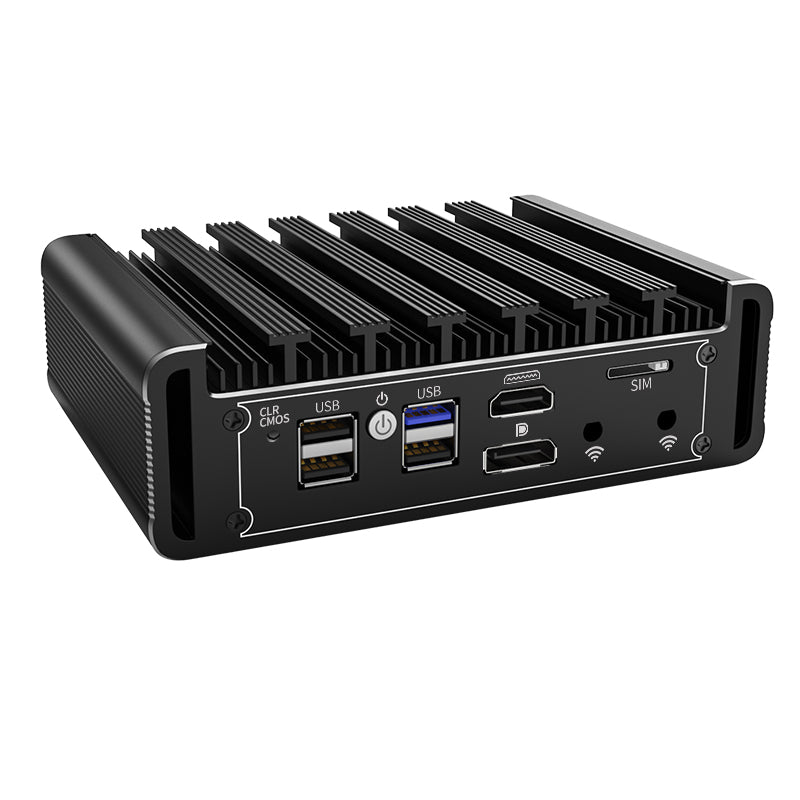

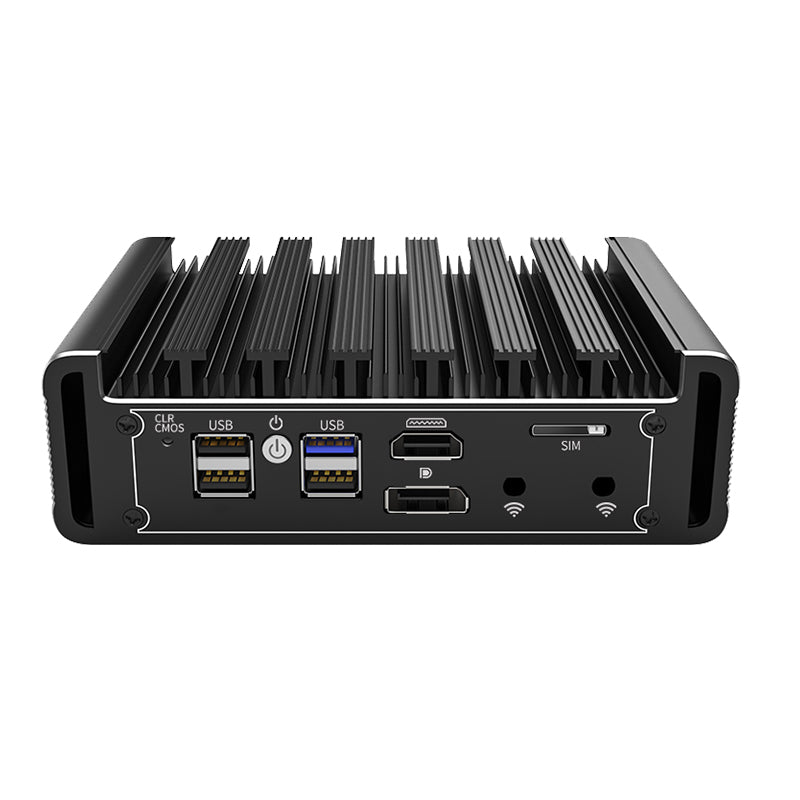

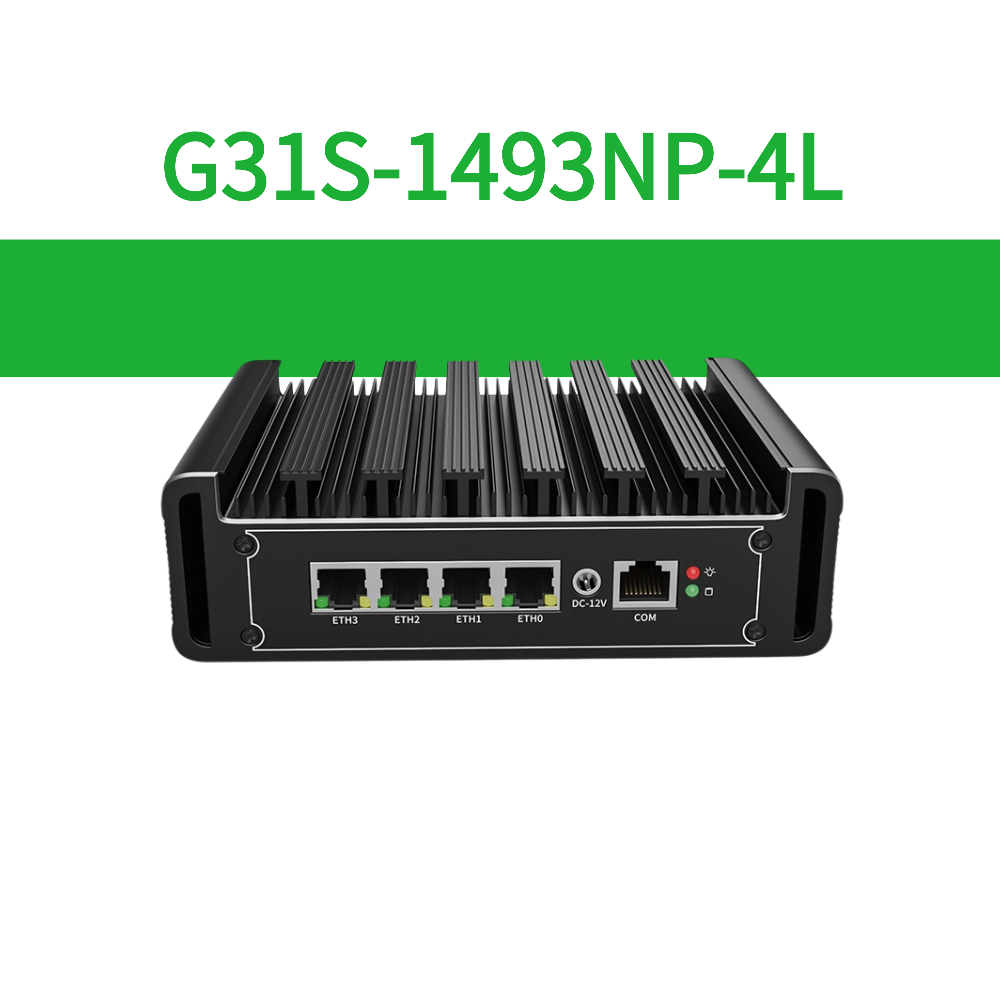

G31S-1493NP-4L Fanless Industrial Mini PC
The G31S-1493NP-4L is a high-performance fanless embedded industrial PC based on the Intel® Celeron® J-Series processor platform. With an upgraded chassis size and enhanced heat dissipation design, it provides more cooling space and better temperature control than smaller models in the same series, helping ensure stable operation during extended high-load workloads. Featuring 4×2.5GbE RJ45 network ports, dual-channel DDR4 memory, M.2 high-speed storage, and 4G/5G/Wi-Fi expansion capability, it is an ideal solution for industrial automation, network communication, cybersecurity, IoT edge gateway, and edge computing applications.
Key Features
- Intel® Celeron® J-Series platform for efficient embedded computing
- Fanless passive cooling design with upgraded chassis space for improved heat dissipation
- 4×RJ45 2.5GbE LAN ports powered by Intel I226V controllers
- Dual DDR4 SO-DIMM memory slots, up to 32GB, 3200 MT/s
- Flexible storage: 1×M.2 Key-M 2280 and 1×SATA 3.0 6Gb/s
- Wireless expansion: 1×M.2 Key-B 3052 and 1×M.2 Key-E 2230
- SIM card slot for cellular communication module applications
- Display output: 1×DP and 1×HD
- Rich I/O: USB 3.0, USB 2.0, RJ45 RS232 console, start/restart button, and reserved antenna holes
- DC 12V power input, recommended 12V 4A or higher
- Larger fanless chassis: 178×126×56 mm for enhanced thermal stability
Application Scenarios
- Cybersecurity appliances
- Firewall and router systems
- IoT edge gateways
- Industrial control automation
- Embedded terminals
- Edge computing applications
- Network communication equipment
- Long-term high-load industrial deployments
Specifications
| Model | G31S-1493NP-4L |
| Processor Platform | Intel® Celeron® Processor J-Series |
| Socket | FCBGA1493 |
| Memory | 2×DDR4 SO-DIMM, up to 32GB, 3200 MT/s |
| Storage | 1×SATA 3.0 6Gb/s, 1×M.2 Key-M 2280 |
| Network | 4×RJ45 2.5GbE LAN |
| Network Controller | 4×Intel I226V |
| Wireless Expansion | 1×M.2 Key-B 3052, 1×M.2 Key-E 2230 |
| SIM | 1×SIM card slot |
| USB | 1×USB-A 3.0, 3×USB-A 2.0 |
| Display | 1×DP, 1×HD |
| Console | 1×RJ45 RS232 |
| Antenna Hole | 2×reserved |
| Cooling Method | Passive cooling, fanless design; airflow required |
| Chassis Size | 178×126×56 mm |
| Weight | Equipment weight: 1.15 kg; package weight: 1.85 kg including accessories |
| Power Input | DC 12V 4A or higher |
| Operating Temperature | 0~50°C |
| Humidity | 5%~90% relative humidity, non-condensing |
Download
Note: Product appearance and specifications may vary slightly by production batch. Please refer to the actual product received or contact us before ordering if you need to confirm a specific configuration.
