G31F-1744NP-4L

Product Overview

The G31F-1744NP-4L is a compact and powerful network appliance designed for firewall, VPN, NAS, and edge computing applications. Powered by onboard Intel® Pentium 8505 or optional Core™ i3-1215U/i5-1245U/i7-1265U, it delivers flexible performance to fit diverse business needs. With support for up to 64GB DDR4 memory, versatile SATA + M.2 storage, and rich connectivity, it is ideal for secure networking and industrial IoT environments.

Key Features

• Processor: Intel® Pentium 8505 / Core™ i3-1215U / i5-1245U / i7-1265U
• Memory: Dual DDR4 SO-DIMM, up to 64GB (3200 MT/s)
• Storage: 1× SATA 3.0 (6Gb/s), 1× M.2 Key-M 2280
• Networking: 4× RJ45 2.5GbE LAN ports
• USB: 4× USB-A 3.0
• Console: 1× RJ45 COM
• Display: 1× HDMI, 1× DP
• Expansion: 1× mPCIe slot
• Other I/O: 1× SIM card slot, 2× antenna holes (reserved)
• Cooling: Active cooling with chassis fan

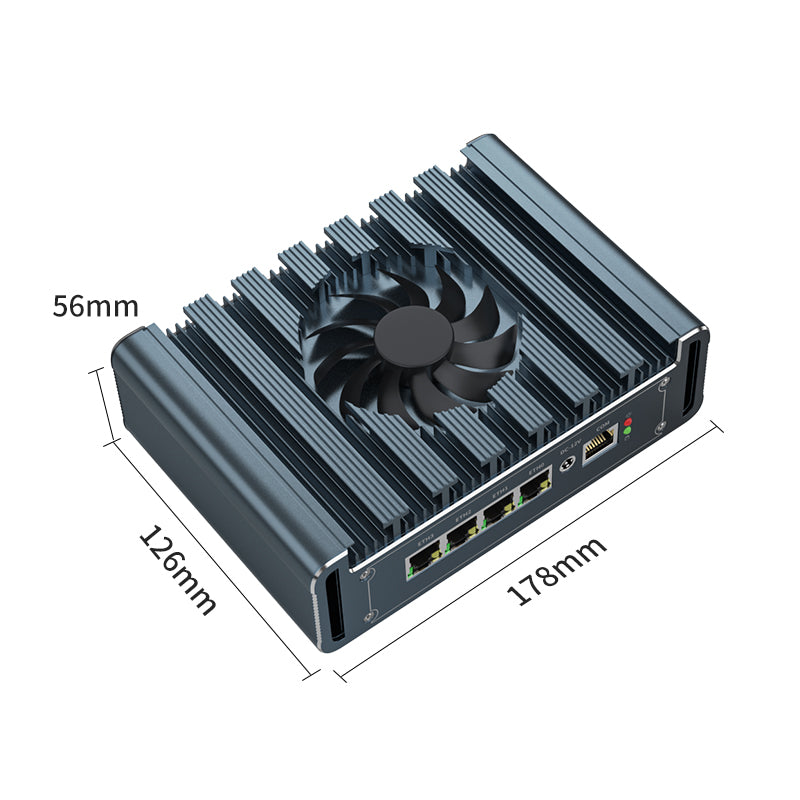

• Chassis: 178 × 126 × 56 mm; Weight: 1.25 kg (net), 1.85 kg (with accessories)
• Power: DC 12V 6A (Pentium/i3) or 10A (i5/i7)
• Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

• Firewall & Security Gateway: Ideal for pfSense/OPNsense deployments
• VPN / SD-WAN: Secure remote access and multi-branch networking
• NAS & Home Lab: Build a compact storage or server environment
• IoT Gateway: Data acquisition and industrial IoT applications
• Virtualization: Lightweight VMs and containerized workloads
