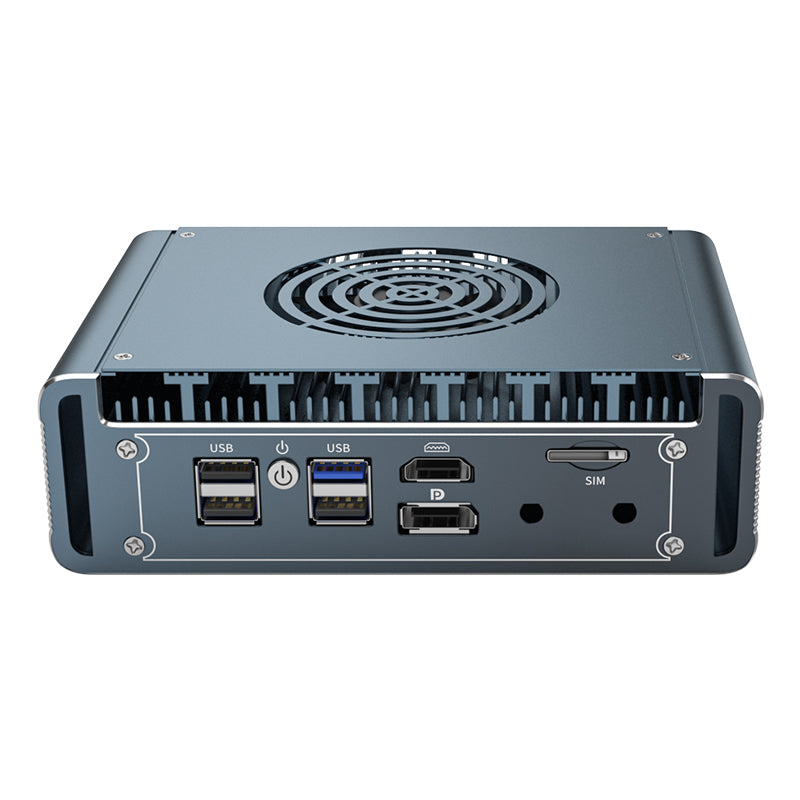

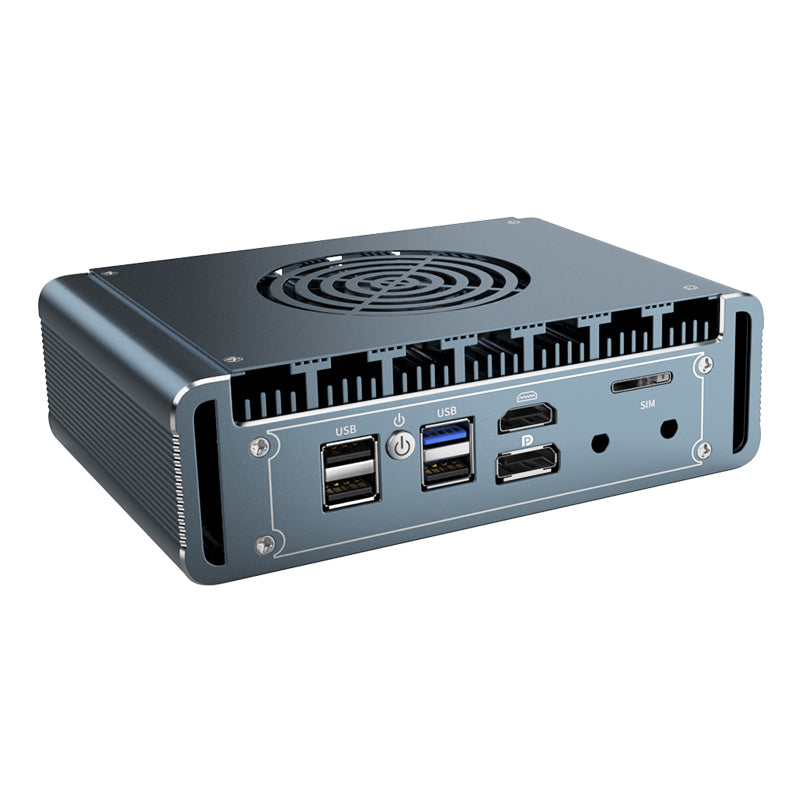

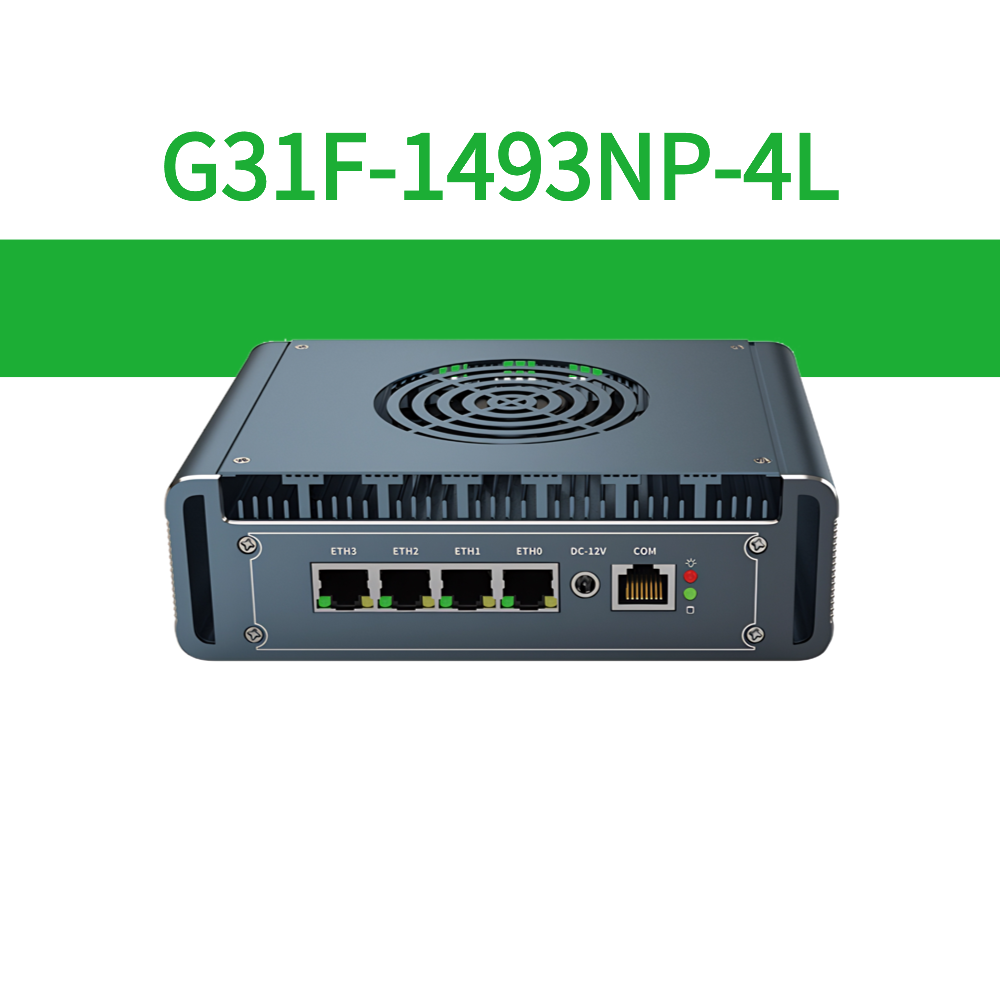

G31F-1493NP-4L Active Cooling Industrial PC with 4×2.5GbE LAN
G31F-1493NP-4L Active Cooling Industrial PC with 4×2.5GbE LAN
Couldn't load pickup availability
The G31F-1493NP-4L is an actively cooled embedded network appliance powered by the Intel Celeron J-Series processor platform. Designed for stable low-temperature operation under continuous full-load workloads, it features 4×2.5GbE RJ45 Ethernet ports, dual DDR4 memory slots, M.2 high-speed storage, and 4G/5G/Wi-Fi expansion capability. With a compact and reliable build, it is ideal for cybersecurity, IoT edge gateway, industrial control automation, embedded terminals, and edge computing applications in home, enterprise, and industrial environments.
Key Features
- Intel Celeron J-Series platform for reliable low-power embedded computing
- Active cooling design with 1×smart chassis fan for stable operation under continuous workloads
- 4×RJ45 2.5GbE LAN ports powered by Intel I226V controllers
- Dual DDR4 SO-DIMM memory slots, up to 32GB, 3200 MT/s
- Flexible storage: 1×M.2 Key-M 2280 and 1×SATA 3.0 6Gb/s
- Wireless expansion: 1×M.2 Key-B 3052 and 1×M.2 Key-E 2230
- SIM card slot for cellular communication module applications
- Display output: 1×DP and 1×HD
- Rich I/O: USB 3.0, USB 2.0, RJ45 RS232 console, start/restart button, and reserved antenna holes
- DC 12V power input, recommended 12V 4A or higher
- Compact chassis: 178×126×56 mm for industrial and network deployment
Application Scenarios
- Cybersecurity appliances
- Firewall and router systems
- IoT edge gateways
- Industrial control automation
- Embedded terminals
- Edge computing applications
- Network communication equipment
- Continuous full-load industrial deployments
Specifications
| Model | G31F-1493NP-4L |
| Processor Platform | Intel® Celeron® Processor J-Series |
| Socket | FCBGA1493 |
| Memory | 2×DDR4 SO-DIMM, up to 32GB, 3200 MT/s |
| Storage | 1×SATA 3.0 6Gb/s, 1×M.2 Key-M 2280 |
| Network | 4×RJ45 2.5GbE LAN |
| Network Controller | 4×Intel I226V |
| Wireless Expansion | 1×M.2 Key-B 3052, 1×M.2 Key-E 2230 |
| SIM | 1×SIM card slot |
| USB | 1×USB-A 3.0, 3×USB-A 2.0 |
| Display | 1×DP, 1×HD |
| Console | 1×RJ45 RS232 |
| Antenna Hole | 2×reserved |
| Cooling Method | Active cooling, 1×smart chassis fan |
| Chassis Size | 178×126×56 mm |
| Weight | Equipment weight: 1.25 kg; package weight: 1.95 kg including accessories |
| Power Input | DC 12V 4A or higher |
| Operating Temperature | 0~50°C |
| Humidity | 5%~90% relative humidity, non-condensing |
Download
Note: Product appearance and specifications may vary slightly by production batch. Please refer to the actual product received or contact us before ordering if you need to confirm a specific configuration.
