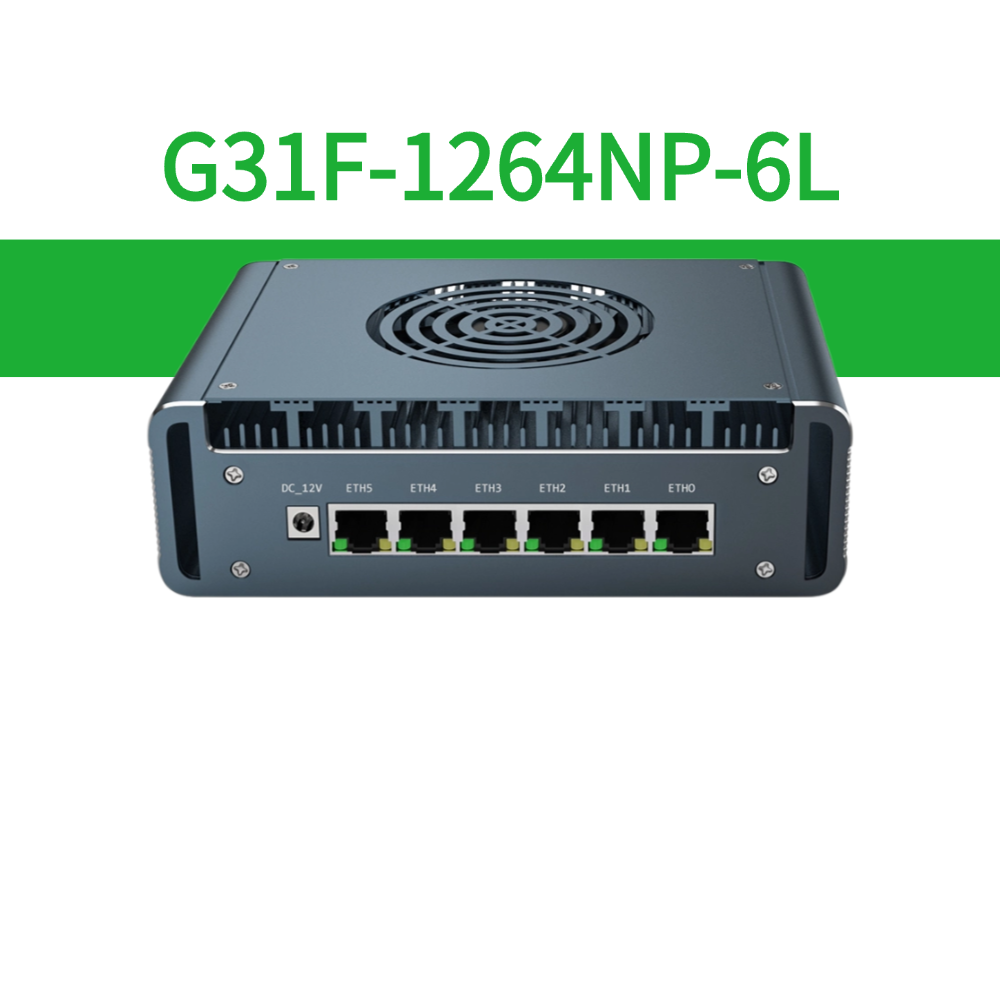

G31F-1264NP-6L

Product Overview

The G31F-1264NP-6L is a compact network appliance based on the Intel® Processor N-series. With support for up to 16GB DDR5 memory, dual M.2 slots, and 6× 2.5Gigabit ports, it is designed for firewall, VPN, and IoT gateway applications. Its active cooling system with an intelligent fan ensures stable and reliable performance in 24/7 operation, making it suitable for SMBs and edge computing deployments.

Key Features

• Processor: Intel® Processor N-series, FCBGA1264
• Memory: DDR5 SO-DIMM up to 16GB, 4800 MT/s
• Storage: 1× SATA 3.0 (6Gb/s), 2× M.2 Key-M 2280 (PCIe x1)

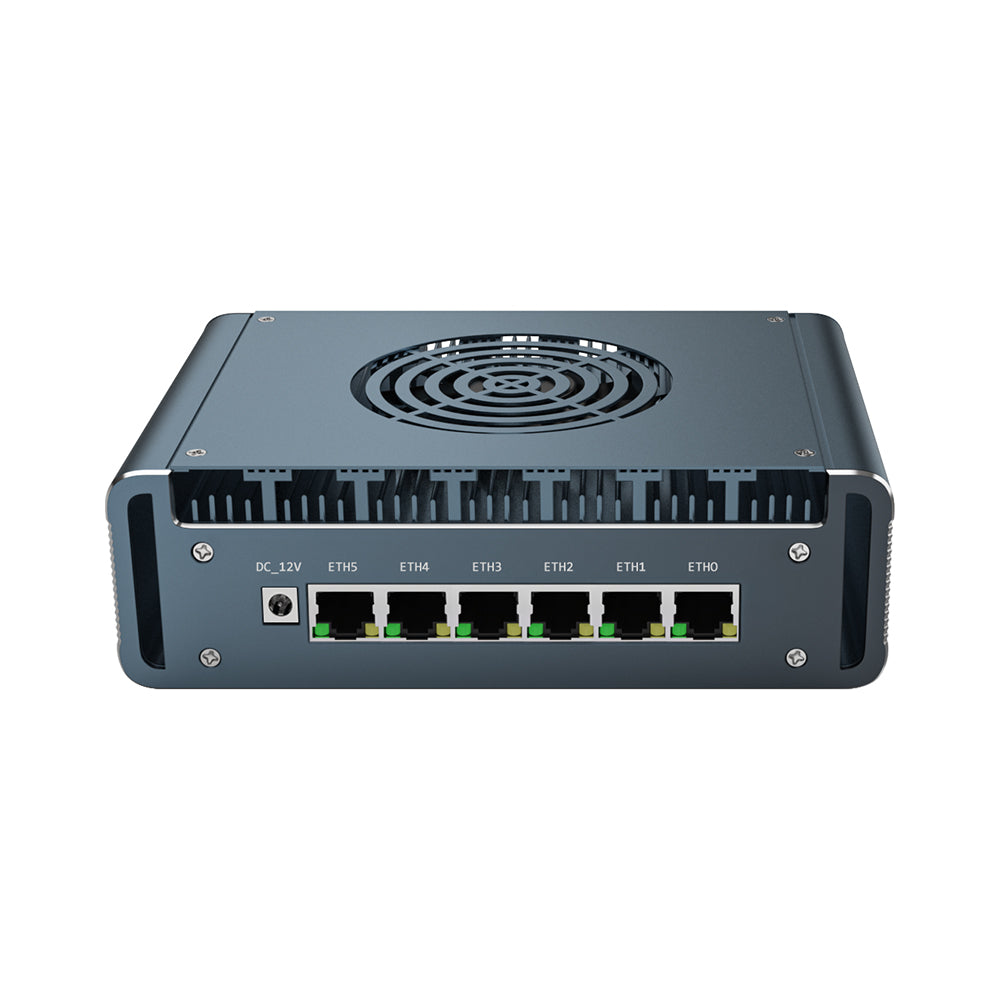

• Networking: 6× 2.5Gigabit RJ45 ports

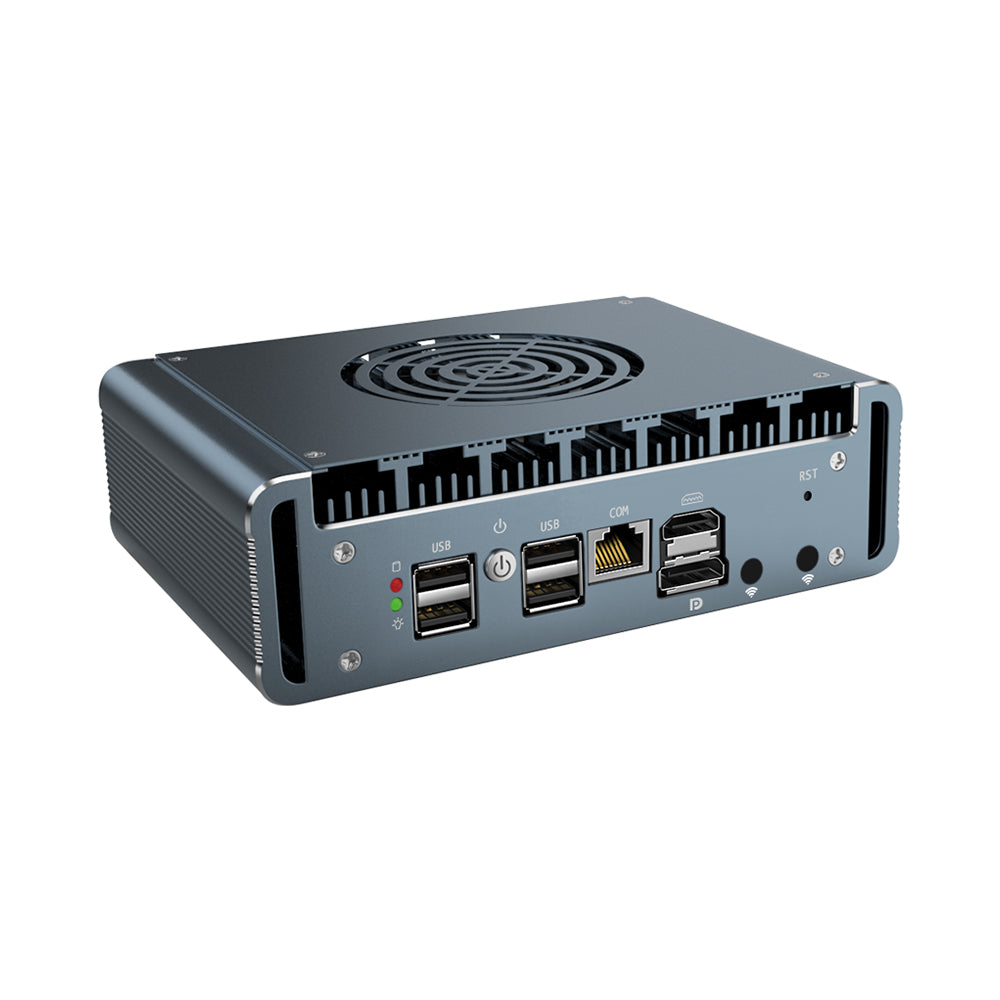

• USB: 4× USB-A 2.0
• Console: 1× RJ45 COM
• Display: 1× DP, 1× HDMI
• Other I/O: 2× antenna holes (reserved)
• Expansion: 1× mPCIe slot
• Cooling: Active cooling with intelligent TPM fan

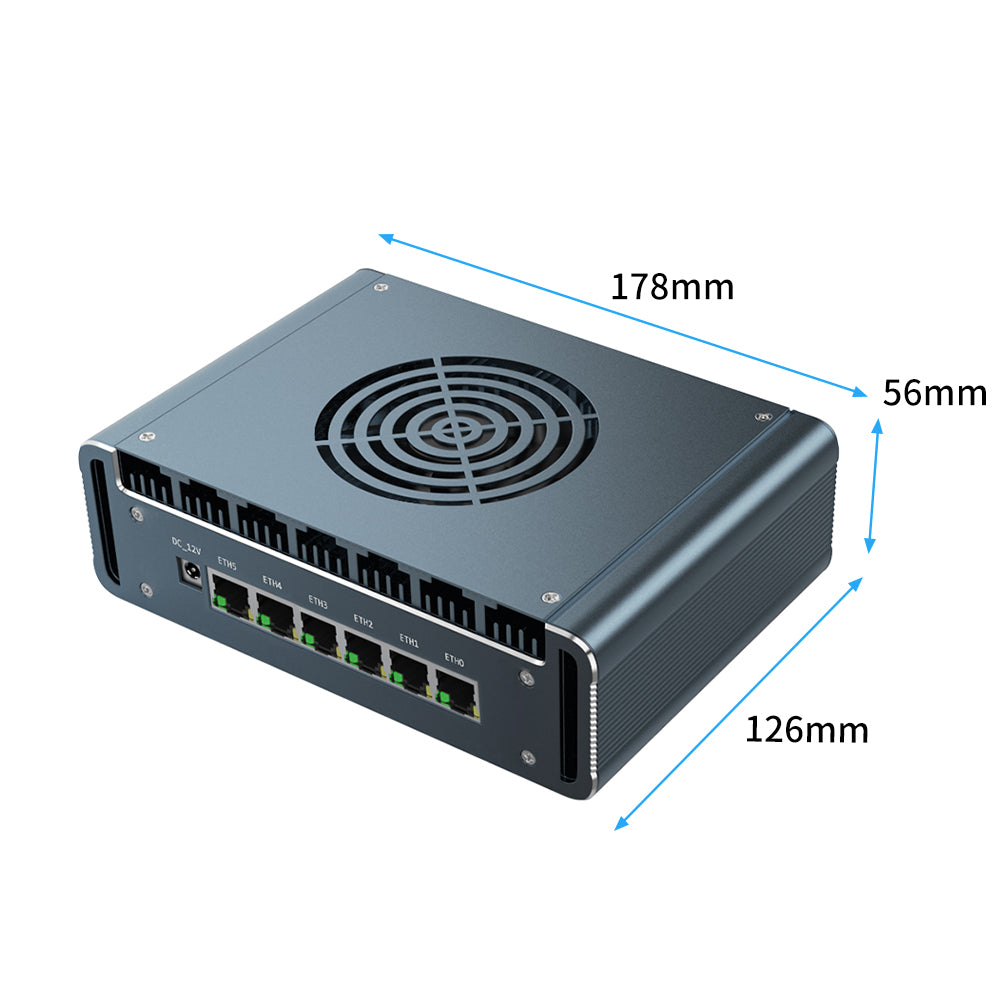

• Chassis: 178 × 126 × 56 mm; Weight: 1.25 kg (net), 1.95 kg (with accessories)
• Power: DC 12V / 4A or higher
• Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

• Firewall & VPN Gateway: pfSense/OPNsense deployments for secure networking
• IoT Gateway: Industrial data collection and edge integration
• Edge Computing: Compact device for local workloads
• 24/7 Operation: Active cooling supports stable continuous use
• Compact Deployment: Ideal for SMBs and space-constrained environments
