G31S-1264NP-6L

Product Overview

The G31S-1264NP-6L is a compact, fanless network appliance powered by the Intel® Processor N-series. With support for up to 16GB DDR5 memory, dual M.2 slots, and 6× Gigabit LAN ports, this system is built for firewall, VPN, and edge computing applications. Its fanless design ensures quiet operation, making it a perfect choice for offices, labs, and IoT gateways where noise and energy efficiency are critical.

Key Features

• Processor: Intel® Processor N-series, FCBGA1264
• Memory: DDR5 SO-DIMM up to 16GB, 4800 MT/s
• Storage: 1× SATA 3.0 (6Gb/s), 2× M.2 Key-M 2280 (PCIe x1)
• Networking: 6× RJ45 Gigabit LAN ports
• USB: 4× USB-A 2.0
• Console: 1× RJ45 COM
• Display: 1× DP, 1× HDMI
• Expansion: 1× mPCIe slot
• Cooling: Passive cooling, fanless design (requires airflow)

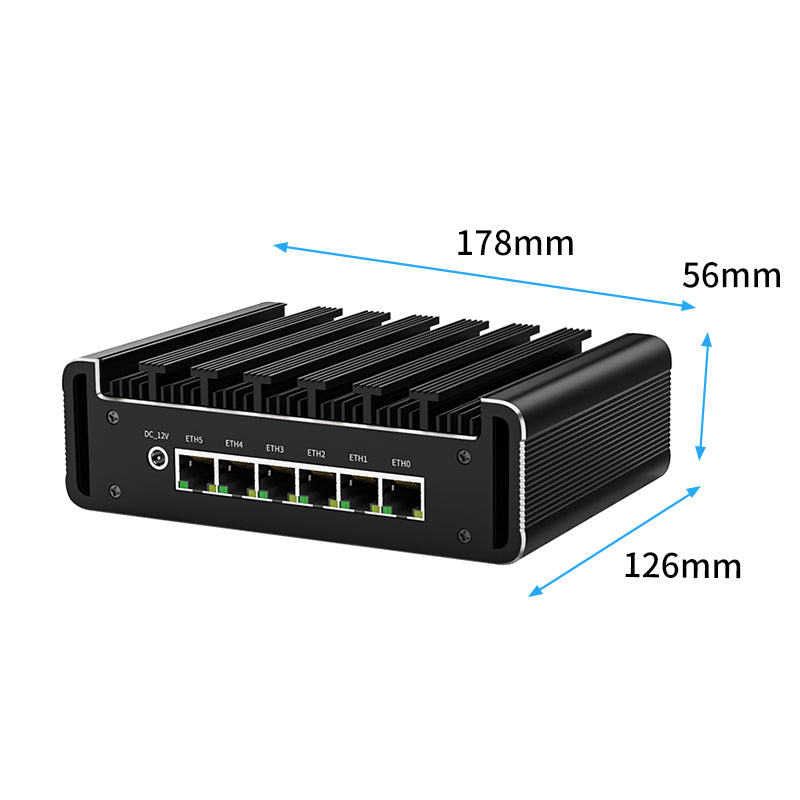

• Chassis: 178 × 126 × 55 mm; Weight: 1.15 kg (net), 1.85 kg (with accessories)
• Power: DC 12V / 4A or higher
• Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

• Firewall & VPN Gateway: pfSense/OPNsense for secure SMB networking
• IoT Gateway: Industrial edge data processing and device management
• Edge Computing: Localized workloads in low-power environments
• Silent Environments: Ideal for labs, offices, or home labs
• Compact Deployments: Perfect for space-limited IT infrastructure
