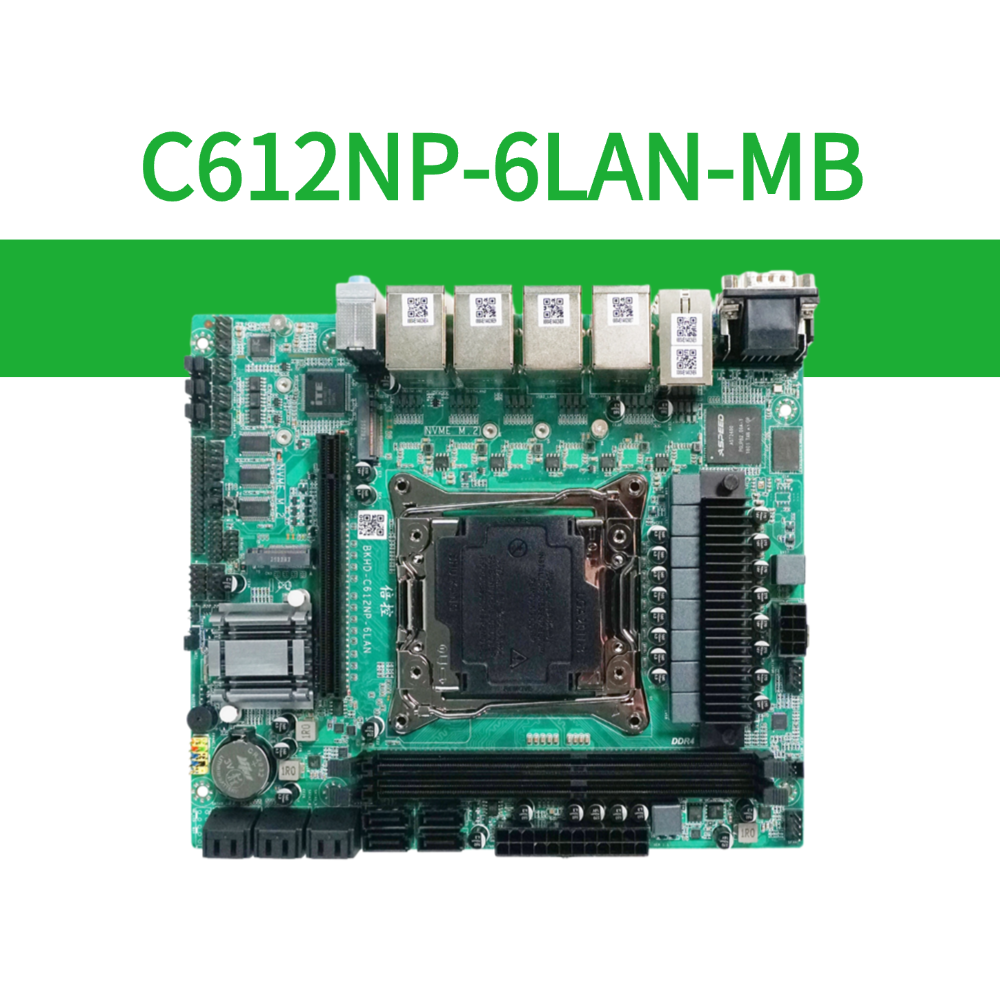

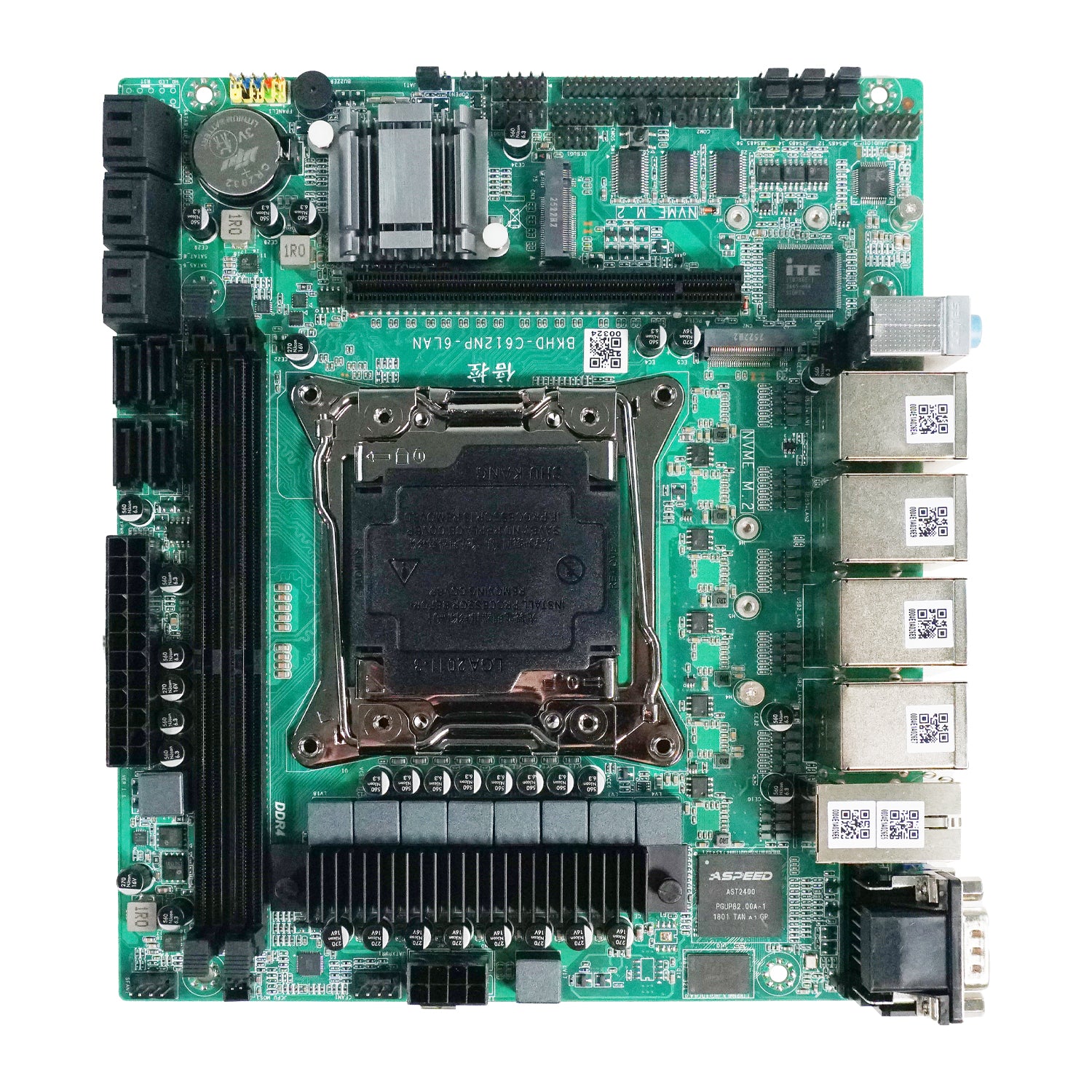

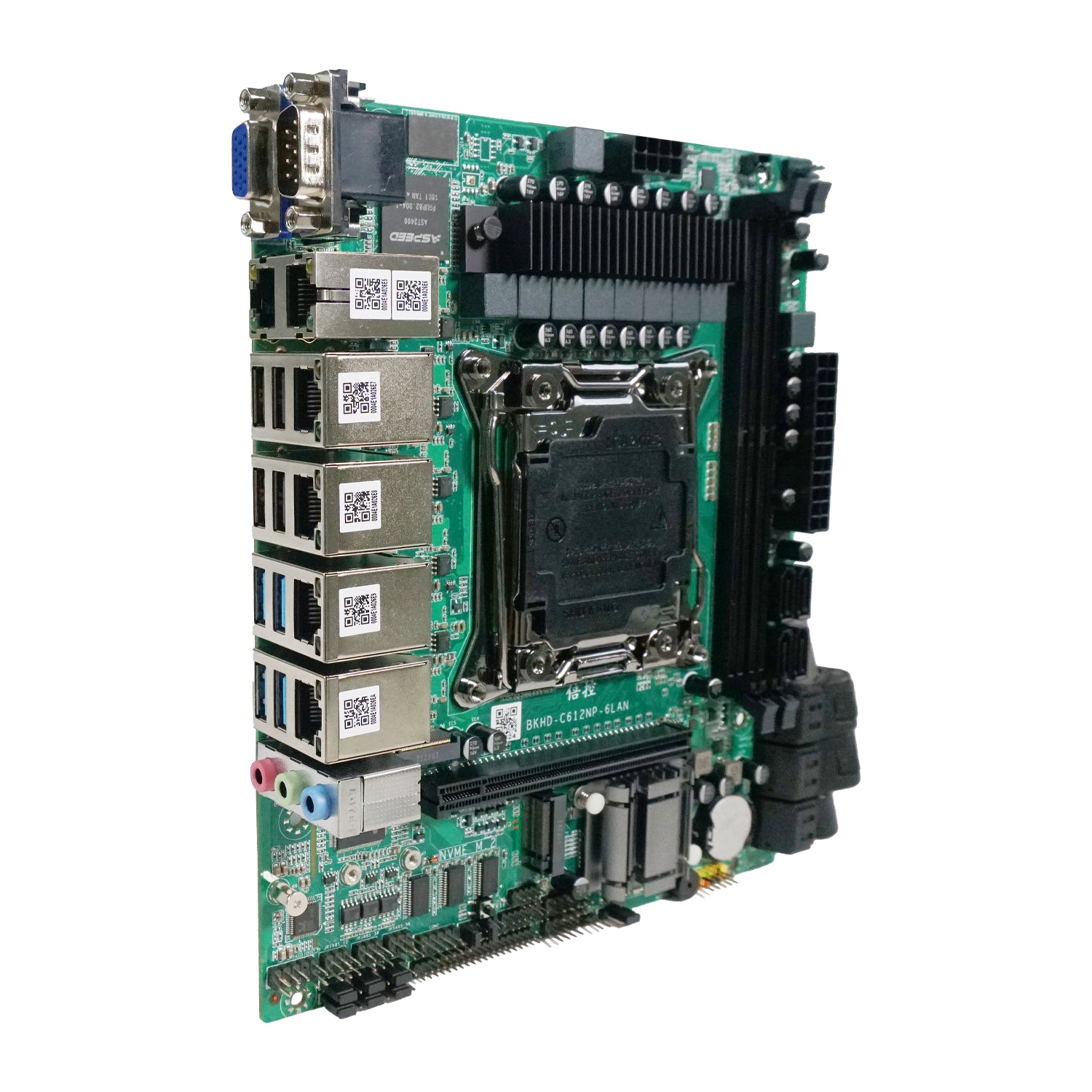

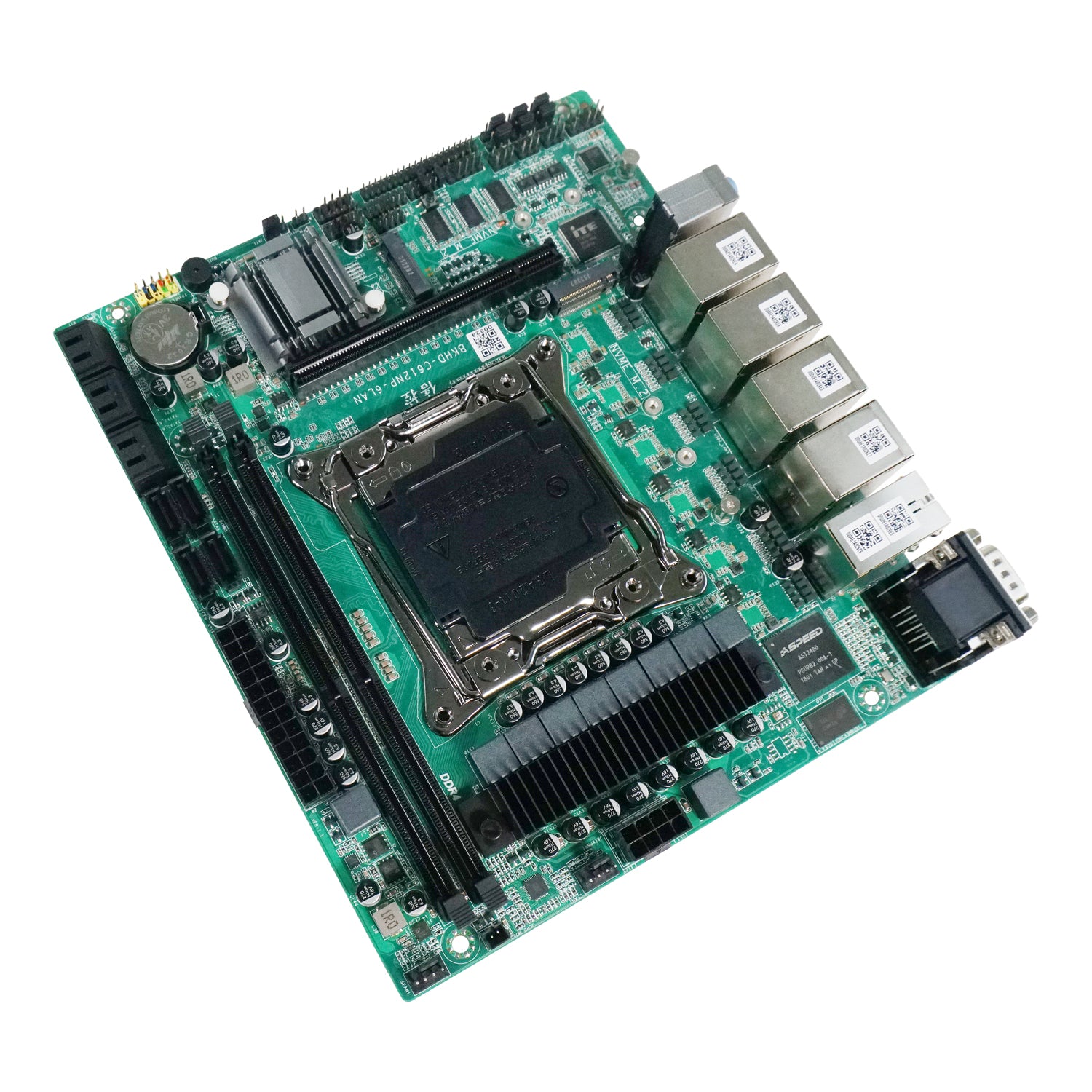

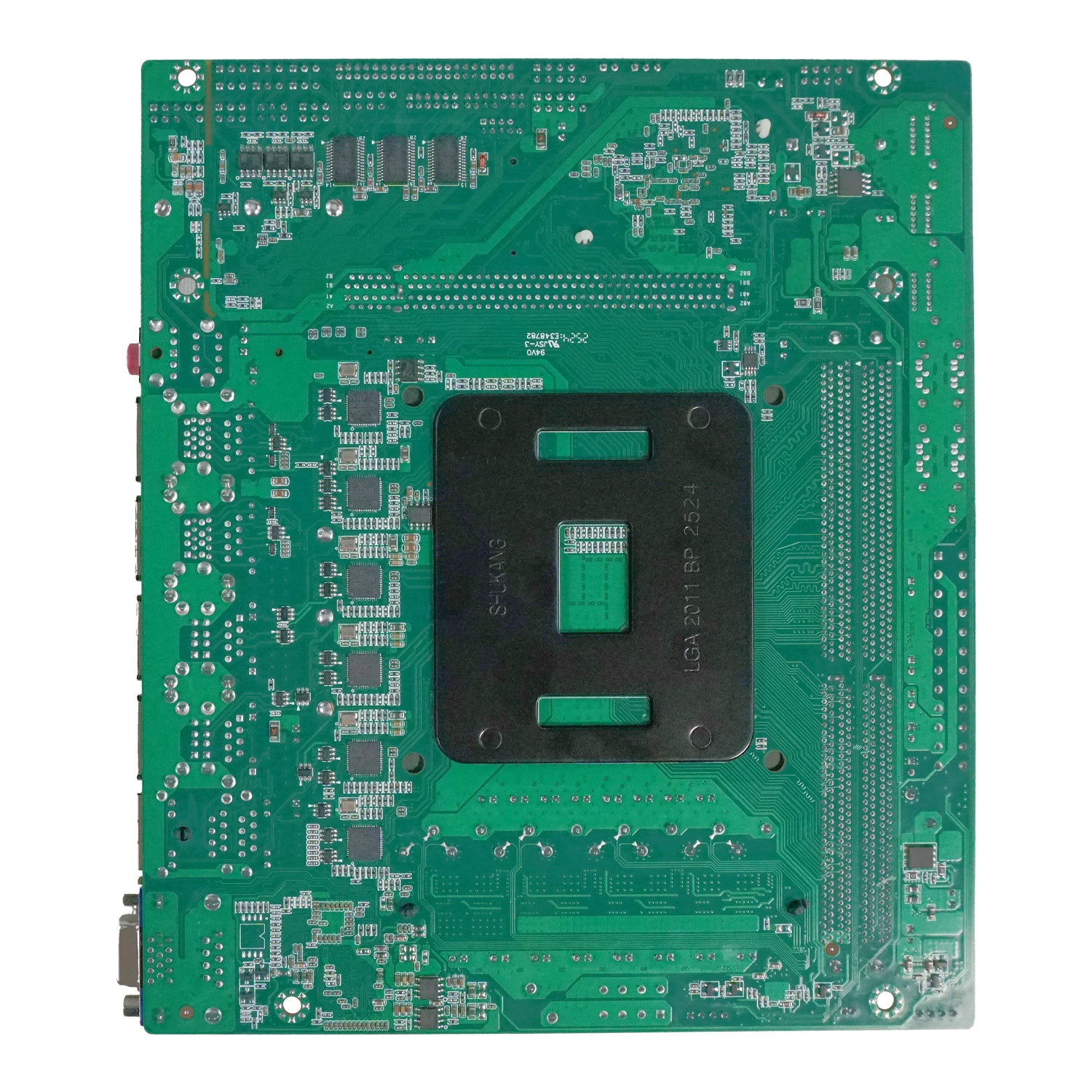

C612NP-6LAN-MB
C612NP-6LAN-MB
Regular price
$99.99 USD
Regular price
Sale price
$99.99 USD
Unit price
/
per
Couldn't load pickup availability
Enterprise-Grade Server Motherboard for Industrial Applications
The C612NP-6LAN delivers robust performance with its Intel Xeon E5 v4 processor platform, integrated 6× 2.5GbE ports, and enterprise-class storage architecture - engineered for data centers, network security deployments, and industrial computing applications.
🚀
High-Performance Computing
Intel Xeon E5 v4 processors with support for up to 64GB DDR4 memory
💾
Enterprise Storage
10× SATA 6Gb/s ports + 2× M.2 NVMe SSD slots for massive storage capacity
🌐
Network Intensive
6× Intel I226V 2.5GbE ports + 8× RJ45 connectors for network infrastructure
Technical Specifications
Processor
Intel Xeon E5 v4 Family · FCLGA2011-3 Socket
Memory
DDR4 DIMM · Up to 64GB · 2400 MT/s
Storage
10× SATA 6Gb/s ports
2× M.2 Key-M NVMe SSD slots
2× M.2 Key-M NVMe SSD slots
Networking
6× 2.5GbE RJ45 ports (Intel I226V controllers)
I/O Ports

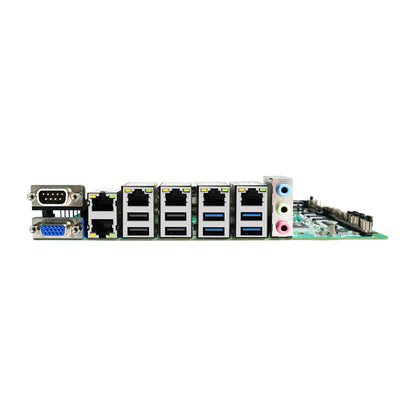

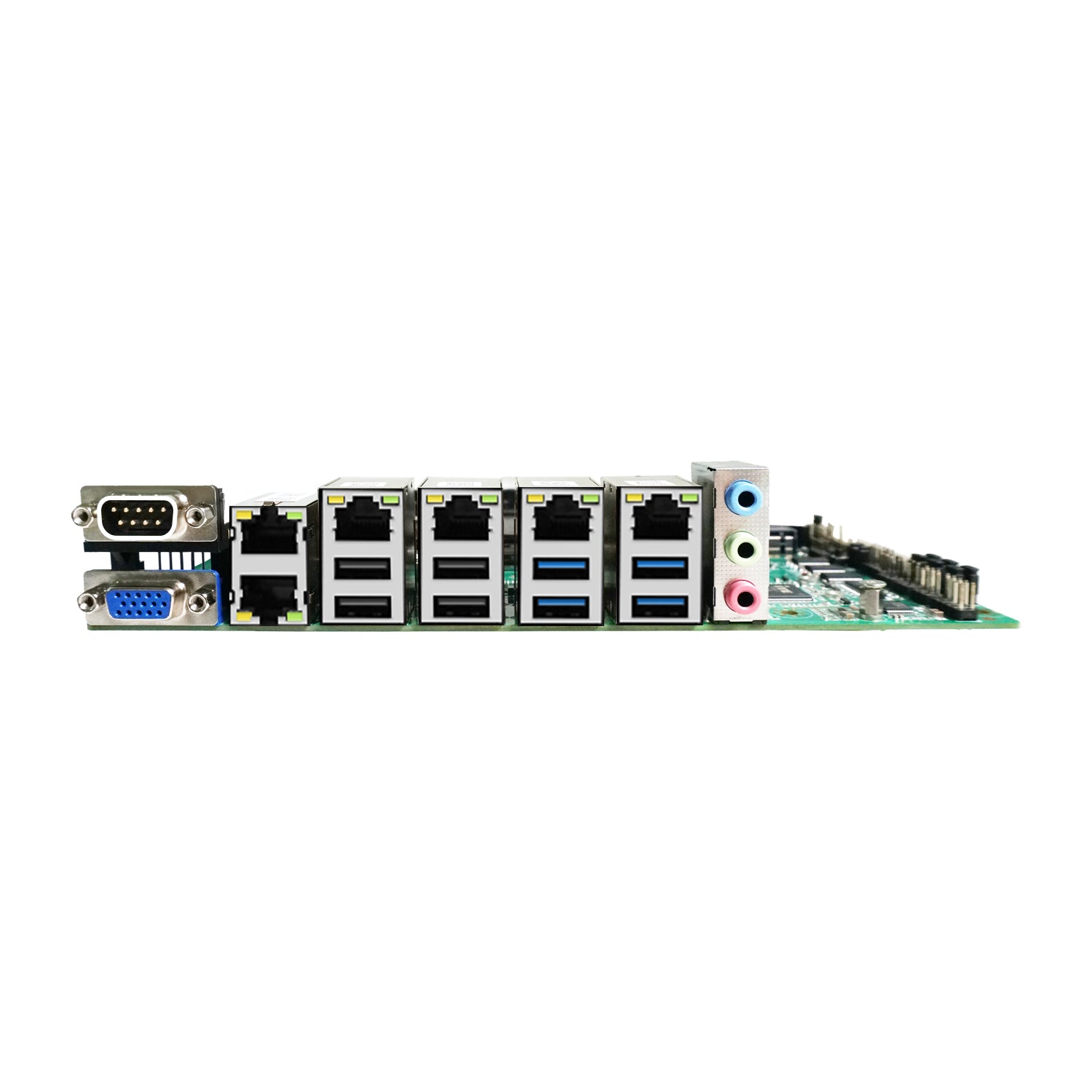

Back Panel: 8× RJ45, 4× USB-A 3.0, 4× USB-A 2.0, VGA
Audio: Line-Out, MIC-In, Line-In
COM: 1× DB9 COM port
Audio: Line-Out, MIC-In, Line-In
COM: 1× DB9 COM port
Expansion
1× PCIe x16 slot
5× JCOM headers
2× F_USB2.0 headers
1× TPM header
5× JCOM headers
2× F_USB2.0 headers
1× TPM header
Physical
213×185mm form factor · ATX 24+8 pin power
Environment
Operating Temp: 0℃~50℃
Humidity: 5%~90% (RH, non-condensing)
Humidity: 5%~90% (RH, non-condensing)
