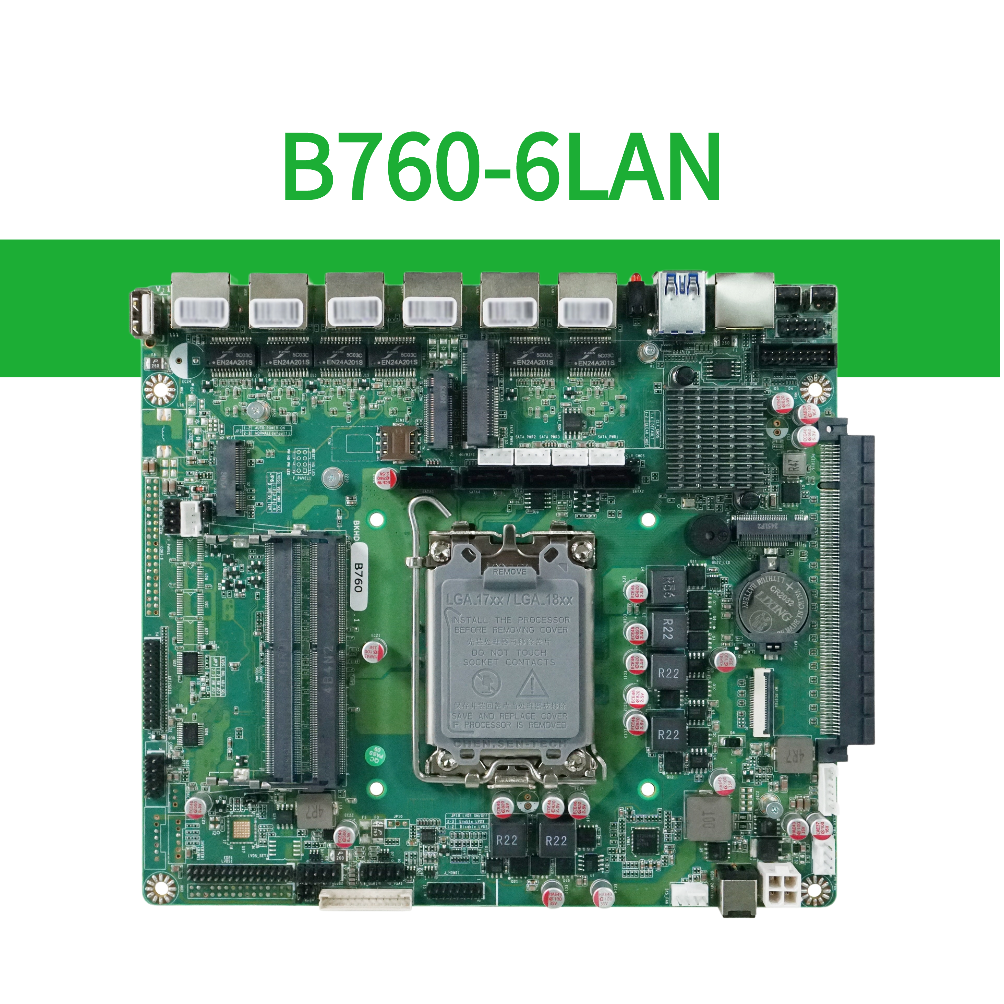

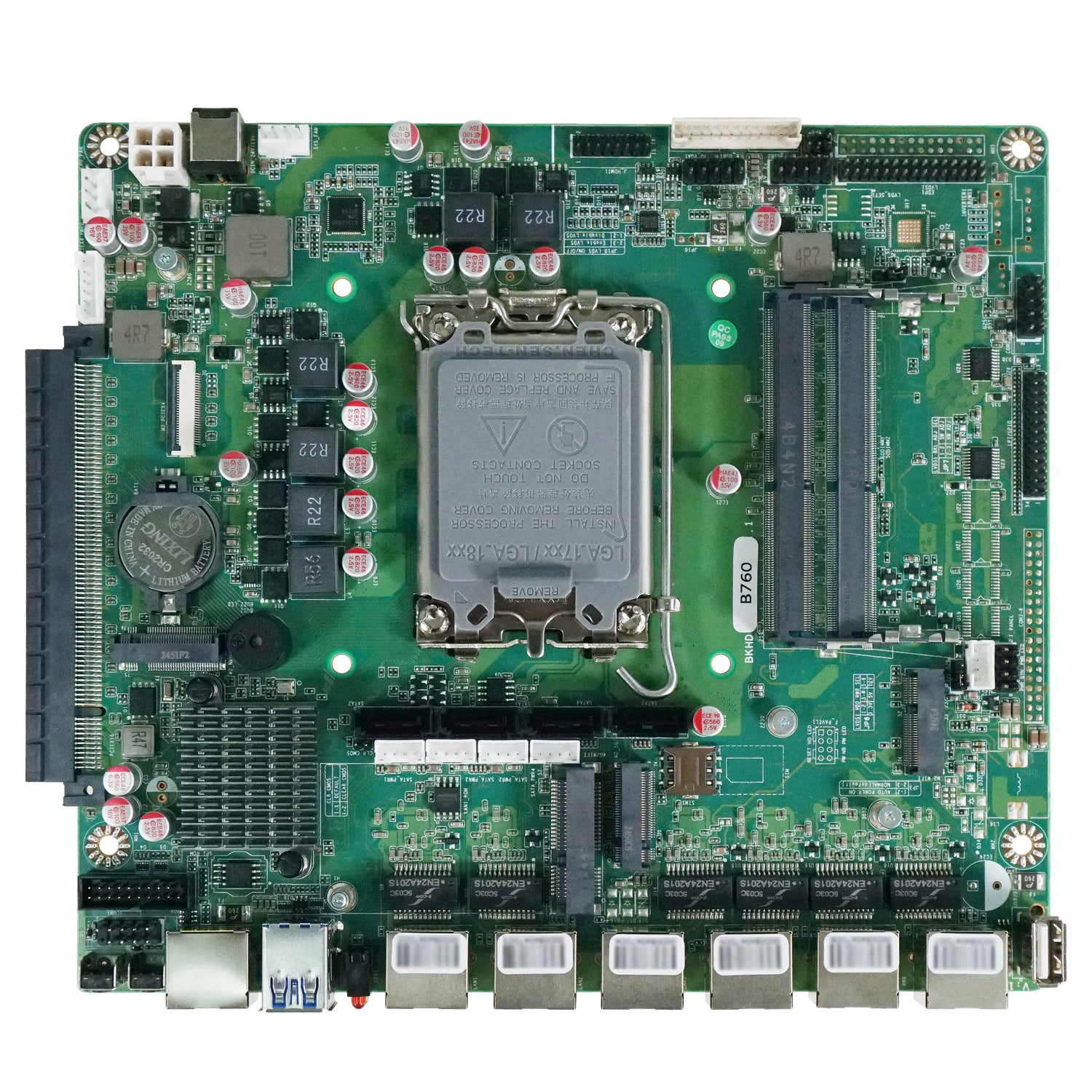

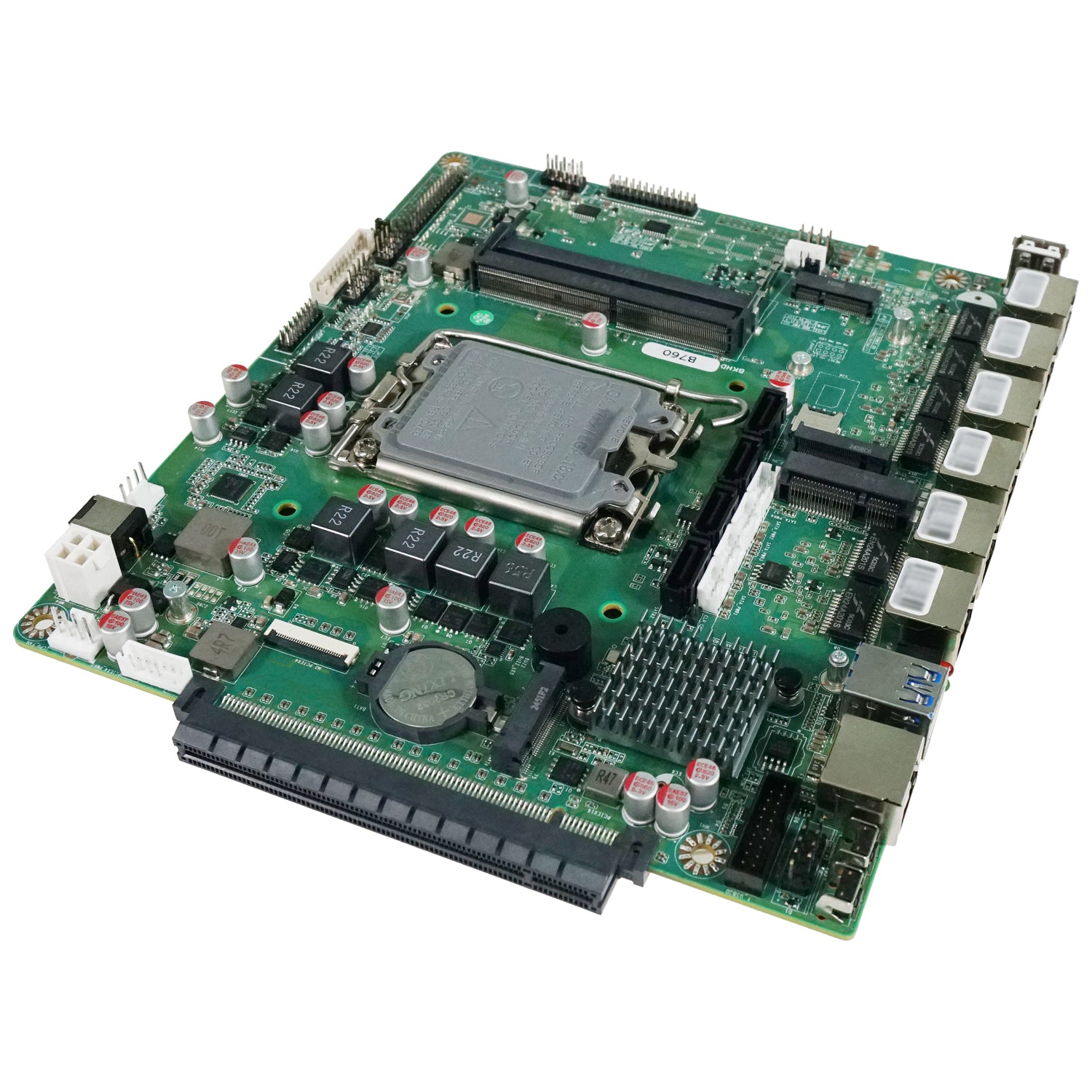

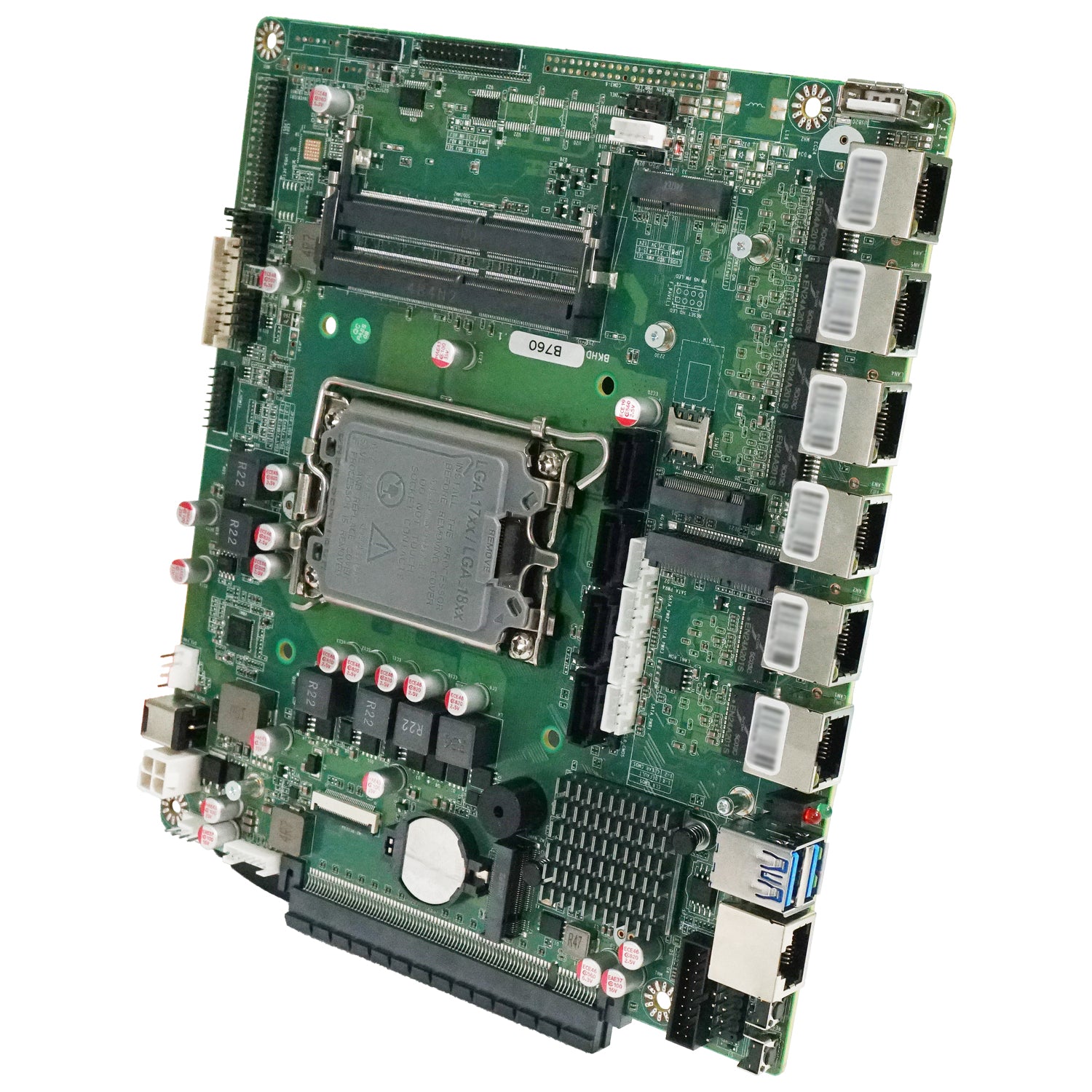

B760-6LAN-MB

Product Overview

The B760-6LAN is a high-performance industrial-grade motherboard built on the Intel® 12th/13th/14th Gen Core™ platform, designed for advanced network, security, and embedded computing applications. It supports DDR4 SO-DIMM memory up to 64GB (3200 MT/s) and integrates 6× 2.5GbE LAN ports powered by Intel® I226V controllers for excellent network throughput and reliability. With flexible PCIe, M.2, and mPCIe expansion options, it delivers a scalable foundation for edge computing, firewall systems, and industrial automation environments.

Key Features

• Processor: Supports Intel® 12th/13th/14th Gen Core™, Pentium®, and Celeron® processors (FCLGA1700)
• Chipset: Intel® B760
• Memory: 2× DDR4 SO-DIMM slots, up to 64GB, 3200 MT/s
• Storage: 4× SATA 3.0 (6Gb/s), 1× M.2 Key-M 2280 (PCIe Gen4 x4)

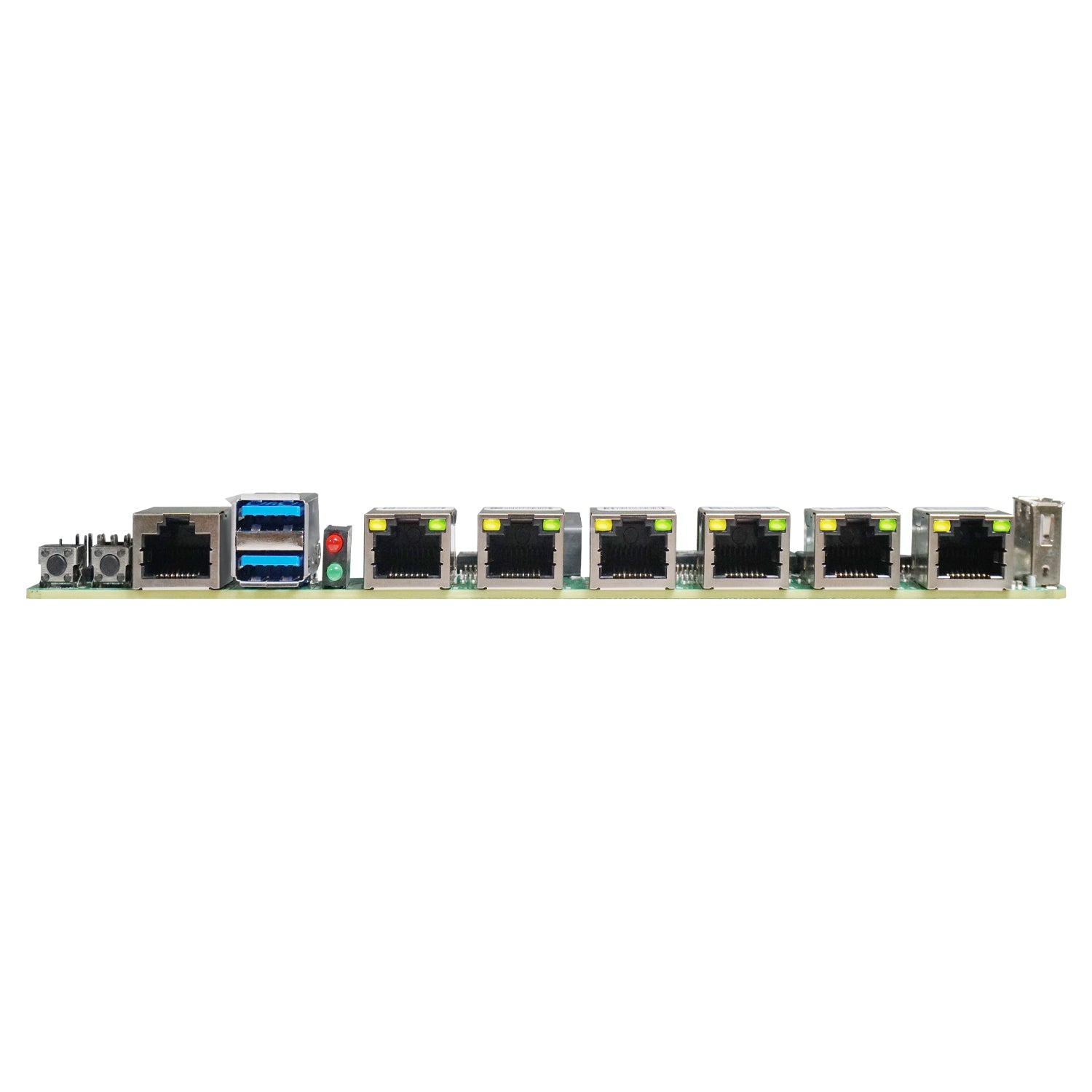

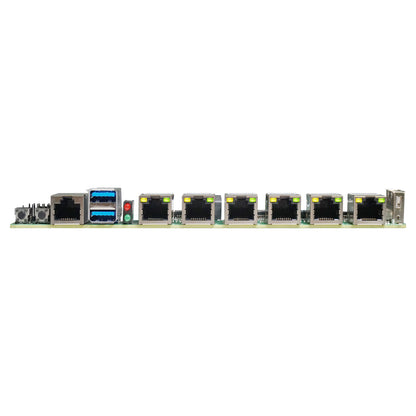

• Networking: 6× 2.5GbE RJ45 ports (Intel® I226V controllers)
• Expansion Interfaces:
  • 1× PCIe x16 (PCIe 5.0)
  • 1× PCIe x4 (via FPC cable)
  • 1× mPCIe (USB 2.0 signal)
  • 1× M.2 Key-E 2230 (USB/PCIe/CNVi)
  • 1× M.2 Key-B 3052 (USB 3.0 signal)
• Display: Supports VGA, HDMI, eDP/LVDS (depends on processor integrated graphics)
• USB: 2× USB-A 3.2 (10Gb/s), expandable via F_USB headers (6 additional ports)
• Serial Ports: 1× COM (RS232) + expansion for up to 6 COM ports
• Cooling: 1× CPU fan and 1× system fan connector
• Power Supply: DC 19/24V input, 1× ATX 4-pin connector or DC Jack (5.5/2.5mm)
• Operating Conditions: -20°C to 60°C; 0–90% RH (non-condensing)
• Dimensions: 180 × 200 mm (compact form factor)

Application Scenarios

• Network Firewall & Security Gateway: Ideal for pfSense/OPNsense deployments, UTM, and enterprise security applications.
• Edge Computing: Supports real-time data processing for distributed or industrial edge environments.
• IoT & Automation Systems: Provides multi-port networking and serial connectivity for industrial control or smart manufacturing.
• Virtualization & Cloud Edge: Enables multiple network functions (vFW, SD-WAN, IDS/IPS) on a single compact platform.
• Embedded Systems: Suitable for smart retail, digital signage, and industrial gateways.
