1U-1356NP-6L Network Appliance | 8th Gen Intel Core Firewall & VPN

Product Overview

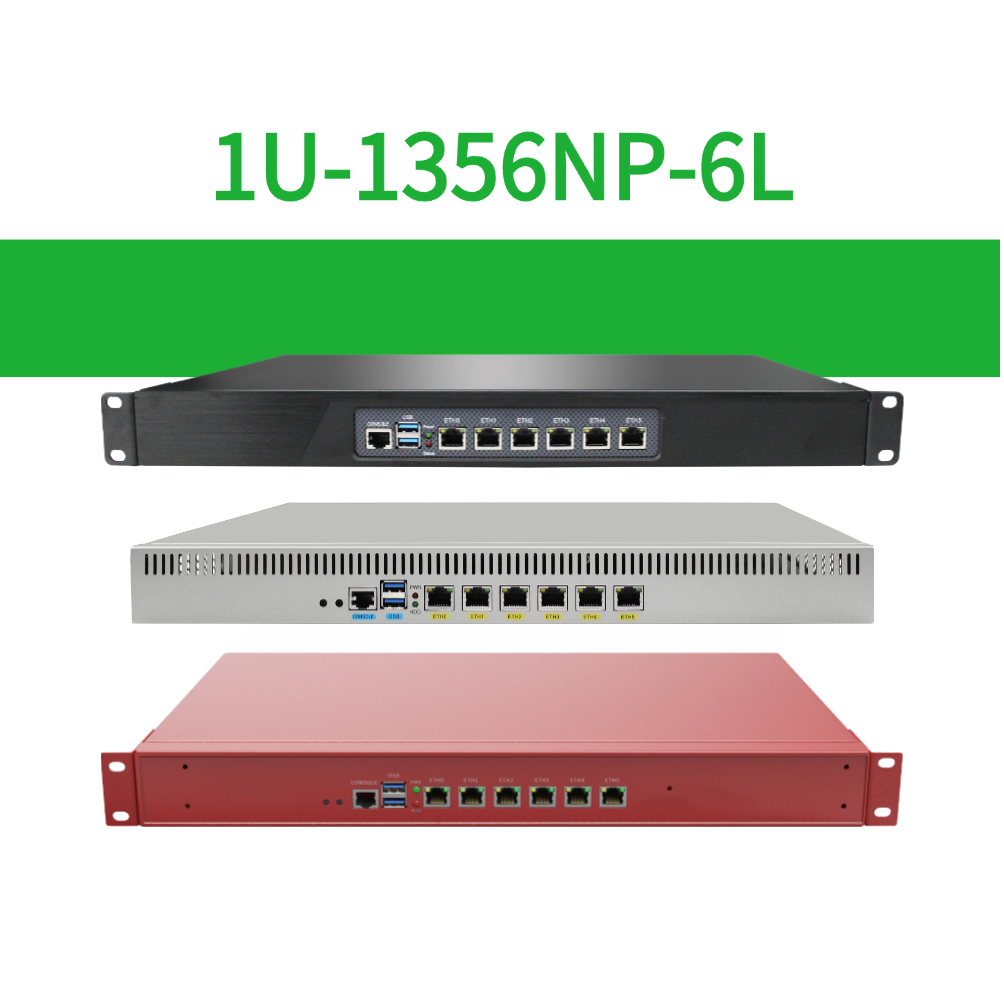

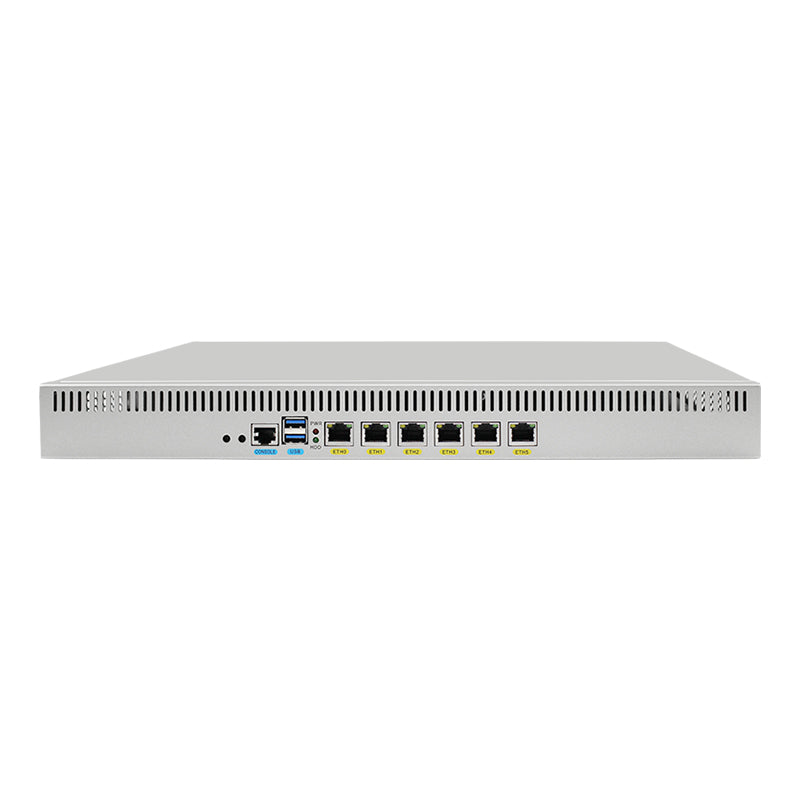

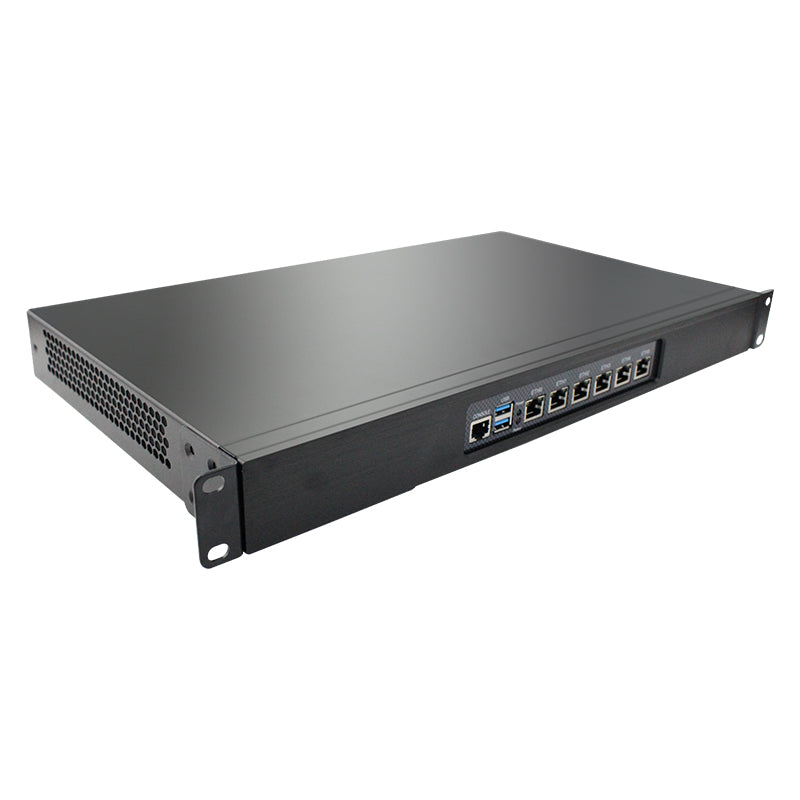

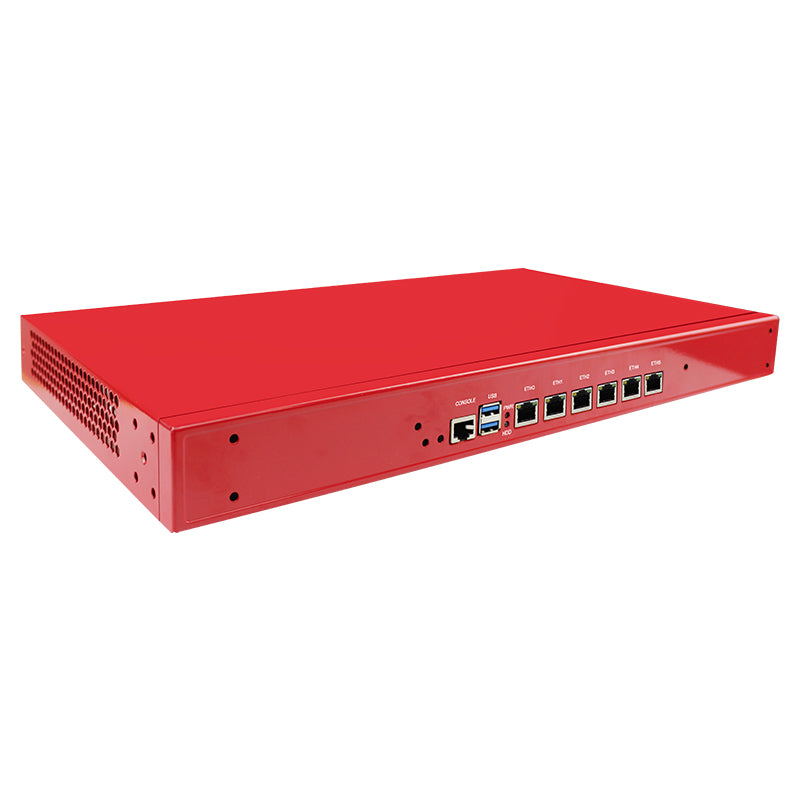

The 1U-1356NP-6L is a high-performance 1U rackmount network appliance powered by 8th Generation Intel® Core™ processors. With DDR4 memory up to 32GB, flexible SATA + M.2 NVMe storage, and 6× Gigabit LAN, it is built for firewall, VPN, and SD-WAN deployments that demand stable throughput and 24/7 reliability.

Key Features

Processor: 8th Gen Intel® Core™ (FCBGA1356)
Memory: DDR4 SO-DIMM up to 32GB, 2400 MT/s
Storage: 1× SATA 6Gb/s, 1× M.2 Key-M 2280 (PCIe)
Networking: 6× RJ45 1GbE ports
USB: 2× USB-A 3.0 (front)
Console: 1× RJ45 COM (front)
Display: 1× VGA / 1× HD (reserved)
Expansion: 1× mPCIe (PCIe signal), 1× mPCIe (USB 2.0 signal; single-sided Wi-Fi module supported)
Cooling: Active cooling—1× CPU fan + 2× chassis fans
Chassis: 440 × 255 × 45 mm; Weight: 3.80 kg (net), 4.50 kg (with accessories)
Power: Input 85–264V AC 47–63 Hz; Output DC 12V 4.2A
Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

Firewall & Security Gateway: pfSense/OPNsense deployments for secure routing and UTM
VPN / SD-WAN: Multi-branch connectivity and remote access with consistent performance
Edge Networking: Compact 1U platform for traffic management and policy enforcement
Virtual Network Functions: Lightweight VMs/containers for network services
SMB Infrastructure: Reliable 24/7 operation for small to medium-sized businesses
