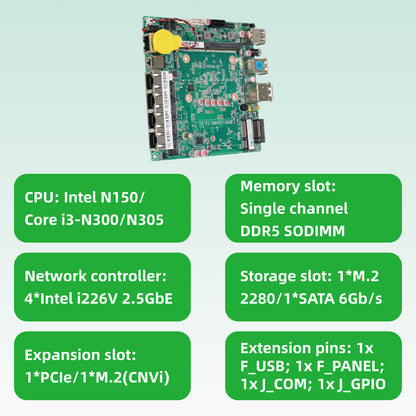

1264NP-12-4L-MB is a Nano-ITX motherboard designed for compact spaces. It is equipped with Intel N series processors, integrated with 4 2.5GbE network ports and dual storage + three expansion interfaces. With industrial-grade protection design and cellular network expansion capabilities, it provides high-density, full-time reliable embedded solutions for edge gateways, mobile devices and harsh environments.
Core highlights
Extreme space utilization: The Nano-ITX specification is 58% smaller than the traditional Mini-ITX size and can be embedded in applications such as robotic arm control boxes, internal compartments of medical equipment, and smart meter concentrators.
Multi-network and expansion capabilities: 4x 2.5GbE network ports support LACP aggregation and VLAN isolation management/storage/backup traffic; M.2 Key-E can install WiFi 6/WiFi 6E/BT5.2/BT5.3 CNVi protocol modules. mPCIe can expand CAN bus/4G module/accelerator card.
Industrial-grade reliability: Supports hardware watchdog (0-255 seconds adjustable reset), power-off self-restart to ensure business continuity, reserved 4-pin fan interface (compatible with fanless cooling solutions) supports PWM precise temperature control.
