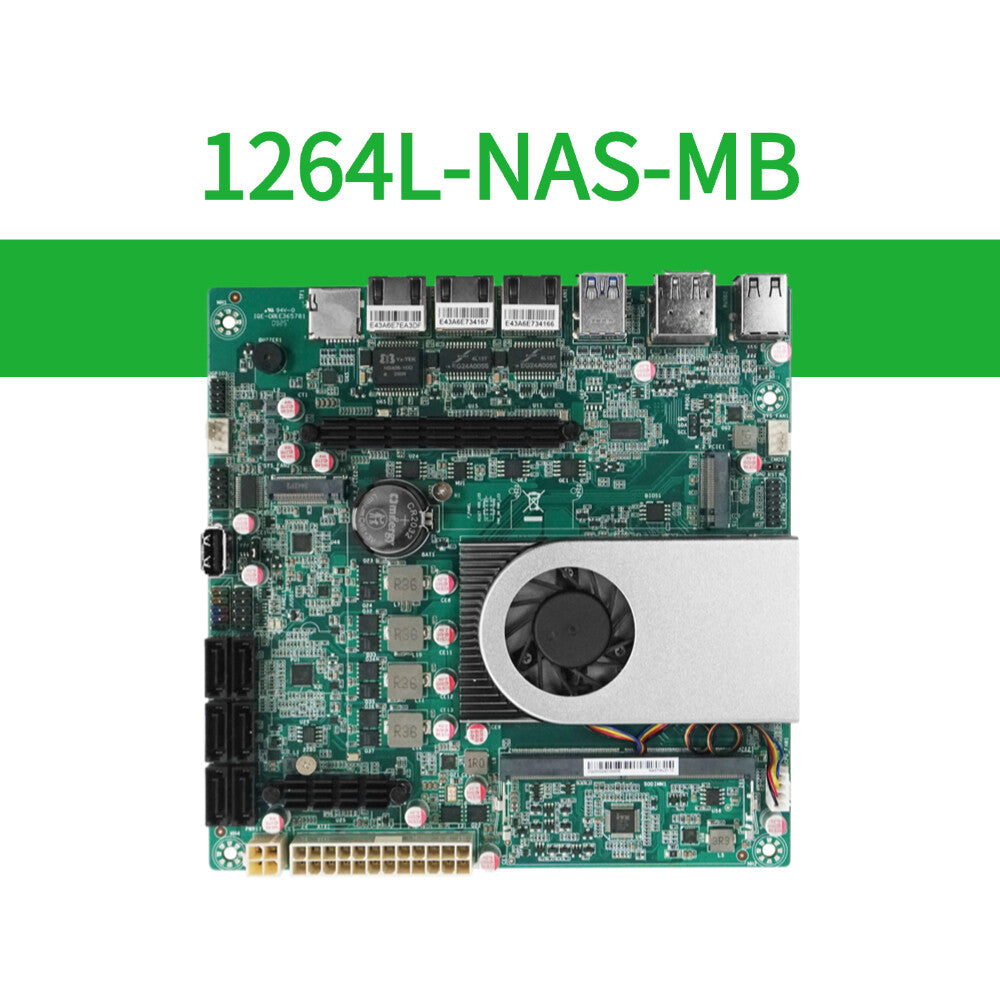

1264L-NAS-17-MB

Product Overview

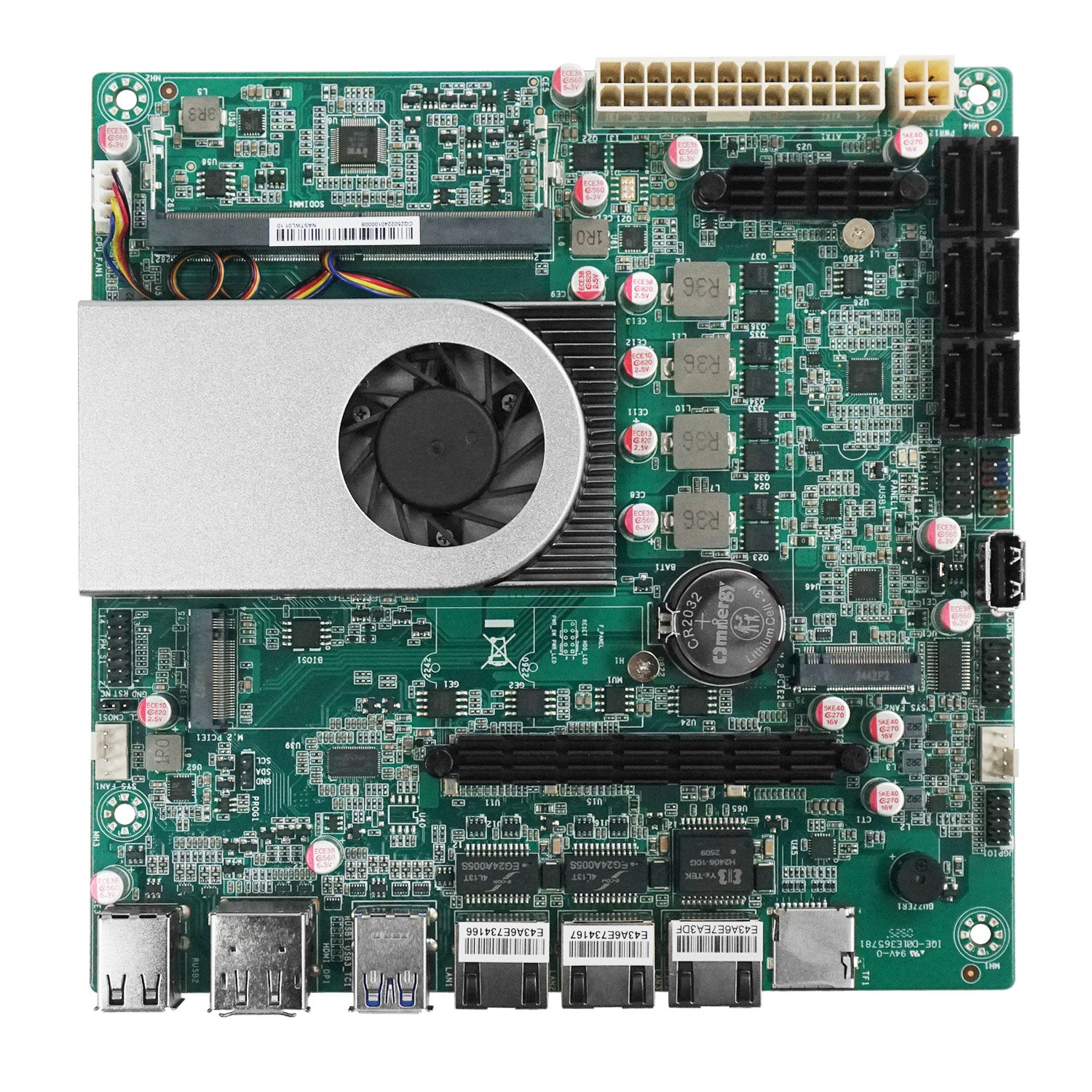

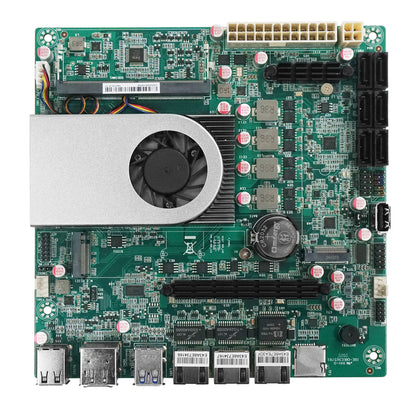

The 1264L-NAS-MB is a compact Mini-ITX NAS motherboard designed for energy-efficient storage servers and edge appliances based on the Intel® Processor N-series (FCBGA1264) platform. It combines 6× SATA 3.0 ports via an ASM1166 controller, dual 2.5GbE plus 10GbE networking, and dual M.2 slots for SSD expansion, offering a balanced solution for home labs, SOHO NAS, SMB storage, and edge workloads that require both capacity and high-speed network throughput.

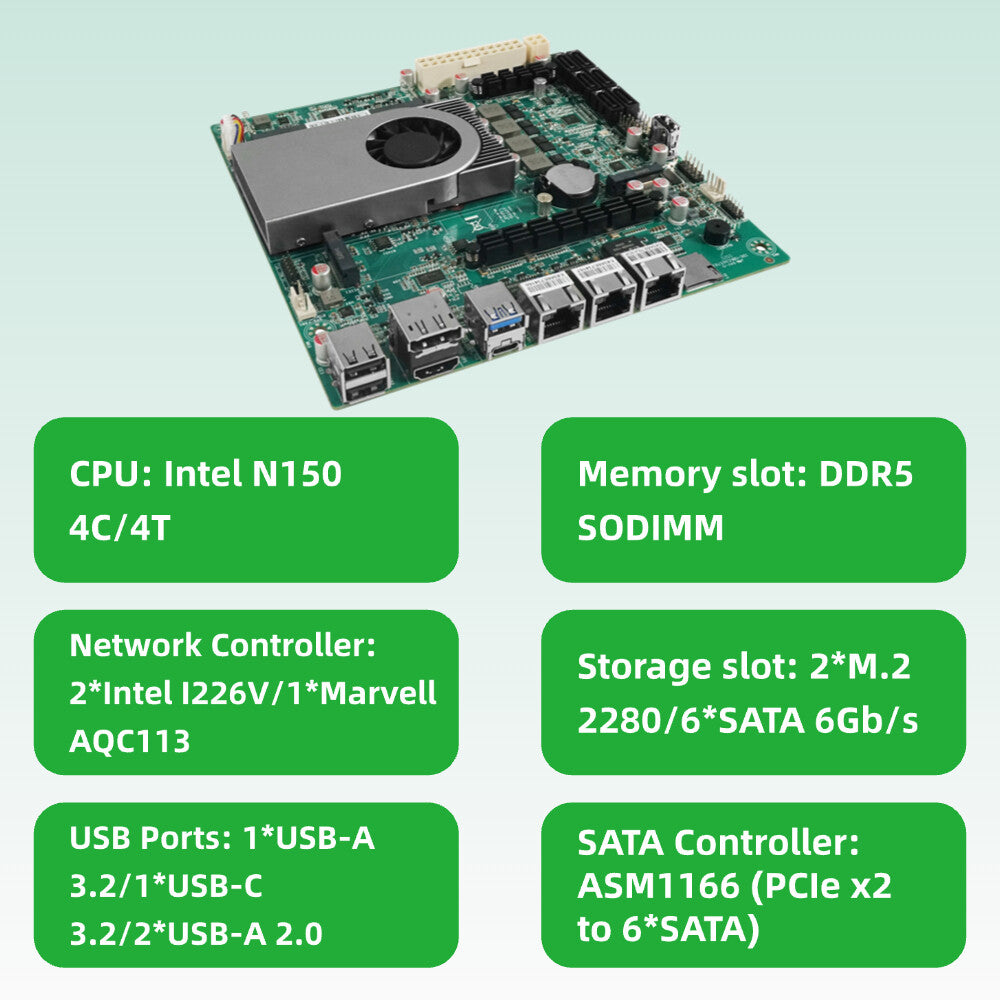

Key Features

• Processor Platform: Intel® Processor N-series, FCBGA1264 package
• Memory: DDR5 SO-DIMM, up to 16GB, 4800 MT/s
• Storage Interfaces:
  • 6× SATA 3.0 (6Gb/s) via ASM1166 (PCIe x2 to 6× SATA)
  • 2× M.2 Key-M 2280 (PCIe Gen3 x1) for NVMe SSDs

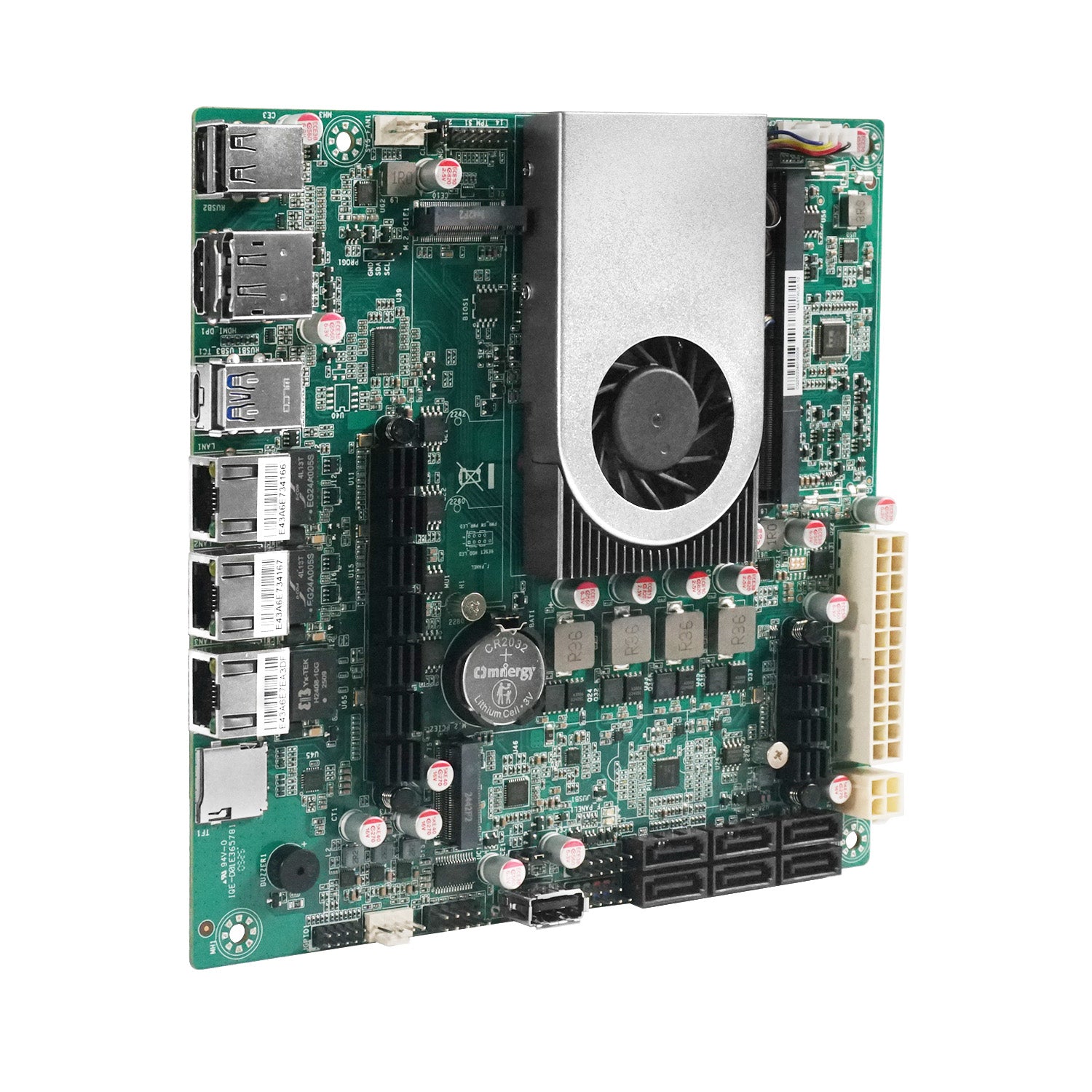

  • Onboard 6× 7-pin SATA data connectors
  • TF card slot for lightweight OS, logging, or portable data
• Networking:
  • 2× 2.5GbE (Intel® I226V)
  • 1× 10GbE (Marvell AQC113)

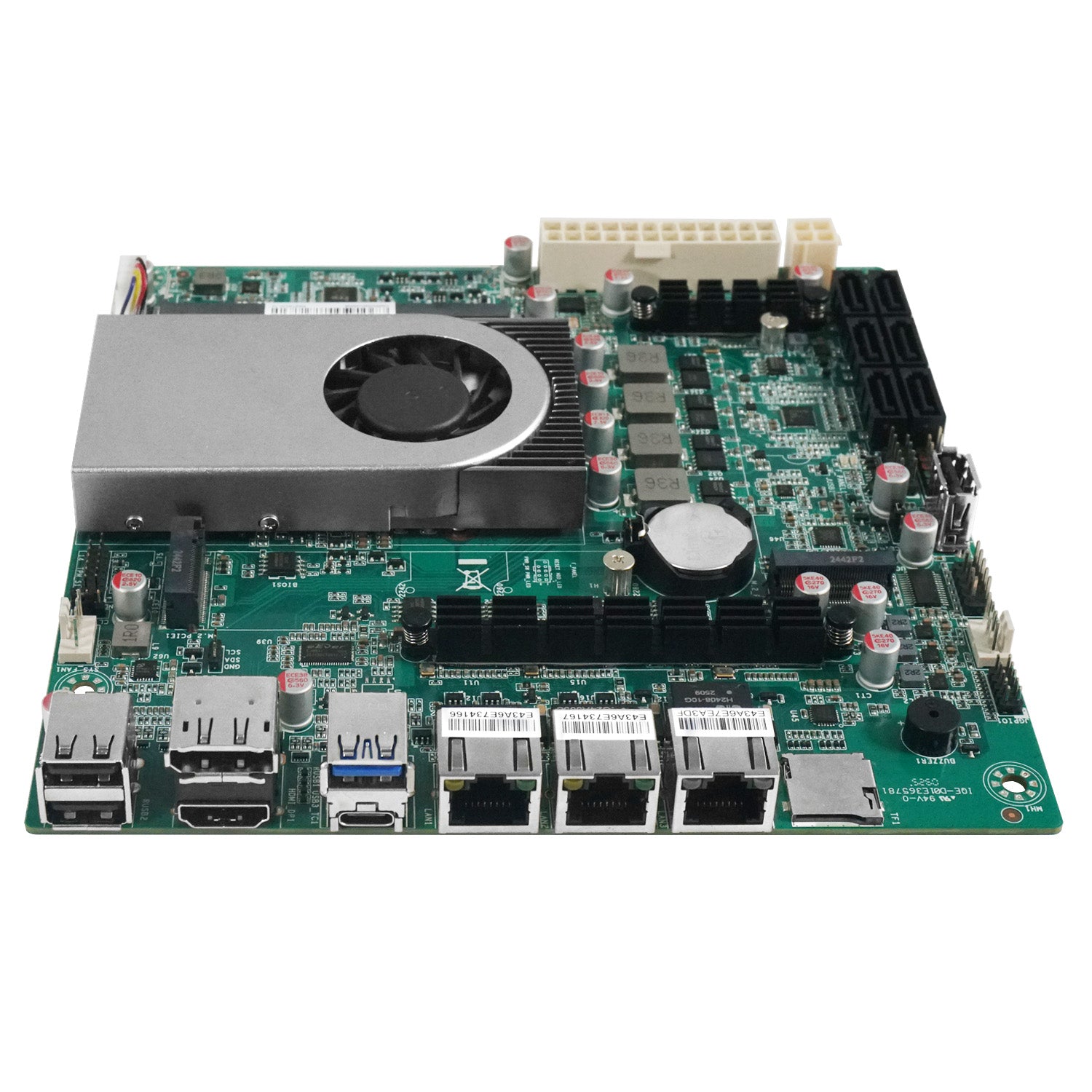

  • 3× RJ45 ports on the rear I/O
• Display & Graphics:
  • Onboard outputs: 1× DP, 1× HDMI, 1× USB-C (display capable)

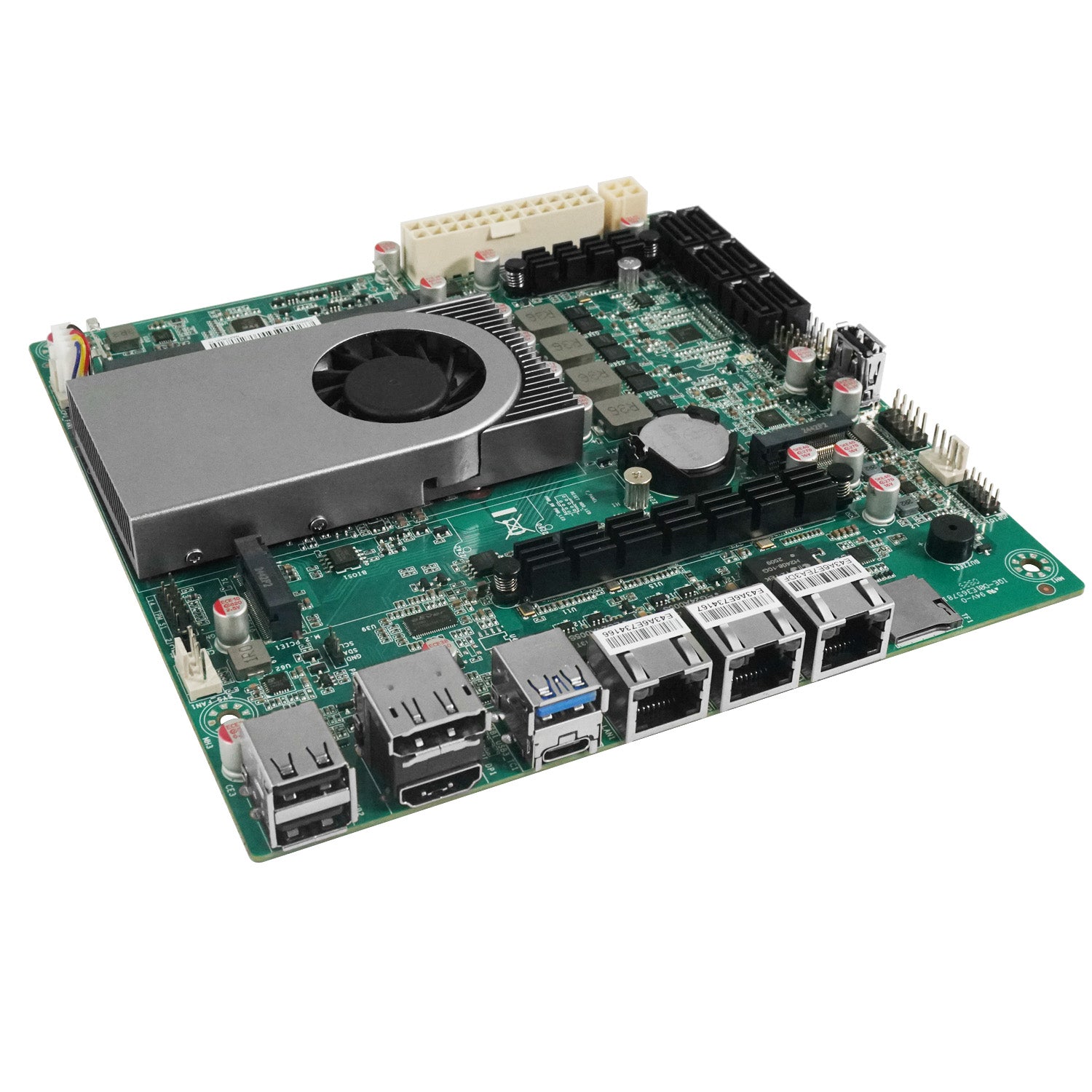

  • Rear I/O: 1× DP, 1× HDMI, 1× USB-C
• Expansion:
  • 1× PCIe x8 slot (x4 electrical)
  • 1× mPCIe (USB 2.0 signal) for Wi-Fi, LTE or other modules
• I/O & Control:
  • 2× USB-A 2.0, 1× USB-A 3.0, 1× USB-C (rear)
  • 1× F_USB1 header (can expand 2× USB 2.0 ports)
  • 1× J_COM (RS232), 1× TPM header, 1× JGPIO
  • 1× F_PANEL for power/LED/front panel connections
• Cooling & Power:
  • 1× CPU_FAN and 2× SYS_FAN headers for system cooling
  • Power connectors: 1× ATX 24-pin, 1× ATX 4-pin (12V)
• Form Factor: 170 × 170 mm Mini-ITX
• Operating Environment: 0–60℃ working, -20–75℃ storage, 0–95% RH (non-condensing)

Typical Application Scenarios

• Home & SOHO NAS: Ideal as the core motherboard for DIY NAS builds running platforms such as TrueNAS®, OpenMediaVault, or Linux-based storage solutions.
• SMB Storage Server: Combines 6× SATA and 2× M.2 SSD support with 2.5GbE + 10GbE for small and medium business file servers, backup servers, or private cloud storage.
• Virtualization & Lab Environments: Suitable for home labs or test environments requiring multiple disks, multigigabit networking, and low power consumption.
• Edge Storage & Gateway: Acts as an edge storage node or gateway for video surveillance, IoT data logging, and analytics with high-speed network uplinks.
• Hybrid Media & Storage Platform: With DP/HDMI/USB-C display outputs, it can serve as a combined NAS, media server, and lightweight application host.
