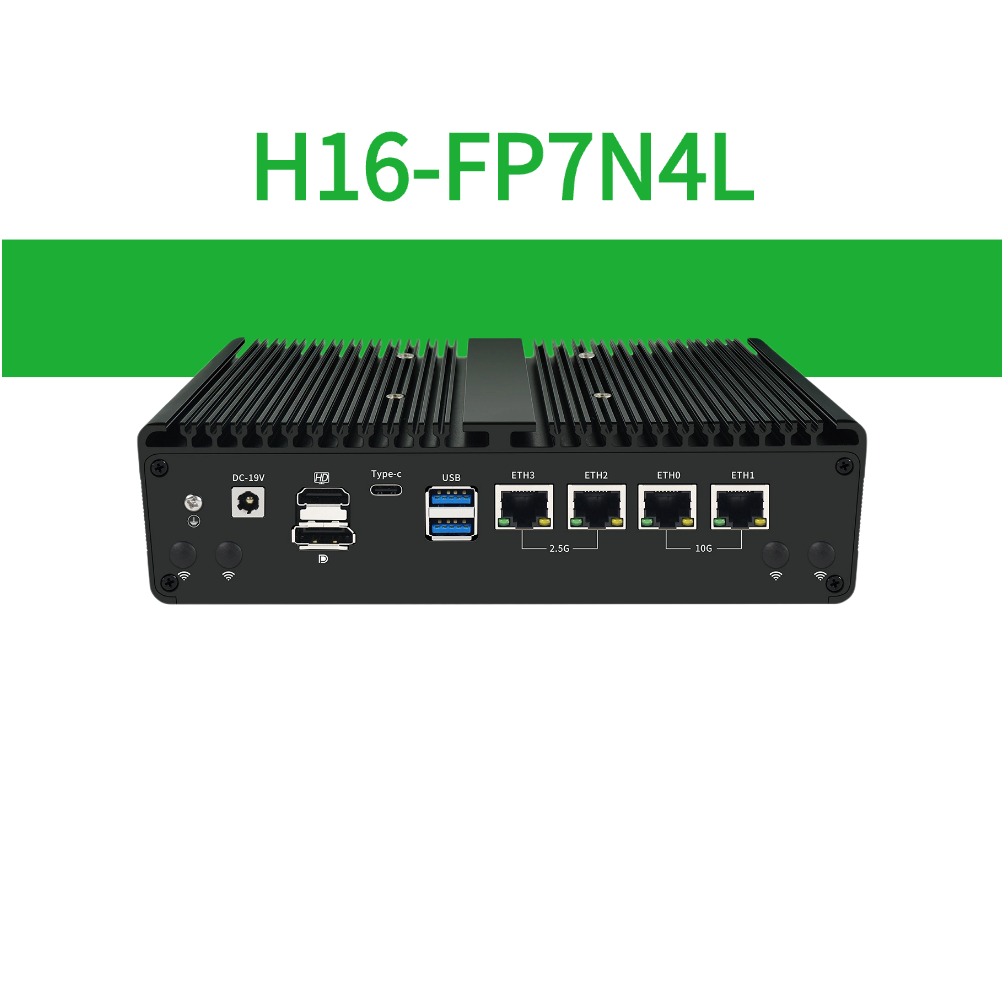

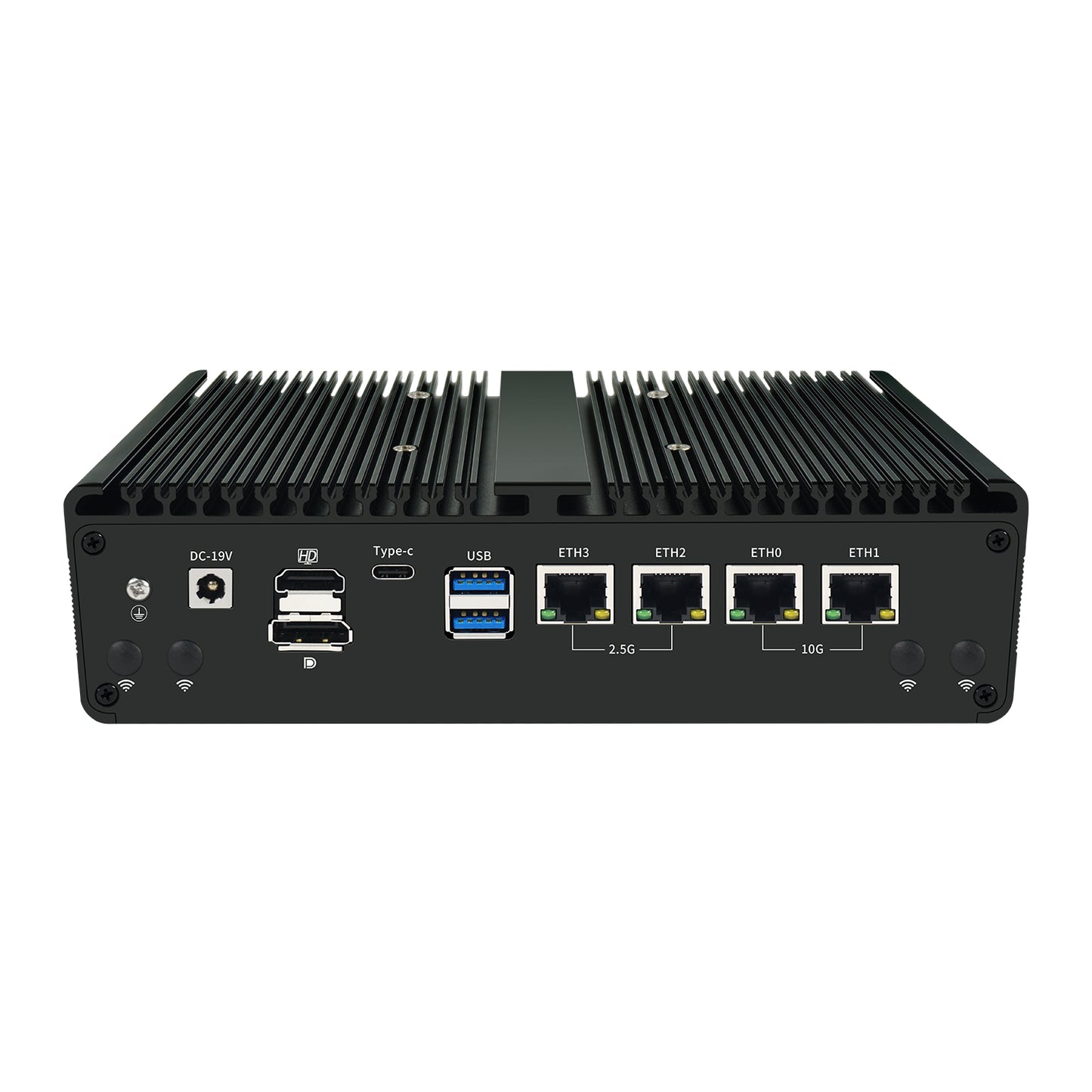

H16-FP7N4L Fanless AMD Ryzen Embedded System with 2×10GbE and 4×M.2
H16-FP7N4L Fanless AMD Ryzen Embedded System with 2×10GbE and 4×M.2
Verfügbarkeit für Abholungen konnte nicht geladen werden

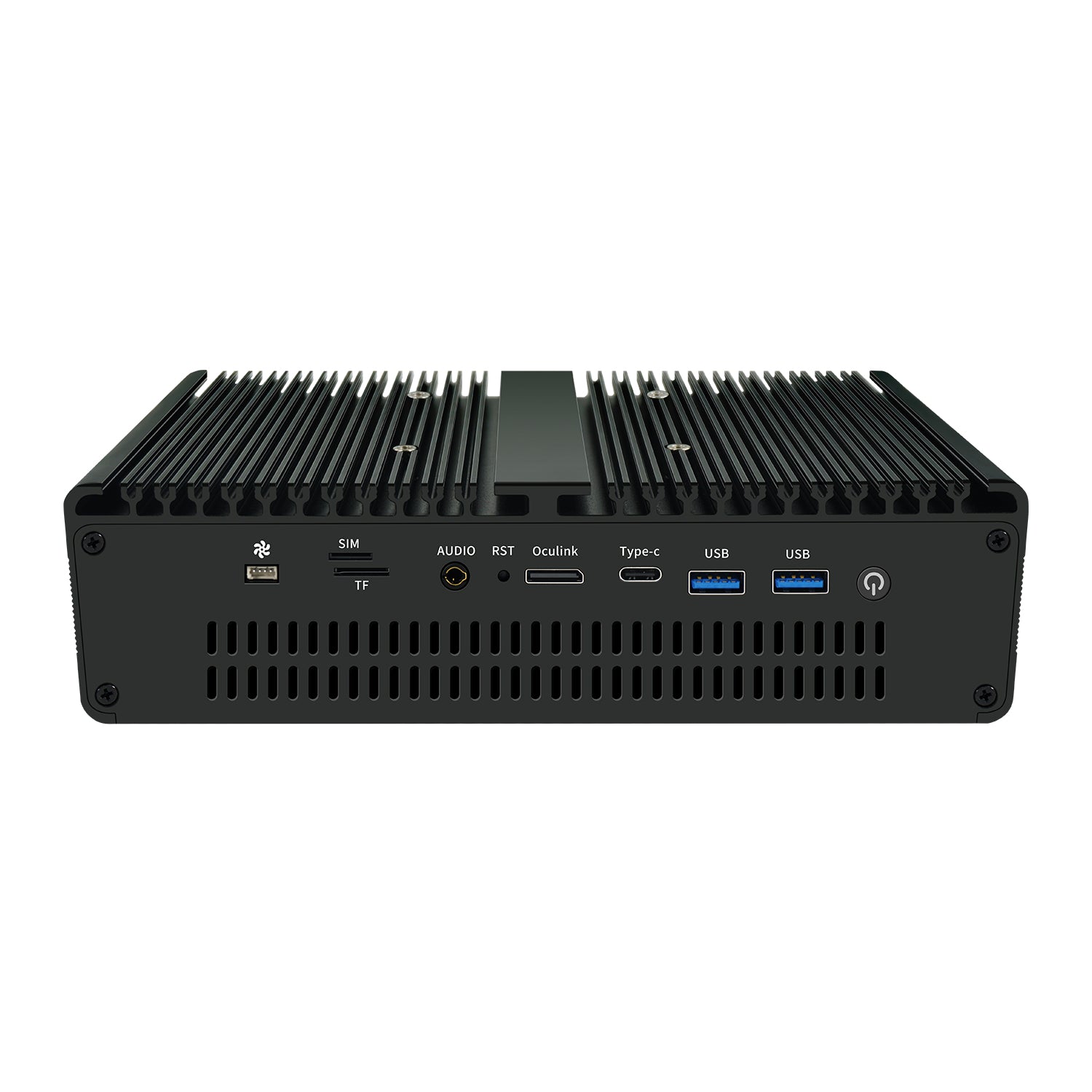

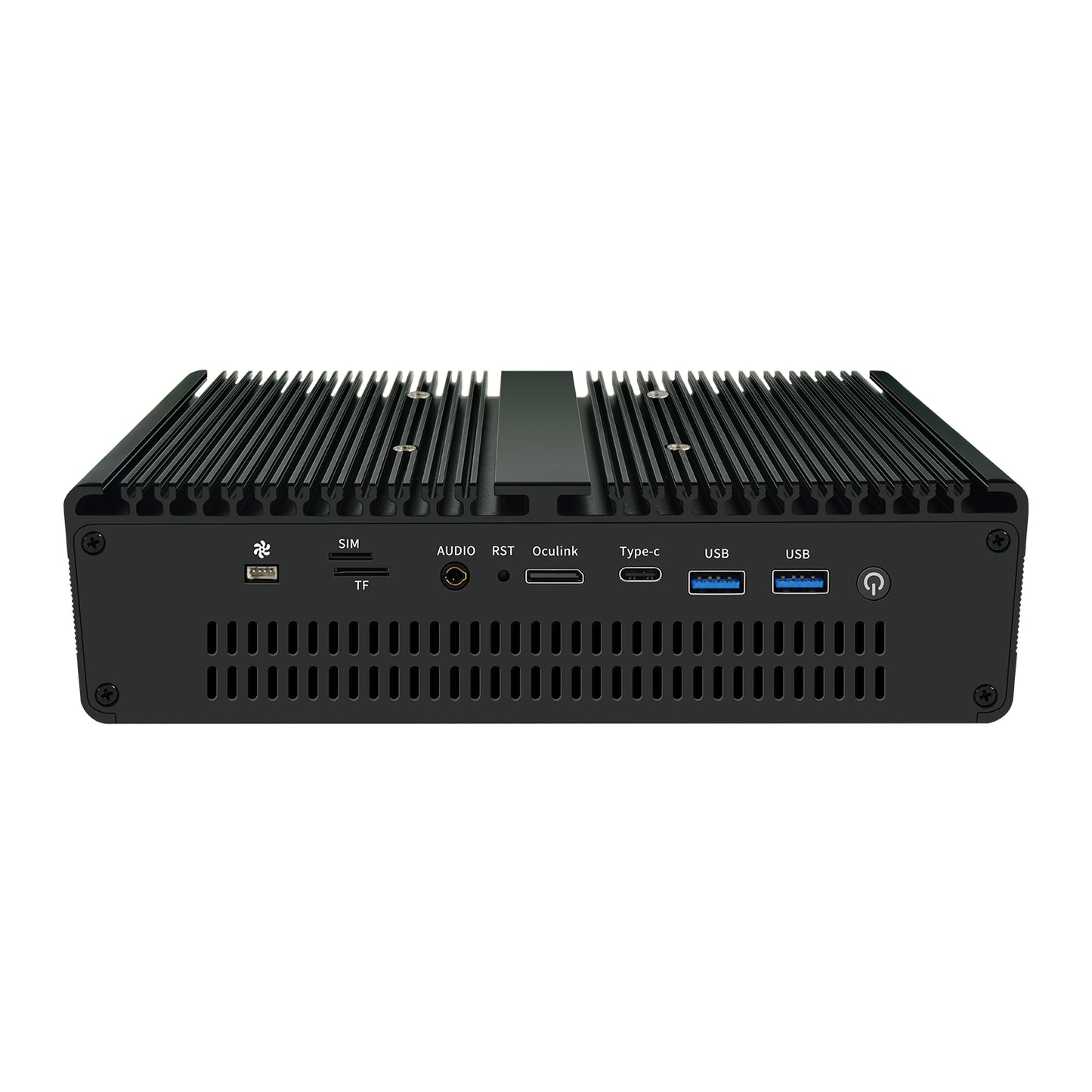

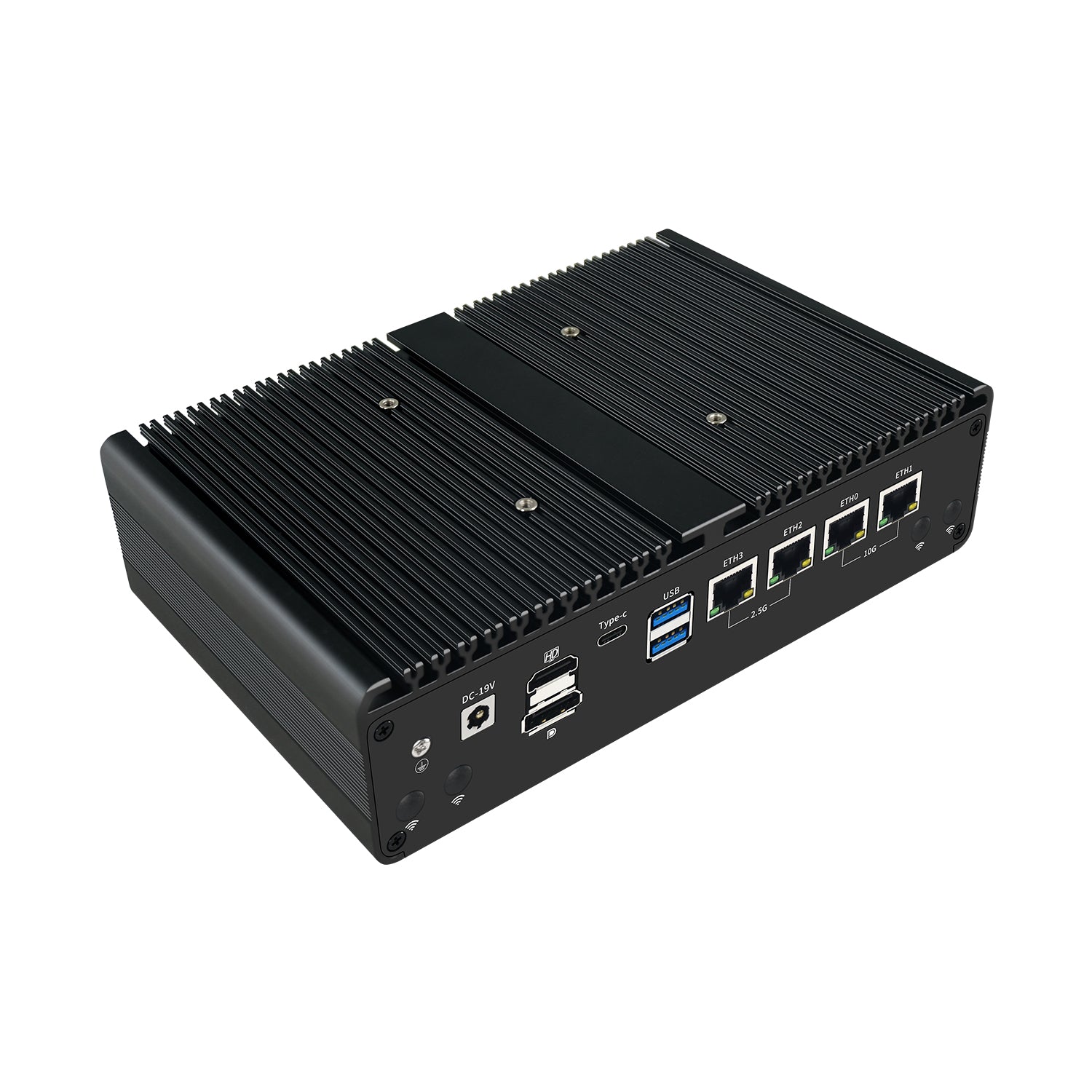

The H16-FP7N4L is a high-performance compact embedded system built on the AMD Ryzen 7000/8000 Series FP7 platform. Designed for next-generation high-speed networking, edge computing, storage acceleration, virtualization, and multi-service convergence, it integrates hybrid 2×10GbE and 2×2.5GbE networking, dual-channel DDR5 memory, four M.2 storage interfaces, USB-C 4.0, OCuLink expansion, and rich I/O connectivity in a compact fanless chassis.
With passive cooling, powerful Zen 4 computing performance, high-bandwidth network interfaces, and all-flash storage capability, the H16-FP7N4L is ideal for enterprise network nodes, storage workstations, edge servers, virtualization platforms, professional studio systems, AI computing nodes, and space-constrained high-performance deployments requiring quiet and reliable operation.
Key Features
- AMD Ryzen 7000/8000 Series platform based on Zen 4 architecture for high-performance embedded computing
- Fanless passive cooling design for silent operation with proper airflow

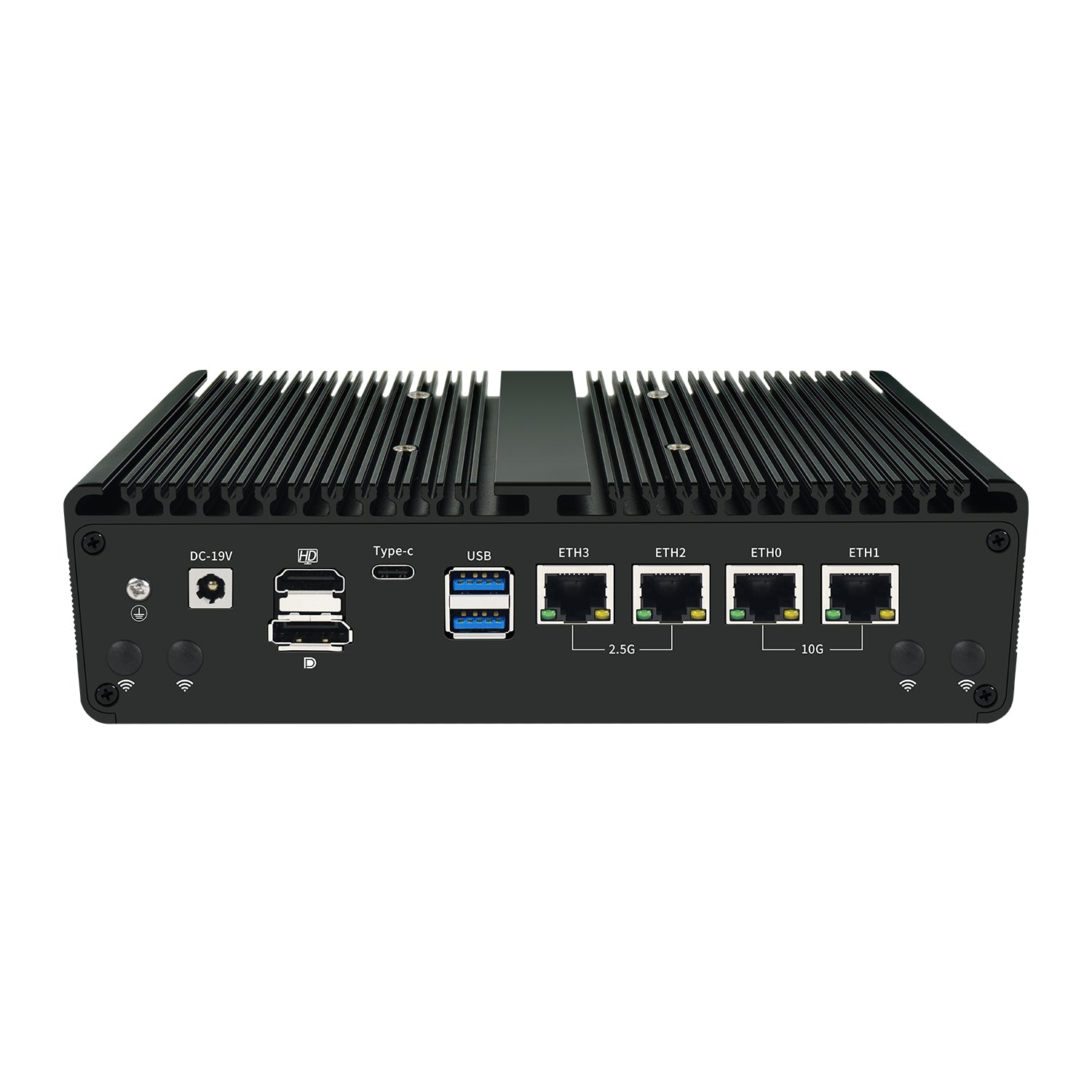

- Hybrid high-speed networking: 2×2.5GbE and 2×10GbE RJ45 ports
- Network controllers: 2×Intel I226V and 2×Marvell AQC113
- DDR5 SO-DIMM memory support, up to 64GB, 5600 MT/s
- Four M.2 storage interfaces: 1×M.2 Key-M 2280 PCIe x4 and 3×M.2 Key-M 2280 PCIe x2
- USB-C 4.0 connectivity: 2×USB-C 4.0 ports, up to 40Gbps
- USB-A connectivity: 4×USB-A 3.2 ports, up to 10Gbps
- OCuLink expansion: 1×OCuLink interface with PCIe x4
- Wireless and cellular expansion: 1×M.2 Key-E 2230 and 1×M.2 Key-B 3052
- SIM card slot and TF card slot for cellular deployment and additional storage options
- Display output: 1×DP and 1×HD
- Integrated AMD Radeon graphics for display and media workloads
- Industrial onboard I/O: F_USB2.0, F_PANEL, J_COM, J_GPIO, CPU_FAN, and SYS_FAN
- DC 19V power input, recommended 19V 6.32A or higher
Application Scenarios
- Network nodes
- Storage workstations
- Edge computing platforms
- Virtualization platforms
- Edge servers
- High-speed network appliances
- Professional workstation systems
- AI computing nodes
- Multi-service convergence applications
Specifications
| Model | H16-FP7N4L |
| Processor Platform | AMD Ryzen 7000/8000 Series |
| Socket | FP7 |
| Graphics | AMD Radeon integrated graphics |
| Memory | DDR5 SO-DIMM, up to 64GB, 5600 MT/s |
| Storage | 4×M.2 Key-M 2280, including 1×PCIe x4 and 3×PCIe x2 |
| Network | 2×RJ45 2.5GbE LAN, 2×RJ45 10GbE LAN |
| Network Controller | 2×Intel I226V, 2×Marvell AQC113 |
| Expansion | 1×M.2 Key-E 2230, 1×M.2 Key-B 3052, 1×OCuLink |
| USB | 4×USB-A 3.2, 2×USB-C 4.0 |
| Display | 1×DP, 1×HD |
| Audio | 1×Audio jack |
| SIM | 1×SIM card slot |
| TF Card | 1×TF card slot |
| Onboard I/O | 1×F_USB2.0, 1×F_PANEL, 1×J_COM, 1×J_GPIO, 1×CPU_FAN, 1×SYS_FAN |
| Antenna Hole | 4×reserved |
| Cooling Method | Passive cooling, fanless design; airflow required |

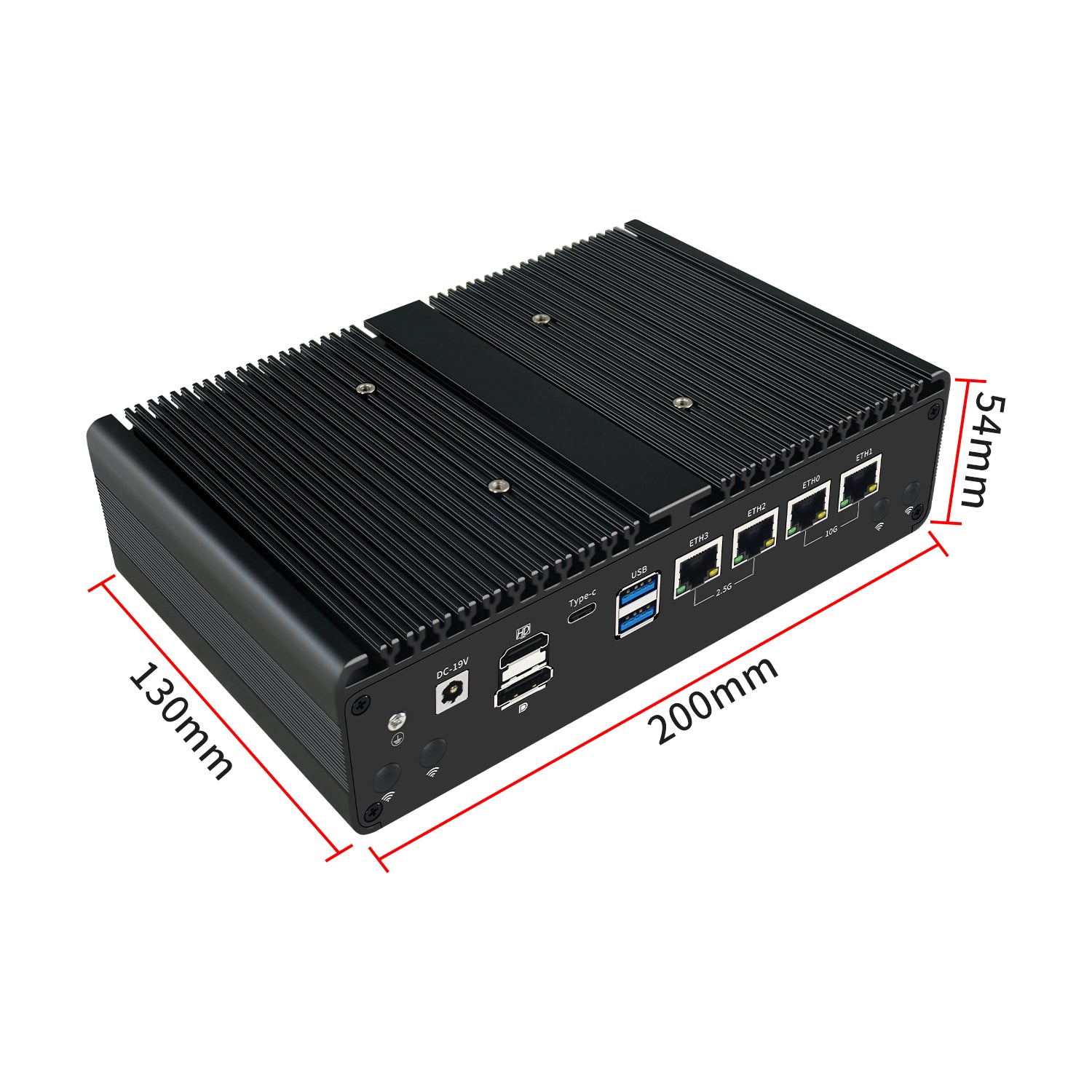

| Chassis Size | 200×130×54 mm |
| Weight | Equipment weight: 1.15 kg; package weight: 1.85 kg including accessories |
| Power Input | DC 19V 6.32A or higher |
| Operating Temperature | 0~50°C |
| Humidity | 5%~90% relative humidity, non-condensing |
Download
Note: Product appearance and specifications may vary slightly by production batch. For processor configuration, memory capacity, M.2 SSD compatibility, OCuLink expansion, network deployment, or system integration requirements, please contact us before ordering.
