G48S-1493NP-4L Ultra-Compact Fanless Industrial Mini PC
The G48S-1493NP-4L is an ultra-compact fanless embedded industrial PC based on the Intel Celeron J-Series processor platform. Featuring a robust metal enclosure and a completely fanless cooling structure, it delivers stable operation with true zero-noise performance. With 4×2.5GbE RJ45 network ports, dual-channel DDR4 memory, M.2 high-speed storage, and flexible wireless expansion, it is an ideal solution for building network devices, industrial control systems, IoT edge gateways, and edge computing applications in space-constrained environments.
Key Features
- Intel Celeron J-Series platform for low-power embedded computing
- Ultra-compact fanless design for quiet, stable, long-term operation
- Robust metal enclosure suitable for industrial and embedded deployments
- 4×RJ45 2.5GbE LAN ports powered by Intel I226V controllers
- Dual DDR4 SO-DIMM memory slots, up to 32GB, 3200 MT/s
- Flexible storage: 1×M.2 Key-M 2280 and 1×SATA 3.0 6Gb/s
- Wireless expansion: 1×M.2 Key-B 3052 and 1×M.2 Key-E 2230
- SIM card slot for cellular communication module applications
- Display output: 1×DP and 1×HD
- Rich I/O: USB 3.0, USB 2.0, RJ45 RS232 console, start/restart button, and reserved antenna holes
- DC 12V power input, recommended 12V 4A or higher
Application Scenarios
- Cybersecurity appliances
- Firewall and router systems
- IoT edge gateways
- Industrial control automation
- Embedded terminals
- Edge computing applications
- Network monitoring and lightweight virtualization
- Space-constrained industrial network deployments
Specifications
| Model | G48S-1493NP-4L |
| Processor Platform | Intel Celeron Processor J-Series |
| Socket | FCBGA1493 |
| Memory | 2×DDR4 SO-DIMM, up to 32GB, 3200 MT/s |
| Storage | 1×SATA 3.0 6Gb/s, 1×M.2 Key-M 2280 |
| Network | 4×RJ45 2.5GbE LAN |
| Network Controller | 4×Intel I226V |
| Wireless Expansion | 1×M.2 Key-B 3052, 1×M.2 Key-E 2230 |
| SIM | 1×SIM card slot |
| USB | 1×USB-A 3.0, 3×USB-A 2.0 |
| Display | 1×DP, 1×HD |
| Console | 1×RJ45 RS232 |
| Antenna Hole | 2×reserved |
| Cooling Method | Passive cooling, fanless design; airflow required |

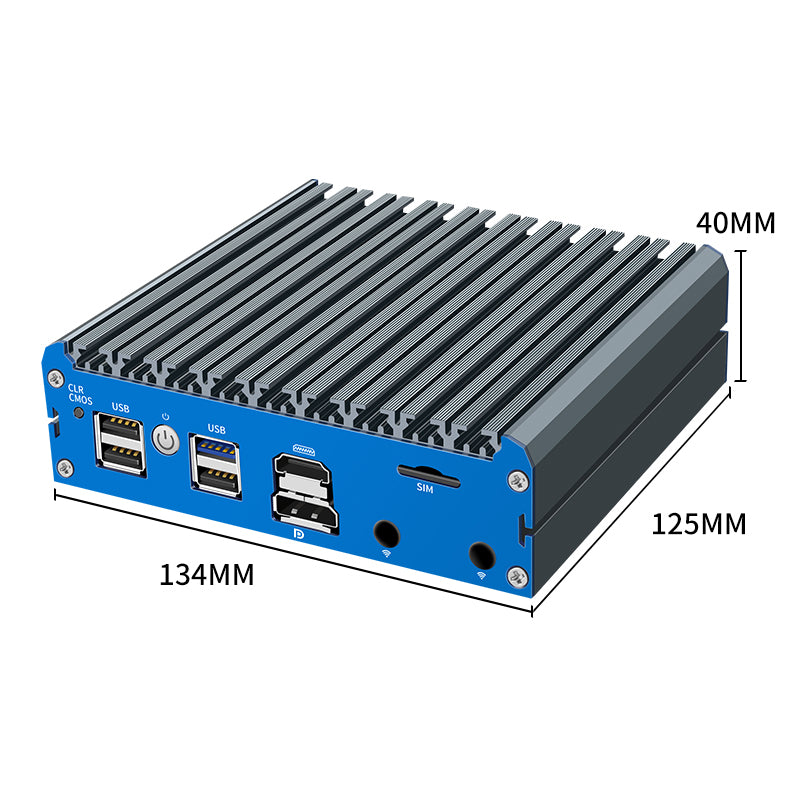

| Chassis Size | 134×125×40 mm |
| Weight | Equipment weight: 0.65 kg; package weight: 1.25 kg including accessories |
| Power Input | DC 12V 4A or higher |
| Operating Temperature | 0~50°C |
| Humidity | 5%~90% relative humidity, non-condensing |
Download
Note: Product appearance and specifications may vary slightly by production batch. Please refer to the actual product received or contact us before ordering if you need to confirm a specific configuration.
