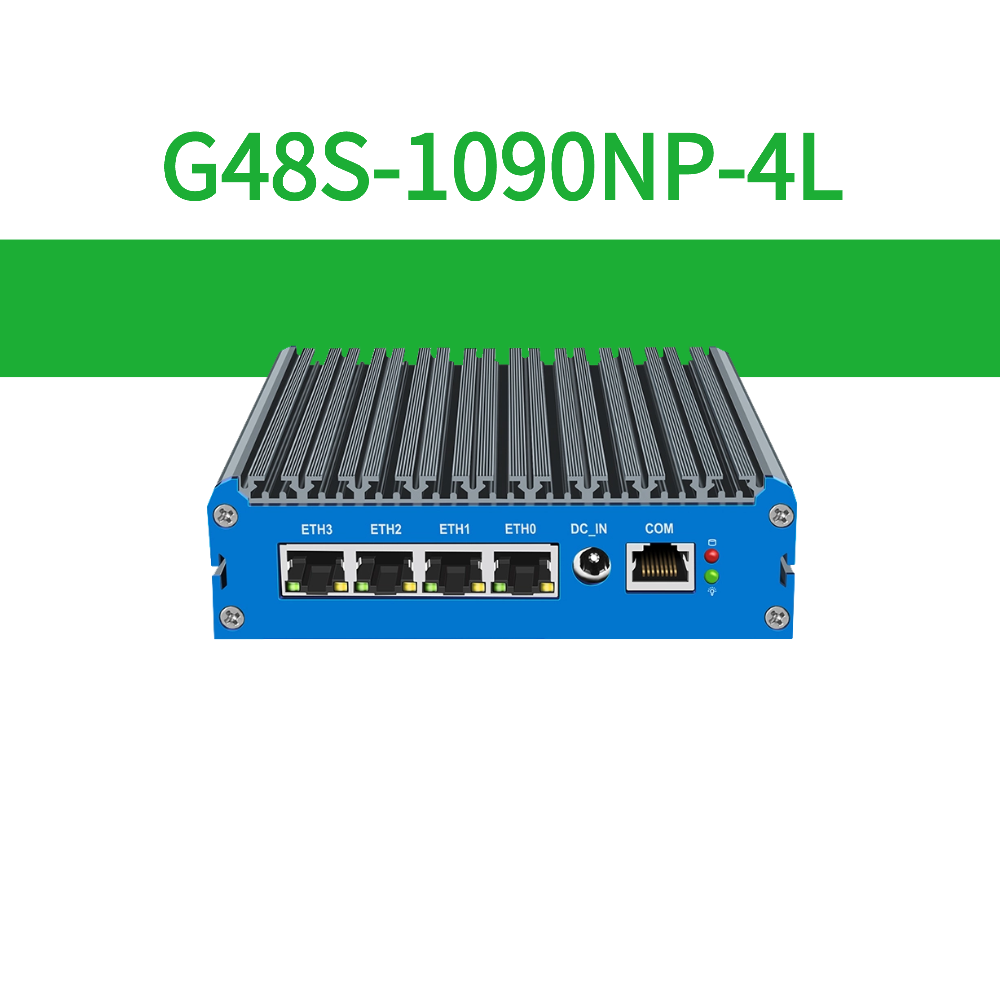

G48S-1090NP-4L

Product Overview

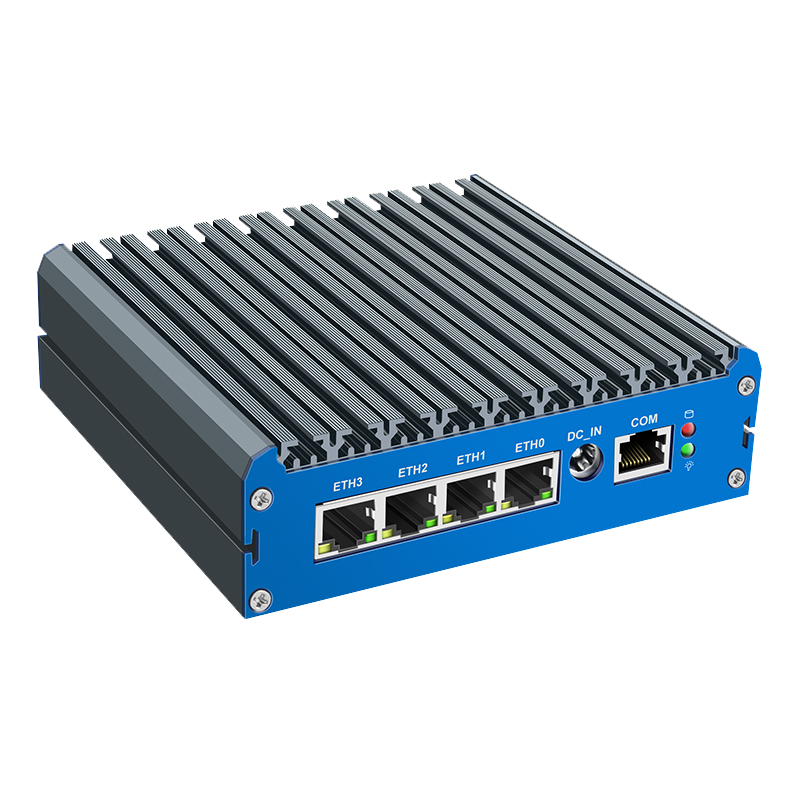

The G48S-1090NP-4L is an ultra-compact, fanless embedded network appliance designed with the Intel® Gemini Lake / Gemini Lake-R (FCBGA1090) processor platform. Built for silent, stable, and energy-efficient operation, this system integrates 4x 2.5Gigabit Ethernet ports, multiple storage options (SATA, M.2, mSATA), and a rich set of front and rear I/O interfaces. Its small footprint and fanless design make it suitable for firewall, VPN, routing, IoT edge computing, and compact industrial environments.

Key Features

• Processor: Intel® Gemini Lake / Gemini Lake-R SoC (FCBGA1090)
• Memory: 2× DDR4 SO-DIMM, up to 8GB, 2400 MHz
• Storage Options:
  • 1× SATA 2.0 (3Gb/s)
  • 1× M.2 Key-M SSD slot
  • 1× mSATA slot

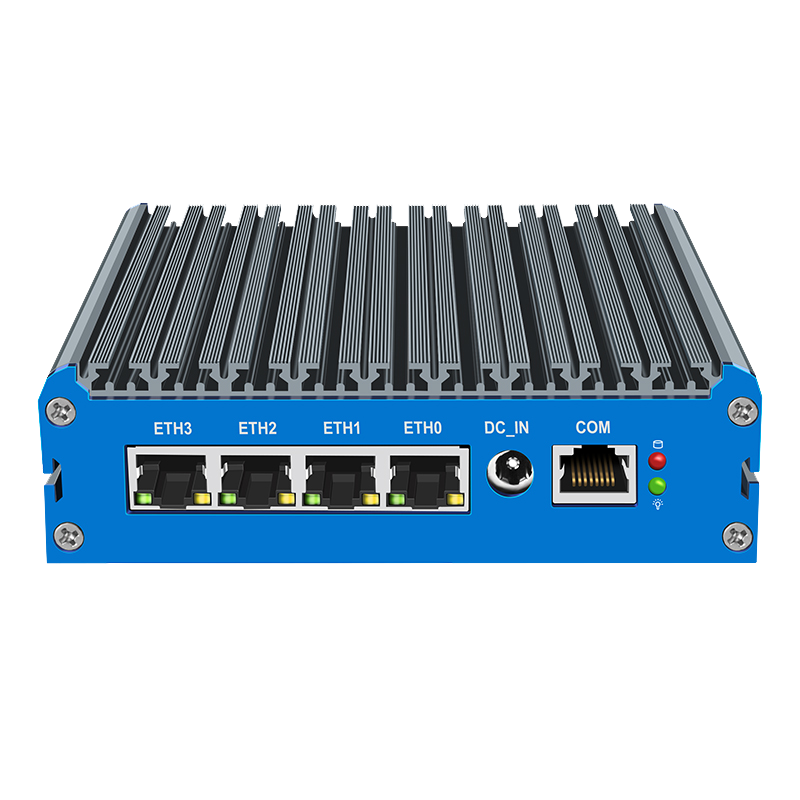

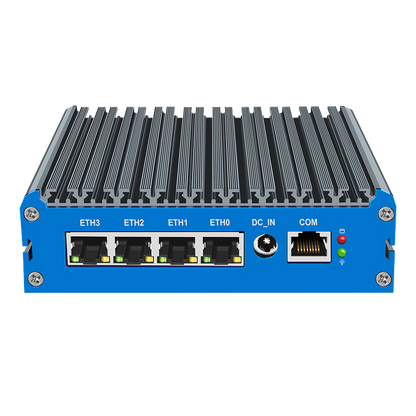

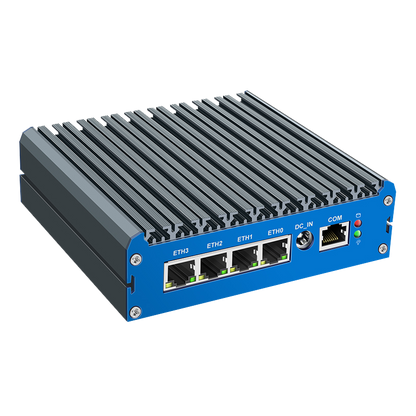

• Networking: 4× RJ45 Gigabit Ethernet ports
• Console: 1× RJ45 RS232 console port

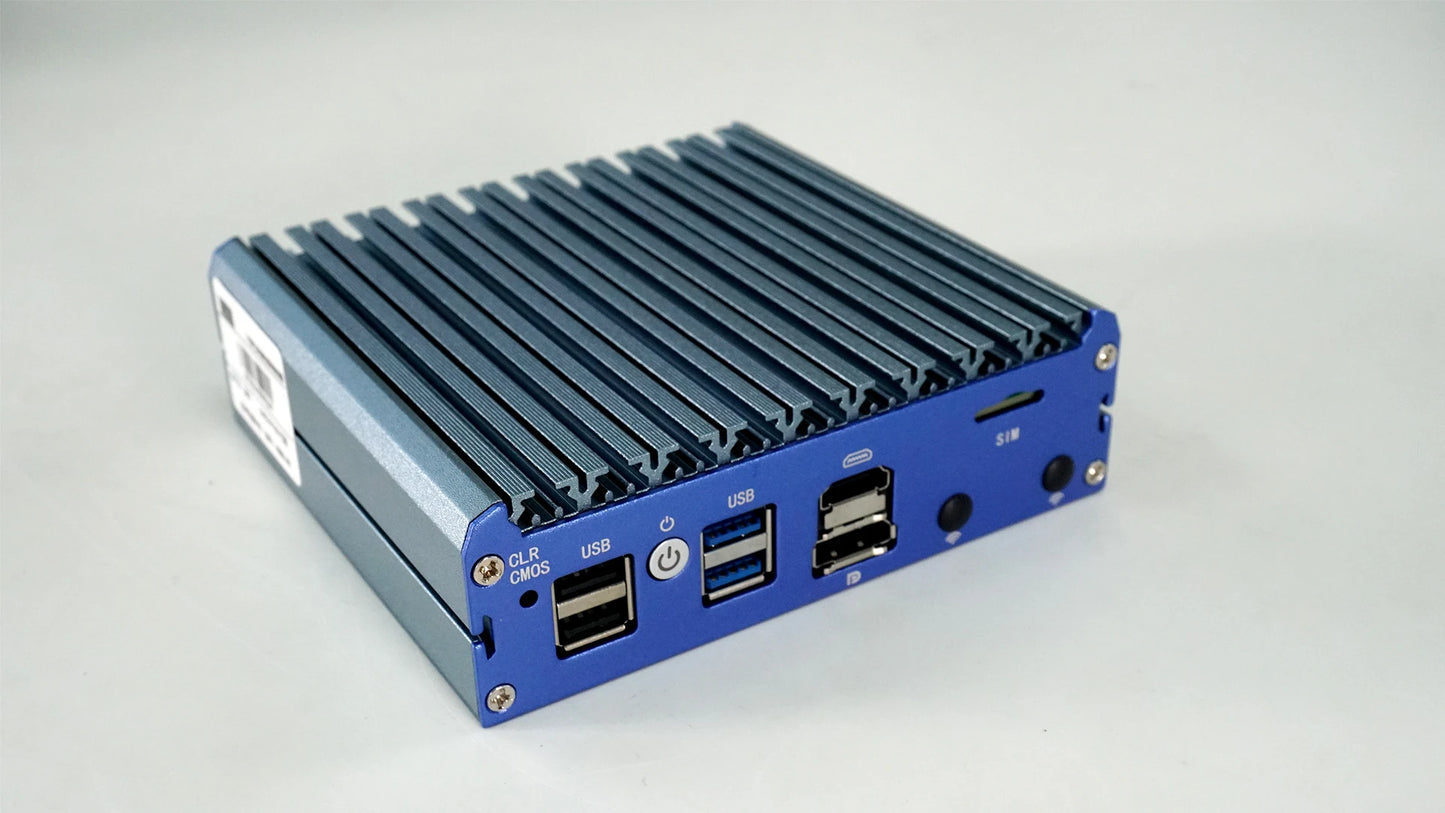

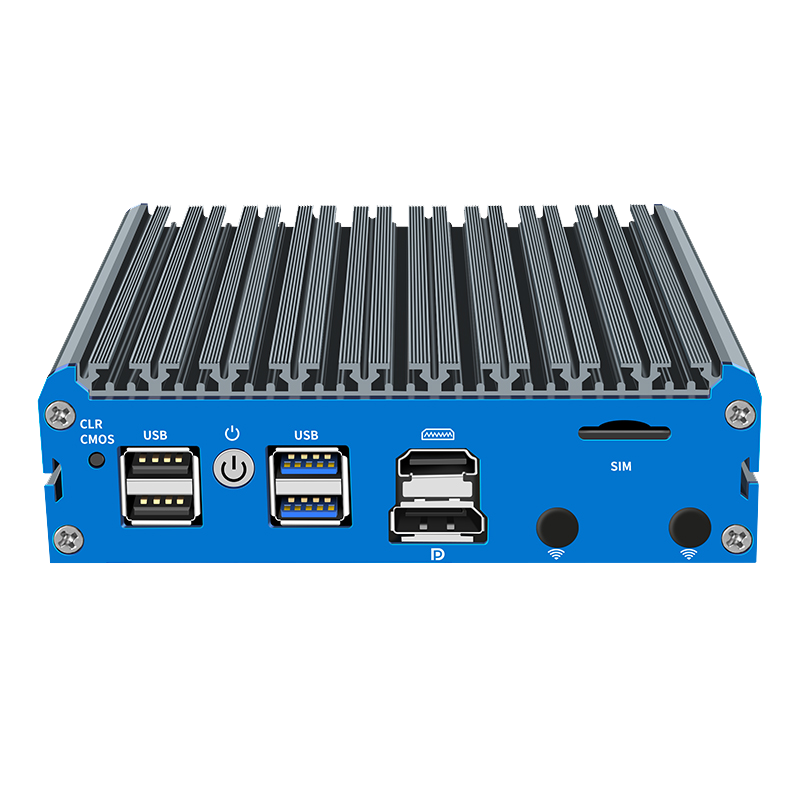

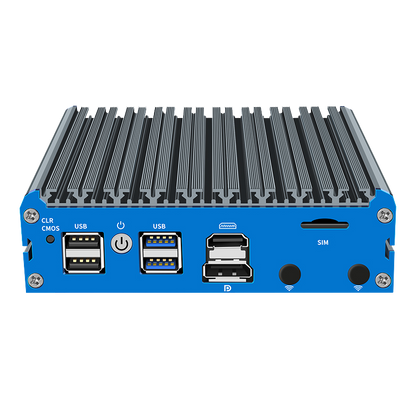

• I/O Ports: 2× USB 3.0 + 2× USB 2.0
• Display: 1× DP + 1× HD dual display output
• Expansion: 1× mPCIe slot for WiFi/3G/4G modules
• Cooling: Passive fanless cooling (requires good airflow)
• Power Input: DC 12V / 4A or higher

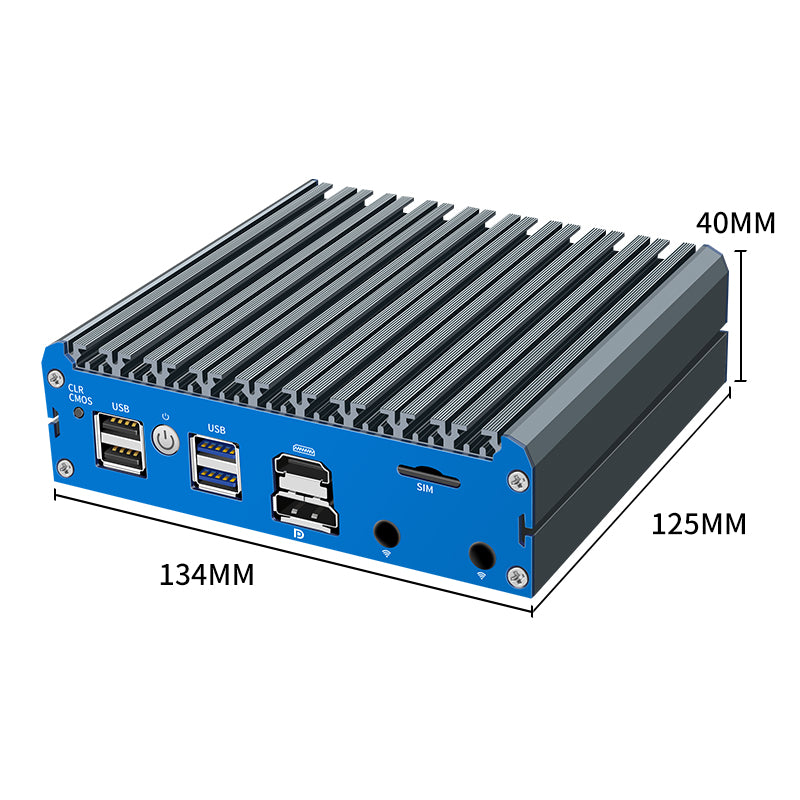

• Dimensions: 134 × 125 × 40 mm
• Weight: 0.65 kg (device), 1.25 kg (with accessories)
• Operating Conditions: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

• Firewall & Router Appliance: Ideal for pfSense, OPNsense, and other open-source or commercial firewall platforms.
• VPN Gateway: Suitable for secure remote access, site-to-site VPN tunnels, and SOHO networking.
• IoT / Edge Computing Gateway: Handles data collection, protocol conversion, and lightweight edge processing.
• Industrial & Commercial Networking: Fanless and compact design fits control cabinets, network boxes, and retail environments.
• Home & Small-Business Micro-Server: Works as a small NAS, local service node, or automation controller.

Downloads

Data Sheet
Product Manual
