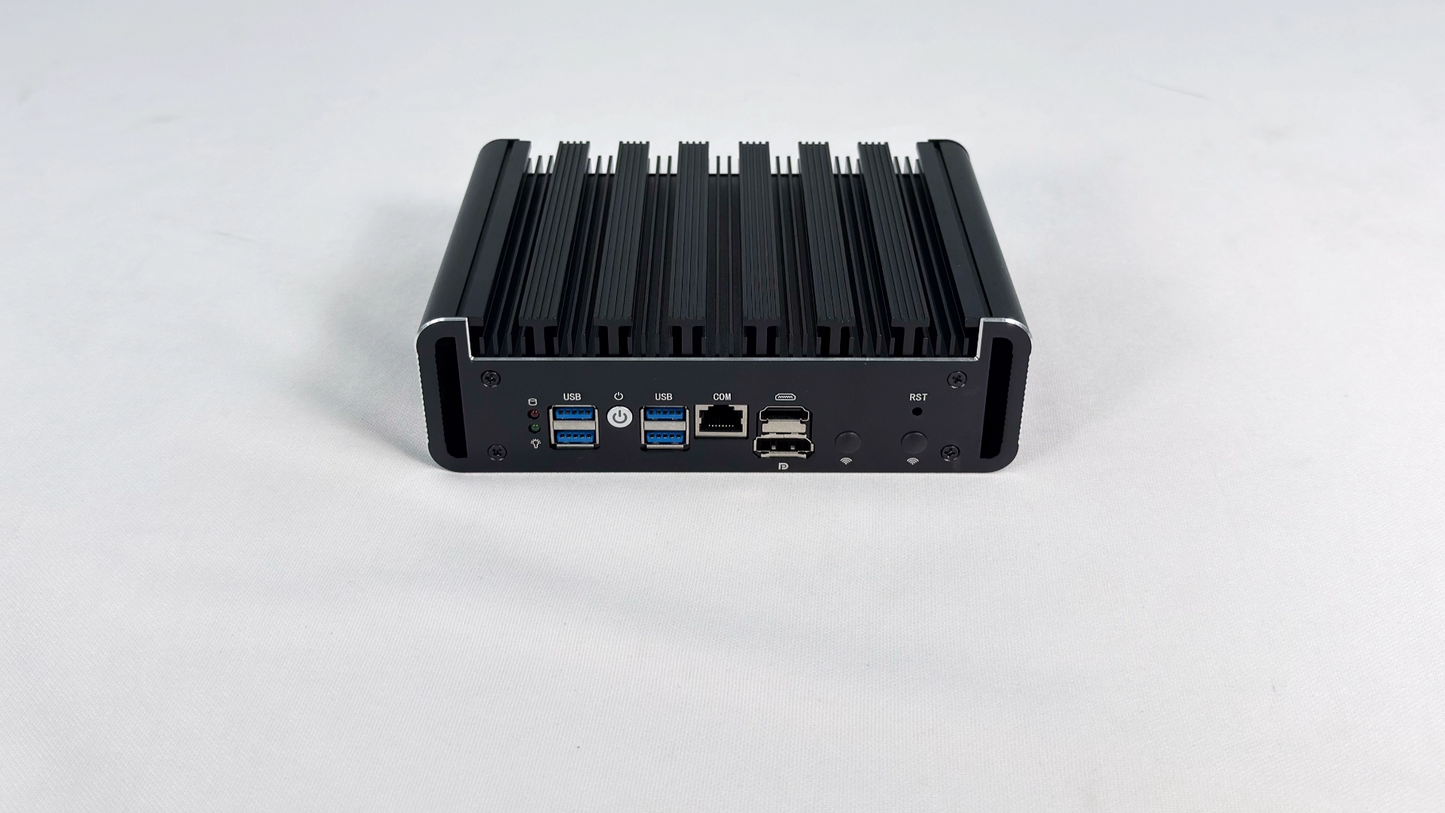

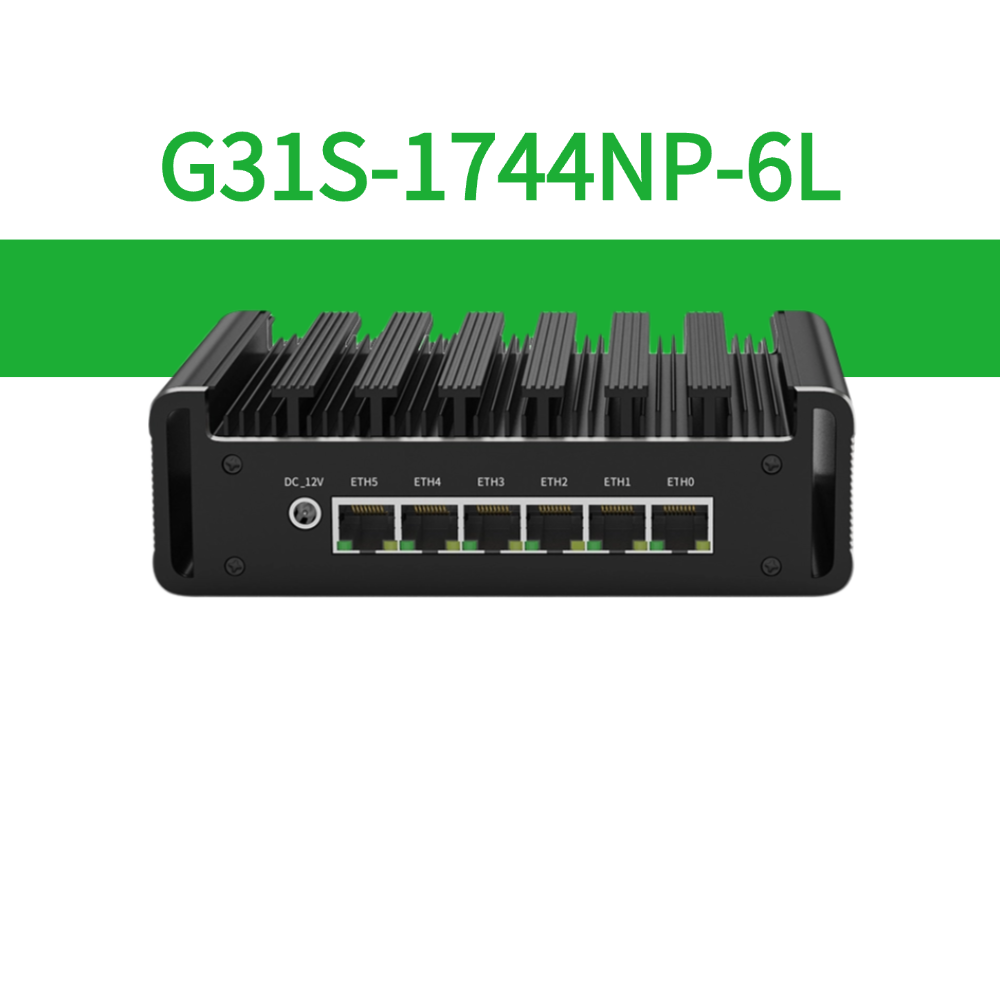

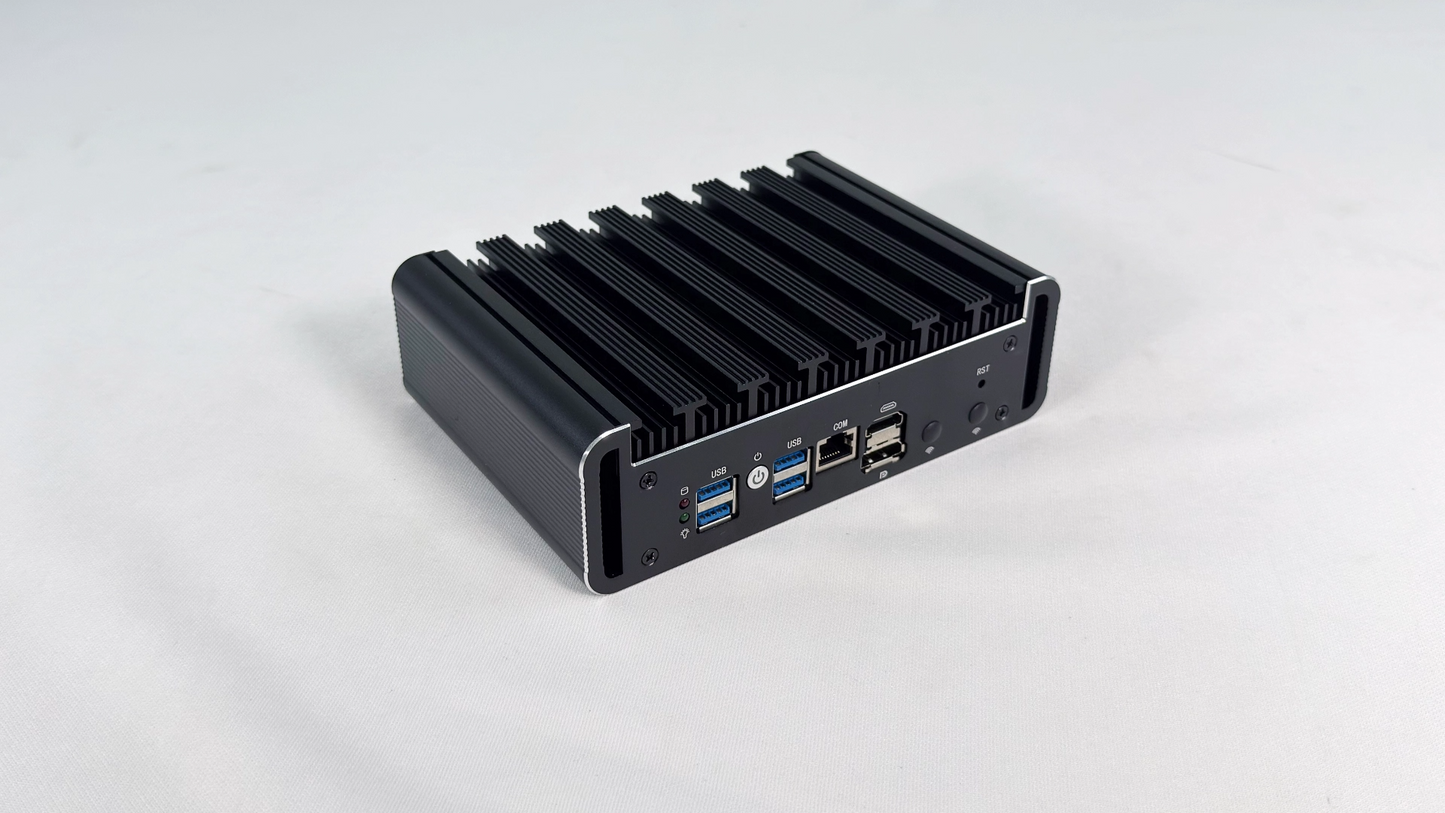

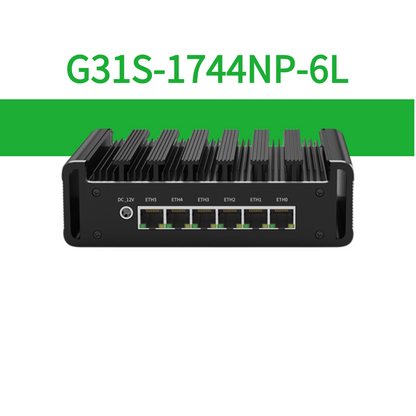

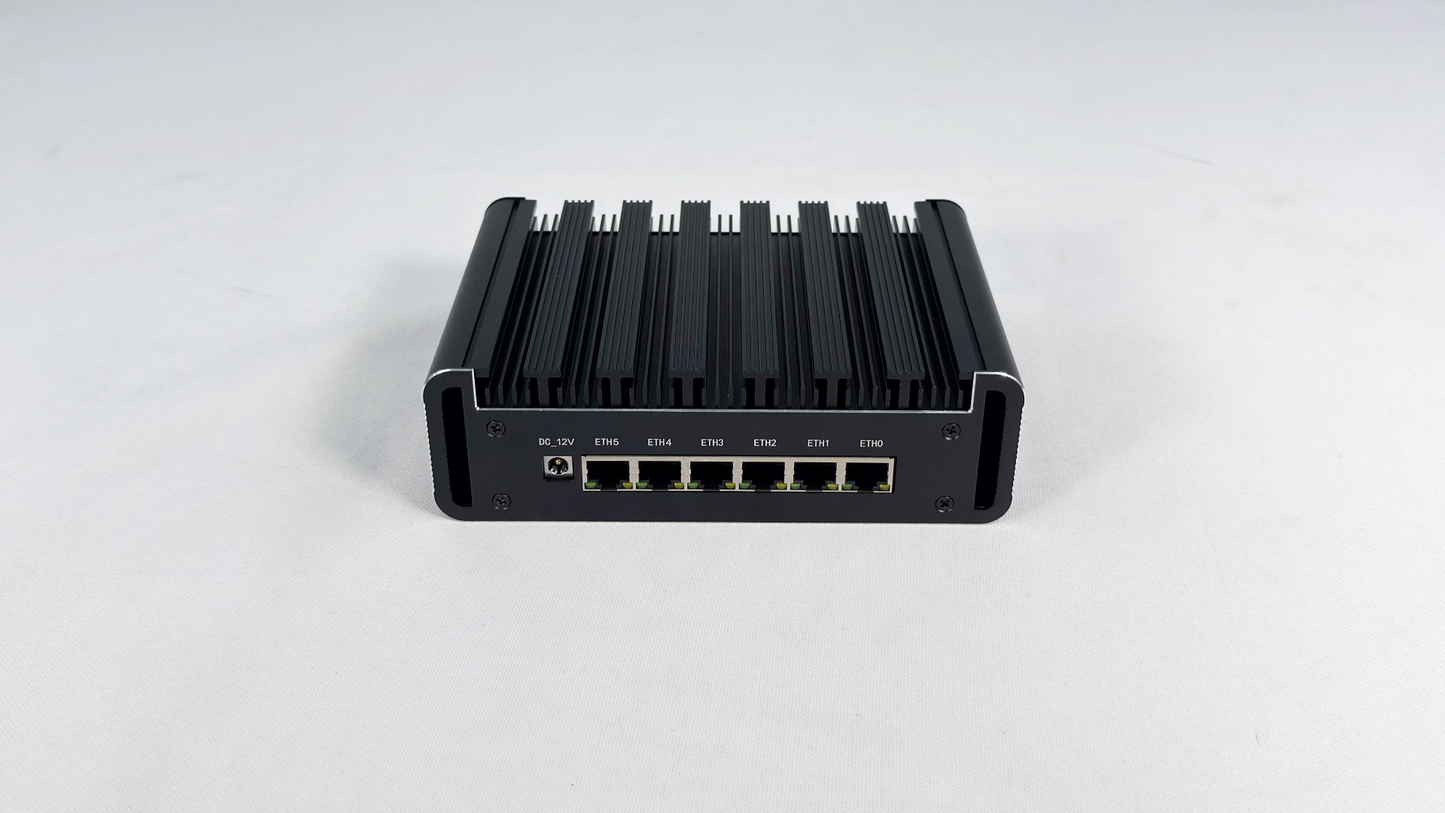

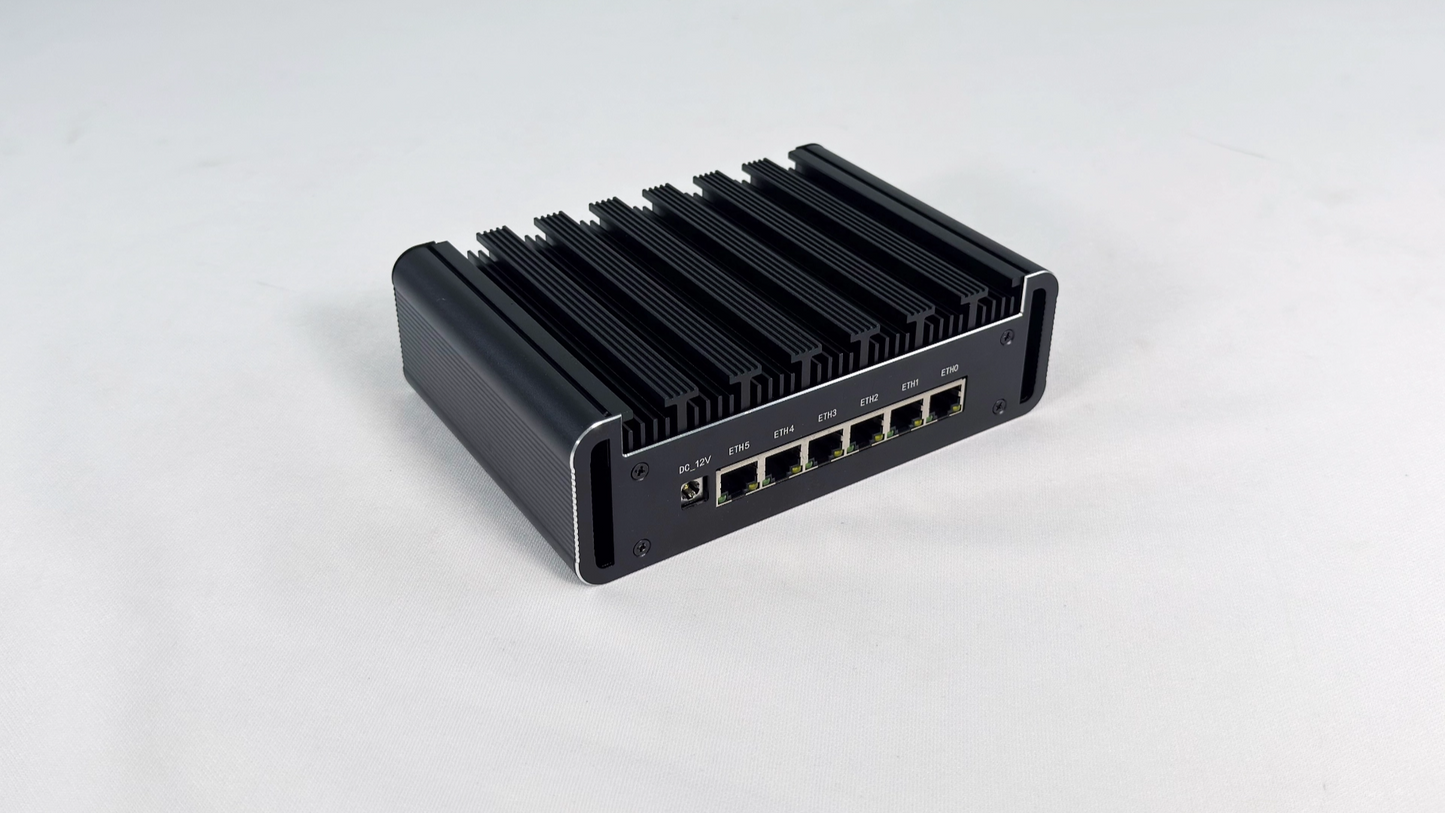

Fanless Network Appliance with Integrated Intel 12th Gen Pentium Processor, 6 2.5GbE Ports for Firewall, VPN, and Home Server G31S-1744NP-6L

Product Overview

The G31S-1744NP-6L is a fanless, compact network appliance built on Intel® 12th/13th Gen processors (FCBGA1744). With dual-channel DDR5 up to 64GB (2×32GB, 4800 MT/s), flexible SATA + M.2 storage, and 6× Gigabit LAN, it delivers quiet, energy-efficient performance for firewall, VPN/SD-WAN, and edge computing scenarios. The fanless chassis (requires airflow) and small footprint make it ideal for office, lab, and space-constrained deployments.

Key Features

• Processor: Intel® 12th/13th Gen (FCBGA1744)
• Memory: DDR5 SO-DIMM up to 64GB (2×32GB), 4800 MT/s
• Storage: 1× SATA 3.0, 1× M.2 Key-M 2280
• Networking: 6× RJ45 1GbE ports
• USB: 4× USB-A 3.0 (rear)
• Console: 1× RJ45 COM (rear)
• Display: 1× DP, 1× HDMI
• Wireless Expansion: 1× M.2 Key-E 2230 (CNVi), 1× mPCIe (PCIe 3.0)
• Cooling: Passive cooling, fanless design (requires external airflow)
• Chassis: 178 × 126 × 55 mm; Weight: 1.15 kg (net), 1.85 kg (with accessories)
• Power: DC 12V—7A (Pentium) / 10A (Core), 5.5/2.5 mm jack
• Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

• Firewall & Security Gateway: pfSense/OPNsense for multi-port secure routing and UTM
• VPN / SD-WAN: Secure branch connectivity and remote access with low noise and low power
• Edge Computing: Local data processing and policy enforcement at the network edge
• IoT & Wireless Gateways: CNVi Key-E and mPCIe enable Wi-Fi/LTE modules and sensor backhaul
• Silent Environments: Offices, labs, and home labs that require fanless, compact systems

Resources

Data Sheet
Product Manual
