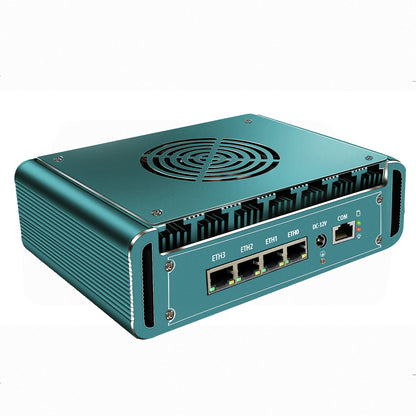

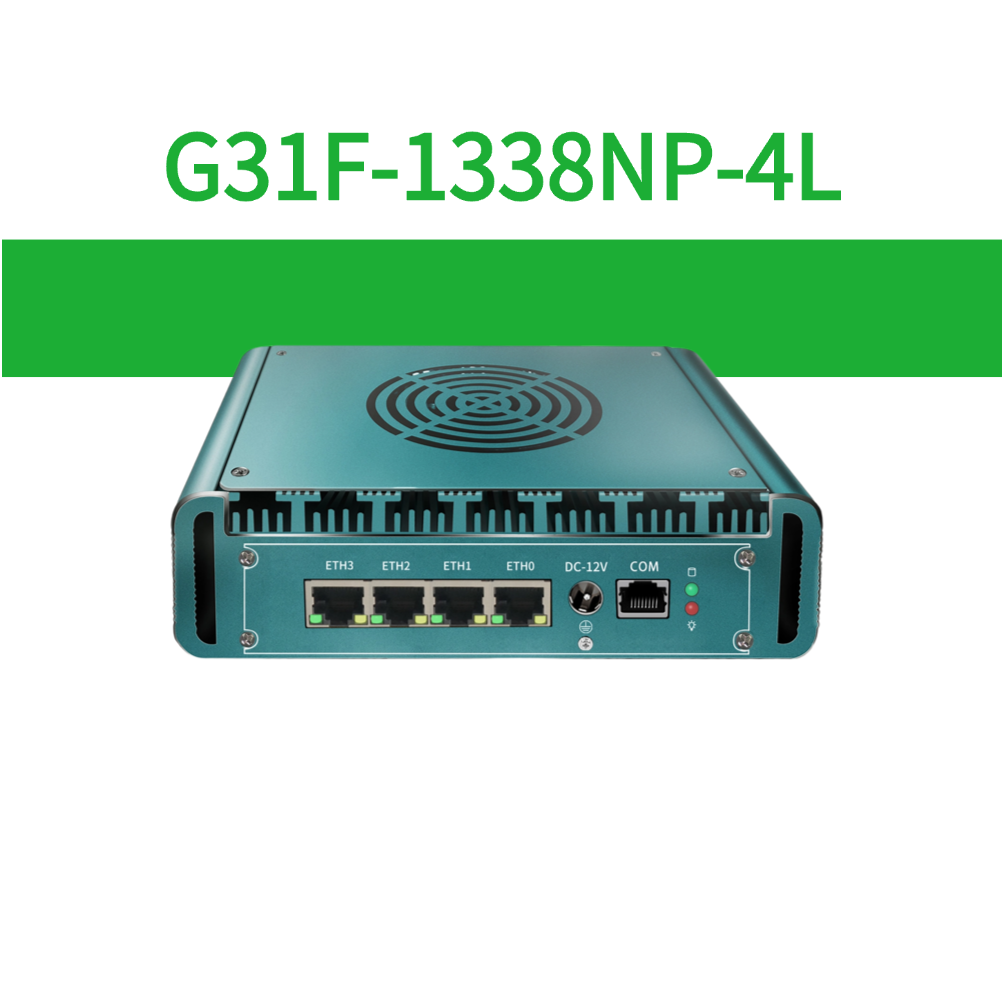

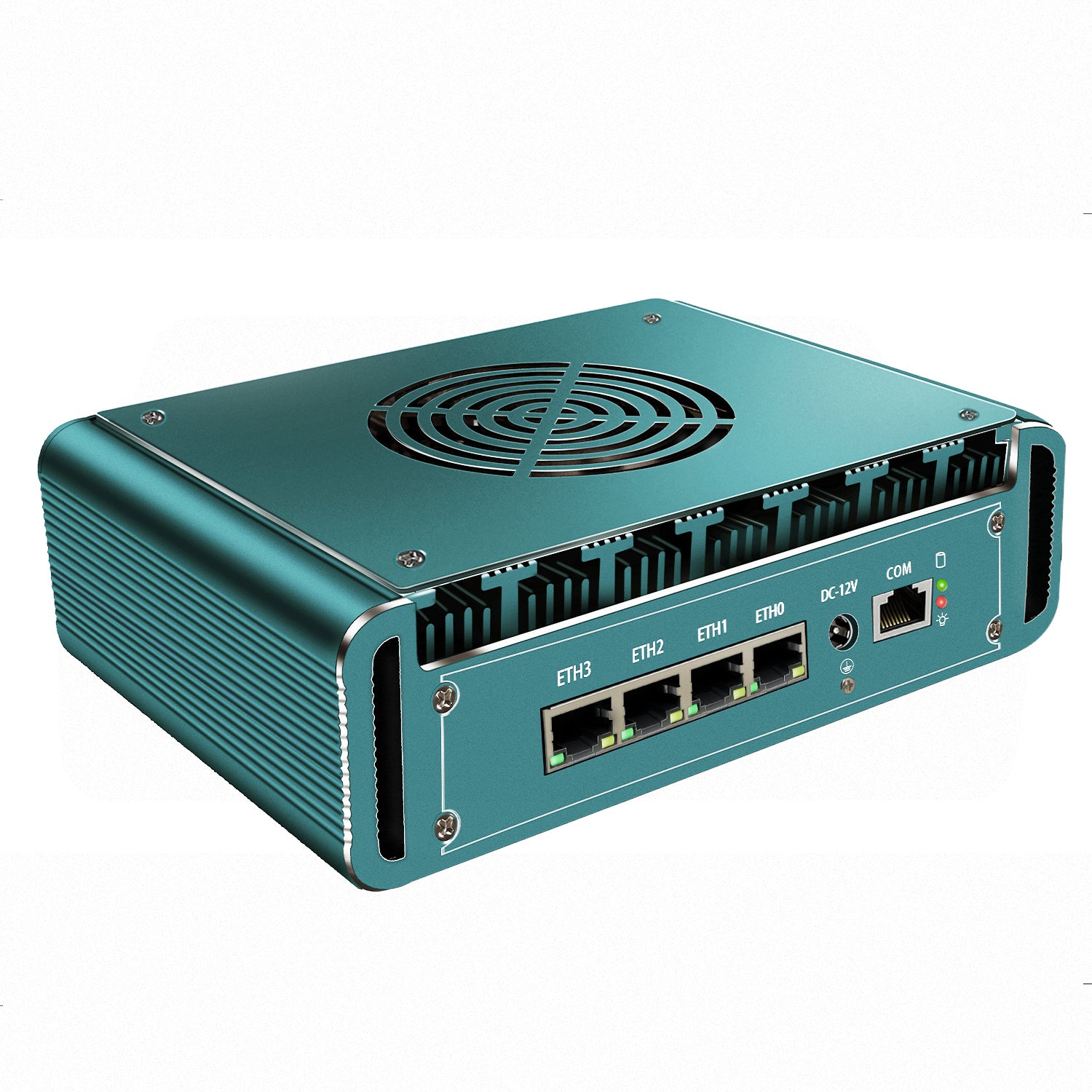

G31F-1338NP-4L Active-Cooled 4LAN Firewall Appliance
G31F-1338NP-4L Active-Cooled 4LAN Firewall Appliance
Verfügbarkeit für Abholungen konnte nicht geladen werden
The G31F-1338NP-4L is a compact high-performance 4LAN network appliance powered by the Intel Celeron Processor N Series / Jasper Lake platform. Designed for cybersecurity, industrial gateway, branch networking, embedded systems, and edge computing applications, it combines low-power Intel processing, flexible network expansion, and an upgraded intelligent active cooling system for stable operation under sustained workloads.
With 4×RJ45 LAN ports, DDR4 SO-DIMM memory, M.2 and SATA storage support, mPCIe expansion, SIM card slot, dual display output, and DC 12V power input, the G31F-1338NP-4L is well suited for firewall appliances, edge servers, smart communication nodes, IoT gateways, lightweight virtualization, and industrial network deployments requiring enhanced thermal stability.
Key Features
- Intel Celeron Processor N Series platform based on Jasper Lake architecture for low-power embedded networking

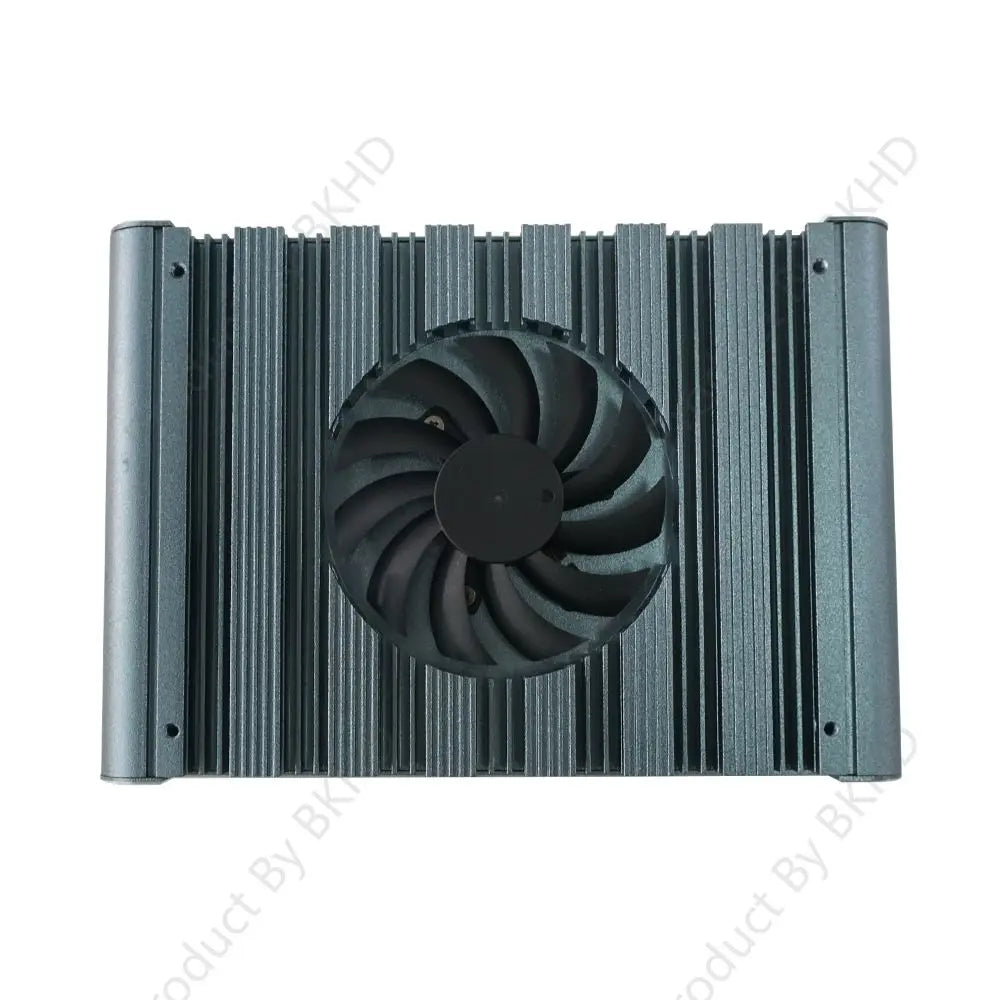

- Active cooling design with 1×intelligent TPM fan for improved thermal stability under sustained workloads
- 4×RJ45 LAN ports for router, firewall, gateway, network security, and branch networking applications
- Intel I226V network controller platform for high-speed 2.5GbE networking applications
- DDR4 SO-DIMM memory support, up to 16GB, 2933 MHz
- Flexible storage options: 1×SATA 3.0 and 1×M.2 Key-M 2280 PCIe Gen3 x2 SSD slot
- mPCIe expansion slot for wireless, cellular, or other expansion modules
- SIM card slot and 2×reserved antenna holes for cellular network deployment
- Dual display output: 1×DP and 1×HD for local display, monitoring, or system setup

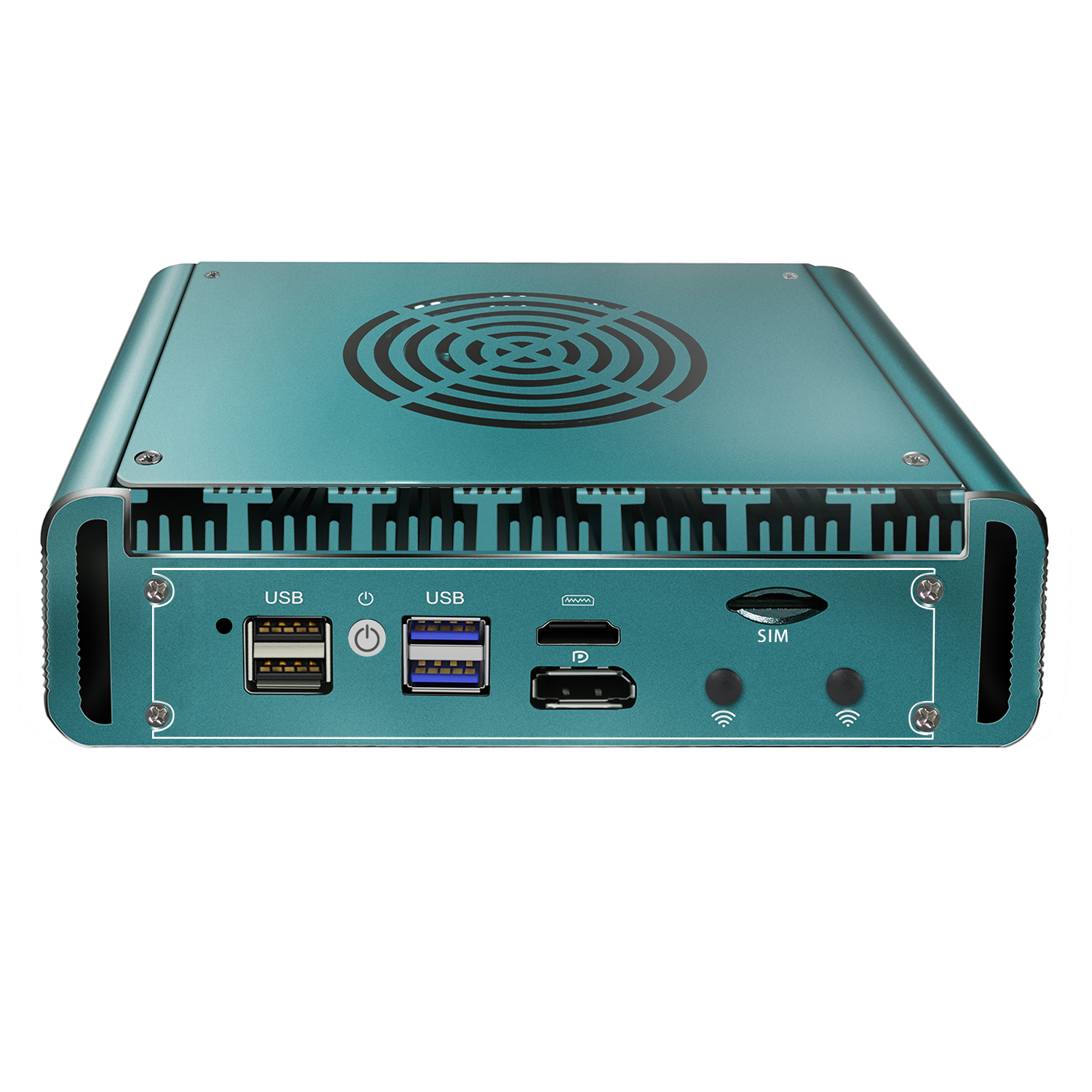

- USB connectivity: 2×USB-A 3.0 and 2×USB-A 2.0 ports
- RJ45 COM console port for industrial control, debugging, and network appliance maintenance
- Durable metal chassis with enhanced cooling performance for edge and commercial network environments
- DC 12V power input, recommended 12V 4A or higher
Application Scenarios
- Cybersecurity equipment
- Industrial control gateway
- Branch network server
- Embedded network solutions
- Firewall and router appliance
- Edge server
- Smart communication node
- IoT gateway
- Lightweight virtualization platform
- Wireless or cellular communication gateway
- Commercial security gateway
Specifications
| Model | G31F-1338NP-4L |
| Processor Platform | Intel Celeron Processor N Series / Jasper Lake |
| Socket | FCBGA1338 |
| Graphics | Intel UHD Graphics |
| Memory | DDR4 SO-DIMM, up to 16GB, 2933 MHz |
| Storage | 1×SATA 3.0 6Gb/s, 1×M.2 Key-M 2280 PCIe Gen3 x2 |
| Network | 4×RJ45 LAN |
| Network Controller | 4×Intel I226V |

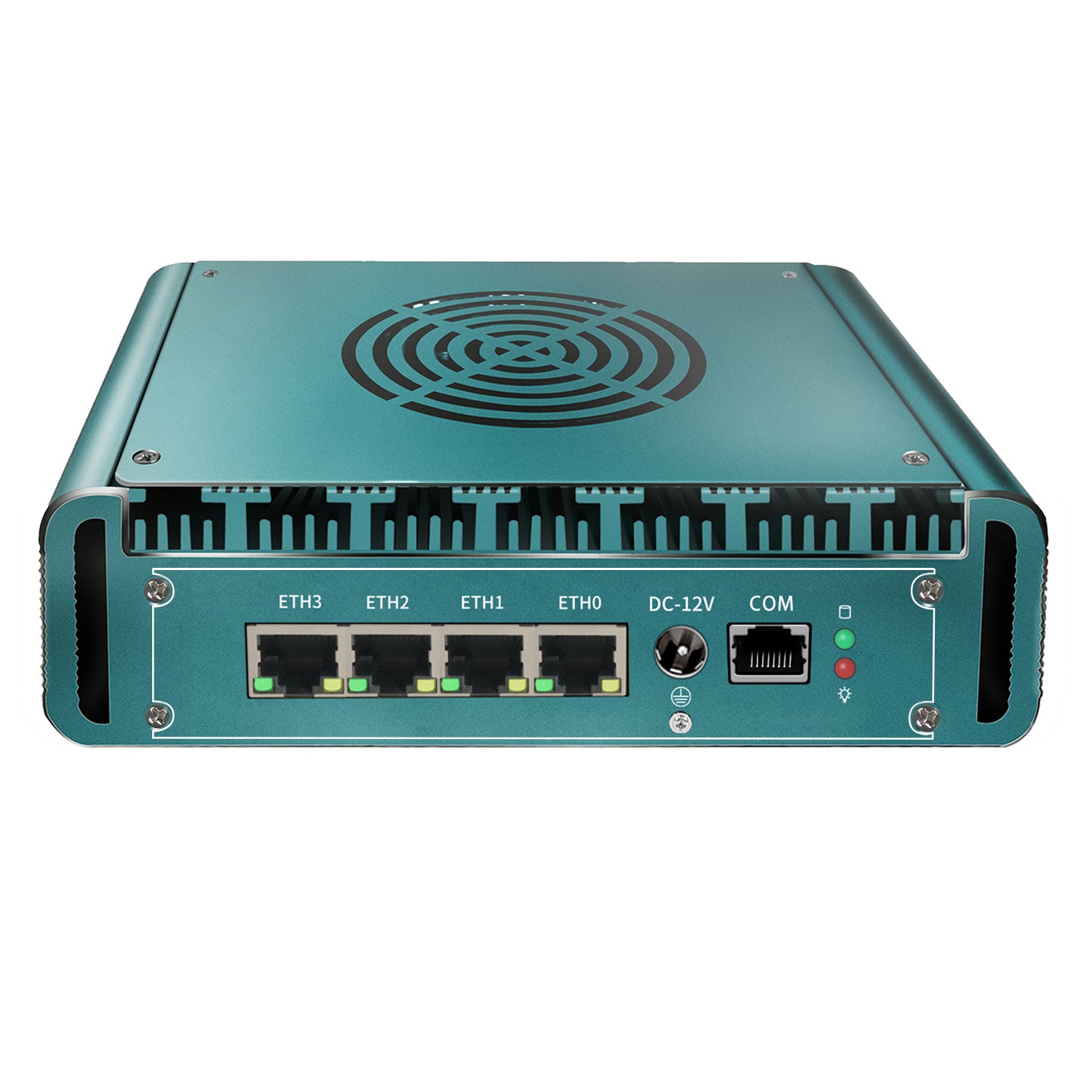

| Front Panel | 4×RJ45 LAN, 1×RJ45 COM, 1×Jack DC_IN |
| Back Panel USB | 2×USB-A 3.0, 2×USB-A 2.0 |
| Display | 1×DP, 1×HD |
| Console | 1×RJ45 COM |
| Expansion Interface | 1×mPCIe |
| SIM | 1×SIM card slot |
| Antenna Hole | 2×reserved |
| Cooling Method | Active cooling, 1×intelligent TPM fan |
| Chassis Size | 178×126×56 mm |
| Weight | Equipment weight: 1.25 kg; package weight: 1.95 kg including accessories |
| Power Mode | DC 12V 4A or higher |
| Operating Temperature | 0~50°C |
| Humidity | 5%~90% relative humidity, non-condensing |
Download
Note: Product appearance and specifications may vary slightly by production batch. For processor configuration, memory capacity, M.2 SSD compatibility, mPCIe expansion, SIM/cellular module deployment, network configuration, cooling performance, or system integration requirements, please contact us before ordering.
