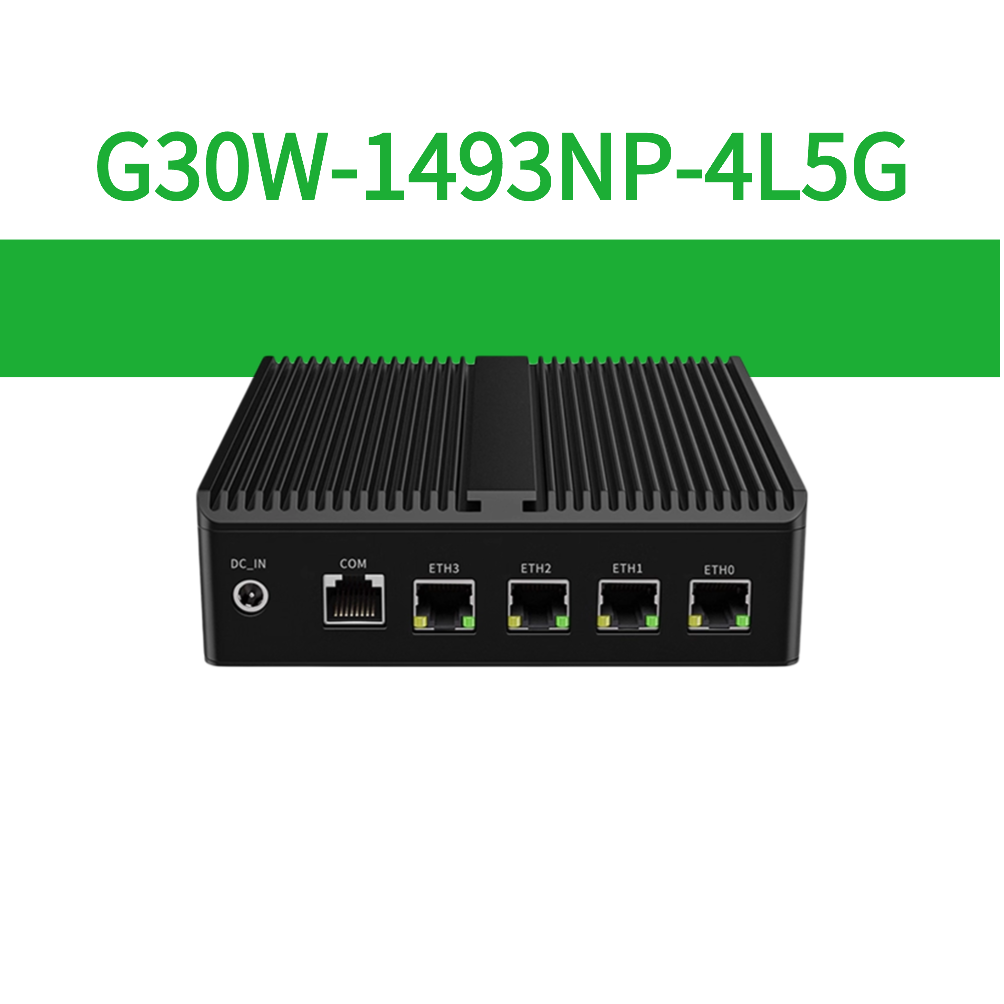

G30W-1493NP-4L-5G

Product Overview

The G30W-1493NP-4L-5G is a compact, fanless 5G-ready embedded network appliance built on the Intel® Celeron J-Series (FCBGA1493) platform. Designed for silent 24/7 operation, it integrates 4× Gigabit Ethernet ports, dual SIM support, and flexible expansion (M.2 Key-B + mPCIe) for cellular connectivity. With rich I/O and dual display outputs (DP + HDMI), it is ideal for 5G routing, secure edge networking, IoT gateways, and remote-site connectivity deployments in commercial and industrial environments.

Key Features

• Processor Platform: Intel® Celeron J-Series SoC (FCBGA1493)
• Memory: 2× DDR4 SO-DIMM, up to 2×16GB (32GB total), 3200 MT/s
• Storage: 1× SATA 3.0 + 1× M.2 Key-M 2280 SSD slot

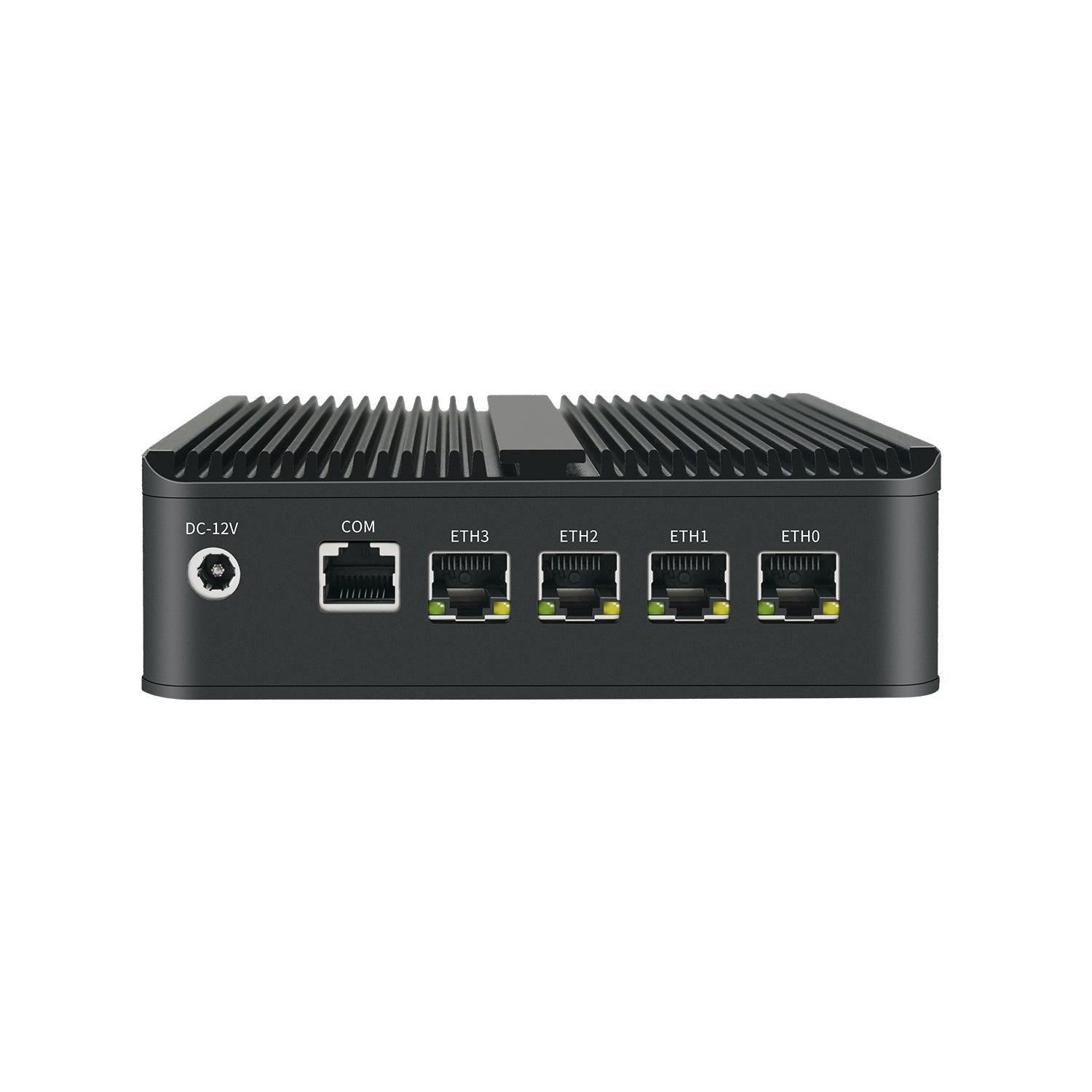

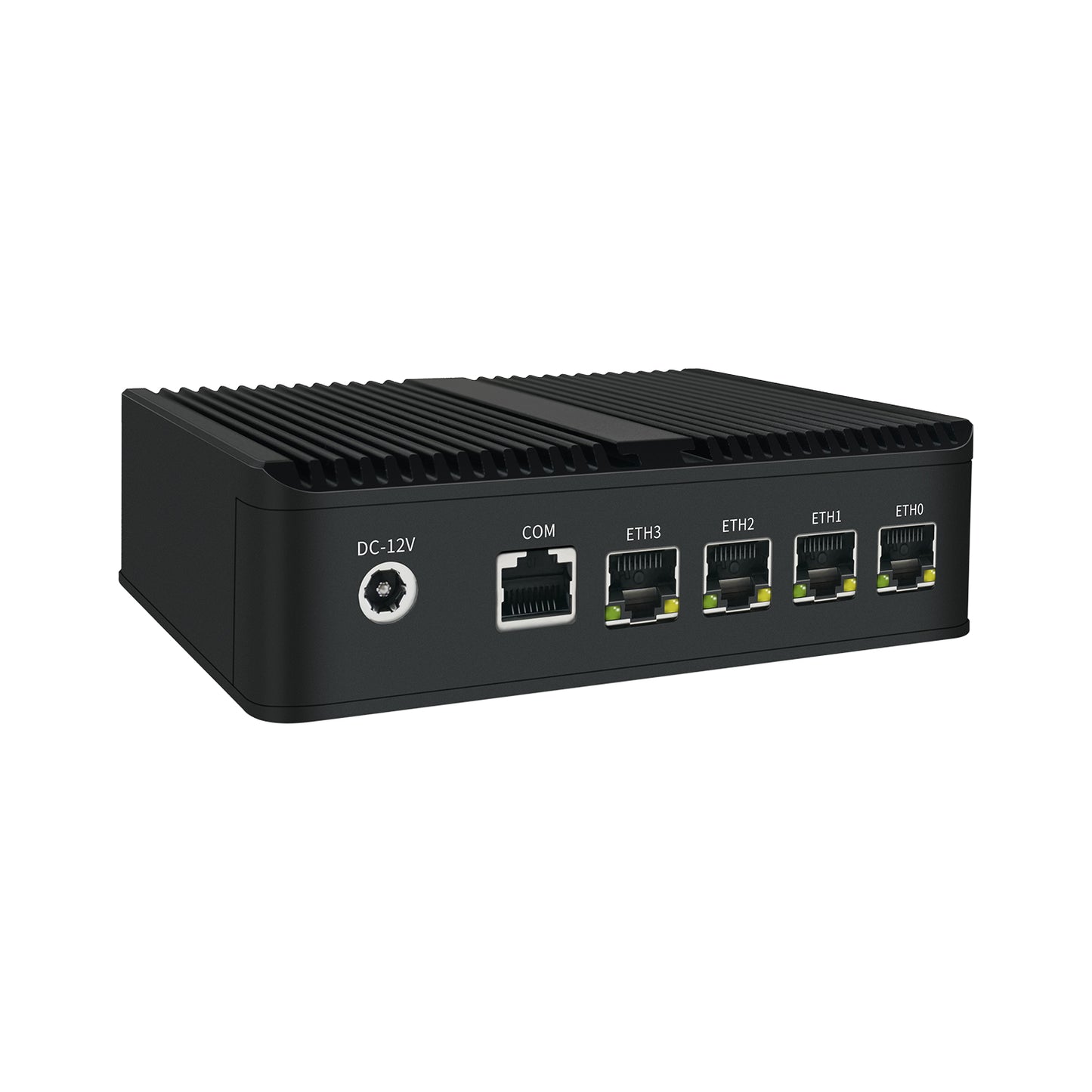

• Networking: 4× RJ45 2.5Gigabit Ethernet ports
• Cellular / Wireless Expansion:
  • 2× SIM card slots for carrier flexibility or failover
  • 1× M.2 Key-B 3052 (USB 3.0 signal) for 4G/5G cellular modules
  • 1× mPCIe (PCIe/USB2.0 signal) for Wi-Fi, LTE, or other expansion modules
• Console: 1× RJ45 RS232 console port (front panel)

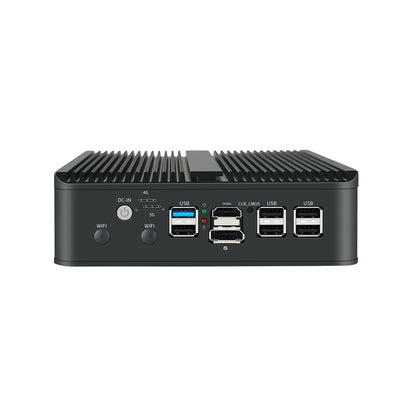

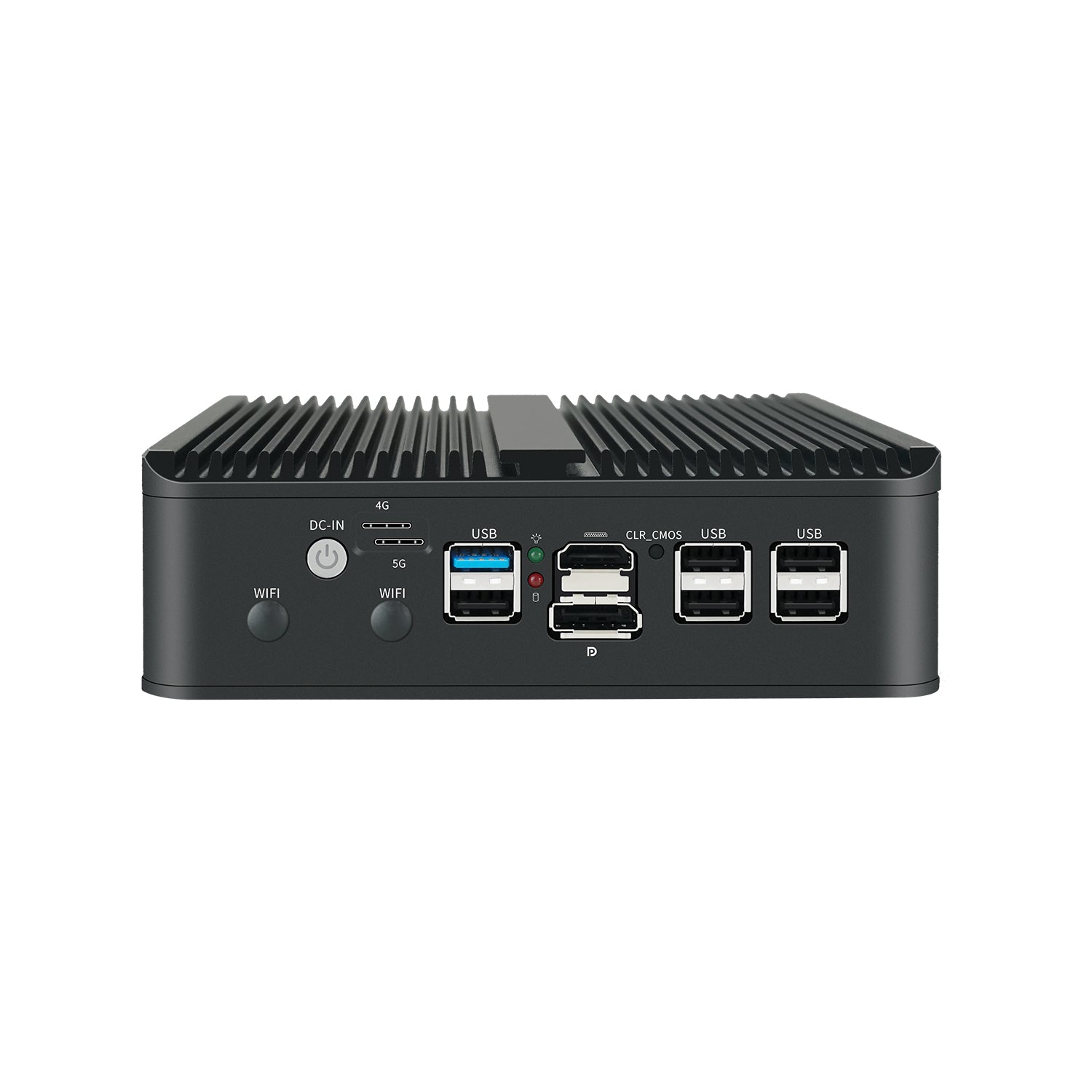

• USB Ports: 1× USB-A 3.0 + 5× USB-A 2.0
• Display Outputs: 1× DP + 1× HD
• Buttons: Power button + Clear CMOS button
• Cooling: Fanless passive cooling (requires adequate airflow)
• Power Input: DC 12V / 4A or higher
• Chassis Size: 136 × 126 × 40 mm
• Weight: 0.65 kg (net), 1.25 kg (with accessories)
• Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

• 5G Router / Cellular Gateway: Deploy as a compact 5G CPE-style gateway for branch offices, pop-up sites, or temporary networks.
• Industrial IoT Edge Gateway: Use dual SIM and cellular expansion for reliable uplinks in factories, energy sites, and outdoor cabinets.
• SD-WAN / Remote Site Connectivity: Provide WAN redundancy and last-mile connectivity for distributed enterprise locations.
• Security & Networking Appliance: Run firewall or routing software and integrate cellular failover for secure remote access scenarios.
• Smart Retail & Digital Signage Networking: Enable stable networking for kiosks, vending, signage, and remote management over cellular networks.

Resources

Data Sheet
Product Manual
