Fanless Mini Network Appliance with Jasper Lake Celeron Pentium Processor Intel I226V NIC 4-port 2.5G Ethernet BKHD-G30S-1338NP-4L

Product Overview

The G30S-1338NP-4L is a compact, fanless network appliance powered by the Intel® Celeron N-series processor. With DDR4 memory up to 16GB, versatile SATA + M.2 storage, and 4× RJ45 LAN ports, it is ideal for firewall, VPN, and IoT gateway applications. Its silent, fanless design ensures reliable operation in noise-sensitive environments, making it a perfect choice for edge computing and small business deployments.

Key Features

• Processor: Intel® Celeron N-series, FCBGA1338
• Memory: 2x DDR4 SO-DIMM up to 16GB, 2933 MHz
• Storage: 1× SATA 3.0 (6Gb/s), 1× M.2 Key-M 2280 (PCIe Gen3 x2)

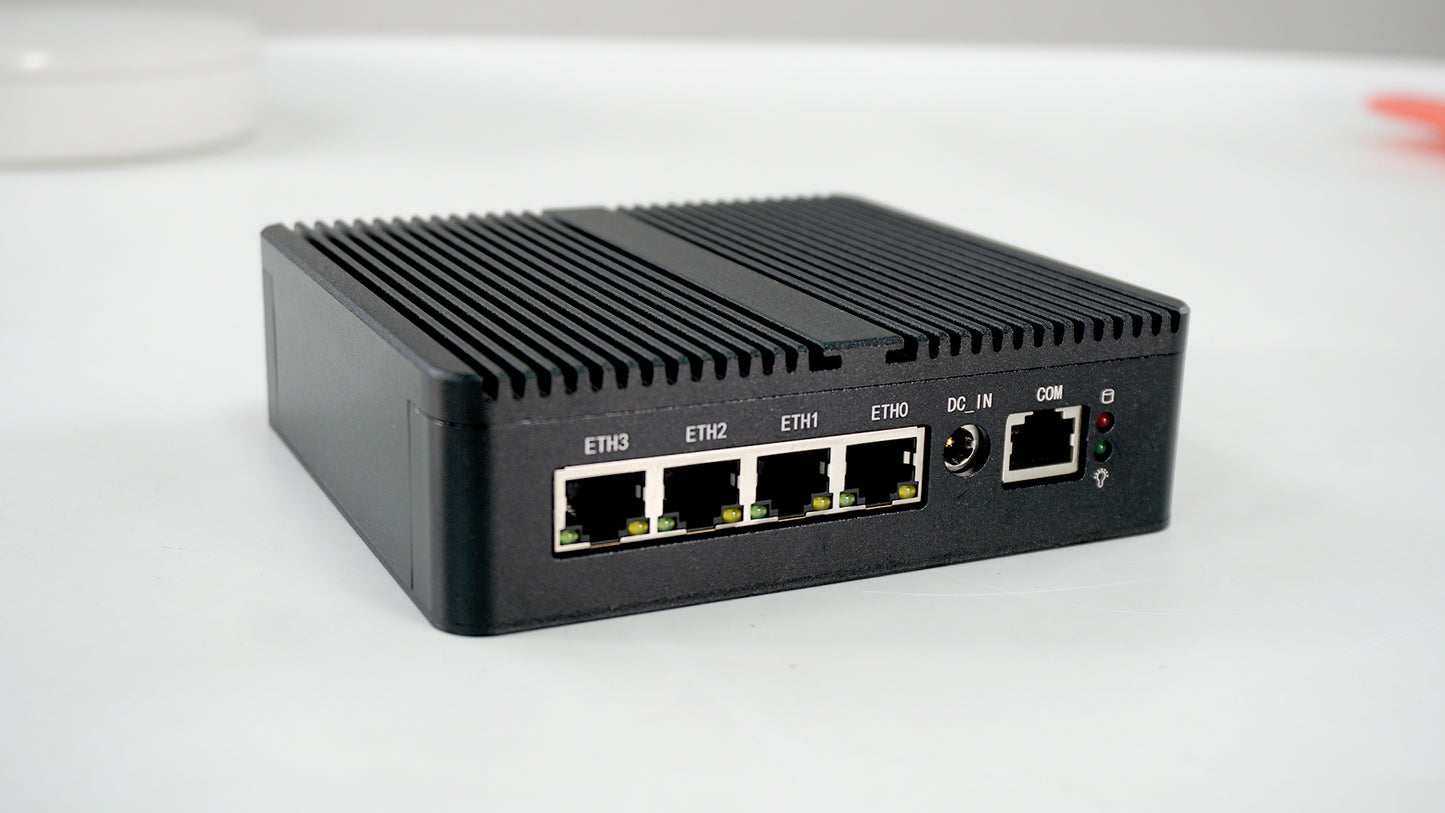

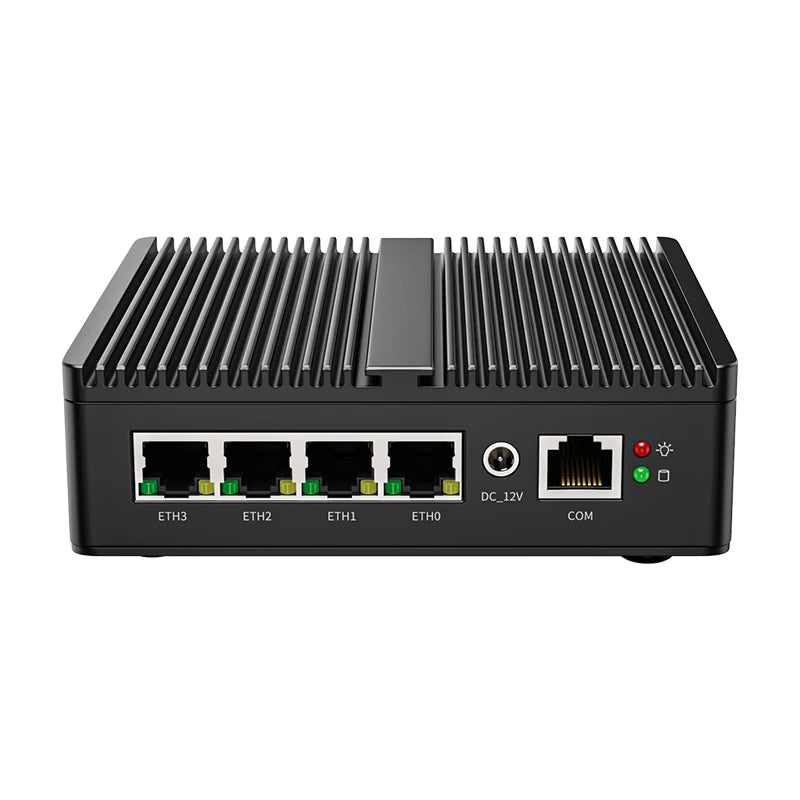

• Networking: 4× 2.5Gb RJ45 ports

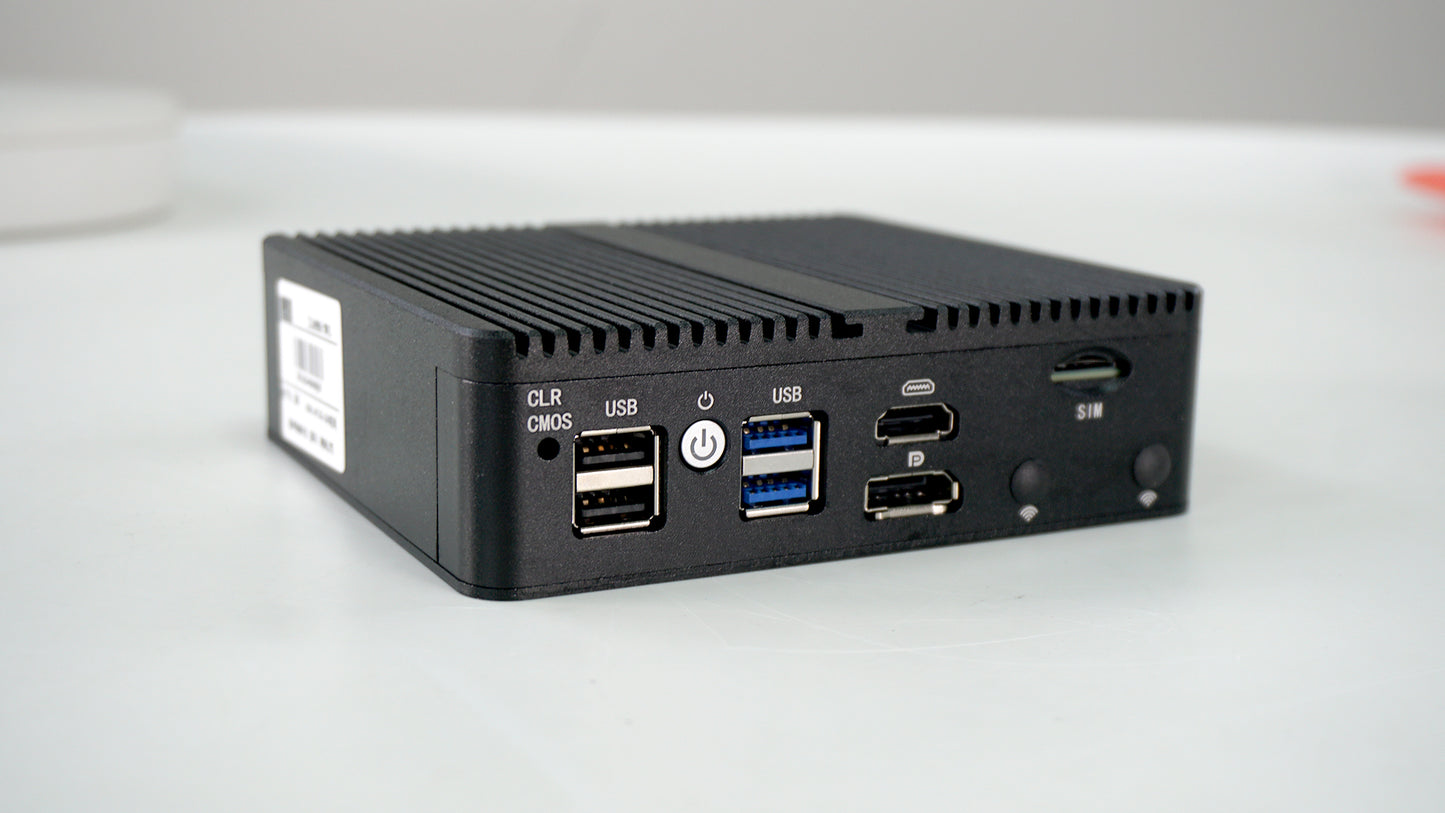

• USB: 2× USB-A 3.0, 2× USB-A 2.0
• Console: 1× RJ45 COM
• Display: 1× DP, 1× HDMI
• Other I/O: 1× SIM card slot, 2× Antenna holes (reserved)
• Expansion: 1× mPCIe slot
• Cooling: Passive cooling, fanless design (requires airflow)
• Chassis: 136 × 126 × 40 mm; Weight: 0.65 kg (net), 1.25 kg (with accessories)
• Power: DC 12V / 4A or higher
• Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

• Firewall & VPN Gateway: pfSense/OPNsense deployments for SMBs
• IoT Gateway: Data acquisition and industrial IoT integration
• Edge Computing: Local data processing with fanless reliability
• Silent Environments: Office, lab, or home networks requiring quiet operation
• Compact Networking Appliance: Ideal for small business IT infrastructure
