G30-1170-2L2C

Product Overview

The G30-1170-2L2C is a compact, fanless embedded industrial computer built on the Intel Celeron J Series / N Series platform (FCBGA1170). Designed for stable and silent operation, it integrates dual Gigabit Ethernet ports, multiple serial interfaces, and flexible display outputs within a compact chassis. With its reliable fanless design and industrial-grade durability, the G30-1170-2L2C is ideal for automation, IoT gateways, network applications, and commercial embedded systems requiring 24/7 continuous operation.

Key Features

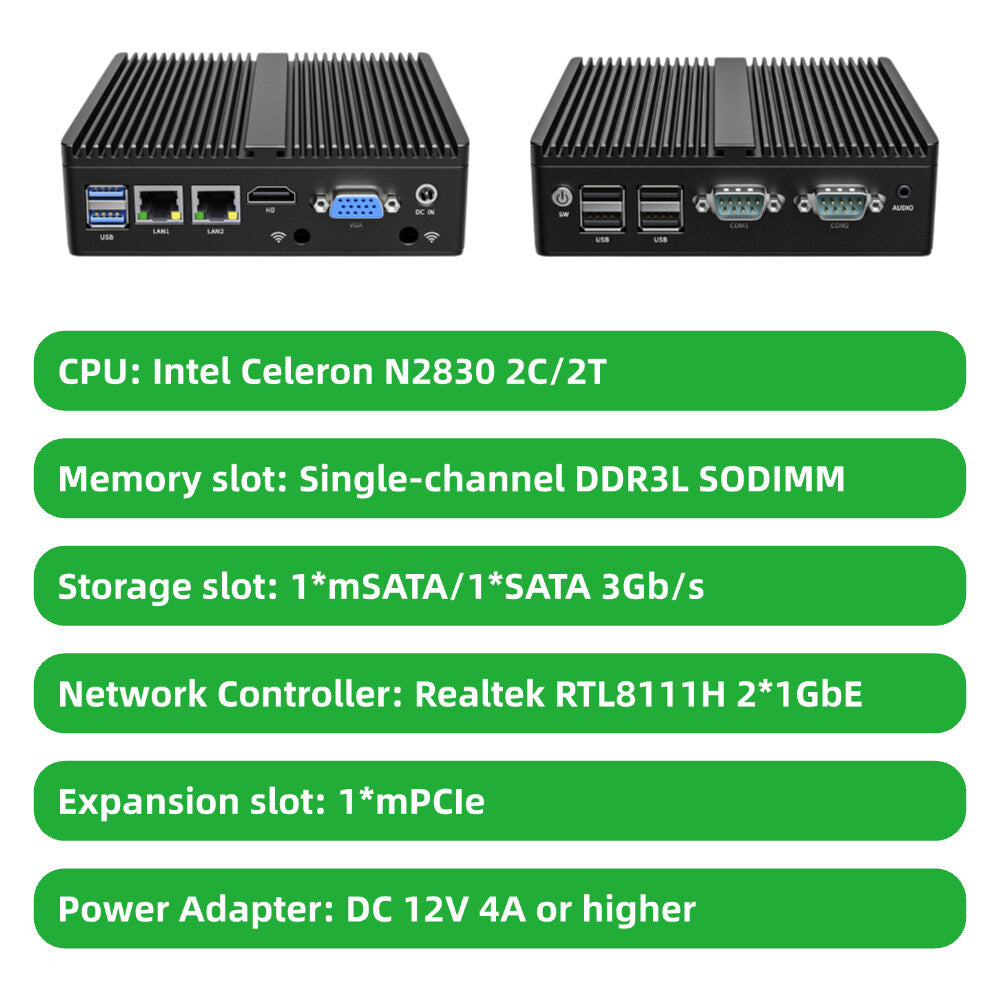

• Processor Platform: Intel Celeron J Series / N Series, FCBGA1170
• Memory: DDR3L SO-DIMM (1.35V), up to 8GB, up to 1333 MHz
• Networking: 2× Gigabit Ethernet (Realtek 8111)
• Storage Options:
  • 1× SATA 2.0 (3Gb/s)
  • 1× mSATA slot

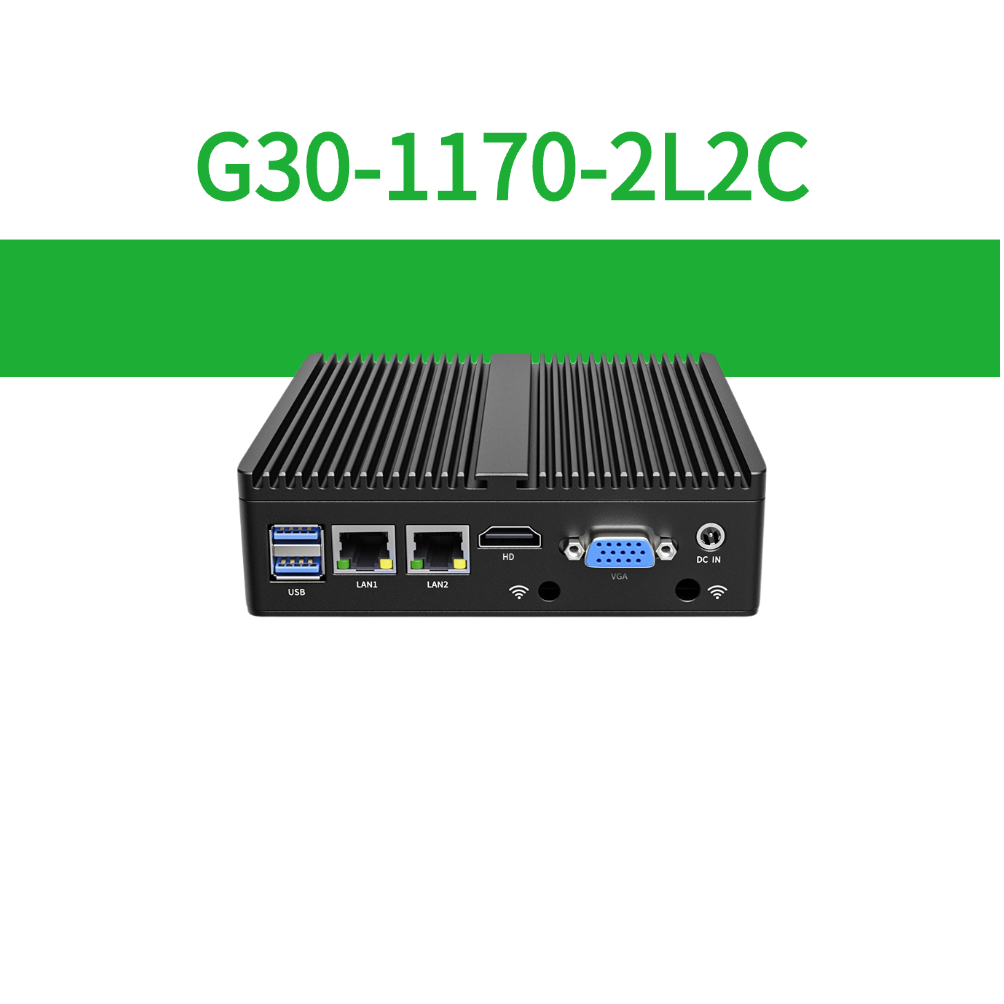

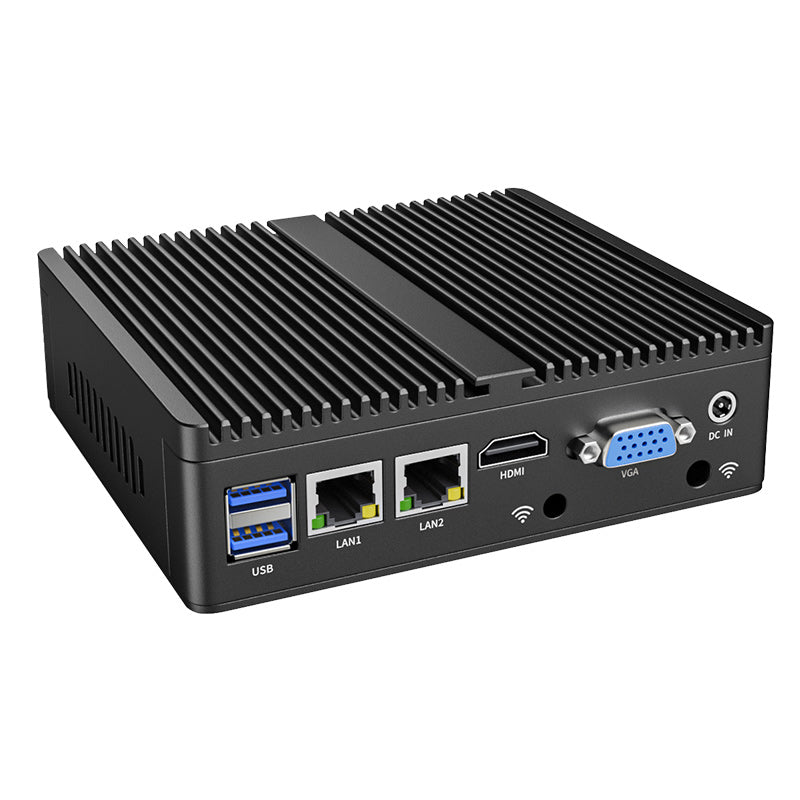

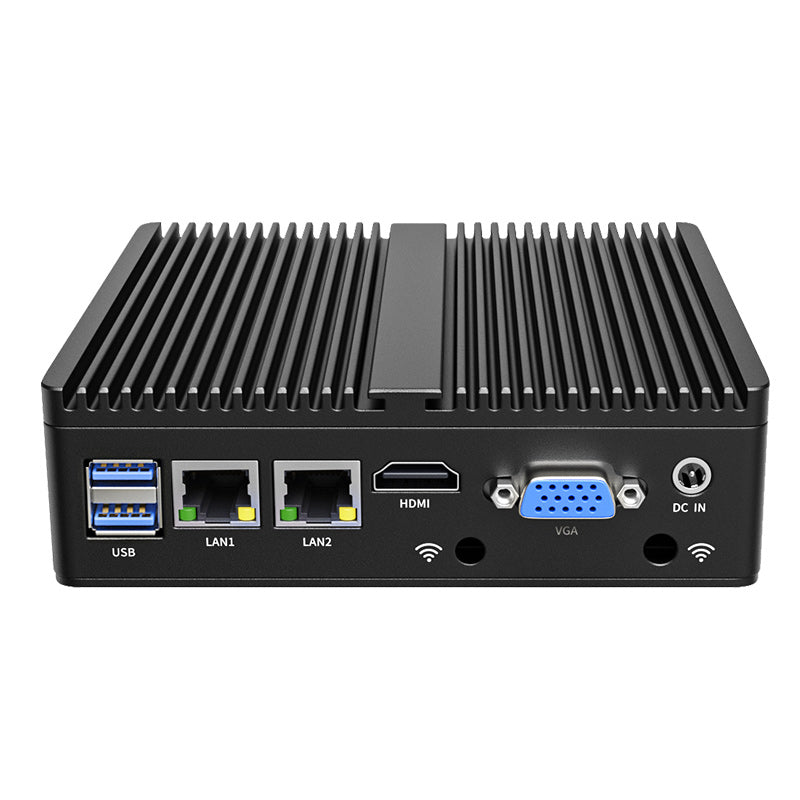

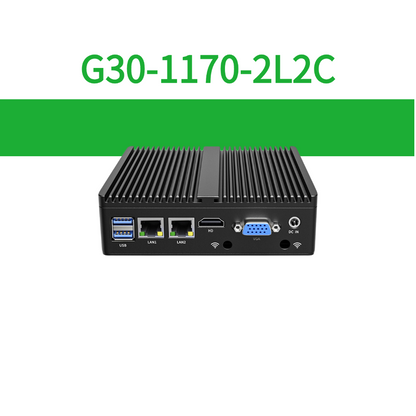

• Front Panel I/O:
  • 2× RJ45 Ethernet
  • 1× USB-A 3.0 + 1× USB-A 2.0
  • 1× VGA + 1× HD display output
  • DC power input
  • 2× reserved antenna holes

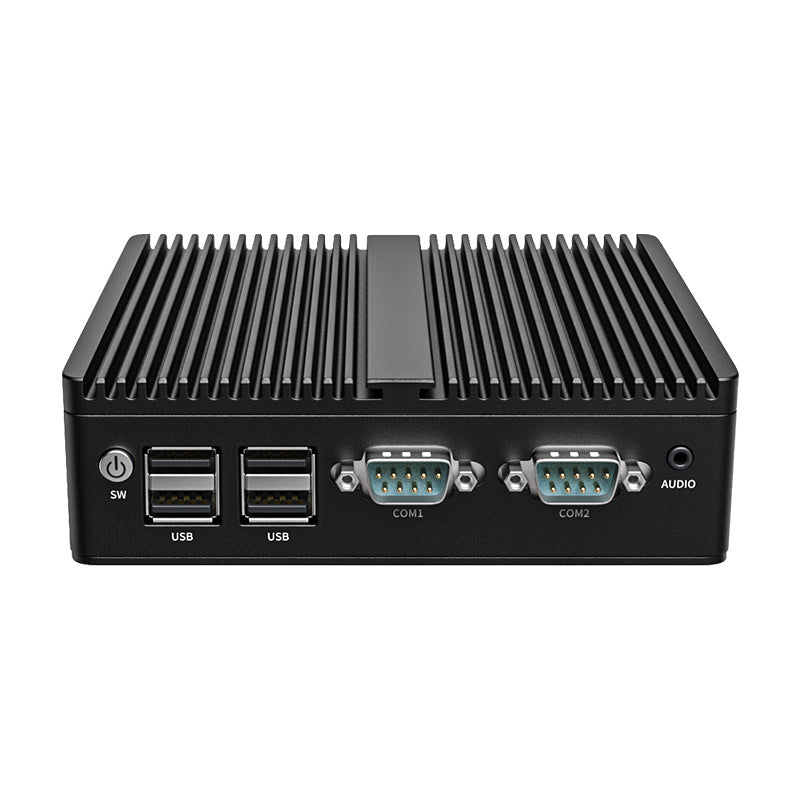

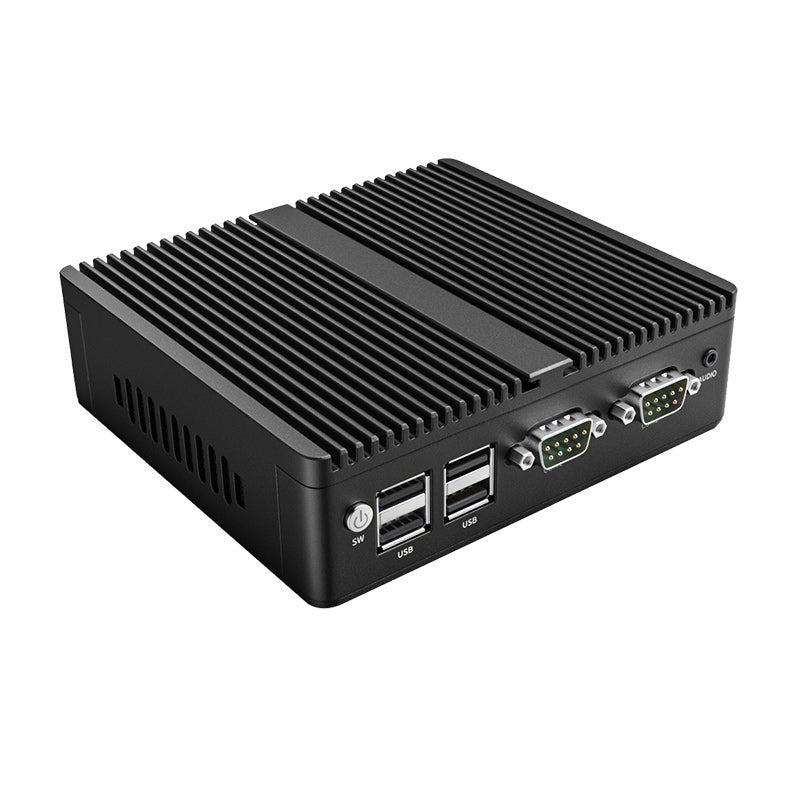

• Rear Panel I/O:
  • 4× USB-A 2.0
  • 2× DB9 COM ports
  • 1× Audio jack (3.5mm)
  • 1× Start/Restart button
• Expansion: 1× mPCIe slot for wireless or functional modules

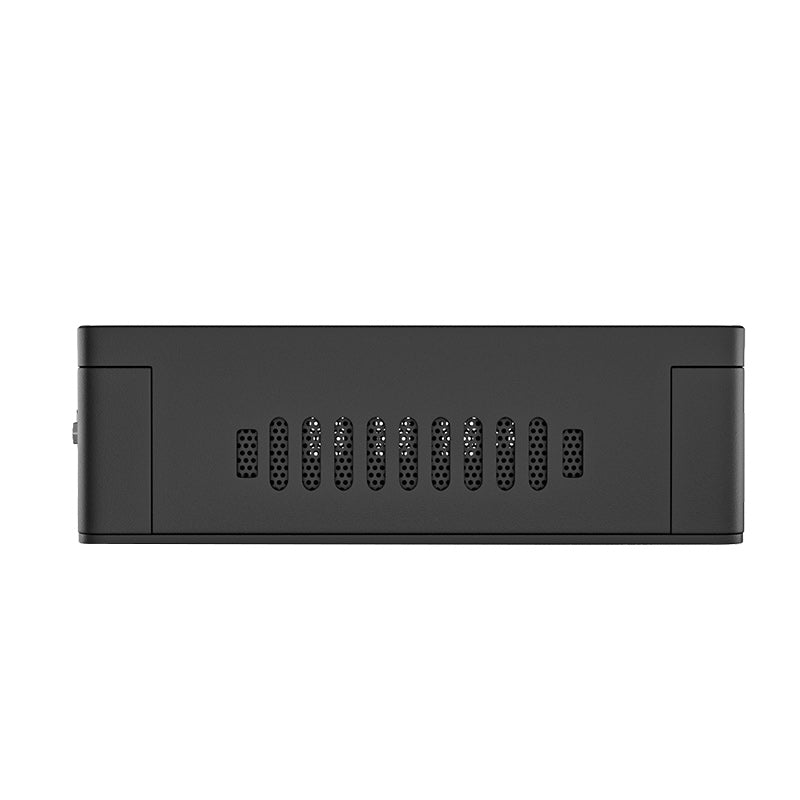

• Cooling: Fanless passive cooling (requires airflow)
• Power Input: DC 12V, 4A or higher
• Chassis Size: 136 × 126 × 40 mm
• Weight: 0.65 kg (net), 1.25 kg (with accessories)
• Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

• Industrial Automation: Reliable control system for factory and equipment integration.
• IoT Gateway: Edge data collection and protocol conversion.
• Network Security & Gateway: Entry-level firewall or router platform.
• Digital Signage & POS Systems: Compact embedded system for commercial terminals.
• Serial Communication Systems: Ideal for RS232-based industrial devices and legacy equipment.
