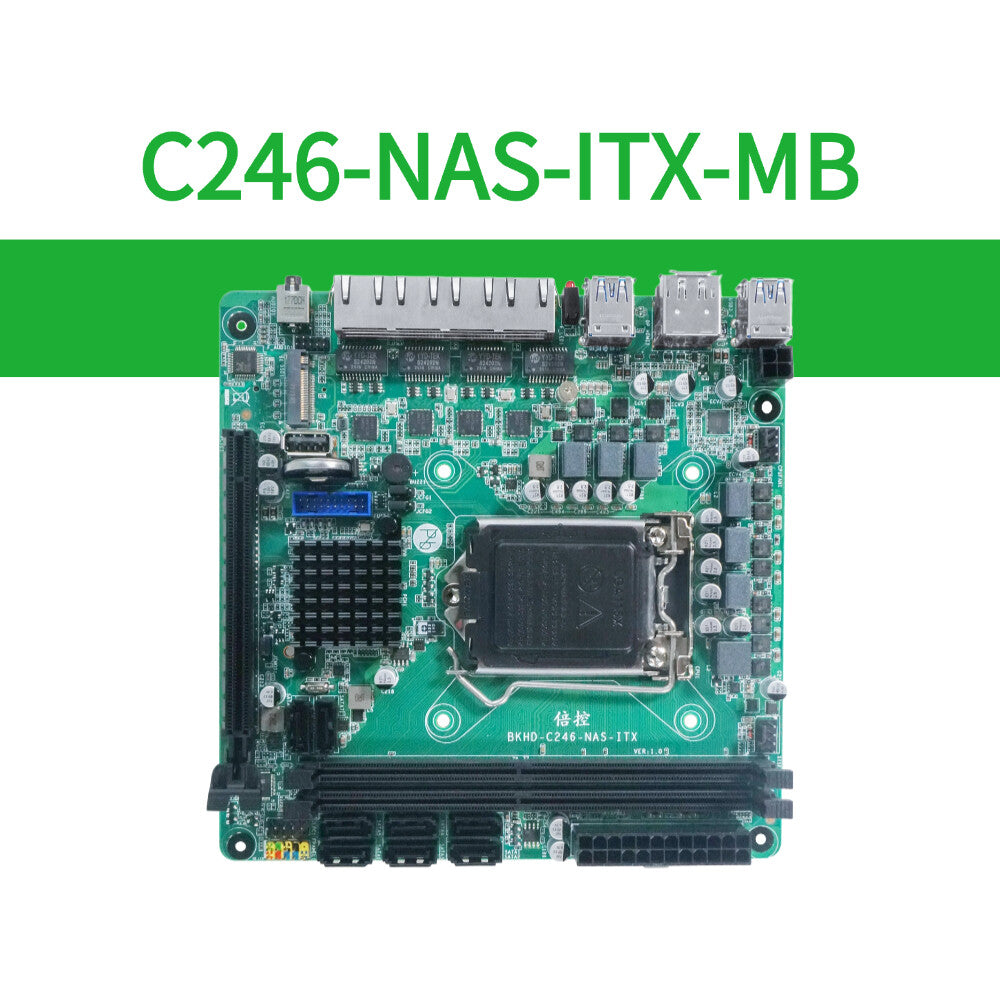

C246-NAS-ITX-MB

Model C246-NAS-ITX-MB
Processor Intel LGA1151 Socket (8th-9th Gen)
Chipset BKHD-1151NP-17-4L-MB (FCLGA1151)
BIOS AMI EFI BIOS (UEFI boot only)
Memory Slot 2x DDR4 DIMM Memory slot, Up to 64GB 2666MT/s
Storage Slot 2x M.2 NVMe 2280 SSD/8x SATA 6Gb/s
Ethernet Ports 4x RJ45 2.5GbE (Adaptive)
Ethernet Controller 4x Intel I226-V
Expansion Slot 1x PCIe x16 (Gen3)

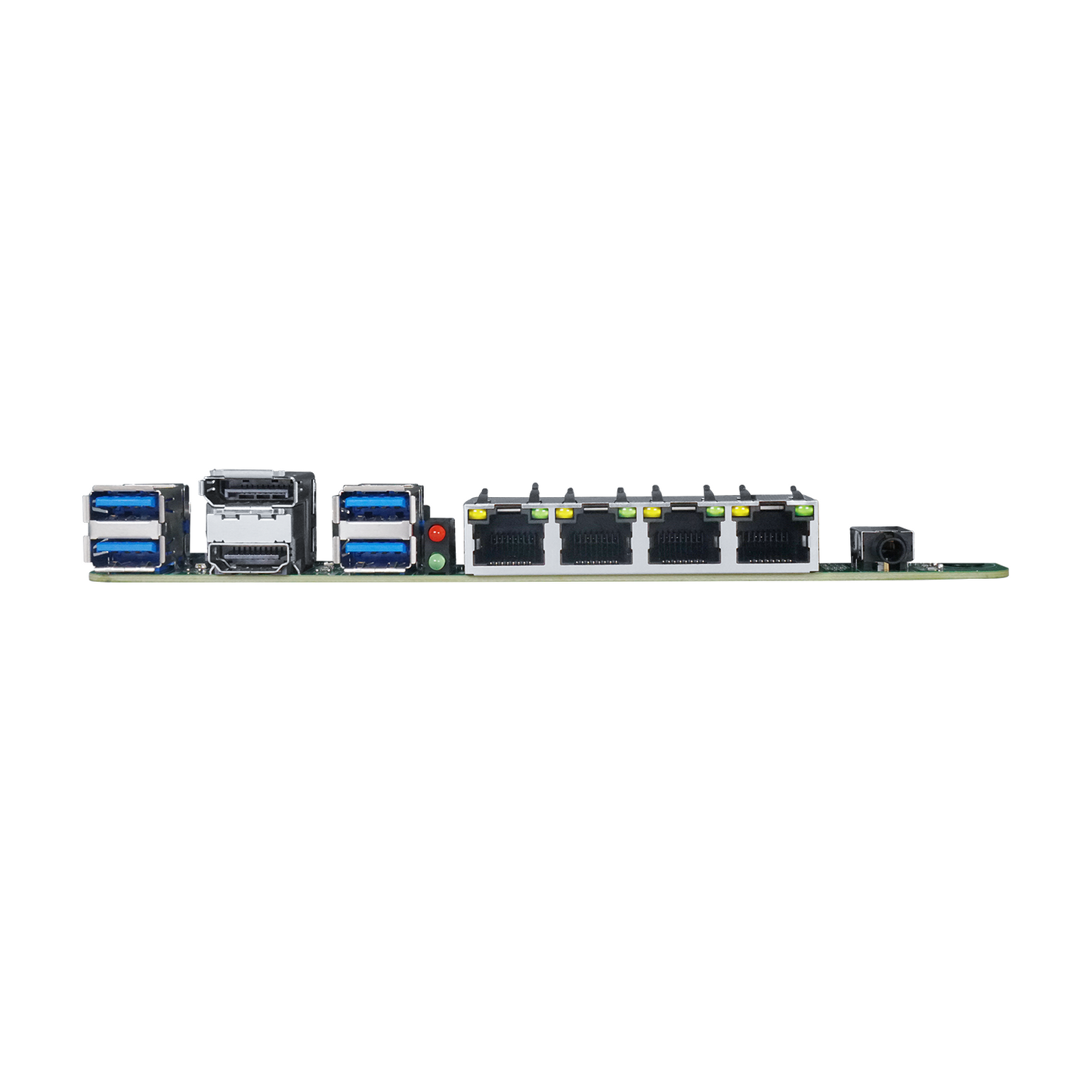

Panel I/O 4x USB-A 3.0; 1x DP port; 1x HD port; 4x RJ45; 1x 3.5mm Jack Audio
Onboard I/O 1x USB-A 2.0; 24pin ATX+4pin ATX; 8x 7pin SATA 6Gb/s
Onboard Pins 1x F_USB3 (20pin); 1x F_PANEL; 2x CPU/SYS_FAN (4pin); 1x JLPC (9pin)
Display Chip Depends on CPU
Other functions Start auto after power restored; Wake-up on LAN; PXE; Watchdog
Board Size 170*170 (mm) m-ITX
Power Supply ATX 24pin+4pin
