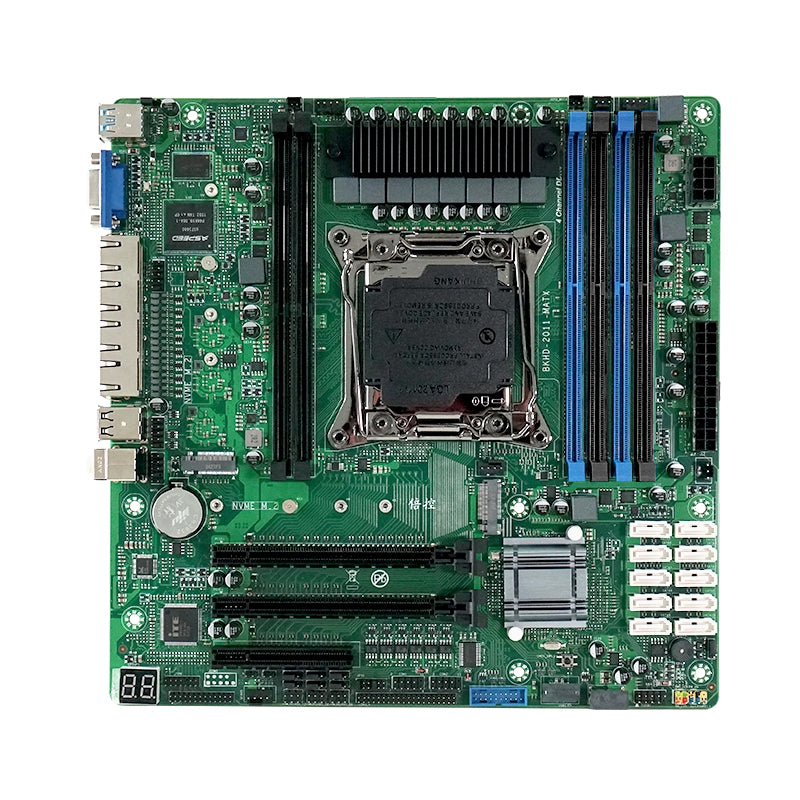

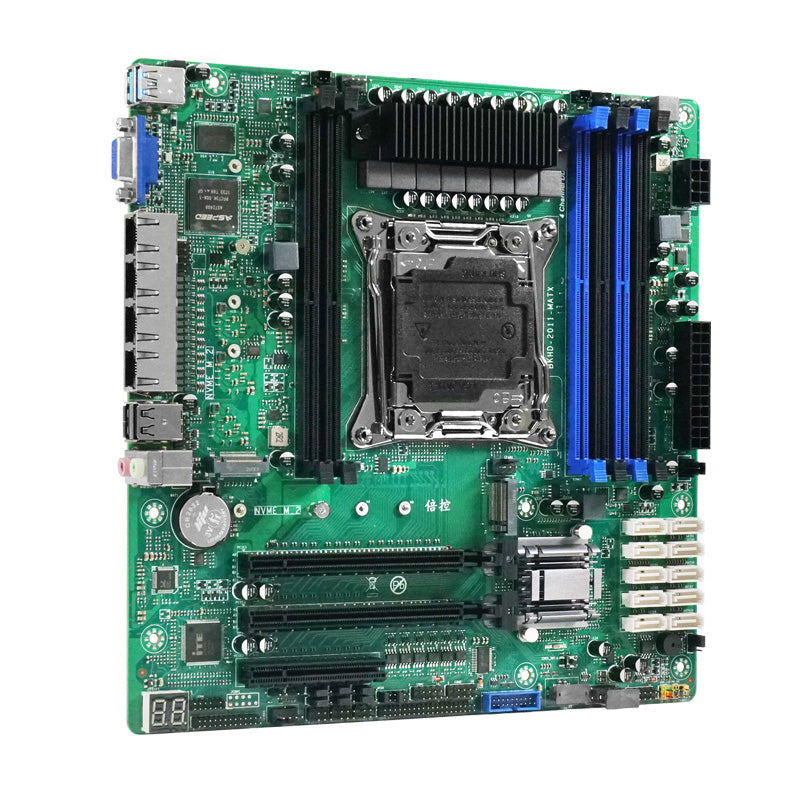

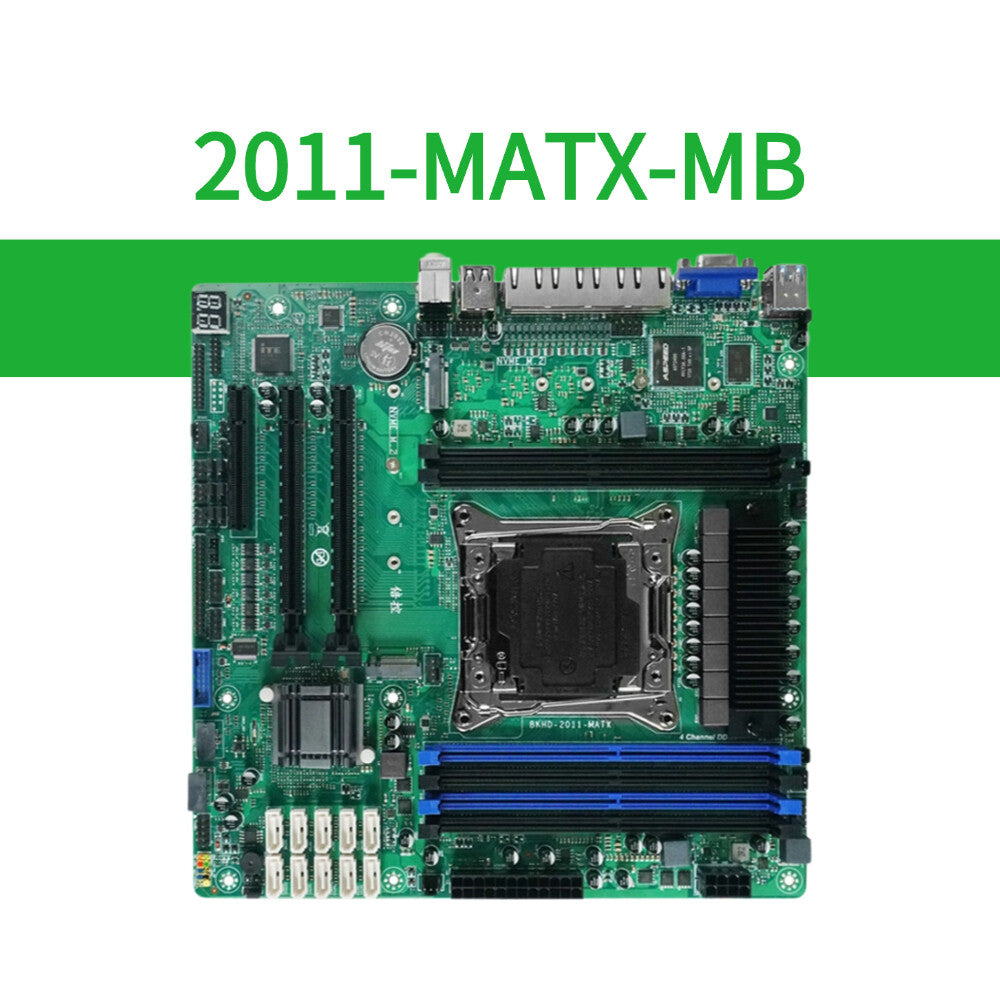

The 2011-MATX is a Micro-ATX server motherboard designed for data centers, virtualization clusters, network security appliances, and industrial computing systems. Built for the Intel Xeon Processor E5 v3/v4 family with an FCLGA2011-3 socket, it delivers powerful multi-core computing performance, large memory capacity, extensive storage expansion, and high-speed networking in a compact 245×245mm motherboard form factor.
With 6×DDR4 DIMM slots, 10×SATA 6Gb/s ports, dual M.2 Key-M SSD slots, 4×2.5GbE RJ45 LAN ports, and multiple PCIe expansion slots, the 2011-MATX provides a reliable hardware foundation for server nodes, virtual machine platforms, storage systems, network appliances, and industrial control applications.
Key Features
- Intel Xeon E5 v3/v4 processor support with FCLGA2011-3 socket
- Micro-ATX server motherboard, 245×245mm compact form factor
- 6×DDR4 DIMM memory slots, supporting up to 384GB, 2400 MT/s
- 10×SATA 6Gb/s ports for large-capacity SSD/HDD storage expansion
- 2×M.2 Key-M 2280 SSD slots for high-speed NVMe storage
- 4×RJ45 2.5GbE LAN ports powered by Intel I226V controllers
- Multiple PCIe expansion slots: 1×PCIe x16 Gen3, 1×PCIe x8 Gen3 in x16 slot, and 1×PCIe x8 Gen3
- Onboard ASPEED AST2400 display solution with 1×VGA output
- Rich industrial I/O: 6×J_COM, LPT, TPM, LAN LED, F_AUDIO, F_PANEL, F_USB 2.0, and F_USB 3.0
- Flexible serial communication with RS232 and RS485 mode support for COM interfaces
- Multiple fan headers for CPU and system cooling management
- ATX 24-pin + 8-pin power input for stable server and industrial deployment
Application Scenarios
- Server nodes
- Network firewall appliances
- Virtual machine clusters
- Industrial automation systems
- Data center computing platforms
- Storage and backup servers
- Industrial control systems
- High-performance embedded computing
Specifications
| Model | 2011-MATX |
| Processor Platform | Intel Xeon Processor E5 v3/v4 Family |
| Socket | FCLGA2011-3 |
| Memory | 6×DDR4 DIMM, up to 384GB, 2400 MT/s |
| SATA Storage | 10×SATA 6Gb/s |
| M.2 Storage | 2×M.2 Key-M 2280 SSD |
| Network | 4×RJ45 2.5GbE LAN |
| Network Controller | 4×Intel I226V |
| Expansion | 1×PCIe x16 Gen3, 1×PCIe x8 Gen3 in x16 slot, 1×PCIe x8 Gen3 |
| Display | 1×VGA, based on onboard ASPEED AST2400 chip |

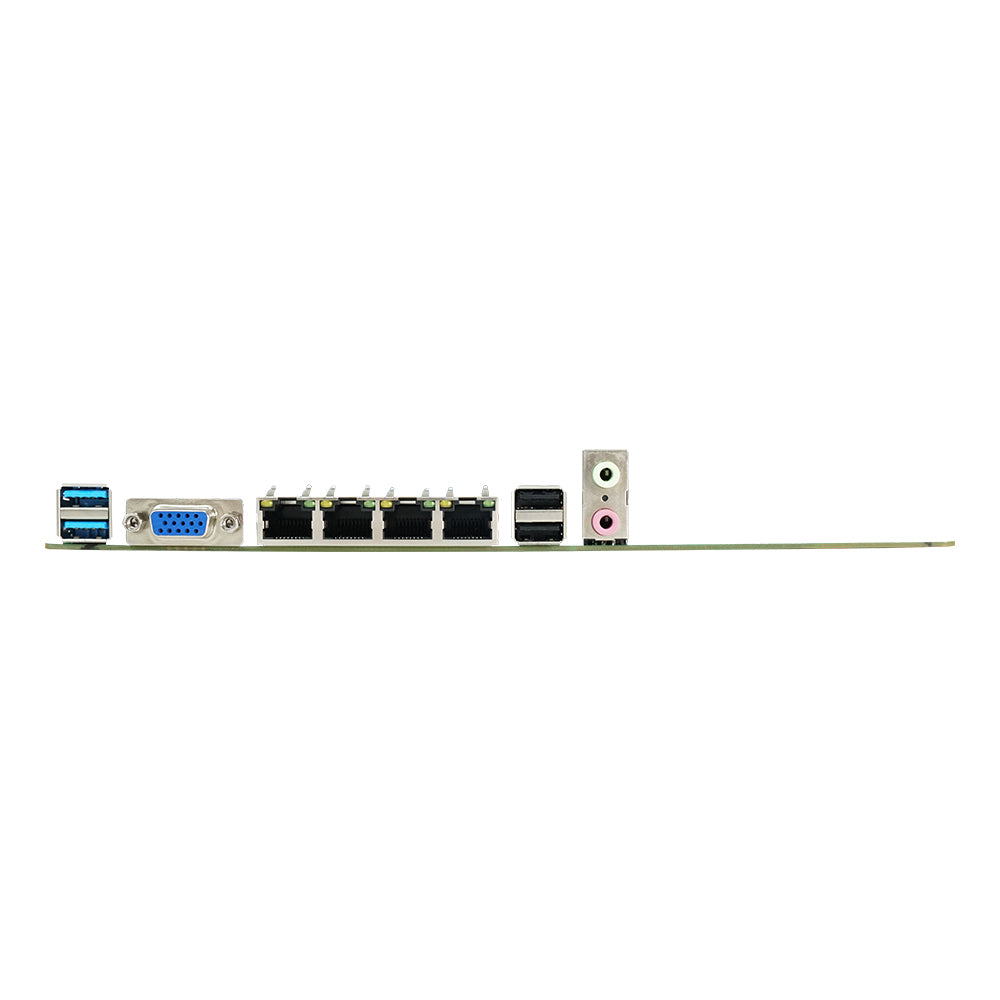

| Rear I/O | 4×RJ45, 2×USB-A 3.0, 2×USB-A 2.0, 1×VGA, 2×Audio Jacks |
| Onboard I/O | 10×SATA data connectors, 6×J_COM, F_PANEL, F_USB 2.0, F_USB 3.0, LPT, TPM, LAN LED, F_AUDIO, Case Open |
| Fan Headers | 1×4-pin CPU fan, 3×4-pin system fan, 2×3-pin system fan, 2×2-pin system fan |
| Power Input | ATX 24-pin + 8-pin |
| Motherboard Size | 245×245mm, Micro-ATX |
| Operating Temperature | -10°C~60°C |
| Humidity | 5%~90% relative humidity, non-condensing |
Download
Note: Product appearance and specifications may vary slightly by production batch. Please refer to the actual product received. For processor compatibility, memory configuration, storage expansion, or system integration requirements, please contact us before ordering.
