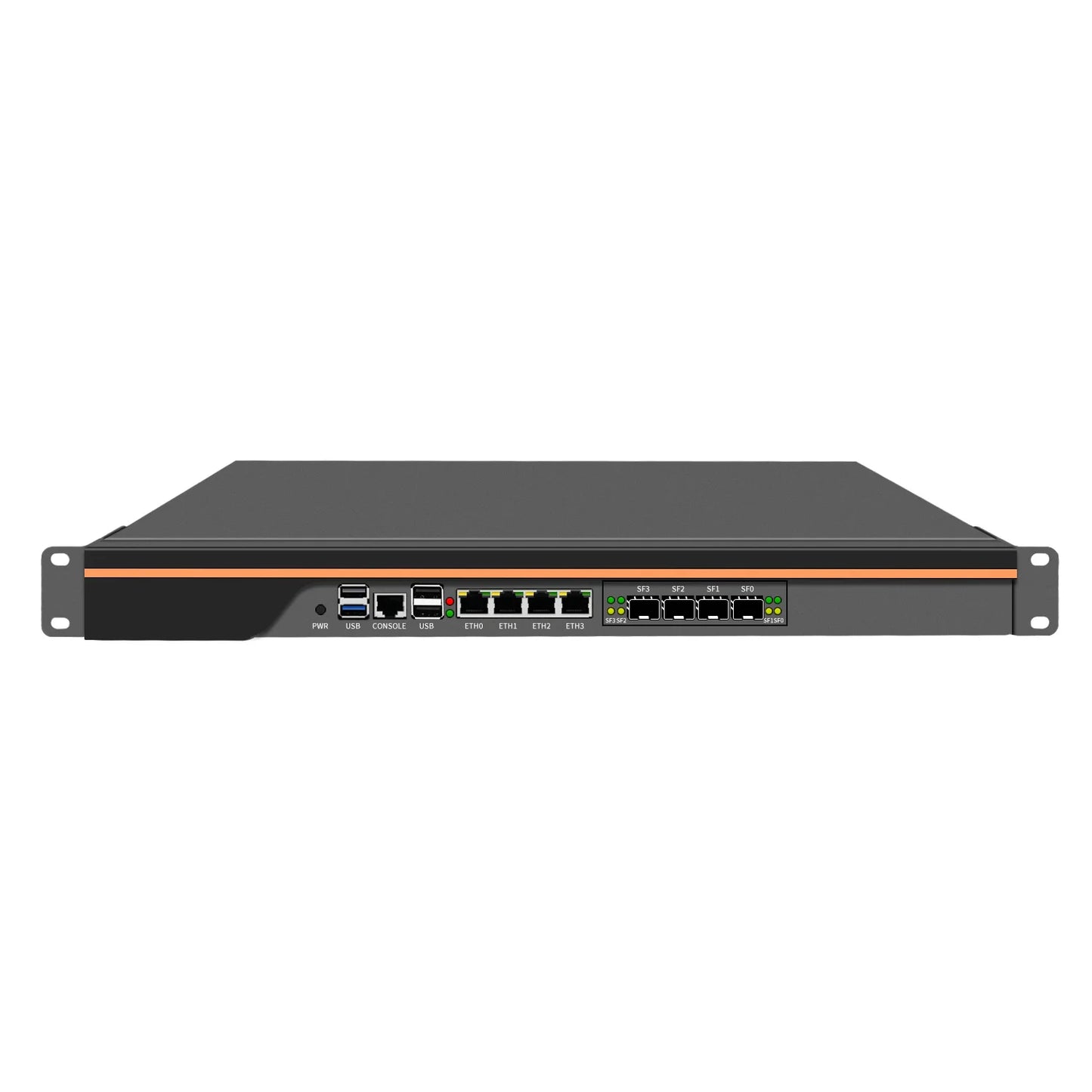

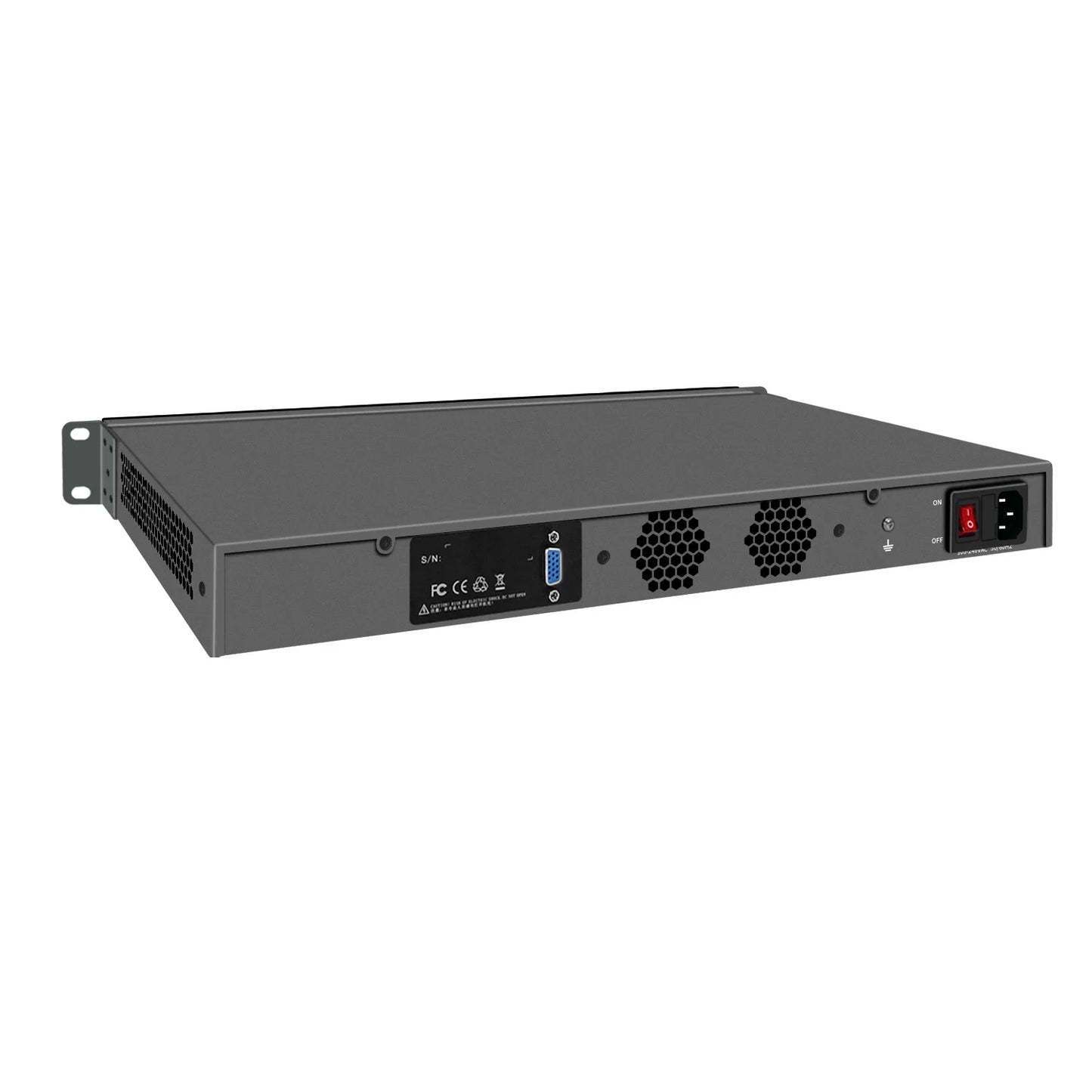

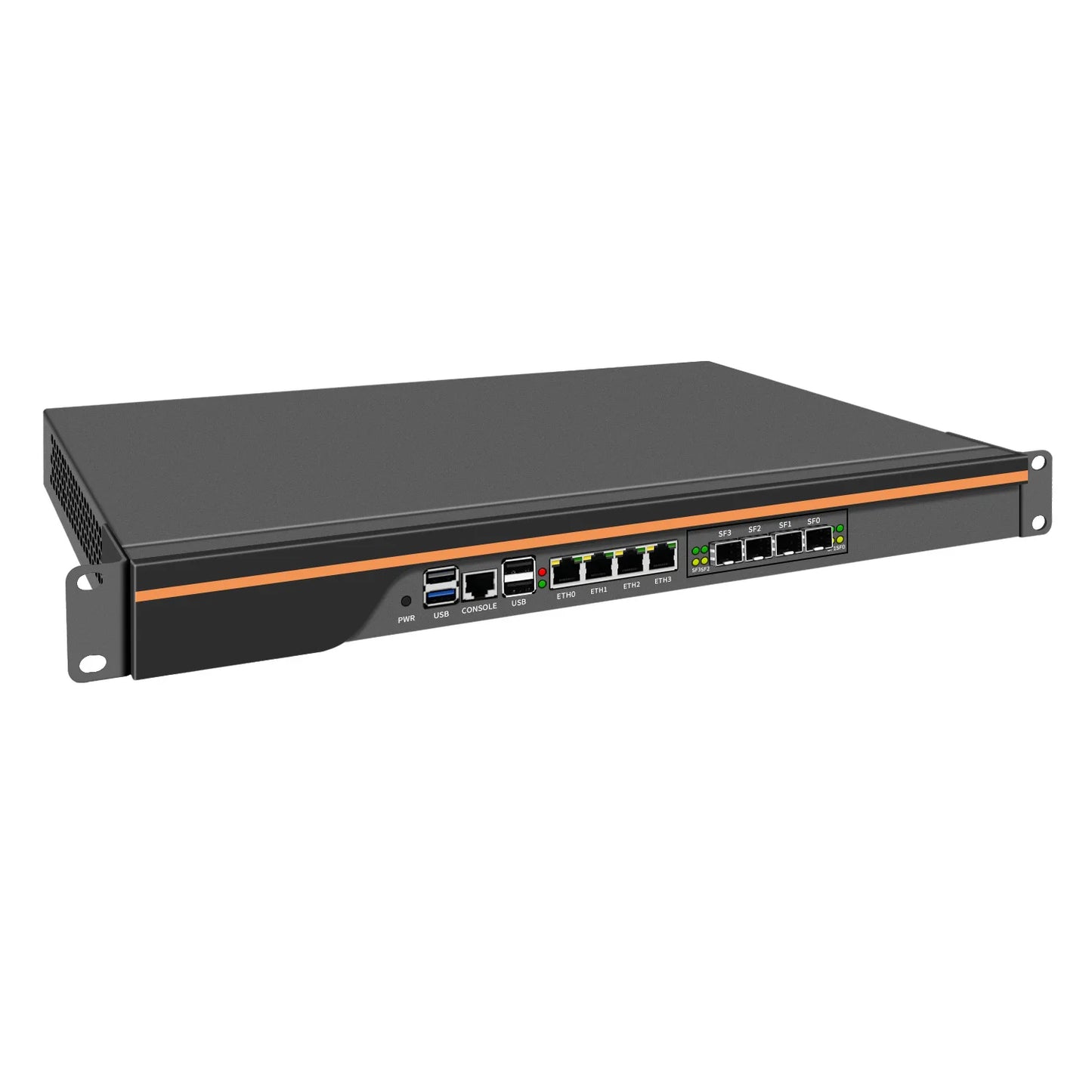

1U-1264N4L Network Appliance | Intel N150/N305 Firewall & VPN

Product Overview

The 1U-1264N4L is a compact 1U rackmount network appliance designed for SMB and edge deployments. Powered by optional onboard Intel® N100/N150 or Core i3-N305, it combines low-power efficiency with scalable performance. With next-gen DDR5 4800 MT/s memory, flexible SATA + M.2 storage, and robust I/O, it is ideal for firewall, VPN/SD-WAN, and edge computing scenarios.

Key Features

Processor: Onboard Intel® N100/N150 or optional Core i3-N305
Memory: DDR5 SO-DIMM up to 16GB, 4800 MT/s
Storage: 1× SATA 3.0; 1× M.2 Key-M 2280 (PCIe Gen3 x1 / SATA)
Networking: 4× RJ45 2.5GbE ports
USB: Front—1× USB-A 3.0 + 3× USB-A 2.0
Console: 1× RJ45 COM (front)
Display: 1× VGA / 1× HD (reserved)
Expansion: 1× PCIe x8 (x4 rate); 1× mPCIe (USB 2.0 signal)
Cooling: Active—1× CPU fan + 2× Chassis fans
Chassis: 440 × 285 × 45 mm; Weight: 3.85 kg (net), 4.95 kg (with accessories)
Power: Input 85–264V AC 47–63 Hz; Output DC 12V 6A
Environment: Operating 0–50℃; 5–90% RH (non-condensing)

Application Scenarios

Firewall & Security Gateway: pfSense/OPNsense deployments for SMB networks
VPN / SD-WAN: Multi-branch connectivity and secure remote access
Edge Computing: Data acquisition and IoT gateways at the network edge
Lightweight Virtualization: Containers and VMs for network services
Industrial Networking: Network management, monitoring, and protocol translation
