1U-1264-TI4

Product Overview

The 1U-1264-TI4 is a compact 1U rackmount industrial computer built on the Intel® Processor N-series platform (FCBGA1264). Designed for reliable 24/7 operation, it delivers a balance of low power consumption, flexible I/O, and expandable connectivity. With support for DDR4 memory up to 16GB, SATA and M.2 storage, and optional single or dual LAN configurations, the 1U-1264-TI4 is well suited for industrial control, edge computing, and communication gateway deployments in standard 19-inch racks.

Key Features

• Processor Platform: Intel® Processor N-series, FCBGA1264
• Memory: DDR4 SO-DIMM, up to 16GB, 3200 MHz
• Storage:
  • 1× SATA 3.0 (6Gb/s)
  • 1× M.2 Key-B+M SSD slot
• Expansion:
  • 1× mPCIe (PCIe / USB 3.0 signal)
  • 1× M.2 Key-B 3052 (USB 3.0 signal) for 4G/5G or wireless modules
• Networking (Optional):
  • 1× RJ45 LAN or optional 2× RJ45 LAN

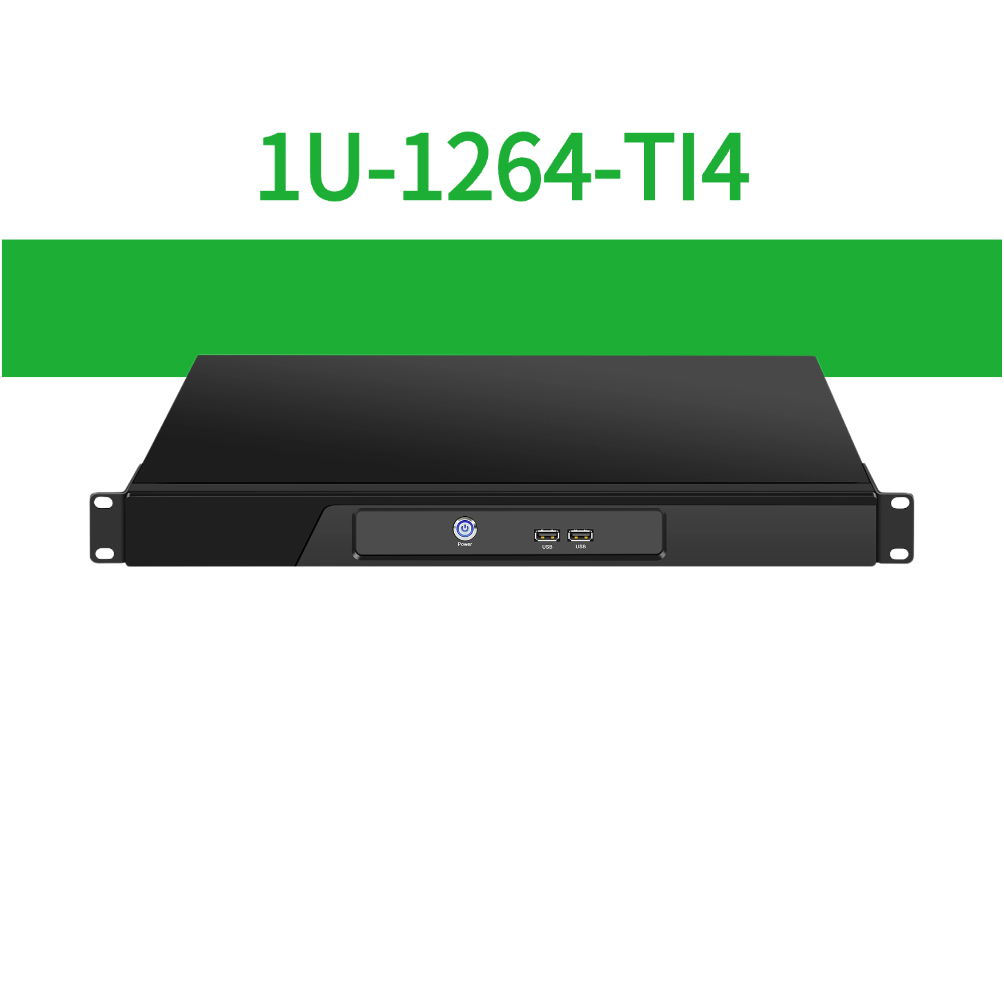

• Front Panel I/O:
  • Start / Restart button
  • 2× USB-A 2.0

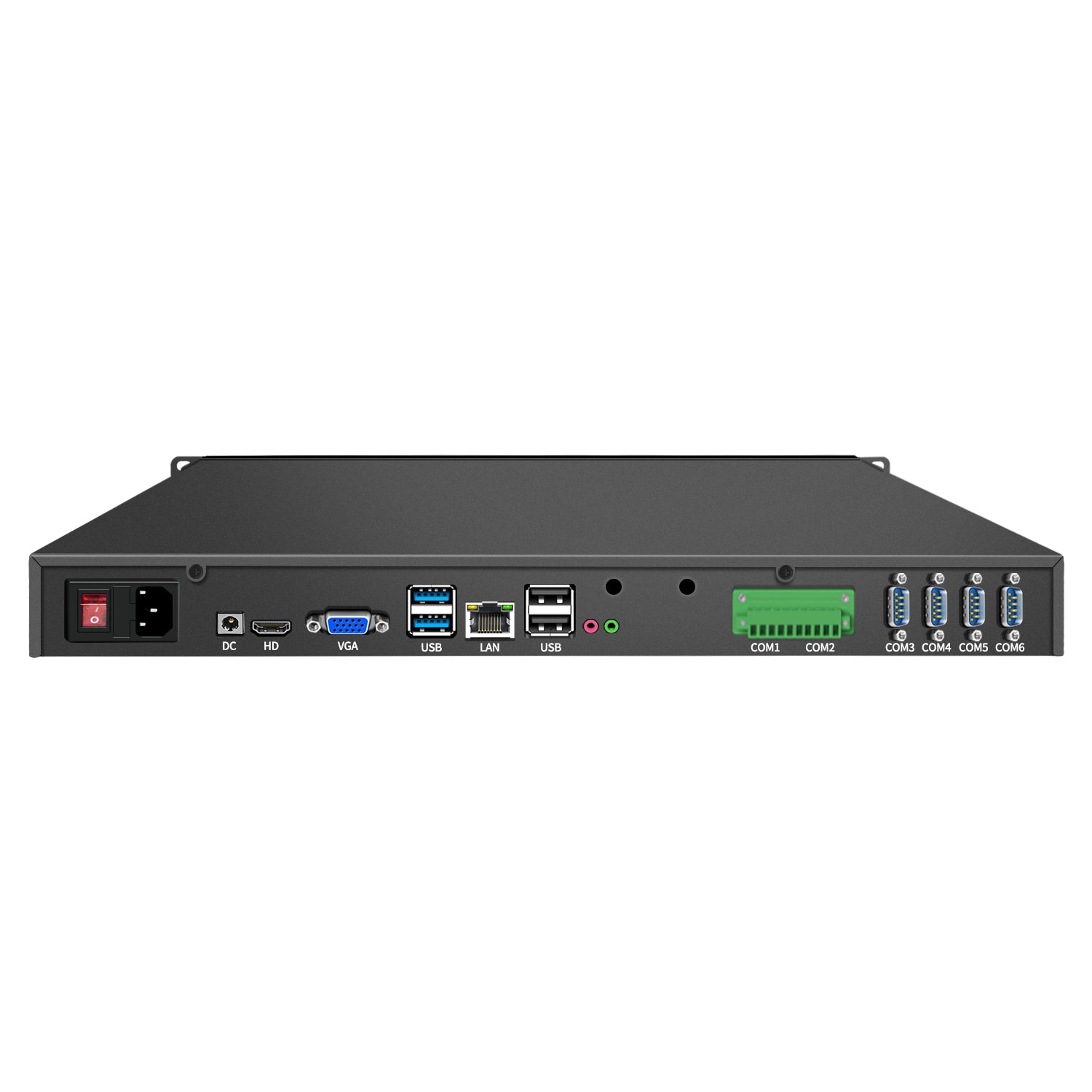

• Rear Panel I/O:
  • Display: 1× VGA + 1× HDMI
  • USB: 2× USB-A 3.0 + 2× USB-A 2.0 (optional)
  • Audio: Line-out + Mic-in
  • Serial ports: up to 6× COM
  • Power: AC power socket and DC jack
• Cooling: Active cooling with 1× CPU fan
• Power Input: 85V–264V AC, 47–63 Hz, maximum 50W
• Chassis Size: 440 × 255 × 40 mm (1U)
• Weight: 3.80 kg (net), 4.55 kg (with accessories)
• Operating Environment: 0–60°C, 5–90% RH (non-condensing)

Typical Application Scenarios

• Industrial Control Systems: Suitable for factory automation, equipment control, and monitoring platforms.
• Edge Computing & Gateways: Ideal for data aggregation, protocol conversion, and on-site processing.
• Network & Communication Appliances: Optional dual LAN and wireless expansion support gateway and routing applications.
• Rackmount IT & Embedded Systems: 1U form factor fits standard 19-inch racks for industrial or telecom installations.
• Remote Connectivity Solutions: mPCIe and M.2 Key-B enable easy integration of 4G/5G or Wi-Fi modules.
