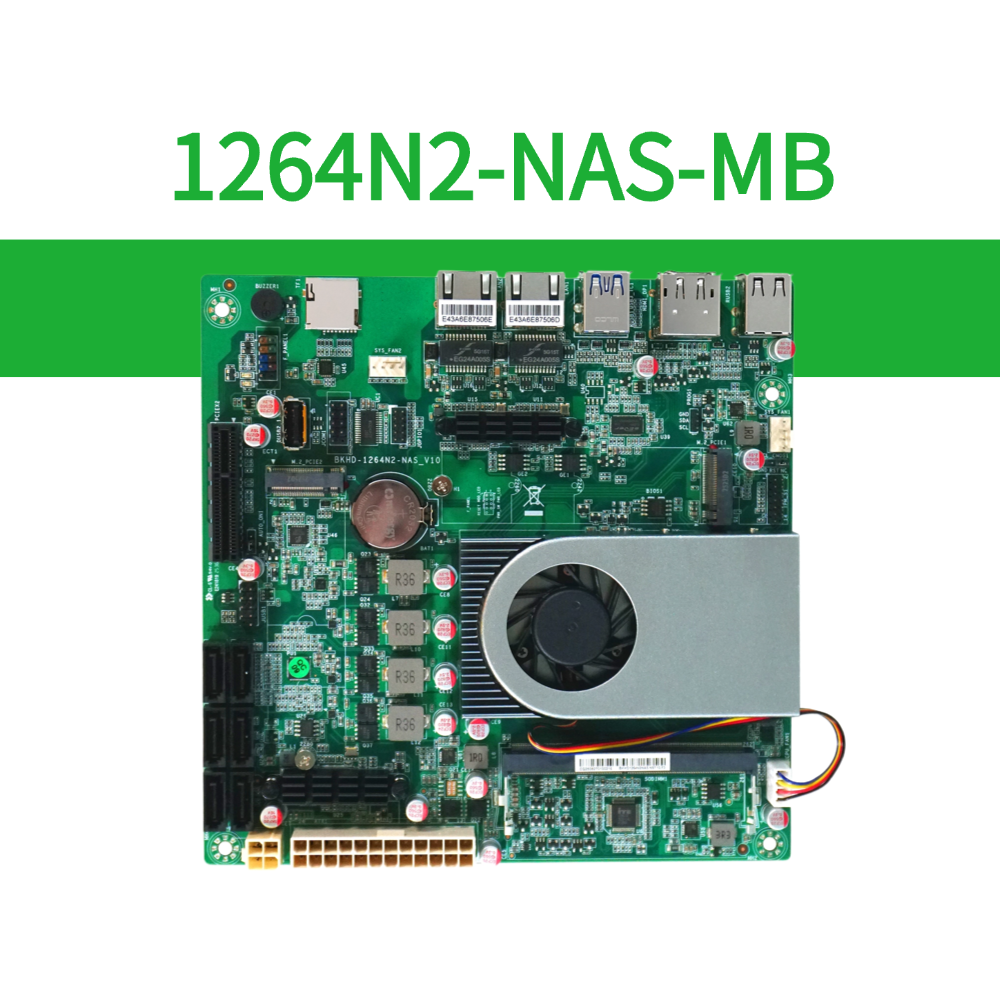

1264N2-NAS Mini-ITX NAS Motherboard with 6×SATA and Dual 2.5GbE LAN
1264N2-NAS Mini-ITX NAS Motherboard with 6×SATA and Dual 2.5GbE LAN
Verfügbarkeit für Abholungen konnte nicht geladen werden

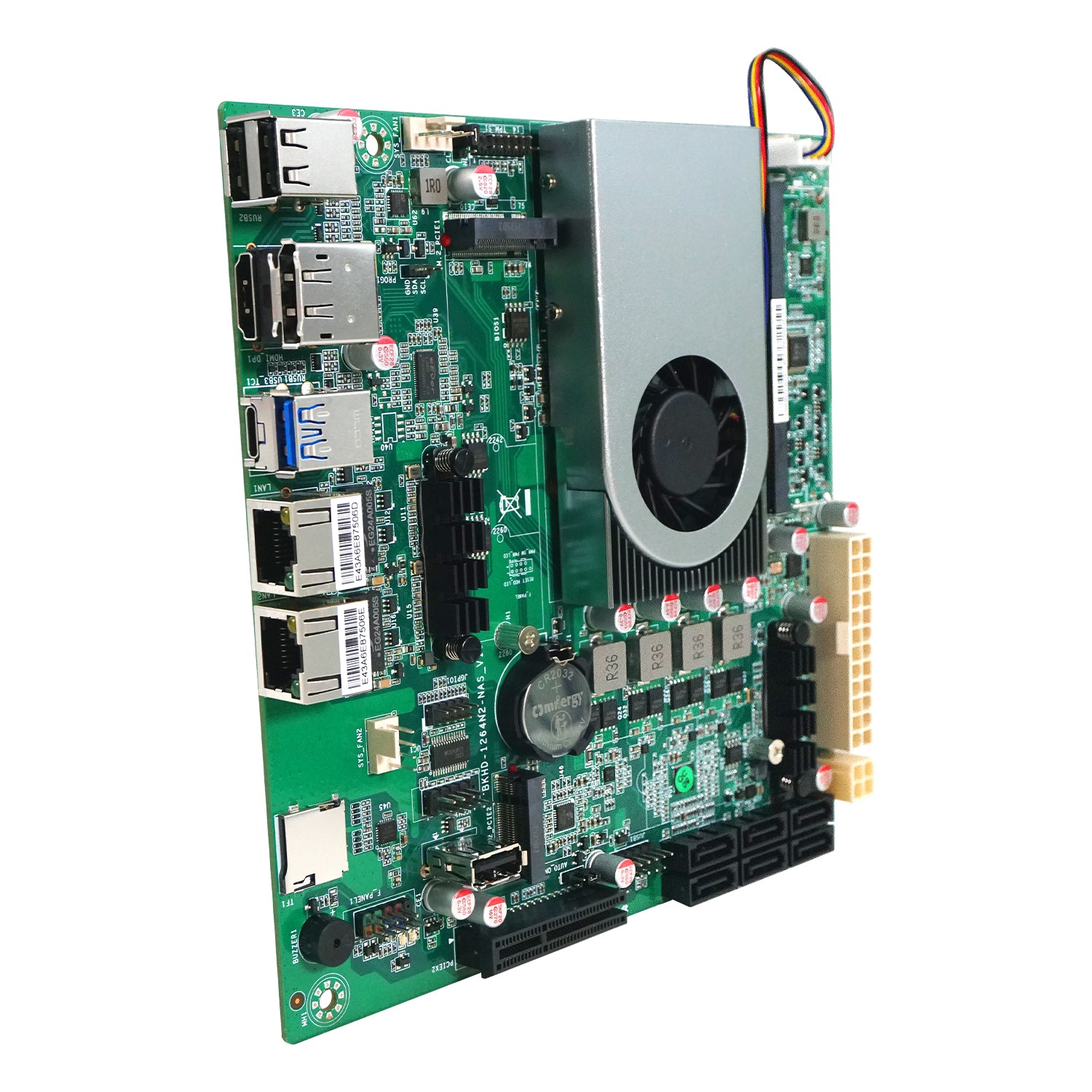

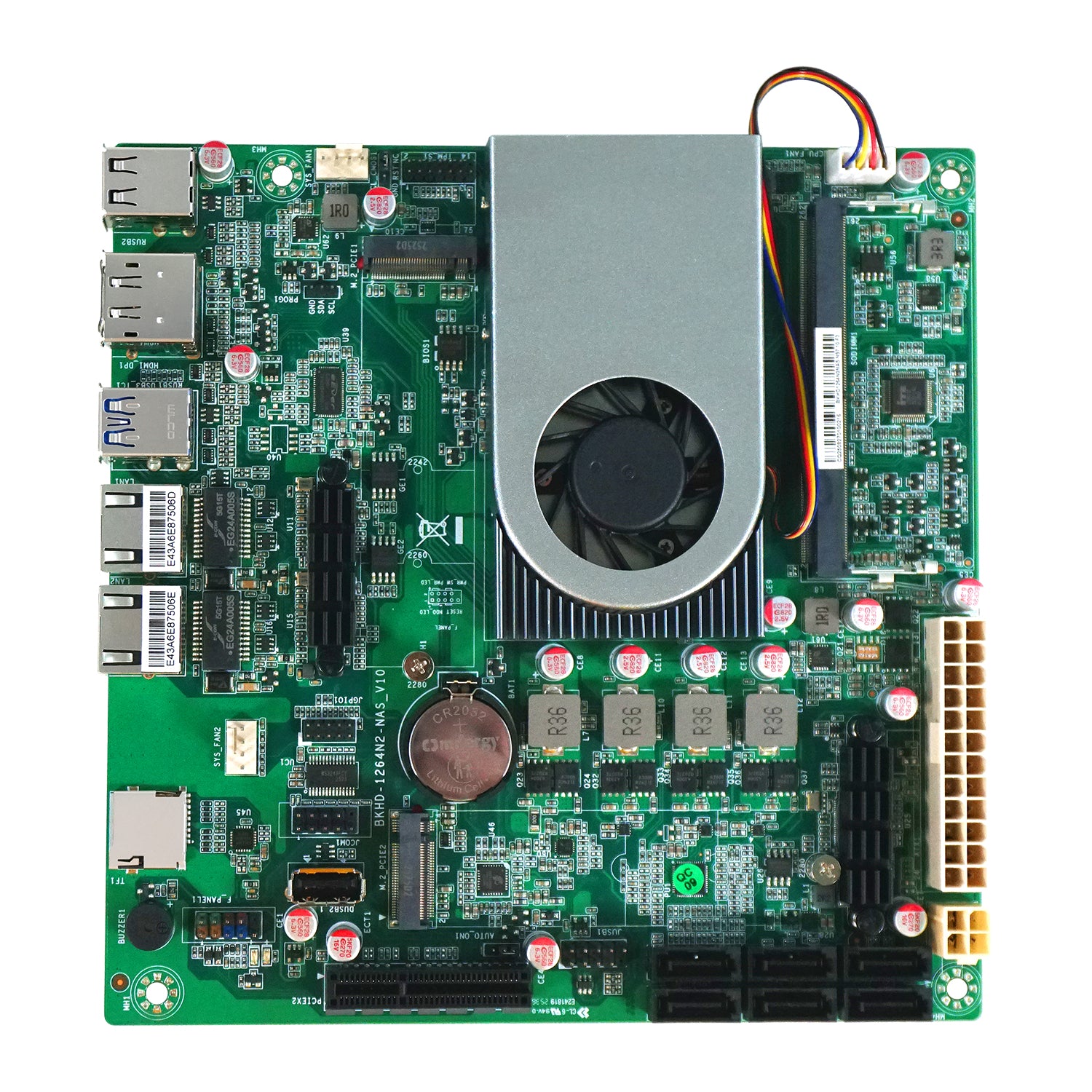

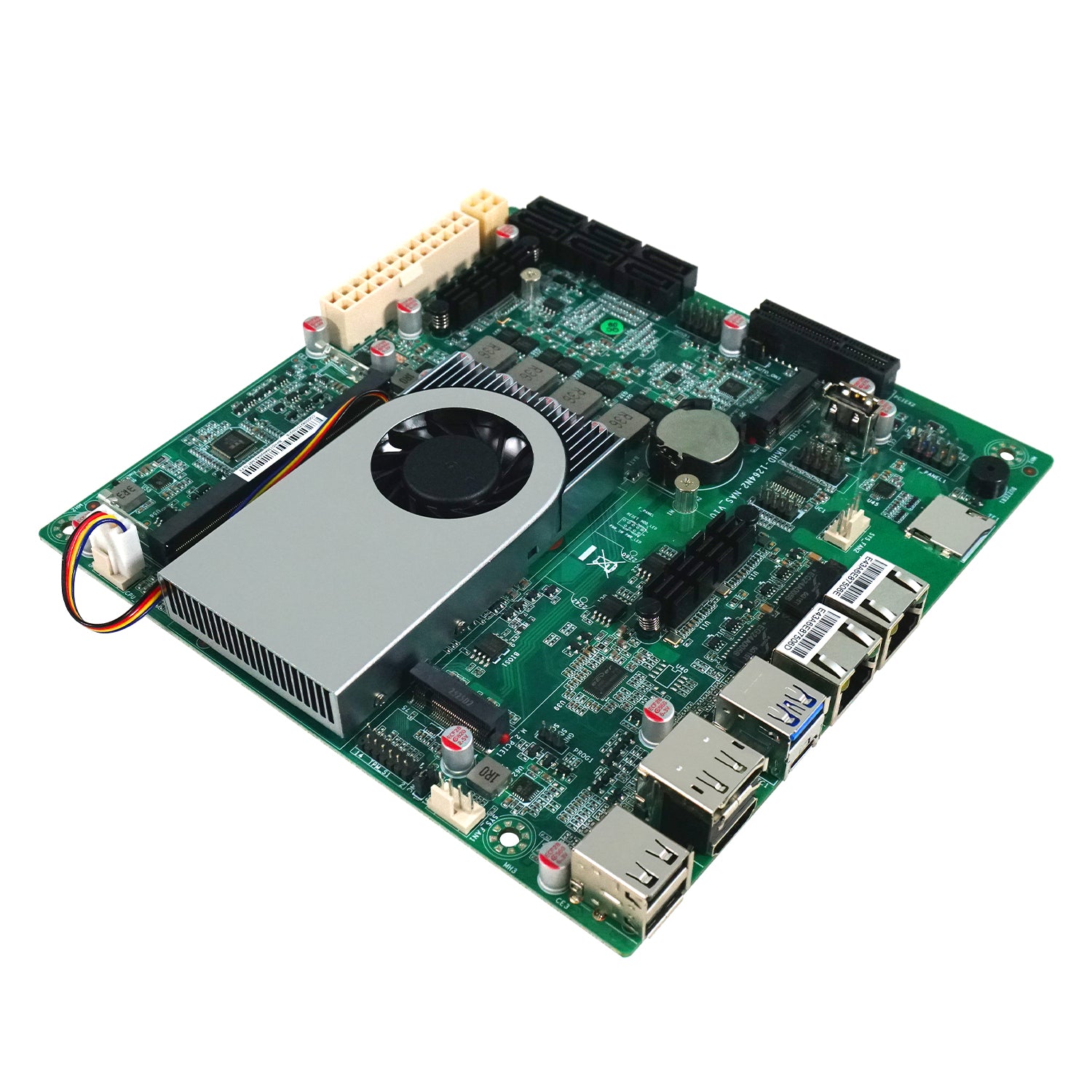

The 1264N2-NAS is a Mini-ITX motherboard designed specifically for network storage applications. Powered by an energy-efficient Intel Processor N-series platform, it integrates high-density storage expansion, dual 2.5GbE networking, DDR5 memory, PCIe expansion, and rich I/O connectivity. With 6×SATA 3.0 ports, dual M.2 SSD slots, and a compact 170×170mm form factor, it is an ideal hardware foundation for home network storage, SMB file sharing, media file servers, video surveillance storage, private cloud storage, and lightweight virtualization platforms.
Key Features
- Intel Processor N-series platform for low-power and reliable storage computing
- Mini-ITX form factor, 170×170mm, suitable for compact NAS chassis integration

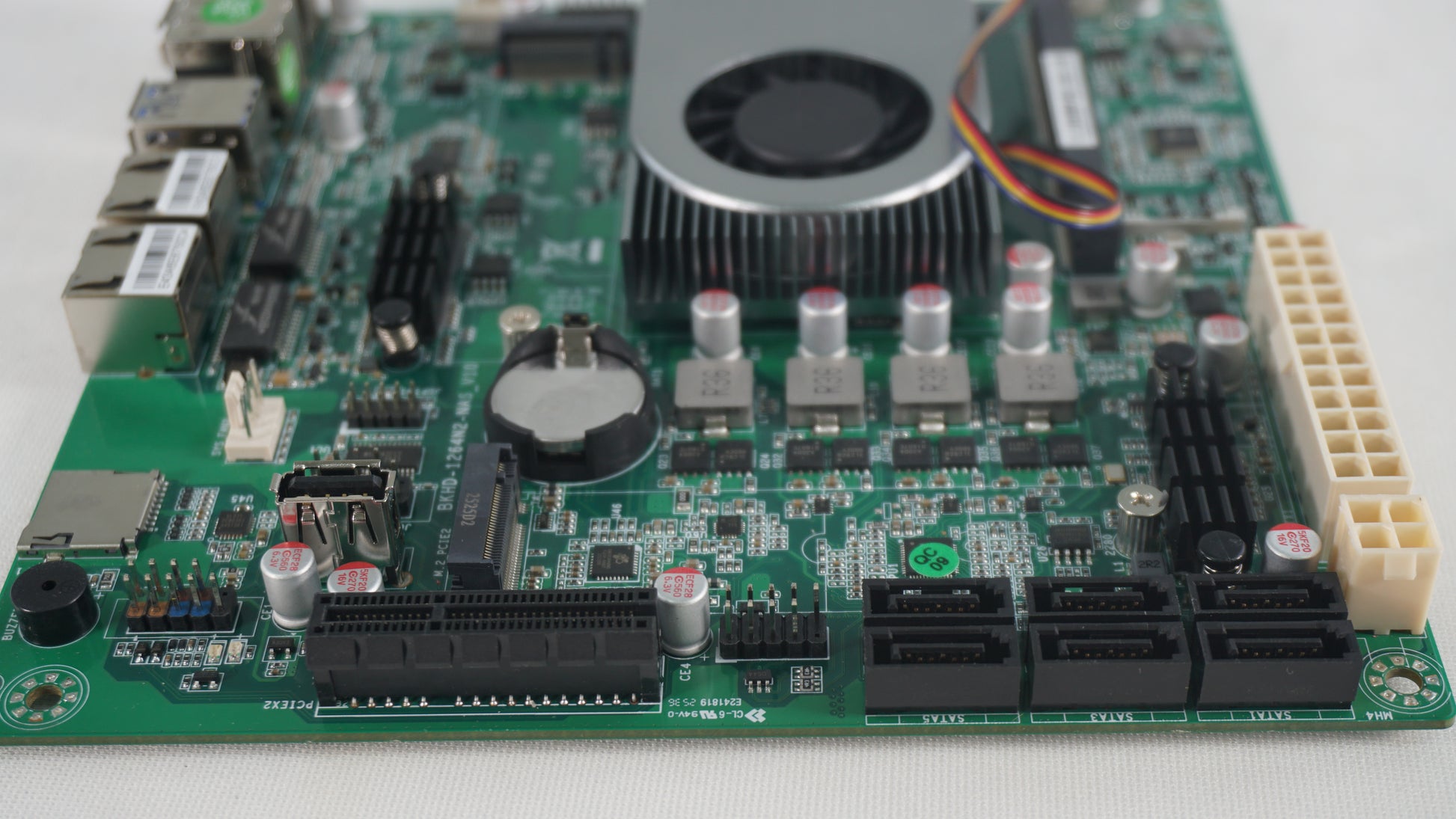

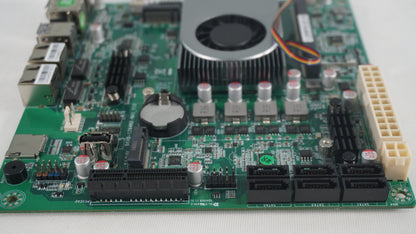

- 6×SATA 3.0 ports powered by ASM1166 storage controller for multi-drive NAS systems

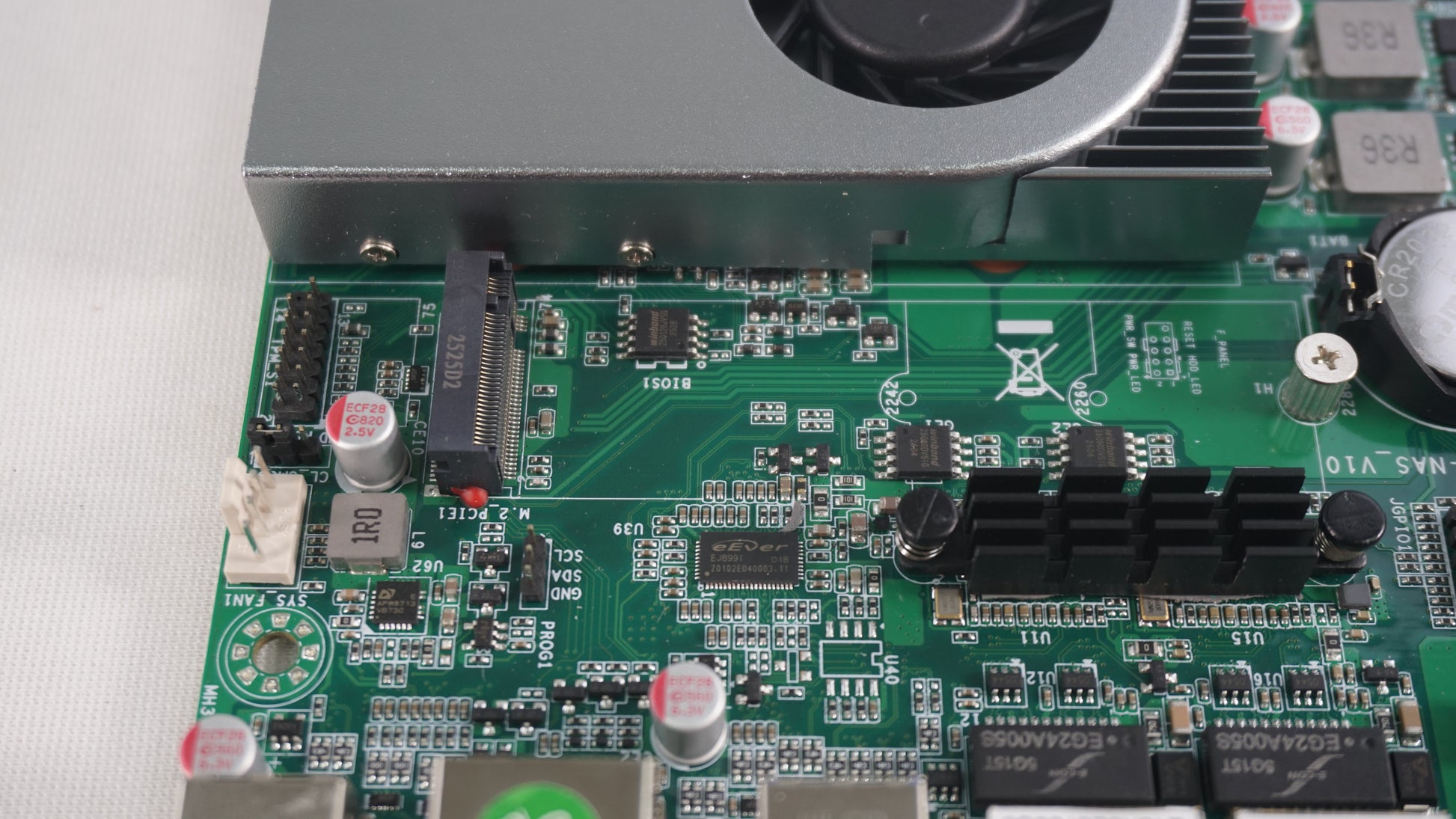

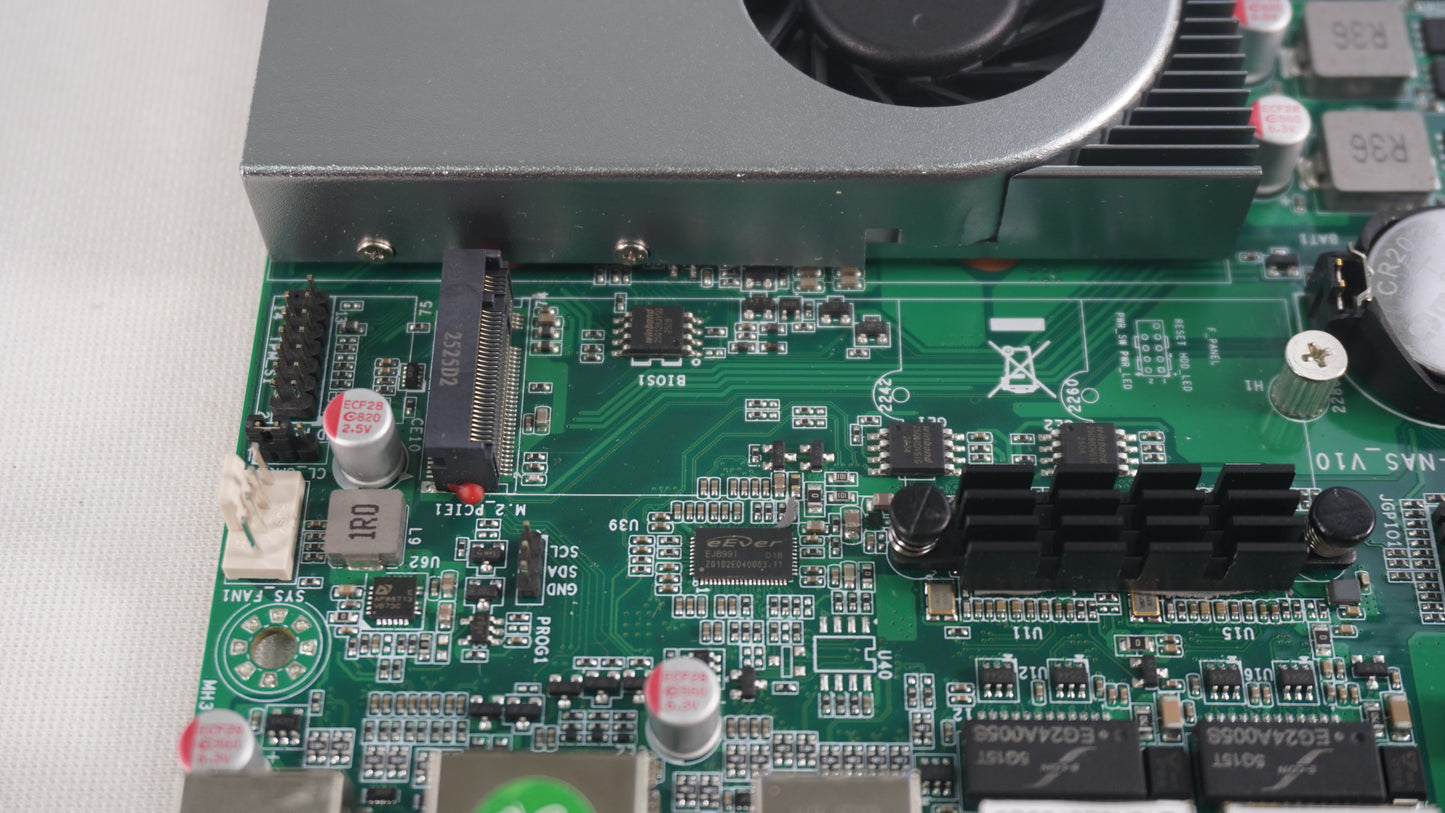

- Dual M.2 Key-M 2280 SSD slots, PCIe Gen3 x1, suitable for system drives, cache drives, or high-speed storage
- Dual 2.5GbE RJ45 LAN ports powered by Intel I226V controllers for high-speed network storage access

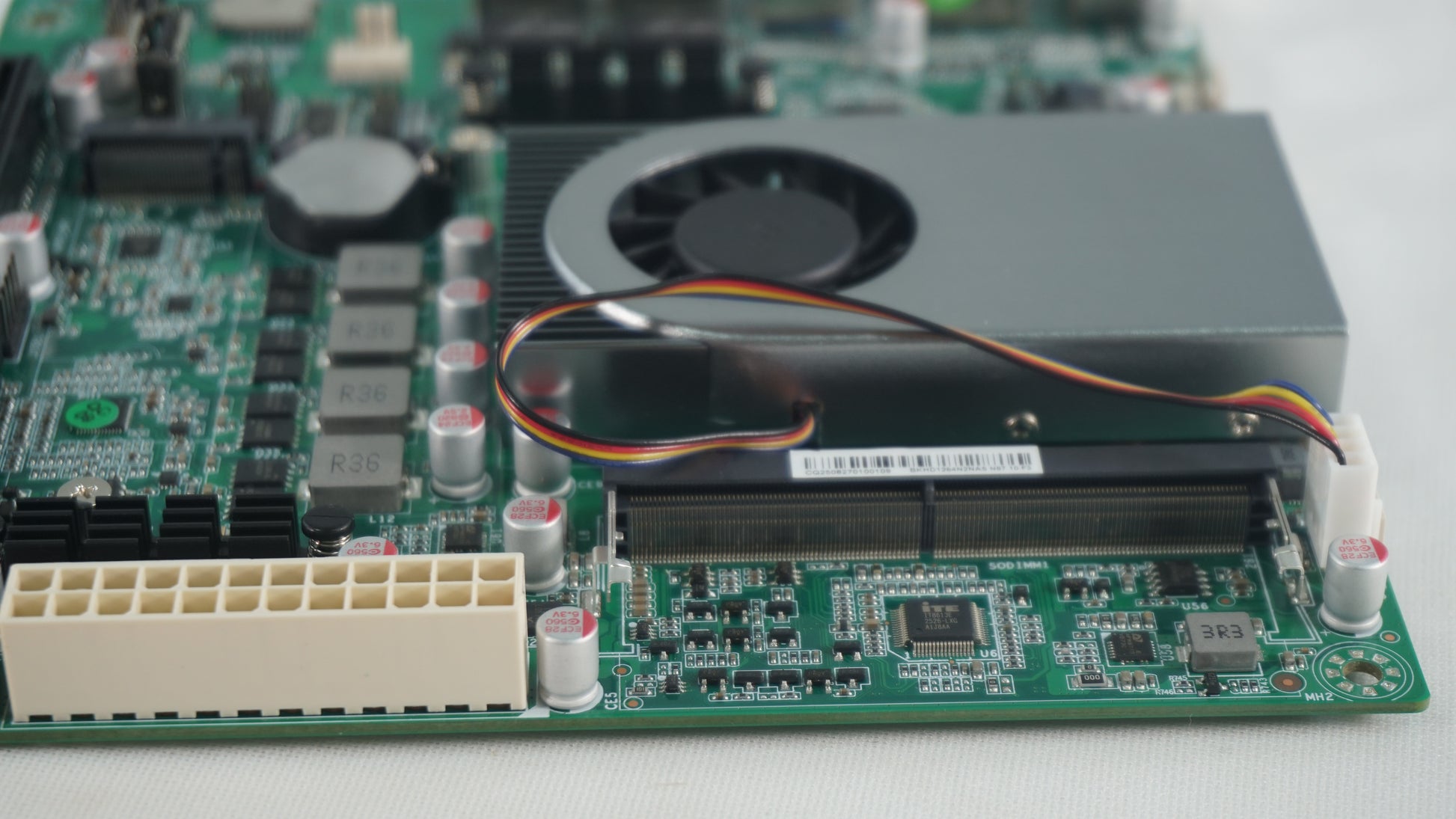

- DDR5 SO-DIMM memory support, up to 16GB, 4800 MT/s
- PCIe x4 expansion slot with Gen3 x2 rate for network, storage, or functional expansion cards
- Display outputs: 1×DP, 1×HD, and 1×USB-C for local maintenance and multi-display applications
- TF card slot for additional storage, boot, or backup usage
- Rich onboard interfaces: USB, TPM, GPIO, COM, front panel, CPU fan, and system fan headers
- ATX 24-pin + 4-pin power input, compatible with mainstream NAS power solutions
Application Scenarios
- Home network storage
- SMB file sharing server
- Private cloud storage platform
- Media file server
- Video surveillance storage
- Lightweight virtualization platform
- Multi-bay NAS storage system
- Data backup and centralized file management
Specifications
| Model | 1264N2-NAS |
| Processor Platform | Intel Processor N-series |
| Socket | FCBGA1264 |
| Memory | DDR5 SO-DIMM, up to 16GB, 4800 MT/s |
| SATA Storage | 6×SATA 3.0, ASM1166 controller |
| M.2 Storage | 2×M.2 Key-M 2280, PCIe Gen3 x1 |
| Network | 2×RJ45 2.5GbE LAN |
| Network Controller | 2×Intel I226V |
| Expansion | 1×PCIe x4, Gen3 x2 rate |
| Display | 1×DP, 1×HD, 1×USB-C |

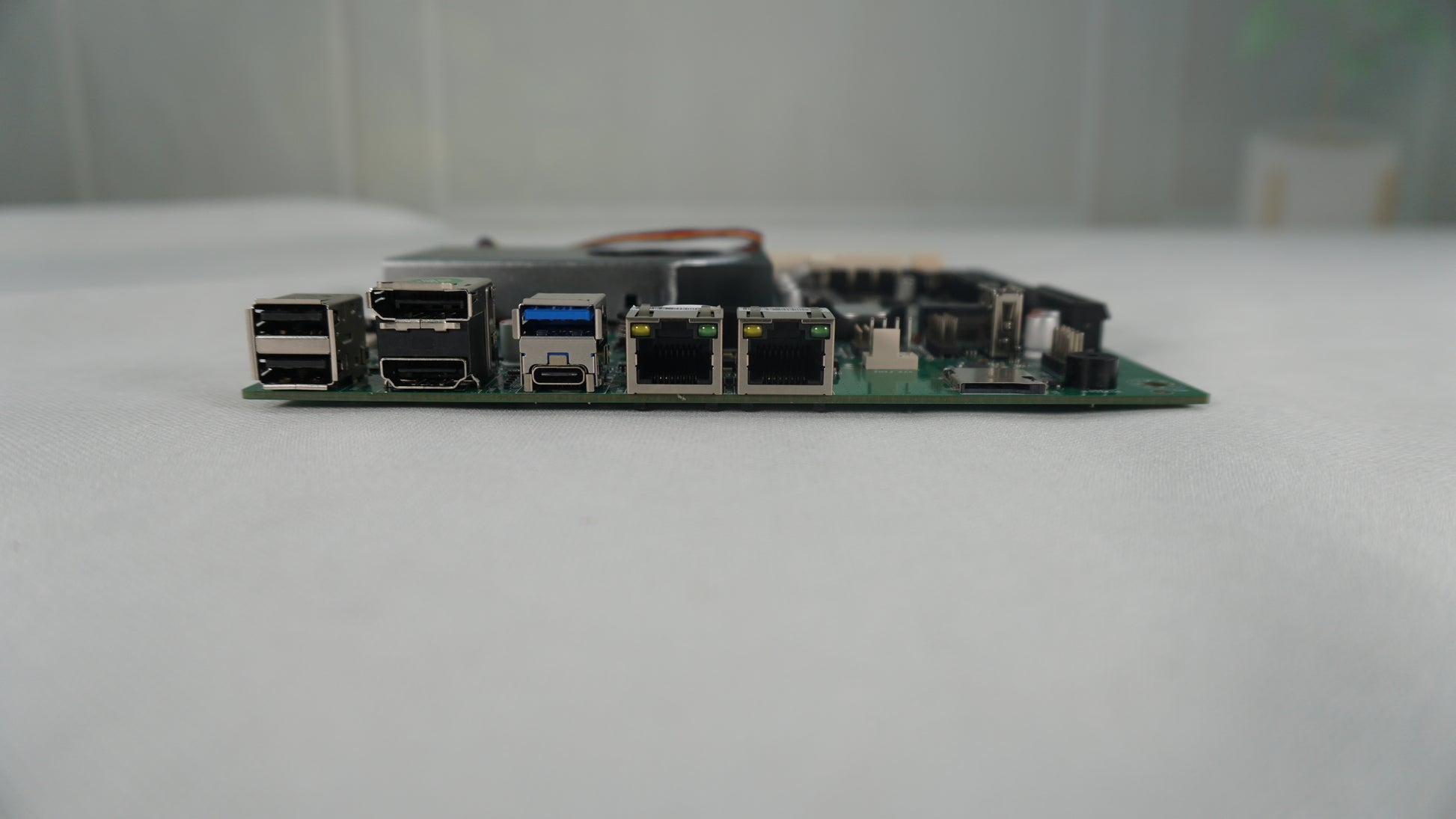

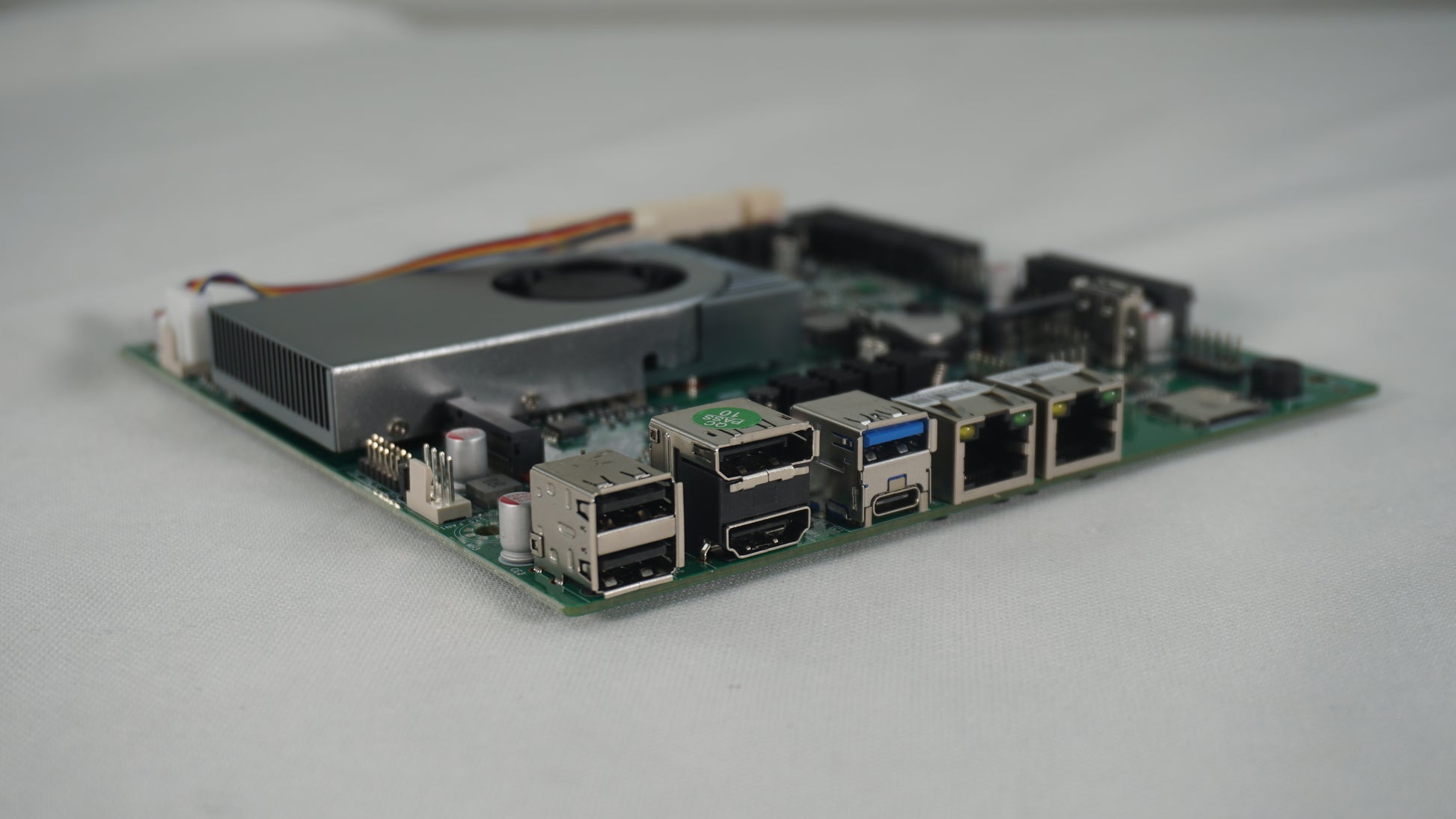

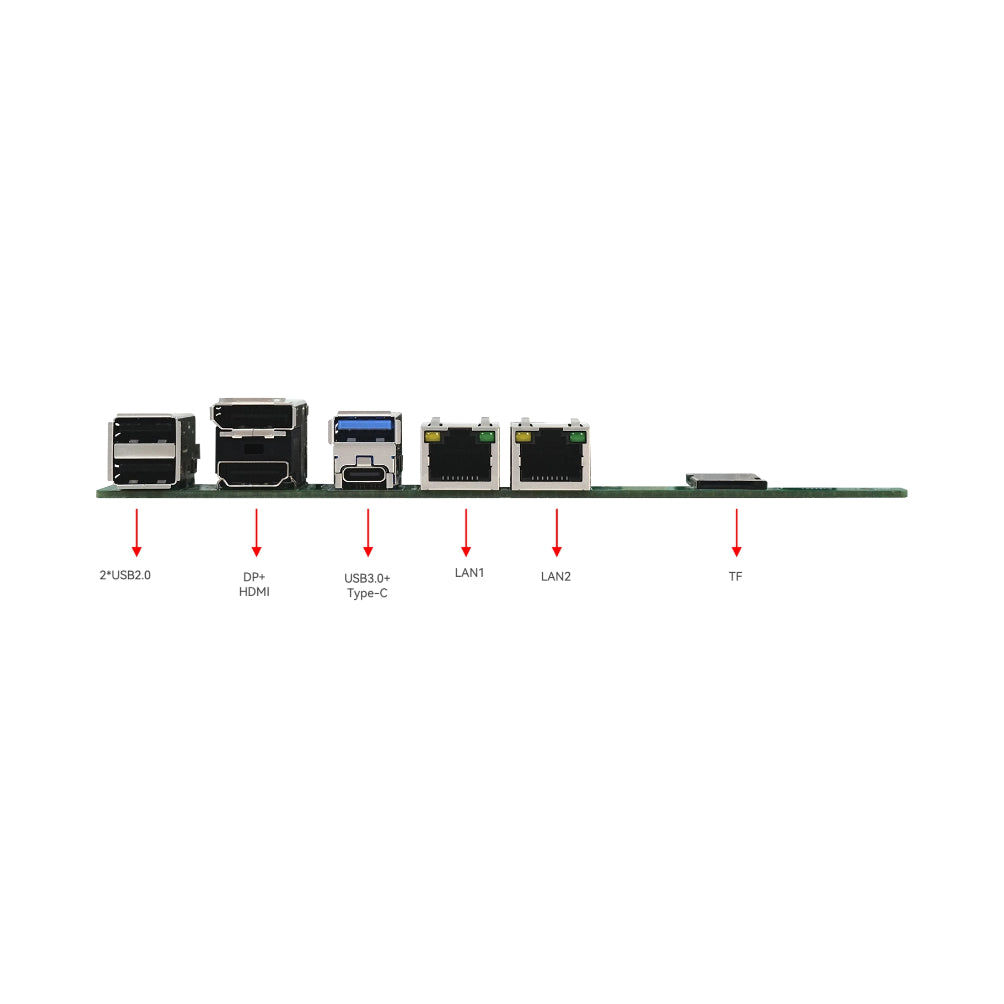

| Rear I/O | 2×USB-A 2.0, 1×USB-A 3.0, 1×USB-C, 2×RJ45, DP/HD/USB-C display output |
| Onboard I/O | 6×7-pin SATA data connectors, 1×USB-A 2.0, 2×SYS_FAN, 1×CPU_FAN, F_PANEL, J_COM, J_GPIO, TPM, J_USB |
| Additional Storage | TF card slot |
| Power Input | ATX 24-pin + 4-pin |
| Motherboard Size | 170×170mm, Mini-ITX |
| Operating Temperature | 0°C~60°C |
| Storage Temperature | -20°C~75°C |
| Humidity | 0%~95% relative humidity, non-condensing |
Download
Note: Product appearance and specifications may vary slightly by production batch. Please refer to the actual product received. For processor, memory, storage, or chassis compatibility confirmation, please contact us before ordering.
