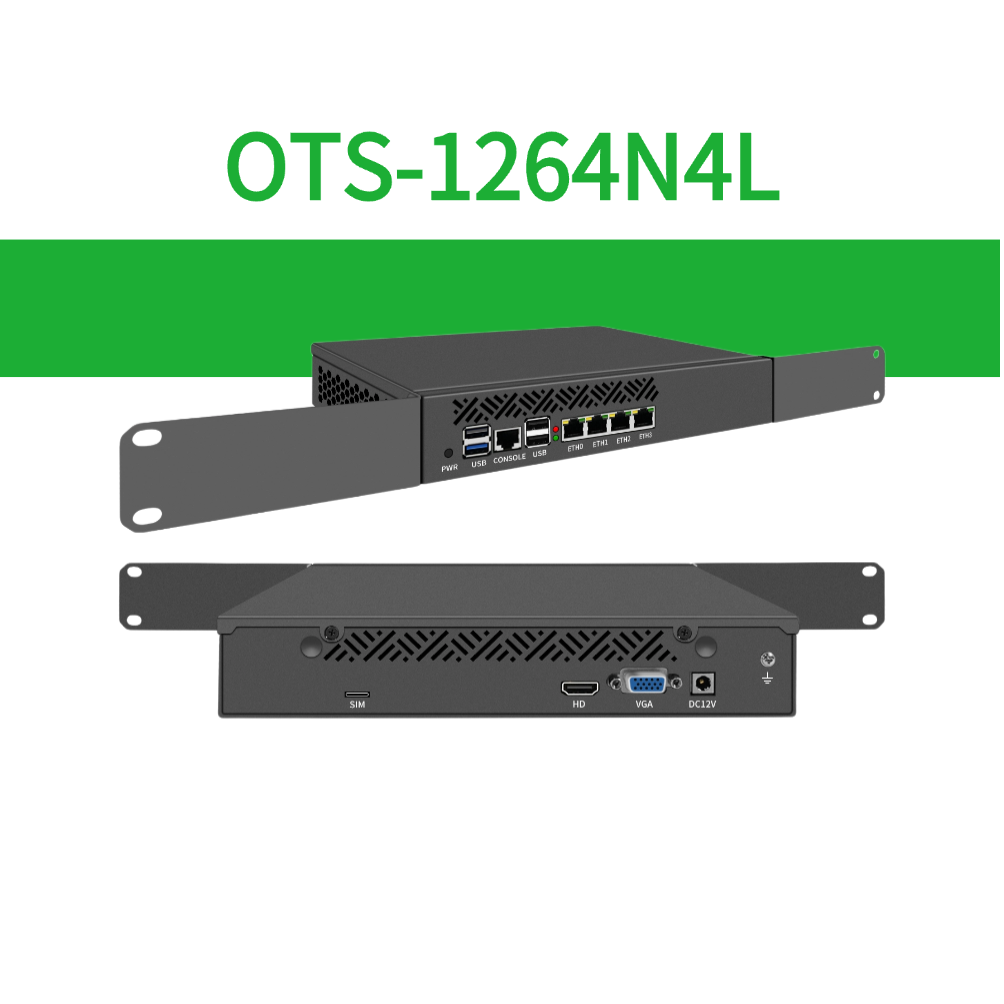

OTS-1264N4L Compact Network Appliance

The OTS-1264N4L is a compact network appliance designed for multi-port network applications, edge computing, and embedded scenarios. Powered by an Intel Processor N-Series platform, it features 4×RJ45 LAN ports, high-speed DDR5 memory support, flexible M.2 storage, PCIe expansion, and a compact rack-mountable chassis design, making it ideal for routers, firewalls, lightweight NAS, IoT gateways, industrial networks, small and medium-sized businesses, and home office deployments.

Key Features

Intel Processor N-Series platform for efficient low-power embedded computing
Compact network appliance design for firewall, router, gateway, and edge computing applications
4×RJ45 LAN ports for multi-port networking and network security deployment
DDR5 SO-DIMM memory support, up to 16GB, 4800 MT/s
Flexible storage: 1×M.2 Key-M 2280 supporting PCIe Gen3 x1/SATA
PCIe expansion: 1×PCIe x8 slot with x4 rate for expansion cards
mPCIe expansion: 1×mPCIe slot with USB 2.0 signal

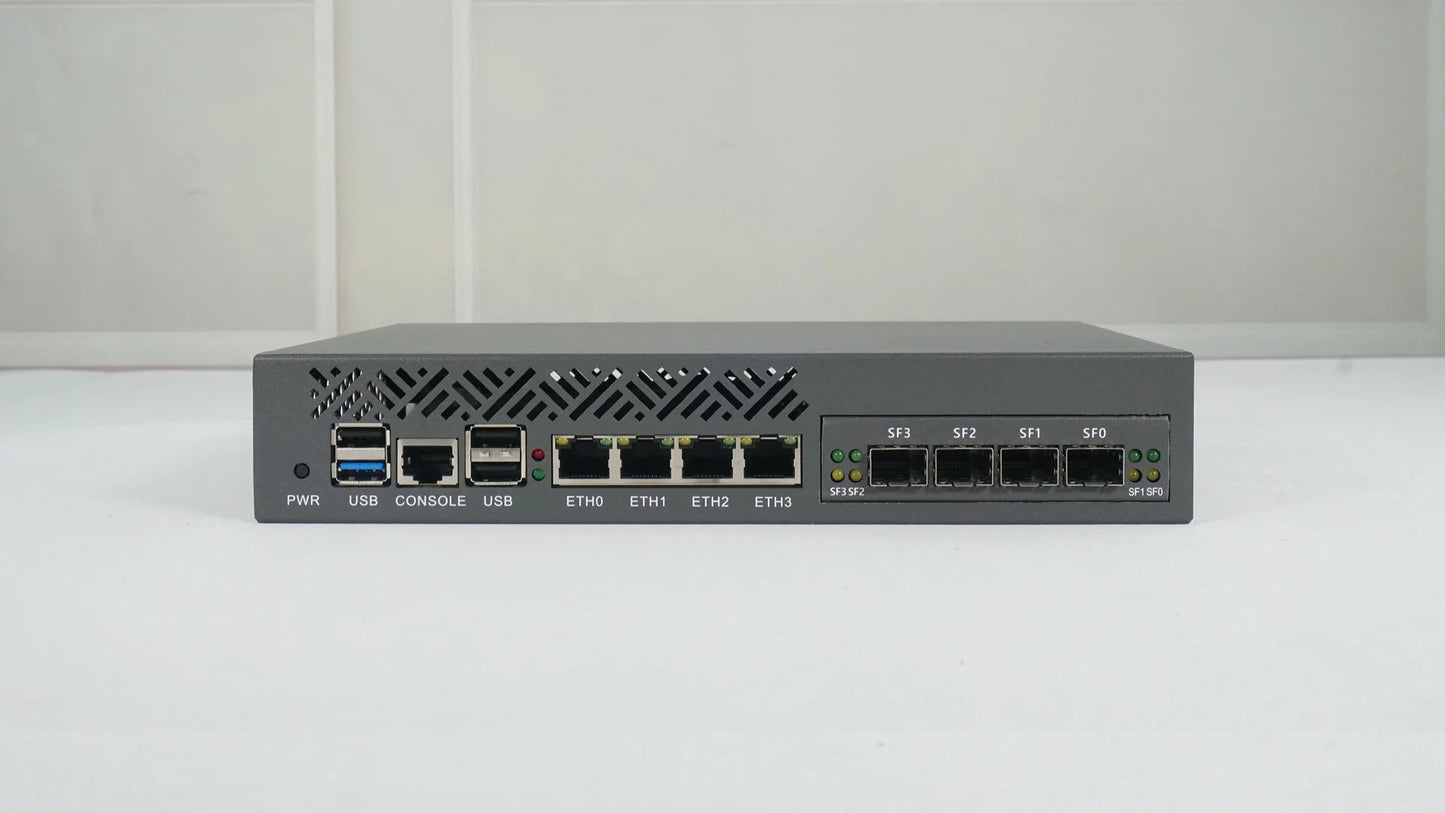

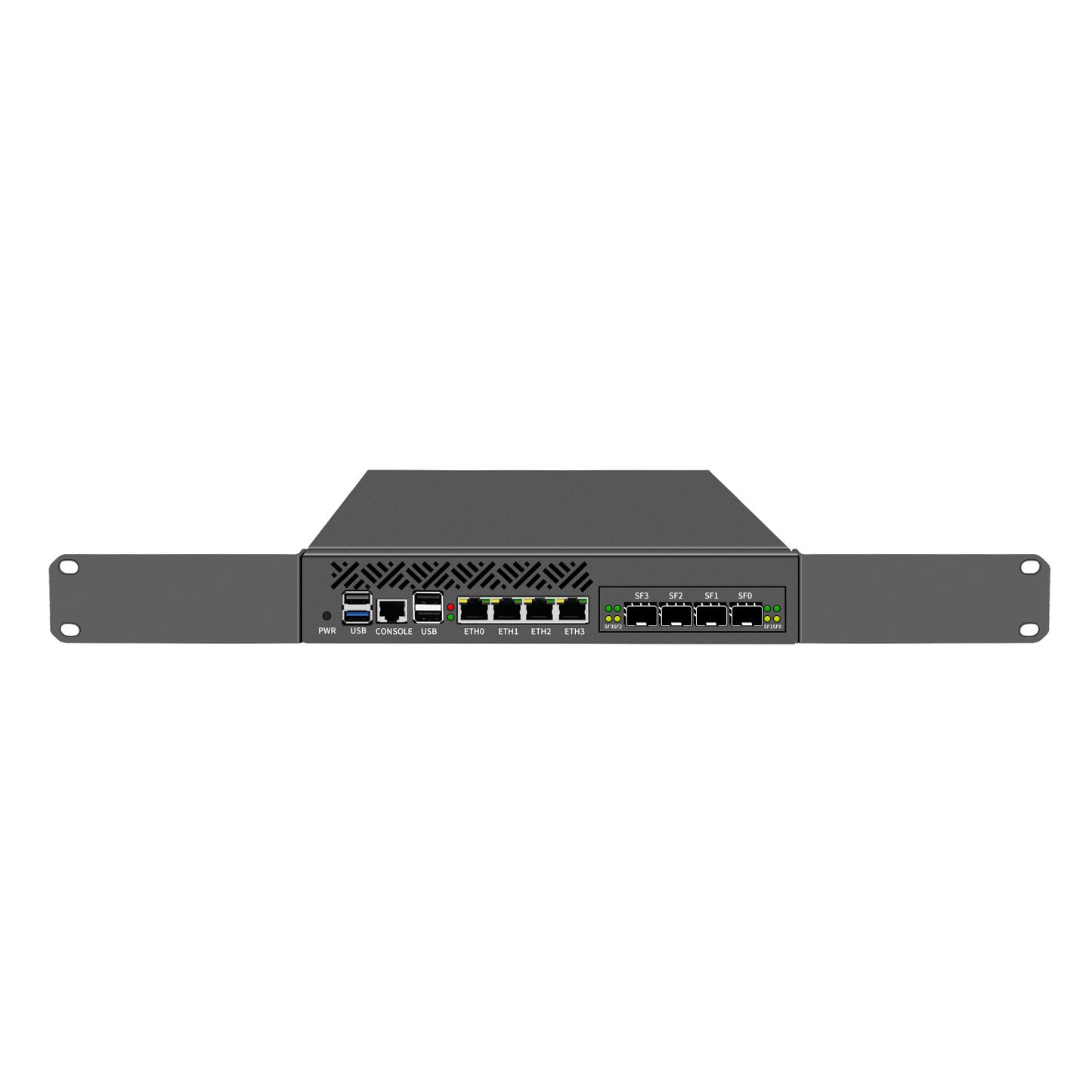

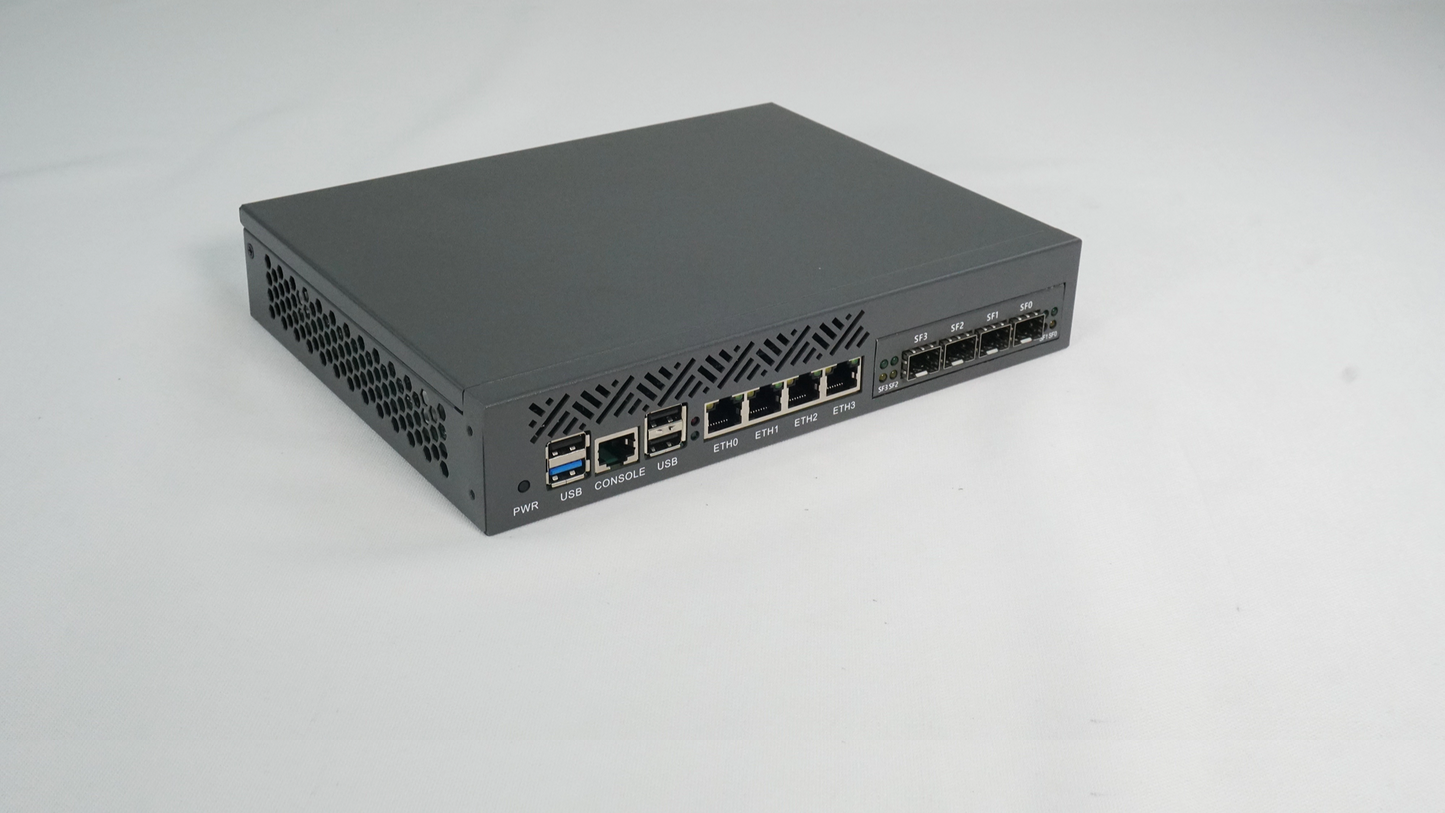

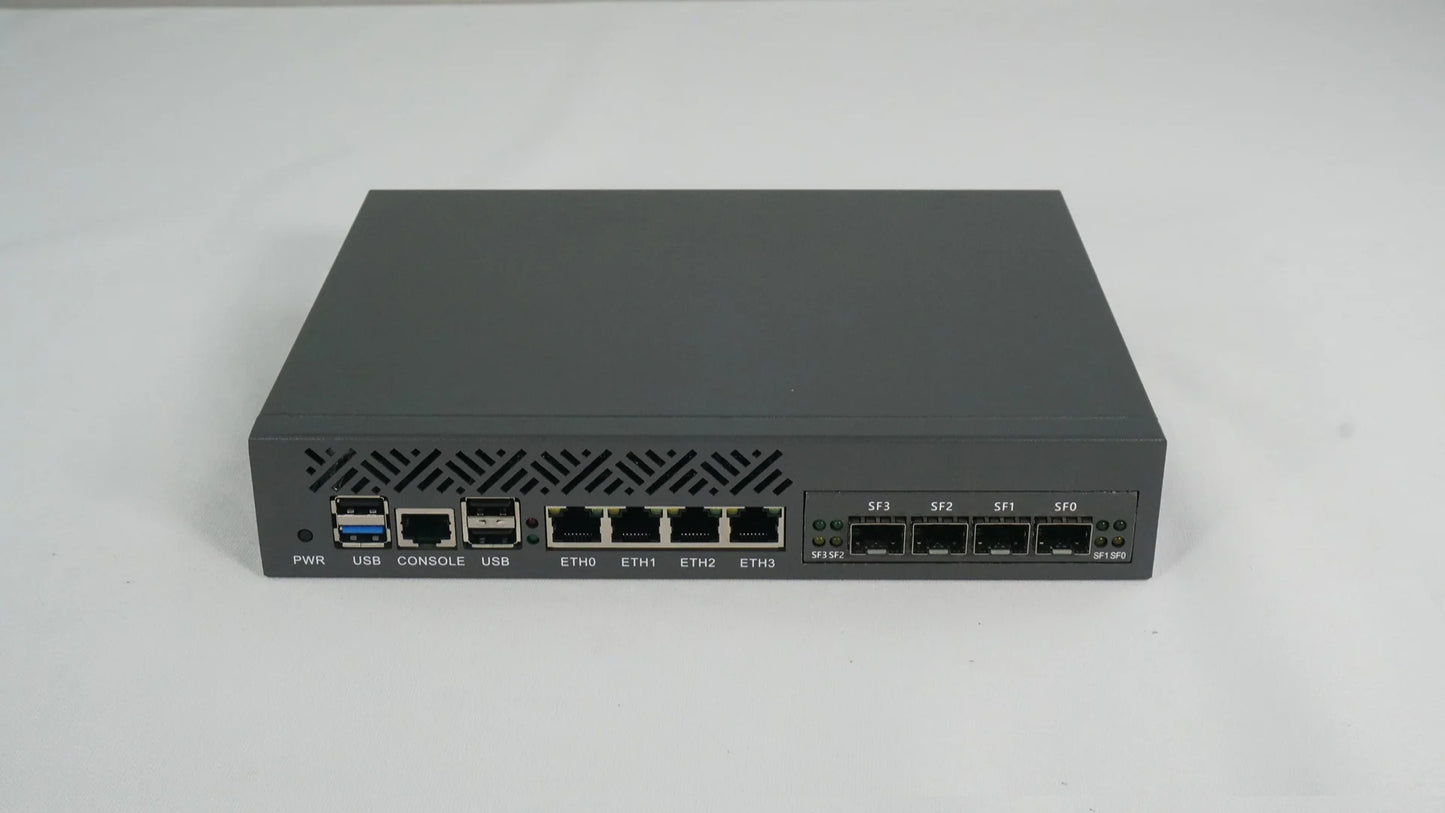

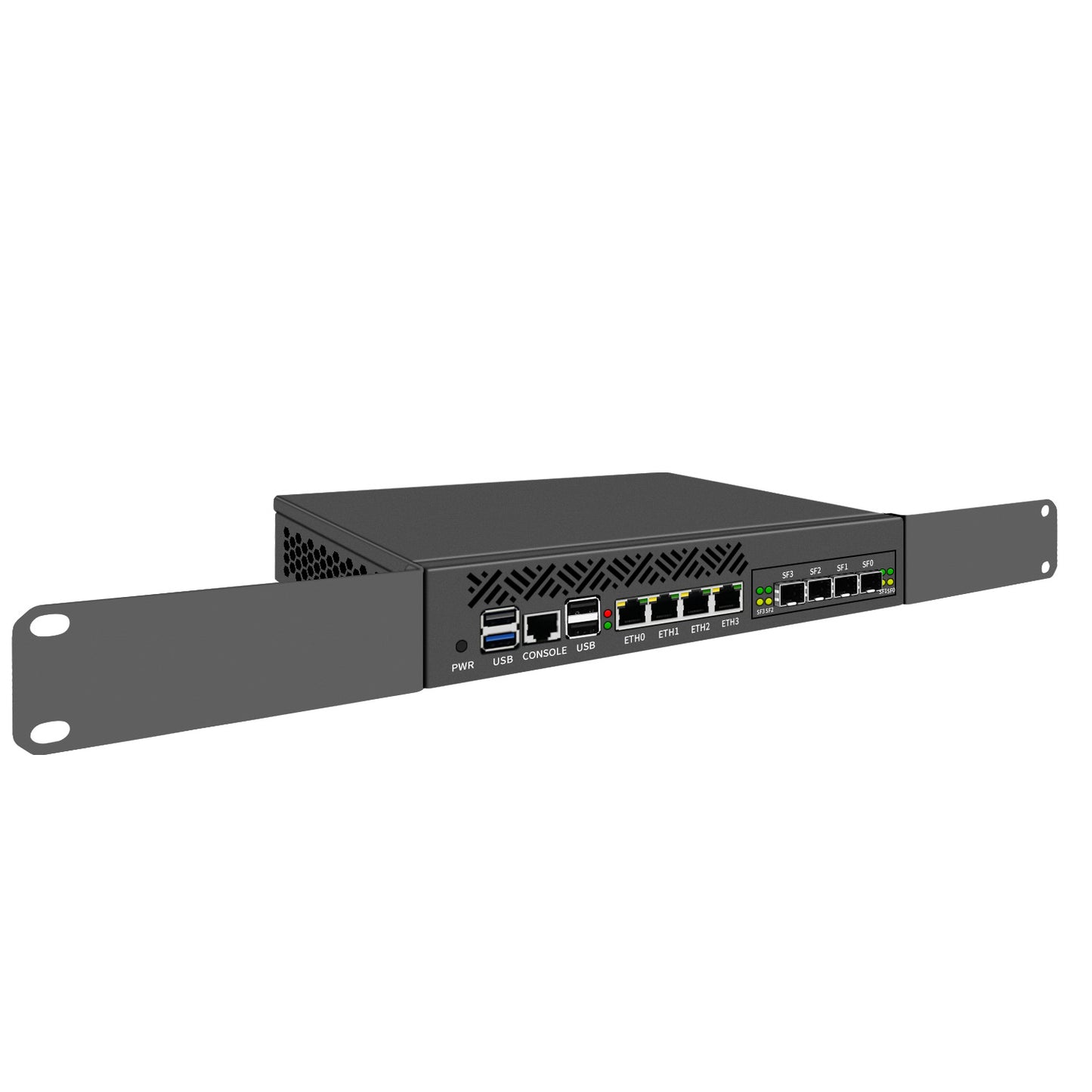

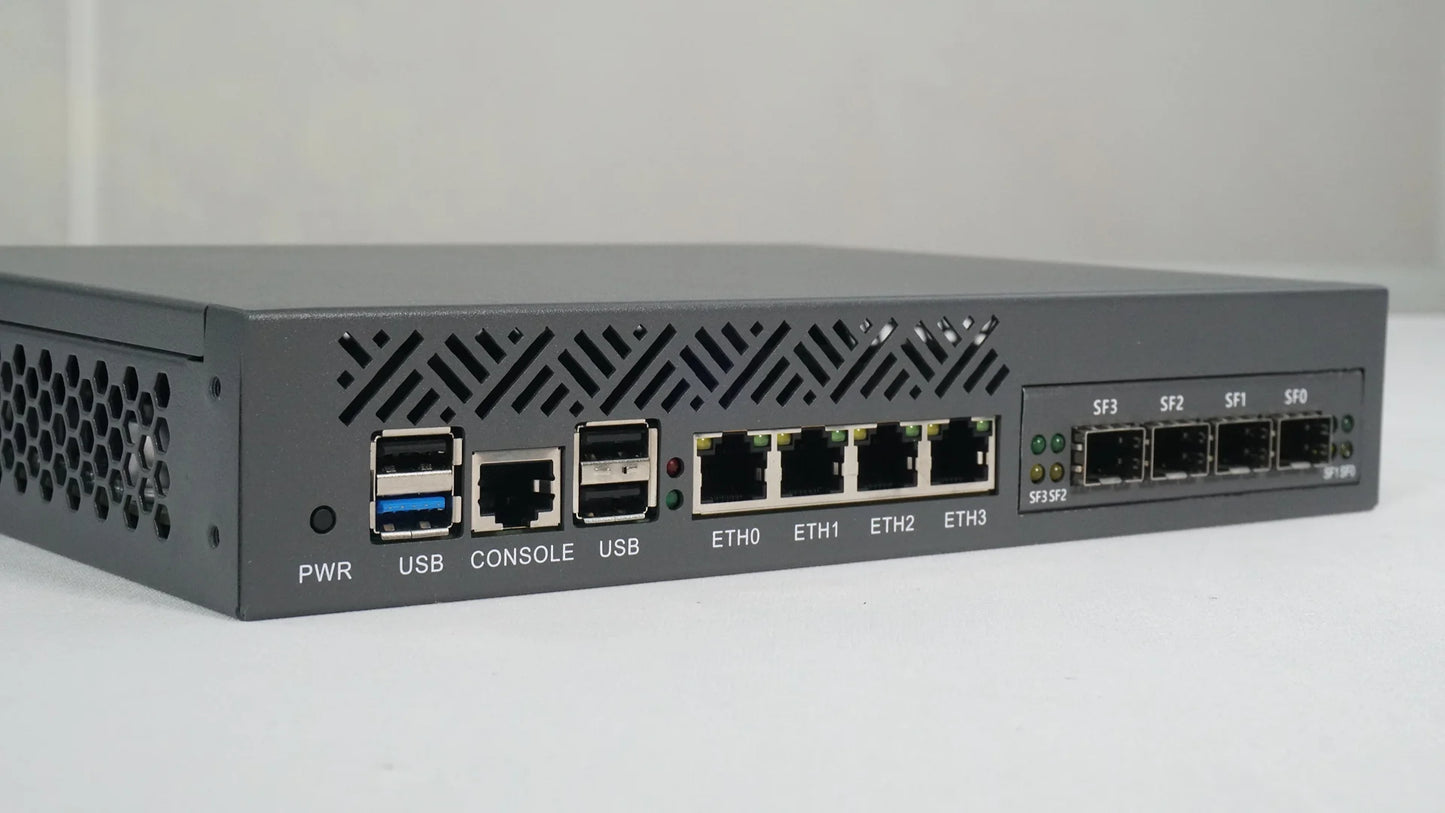

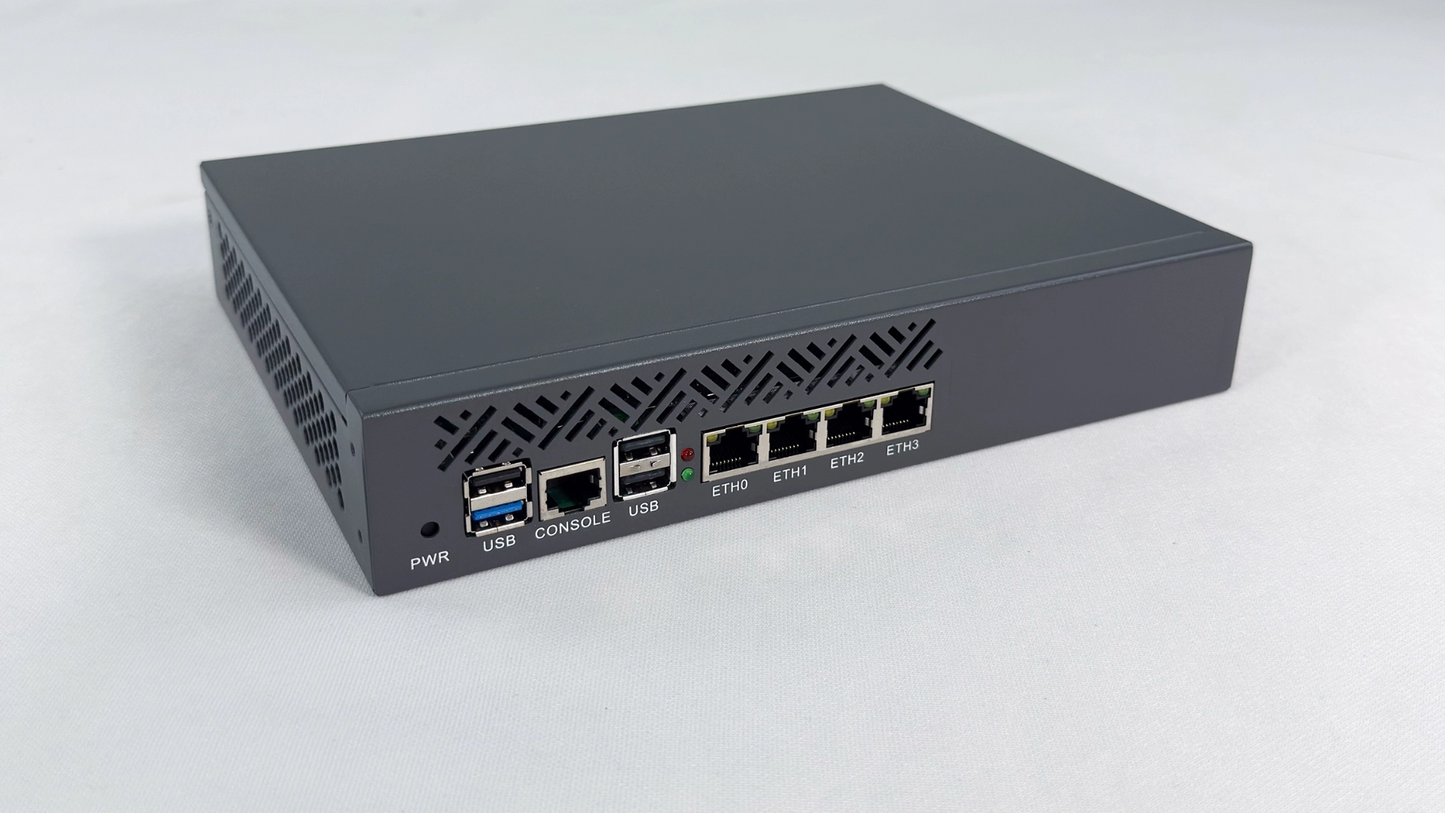

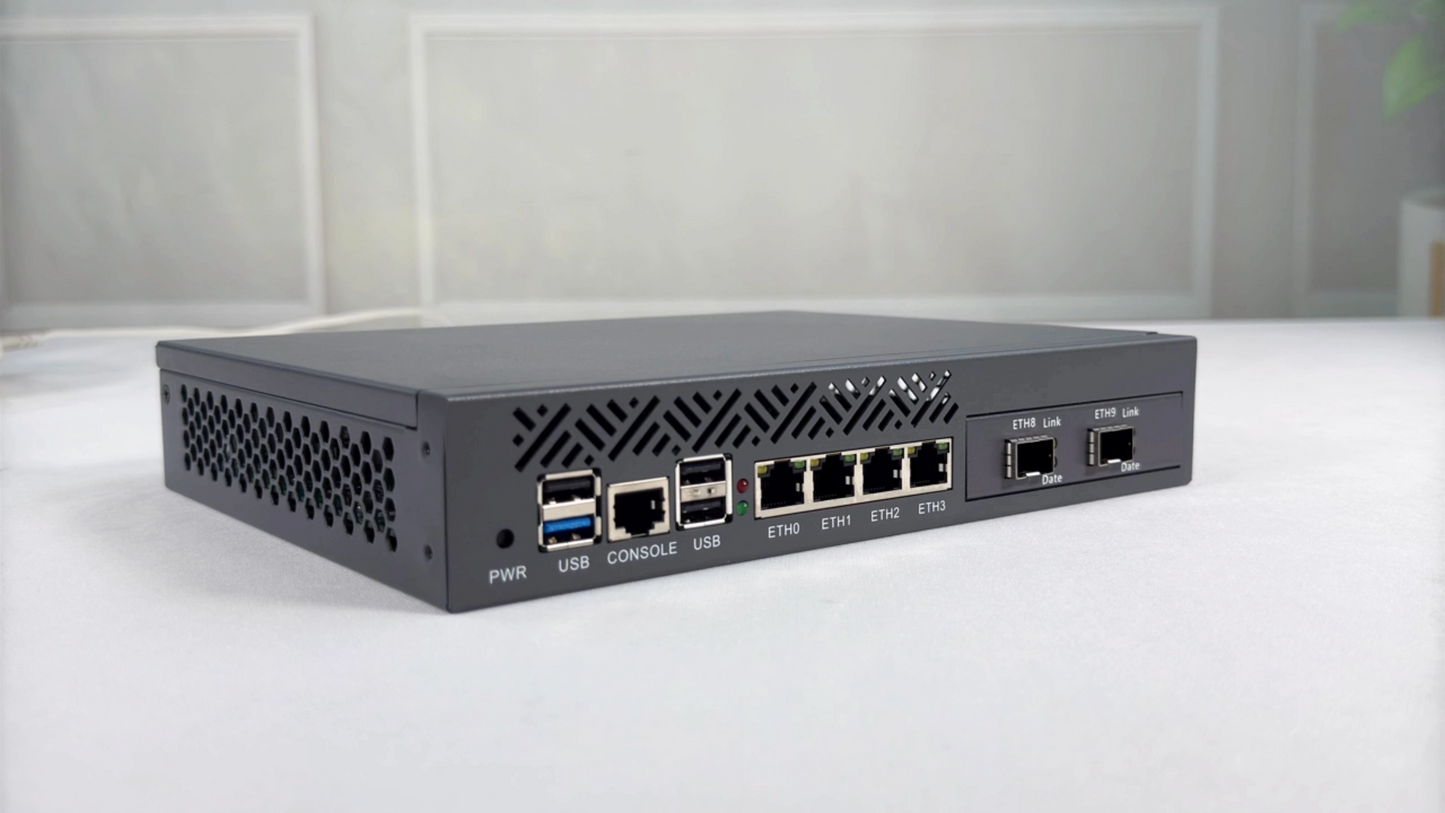

Front panel I/O: 4×RJ45 LAN, USB, RJ45 COM, and reserved expansion interface

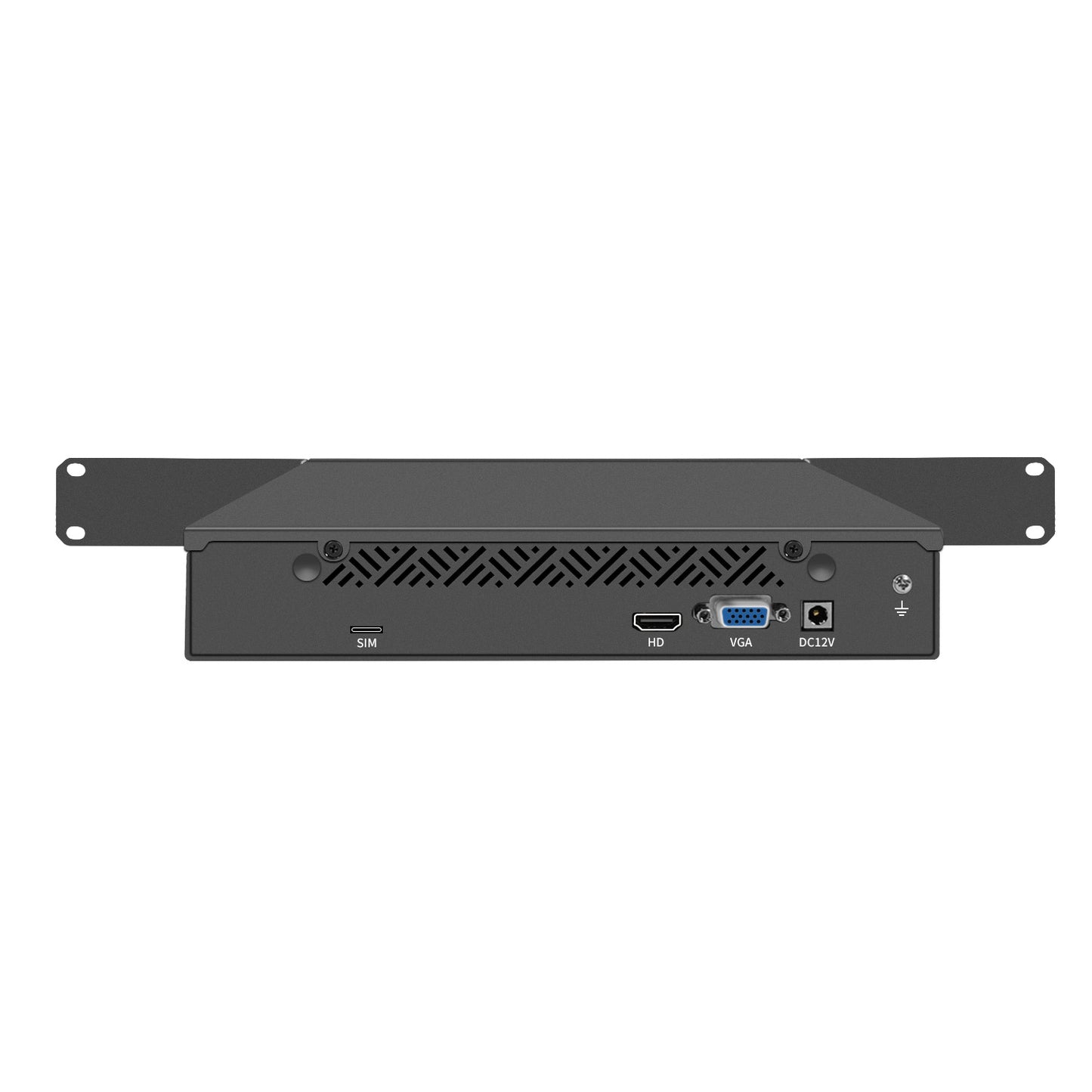

Display output: 1×HD and 1×VGA

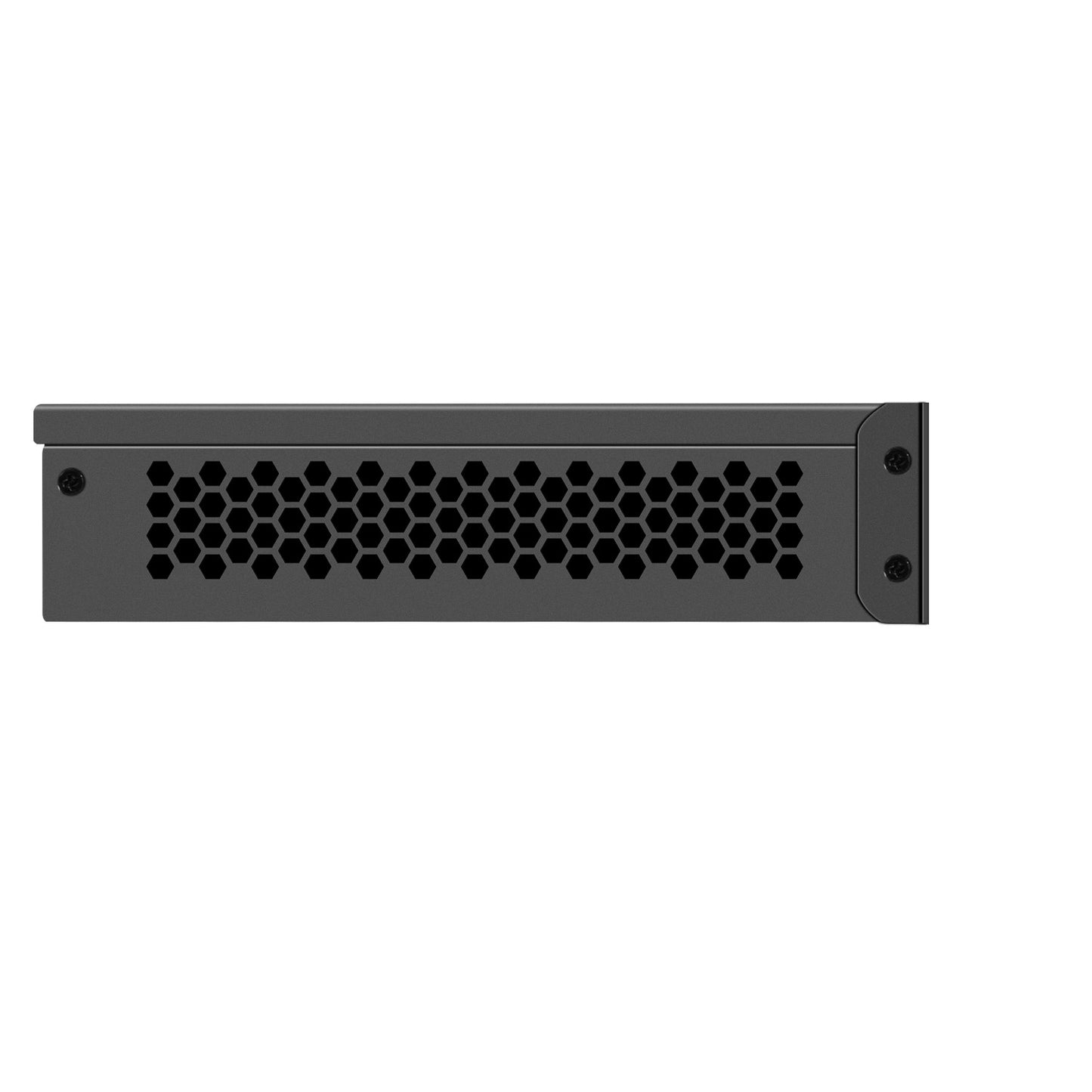

Active cooling design with 1×CPU fan
DC power input: 12V 7A or higher

Application Scenarios

Network security firewalls
Router and gateway systems
IoT gateways
Lightweight NAS applications
Edge computing platforms
Multimedia and surveillance systems
Development testing and embedded solutions
Small and medium-sized enterprise networks
Industrial environments and home office networks

Specifications

Model	OTS-1264N4L
Processor Platform	Intel® Processor N-Series
Socket	FCBGA1264
Memory	DDR5 SO-DIMM, up to 16GB, 4800 MT/s
Storage	1×M.2 Key-M 2280, PCIe Gen3 x1/SATA
Network	4×RJ45 LAN
USB	1×USB-A 3.0, 3×USB-A 2.0
Console	1×RJ45 COM

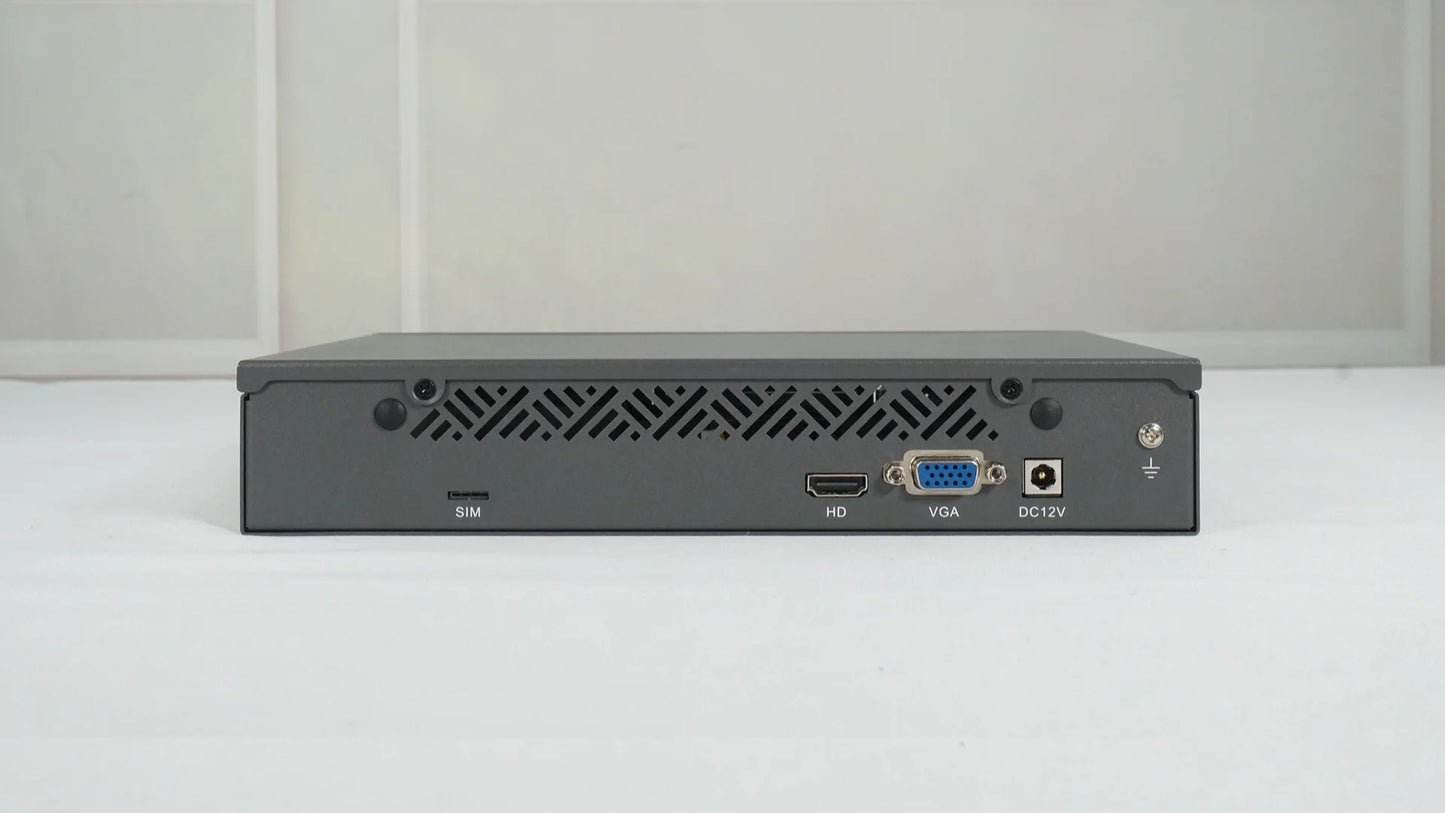

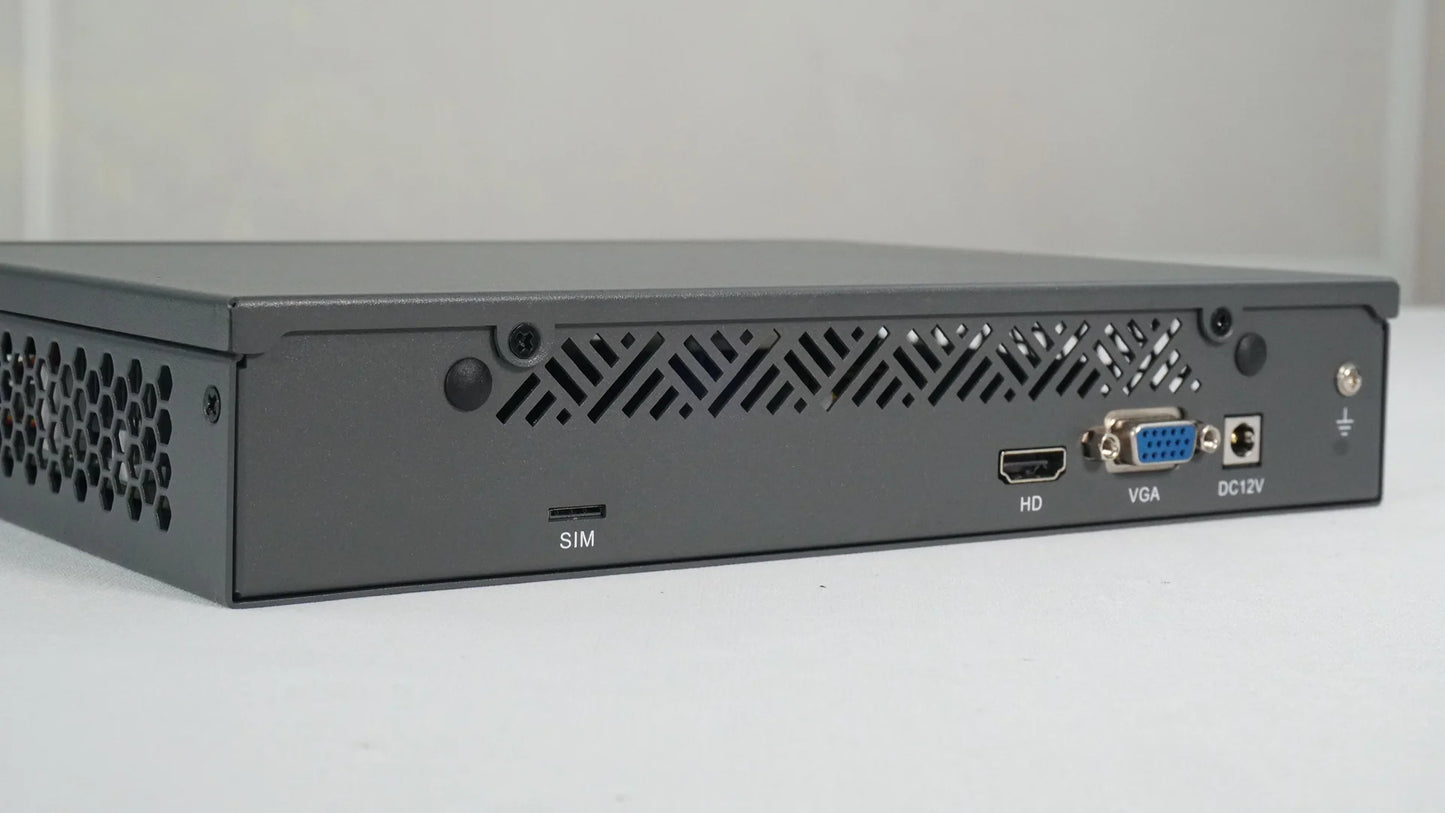

Display	1×HD, 1×VGA
SIM	1×SIM card slot
Expansion	1×PCIe x8 slot with x4 rate, 1×mPCIe slot with USB 2.0 signal
Cooling Method	Active cooling, 1×CPU fan
Chassis Size	240×185×43 mm
Weight	Equipment weight: 1.95 kg; package weight: 2.55 kg including accessories
Power Input	DC 12V 7A or higher
Operating Temperature	0~50°C
Humidity	5%~90% relative humidity, non-condensing

Download

Note: Product appearance and specifications may vary slightly by production batch. Please refer to the actual product received or contact us before ordering if you need to confirm a specific configuration.
